Variants
Article
- JAI-R1-JB16 GV
JORDAHL Elevator Insulation R1, JB M16 - JAI-R1-JC16 GV
JORDAHL Elevator Insulation R1, JC M16

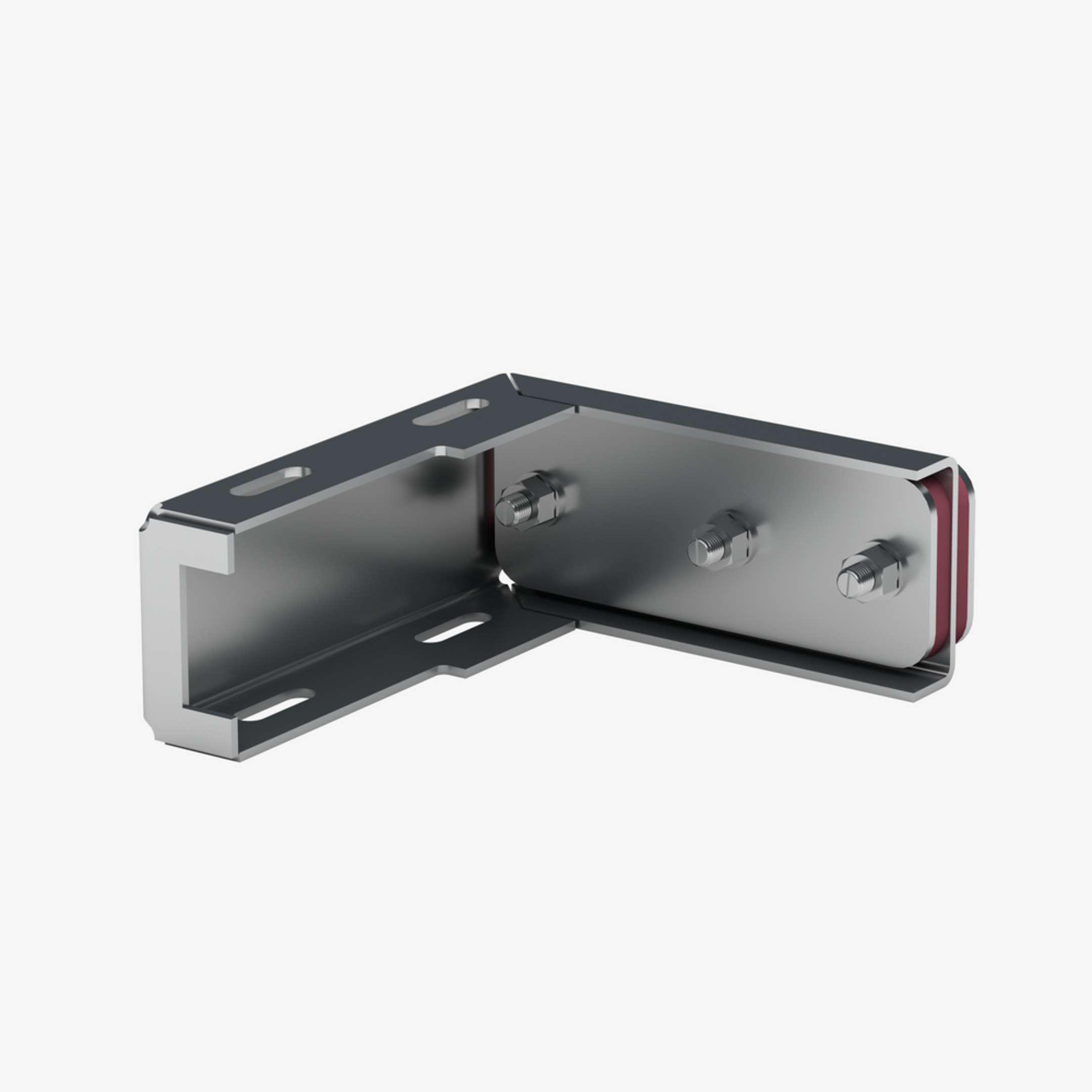

JAI-R
Elevator insulation
JAI-R elevator insulation is especially suitable for the acoustic decoupling of elevators that require a backpack suspension due to limited space. The sandwich construction, consisting of elastomer and steel plates, is based on the TÜV-certified standard type and is structurally designed for parallel guide rails. This type is also mainly fastened to anchor channel JTA W with the associated special bolts.
Videos
Tender texts
Downloads
en
de
en
de
en
de
en
de
Elevator Insulation JAI - Technical Information
Technical information for elevator insulation JAI-A, JAI-R and JAI-L
Installation Instruction Elevator Insulation JAI
Assembly Instructions
TÜV Voluntary Type Test JAI
Certificate
Price list 2026 Shell construction / facade
Valid from February 1st, 2026
BIM- und CAD-Data
Included accessories
