Art.-Nr. HF-EL 5
HF cable clamps for fastening to walls
The HF cable clamps HF-EL 5-6 can be used to route fibre-optic/high-frequency cables with a maximum diameter of 160 mm. They are suitable for mounting directly on the wall and are made of galvanised steel. Use HF-EE clamp inserts to accommodate various elliptical cables.

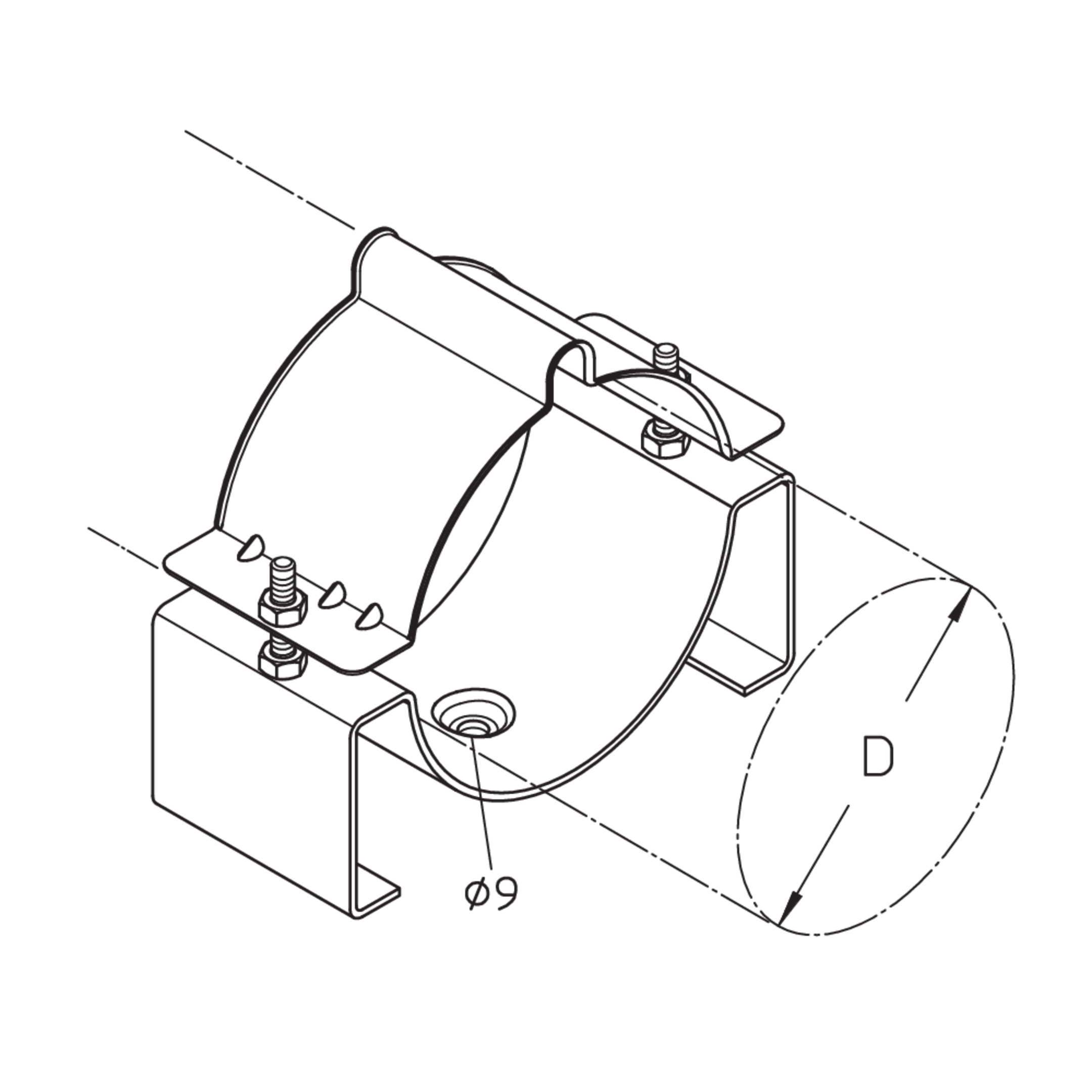

D
Diameter (mm)
cable type
Cable type
G
Weight per storage unit
de
en
Installation equipment for electric cables and circuits
de
DIN 4102-12
Standardised supporting structure: Cable clamps
Fire resistance duration: F30; F60; F90
Functional maintenance classes: E30; E60; F90
Fastening distance: ≤ 0.3 m; ≤ 0.4 m
Period of validity: 06.07.2027
