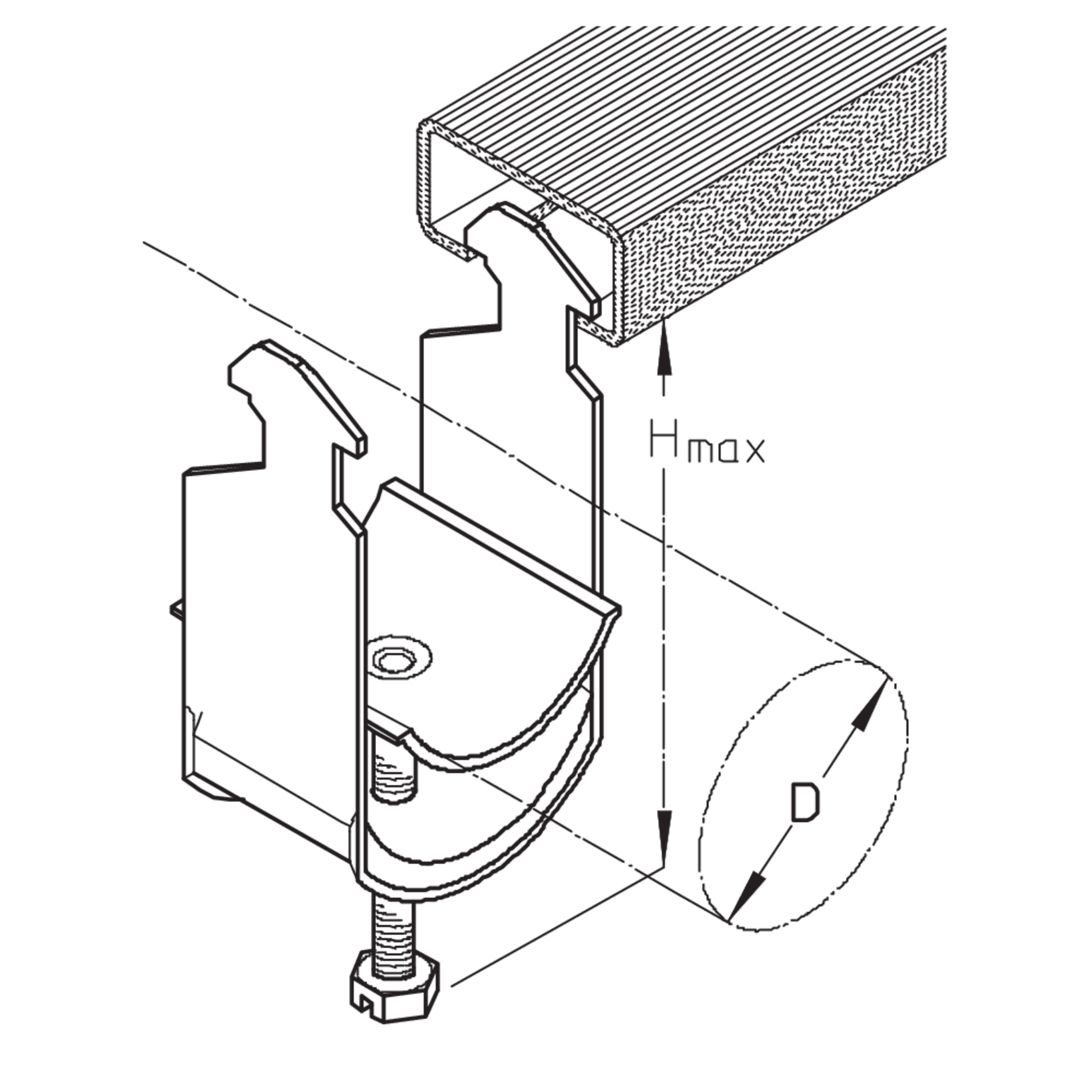

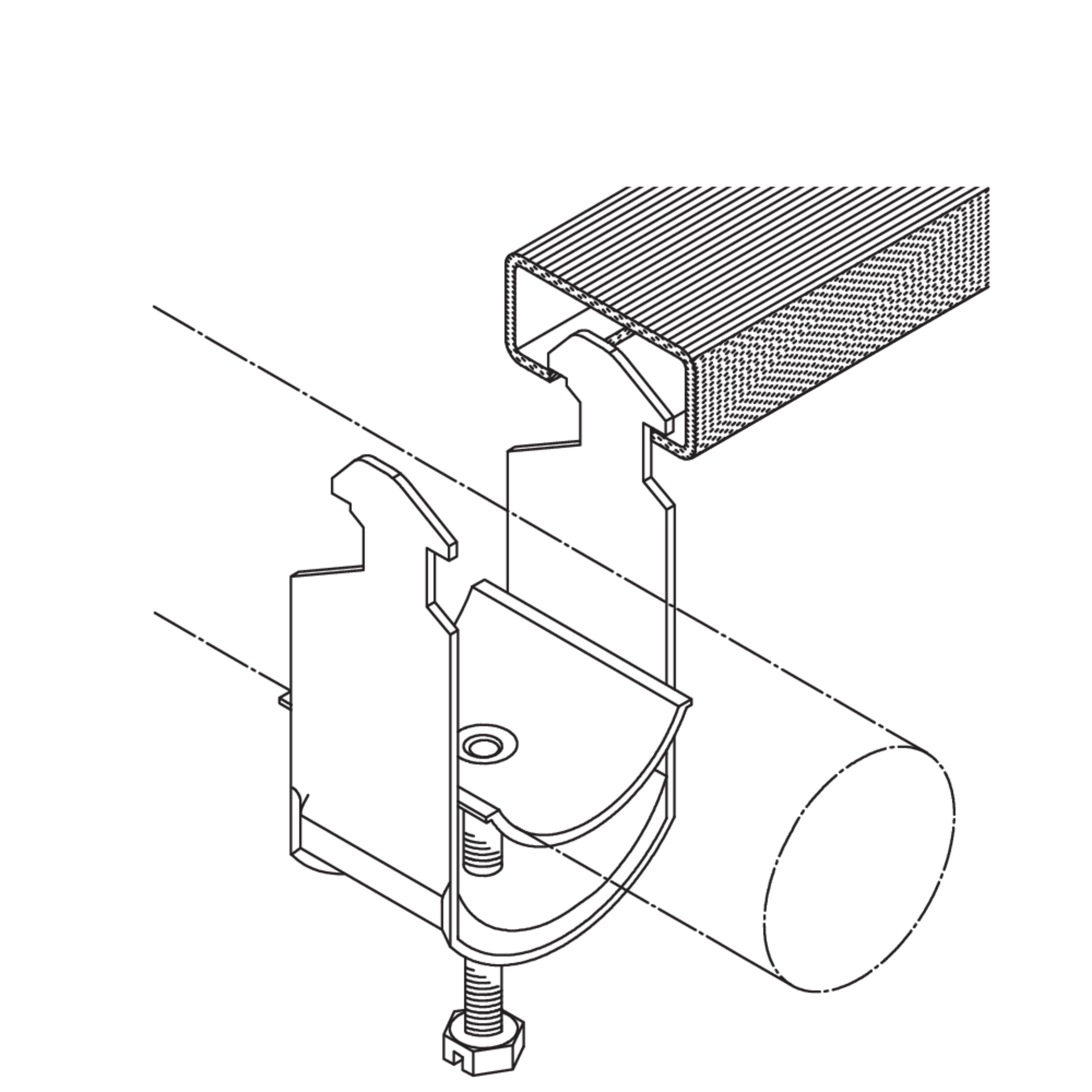

Cable clamp for fastening to C profile rails, maintenance of function

Variants

steel, zinc plated

12 H
Cable clamp 12 H
maximum height
41 mm
clamping range
8 - 12 mm
torque
2 Nm
max. number of cables
1
Weight per storage unit
0.028 kg
Mounting type
C-Profil
More information
16 H
Cable clamp 16 H
maximum height
46 mm
clamping range
12 - 16 mm
torque
2 Nm
max. number of cables
1
Weight per storage unit
0.032 kg
Mounting type
C-Profil
More information
20 H
Cable clamp 20 H
maximum height
50 mm
clamping range
16 - 20 mm
torque
2 Nm
max. number of cables
1
Weight per storage unit
0.036 kg
Mounting type
C-Profil
More information
24 H
Cable clamp 24 H
maximum height
54 mm
clamping range
20 - 24 mm
torque
2 Nm
max. number of cables
1
Weight per storage unit
0.039 kg
Mounting type
C-Profil
More information
28 H
Cable clamp 28 H
maximum height
58 mm
clamping range
24 - 28 mm
torque
2 Nm
max. number of cables
1
Weight per storage unit
0.044 kg
Mounting type
C-Profil
More information
32 H
Cable clamp 32 H
maximum height
63 mm
clamping range
28 - 32 mm
torque
2 Nm
max. number of cables
1
Weight per storage unit
0.053 kg
Mounting type
C-Profil
More information
36 H
Cable clamp 36 H
maximum height
67 mm
clamping range
32 - 36 mm
torque
2 Nm
max. number of cables
1
Weight per storage unit
0.057 kg
Mounting type
C-Profil
More information
40 H
Cable clamp 40 H
maximum height
71 mm
clamping range
36 - 40 mm
torque
2 Nm
max. number of cables
1
Weight per storage unit
0.062 kg
Mounting type
C-Profil
More information
44 H
Cable clamp 44 H
maximum height
81 mm
clamping range
40 - 44 mm
torque
4 Nm
max. number of cables
1
Weight per storage unit
0.086 kg
Mounting type
C-Profil
More information
48 H
Cable clamp 48 H
maximum height
85 mm
clamping range
44 - 48 mm
torque
4 Nm
max. number of cables
1
Weight per storage unit
0.095 kg
Mounting type
C-Profil
More information
52 H
Cable clamp 52 H
maximum height
90 mm
clamping range
48 - 52 mm
torque
4 Nm
max. number of cables
1
Weight per storage unit
0.105 kg
Mounting type
C-Profil
More information
56 H
Cable clamp 56 H
maximum height
94 mm
clamping range
52 - 56 mm
torque
4 Nm
max. number of cables
1
Weight per storage unit
0.109 kg
Mounting type
C-Profil
More information
60 H
Cable clamp 60 H
maximum height
98 mm
clamping range
56 - 60 mm
torque
4 Nm
max. number of cables
1
Weight per storage unit
0.146 kg
Mounting type
C-Profil
More information
64 H
Cable clamp 64 H
maximum height
102 mm
clamping range
60 - 64 mm
torque
4 Nm
max. number of cables
1
Weight per storage unit
0.154 kg
Mounting type
C-Profil
More information
70 H
Cable clamp 70 H
maximum height
109 mm
clamping range
64 - 70 mm
torque
4 Nm
max. number of cables
1
Weight per storage unit
0.170 kg
Mounting type
C-Profil
