Art.-Nr. GW 120

Counter bed GW 120

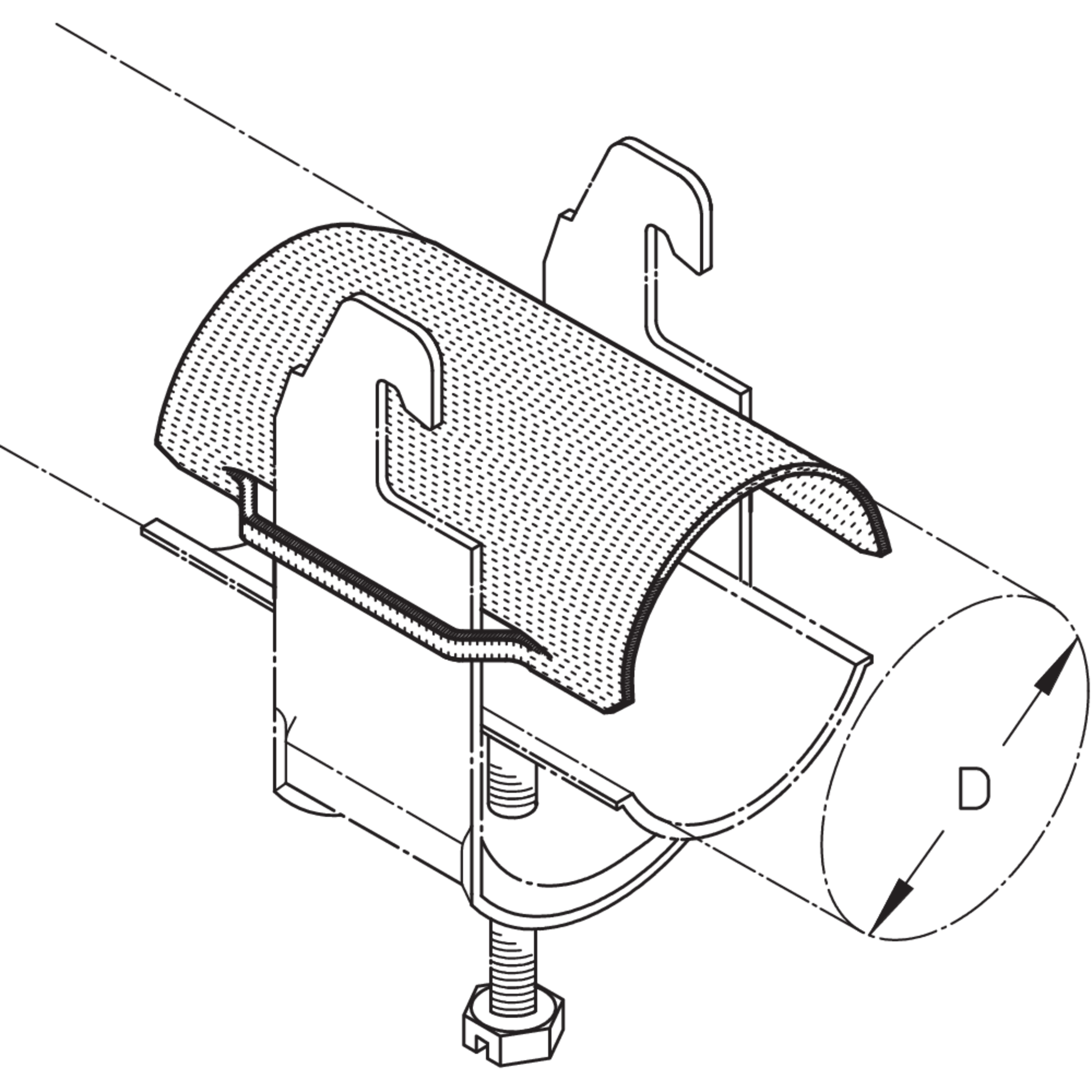

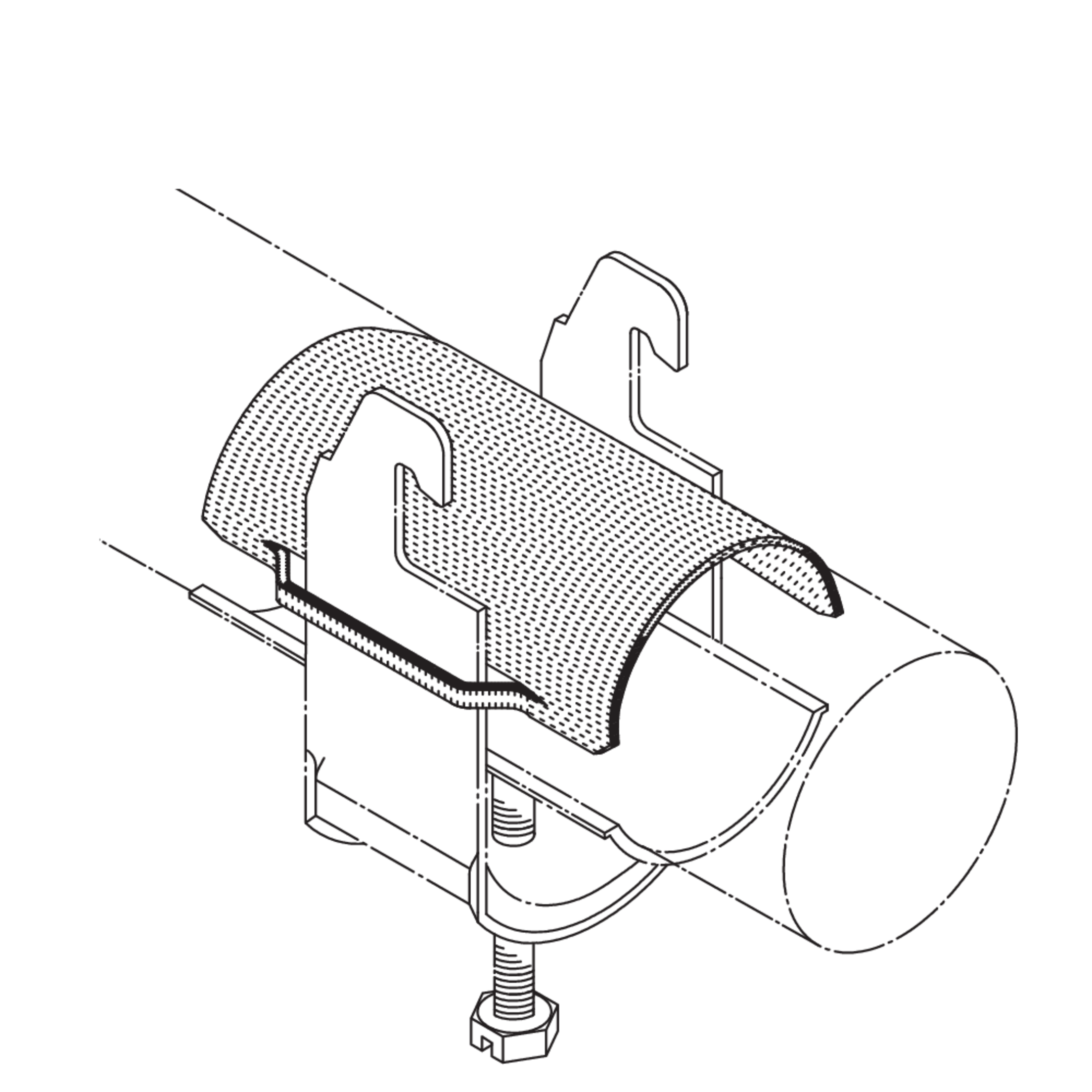

Counter trough, dia. 76-120 mm

The counter troughs GW 76-120 protect the cables and improve cable support on the profile. They are suitable for cables with a maximum diameter of 120 mm and are made of sendzimir hot-dip galvanised steel.

Art.-Nr.: GW 120

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

GW 76
Counter bed GW 76

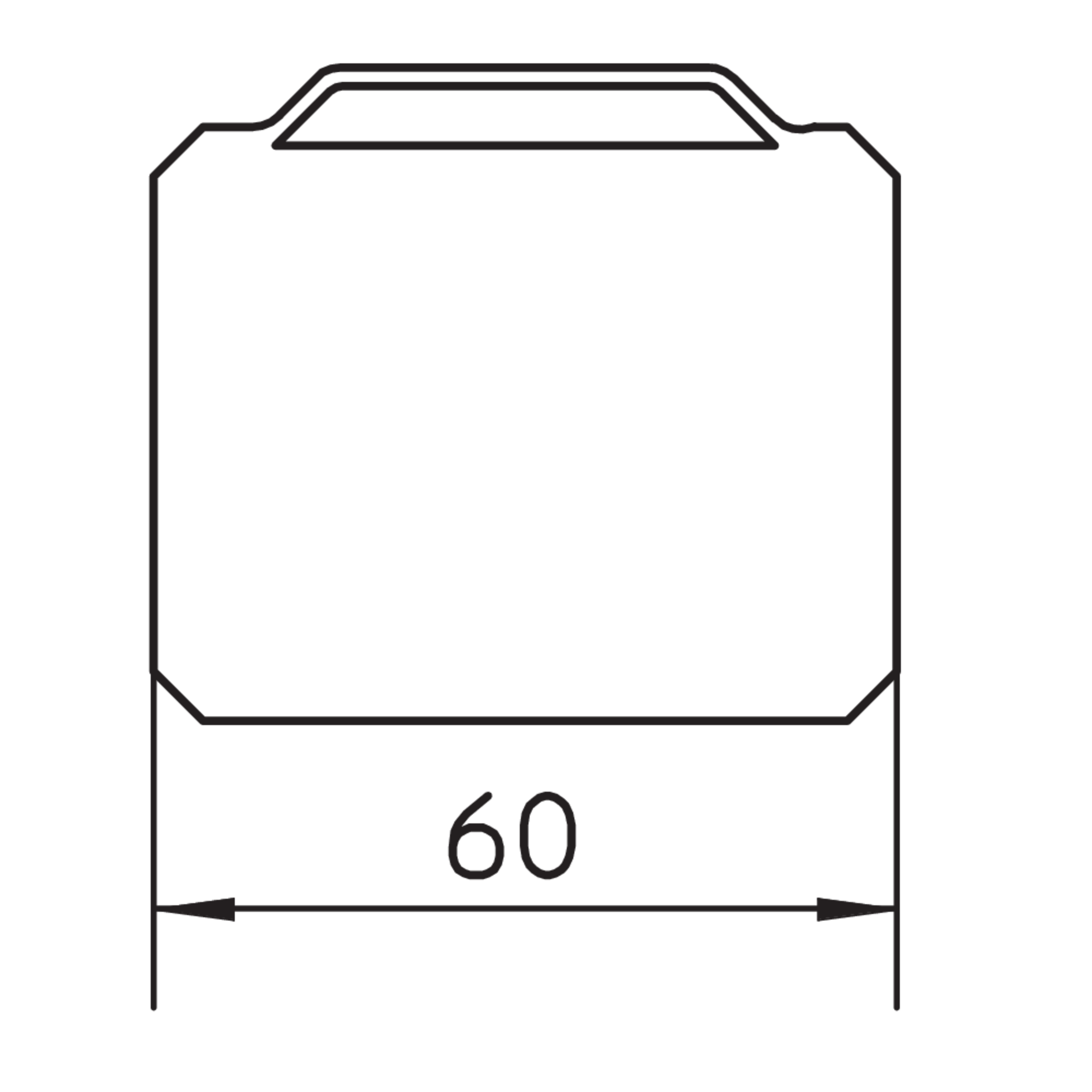

length
60 mm
Diameter (mm)
71 - 76 mm
Weight per storage unit
0.057 kg
More information
GW 82
Counter bed GW 82
length
60 mm
Diameter (mm)
77 - 82 mm
Weight per storage unit
0.061 kg
More information
GW 88
Counter bed GW 88
length
60 mm
Diameter (mm)
83 - 88 mm
Weight per storage unit
0.066 kg
More information
GW 94
Counter bed GW 94
length
60 mm
Diameter (mm)
89 - 94 mm
Weight per storage unit
0.070 kg
More information
GW 100
Counter bed GW 100
length
60 mm
Diameter (mm)
95 - 100 mm
Weight per storage unit
0.075 kg
More information
GW 110
Counter bed GW 110
length
60 mm
Diameter (mm)
101 - 110 mm
Weight per storage unit
0.082 kg
More information
GW 120
Counter bed GW 120
length
60 mm
Diameter (mm)
111 - 120 mm
Weight per storage unit
0.089 kg
More information
