Art.-Nr. 900000024991

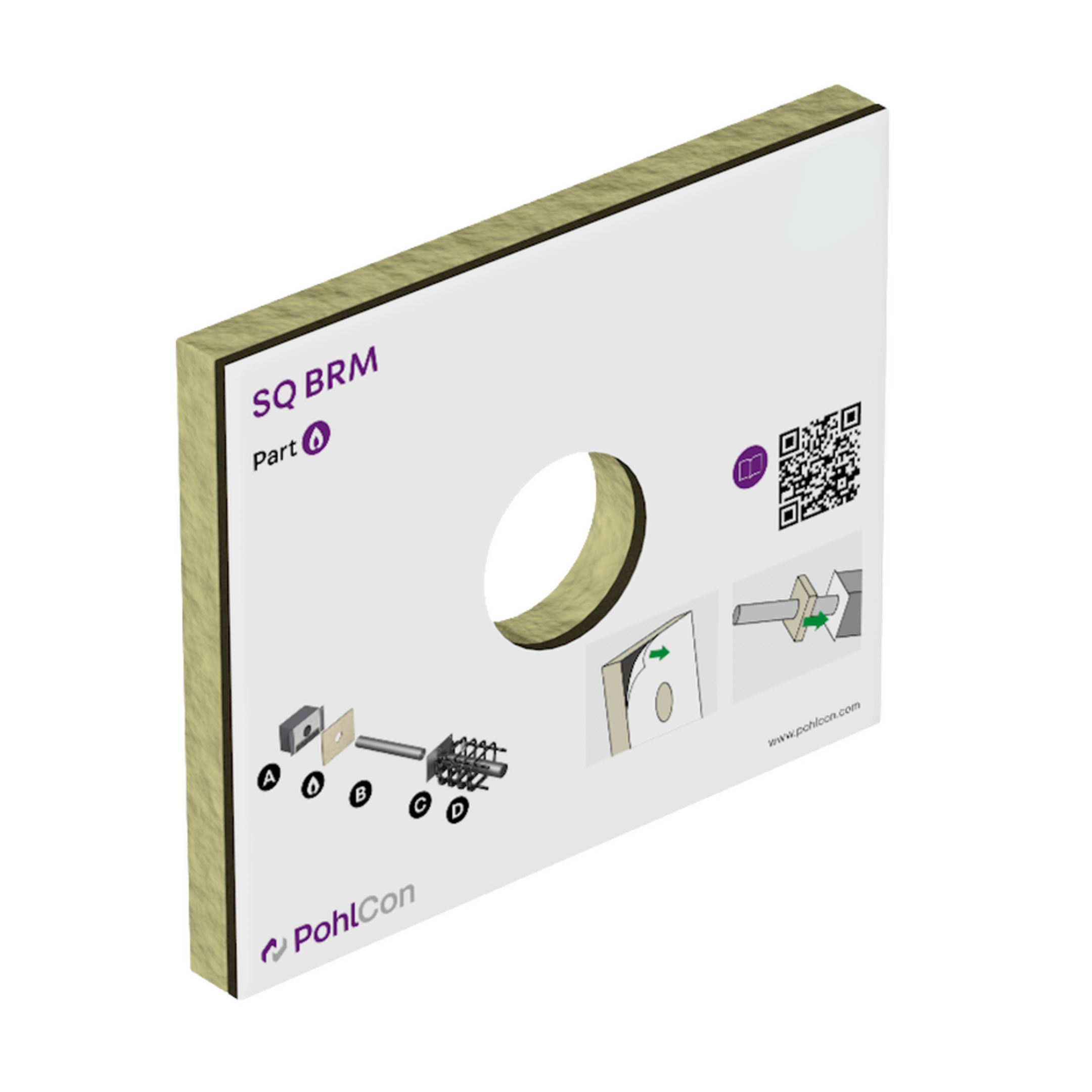

SQ-BRM1

Accessories for SINTON® Q

When using a fire protection collar in joint widths up to 60 mm, the SINTON® Q impact sound insulation element is classified in fire resistance class R 120 according to expert opinion BB-21-056-1. The selection of the respective SQ BRM fire protection collar depends on the joint width and must be ordered in addition to the SINTON® Q impact sound insulation element. The fire protection collar may be a maximum of 10 mm narrower than the joint width. Several fire protection collars can be combined to create wider joints that comply with fire protection regulations.

Art.-Nr.
900000024991
Dimension h x l
120 x 145 mm
thickness
3 mm
Joint width
bis 12 mm
Weight per storage unit
0.050 kg
Get in touchDownload datasheet

Variants

Article

Dimension h x l

d

thickness

Joint width

G

Weight per storage unit

  • 900000024991
    SQ-BRM1
    Dimension h x l
    120 x 145 mm
    thickness
    3 mm
    Joint width
    bis 12 mm
    Weight per storage unit
    0.050 kg
    More information
  • 900000024996
    SQ-BRM2
    Dimension h x l
    120 x 145 mm
    thickness
    13 mm
    Joint width
    13-22 mm
    Weight per storage unit
    0.092 kg
    More information
  • 900000024997
    SQ-BRM3
    Dimension h x l
    120 x 145 mm
    thickness
    23 mm
    Joint width
    23-32 mm
    Weight per storage unit
    0.133 kg
    More information
  • 900000024998
    SQ-BRM4
    Dimension h x l
    120 x 145 mm
    thickness
    33 mm
    Joint width
    33-42 mm
    Weight per storage unit
    0.174 kg
    More information
  • 900000024999
    SQ-BRM5
    Dimension h x l
    120 x 145 mm
    thickness
    43 mm
    Joint width
    43-53 mm
    Weight per storage unit
    0.215 kg
    More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    • de

    Expert Report Fire Protection SINTON® Q

    Fire safety assessment of the sound-insulating shear force dowel SINTON Q with regard to classification in fire resistance class F 120 or R 120

    PDF (996.79 KB)

    DownloadDownload
