DSAXPFR 2

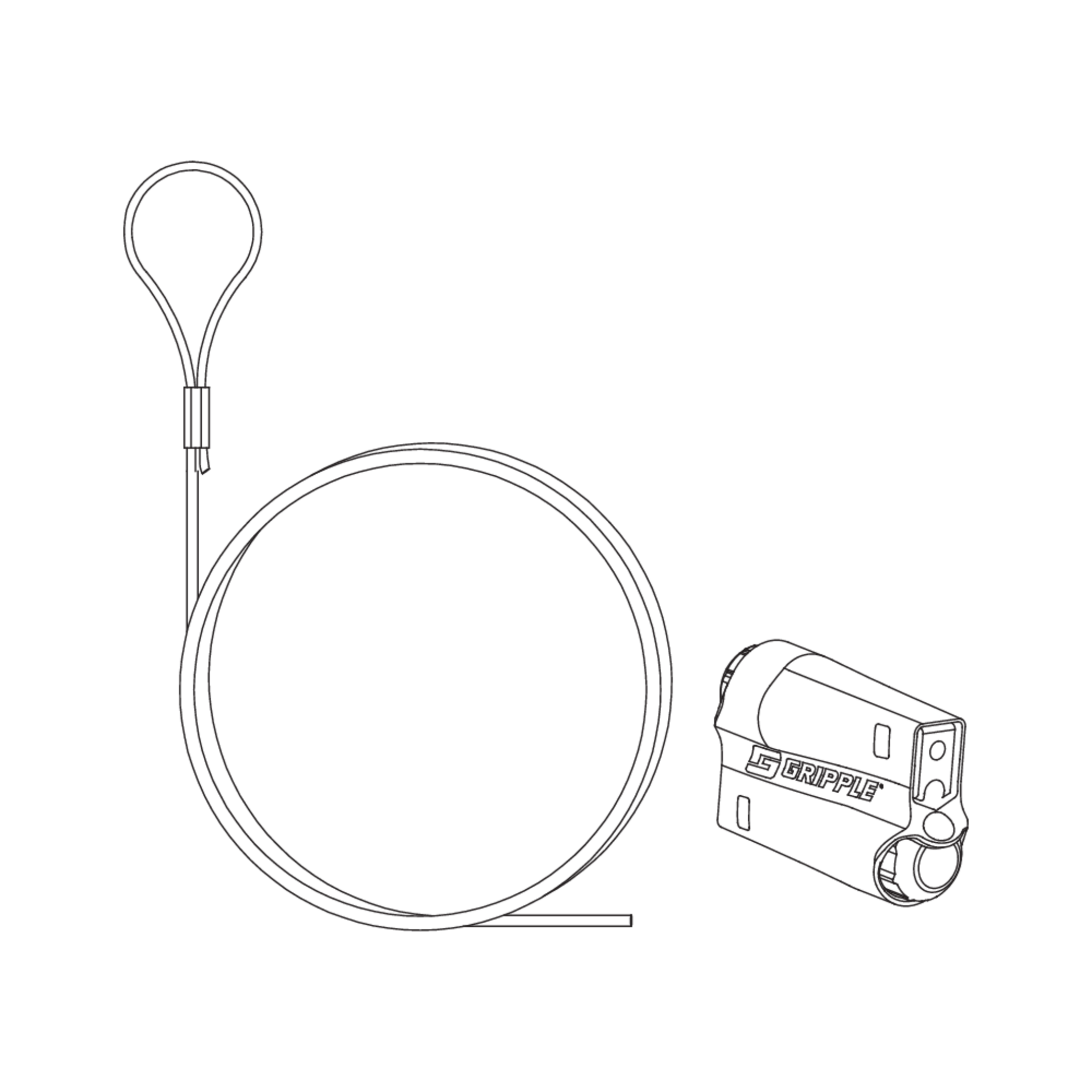

Wire suspension with loop and express closure

The wire suspension DSAXPFR 2 with loop and express closure is used for suspending cable trays and mesh cable trays from ceilings. It is made of galvanised steel and is available in lengths from 1000 to 10,000 mm. The maximum load is 0.44 kN (Gripple load class 2).

Get in touchDownload datasheet

Variants

steel, galvanic zinc plated

Article

L

length

Pmax

maximum load

G

Weight per storage unit

  • DSAXPFR 21GV
    Wire rope suspension
    length
    1000 mm
    maximum load
    0.44 kN
    Weight per storage unit
    0.049 kg
    More information
  • DSAXPFR 22GV
    Chain KNK
    length
    2000 mm
    maximum load
    0.44 kN
    Weight per storage unit
    0.064 kg
    More information
  • DSAXPFR 23GV
    Chain KNK
    length
    3000 mm
    maximum load
    0.44 kN
    Weight per storage unit
    0.080 kg
    More information
  • DSAXPFR 24GV
    Chain KNK
    length
    4000 mm
    maximum load
    0.44 kN
    Weight per storage unit
    0.095 kg
    More information
  • DSAXPFR 25GV
    Chain KNK
    length
    5000 mm
    maximum load
    0.44 kN
    Weight per storage unit
    0.116 kg
    More information
  • DSAXPFR 210GV
    Chain KNK
    length
    10000 mm
    maximum load
    0.44 kN
    Weight per storage unit
    0.208 kg
    More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

BIM- und CAD-Data

    BIM Data Cablele Support System Fastening Accessories (Revit)

    BIM Data

    ZIP, 39.32 MB

    DownloadDownload
