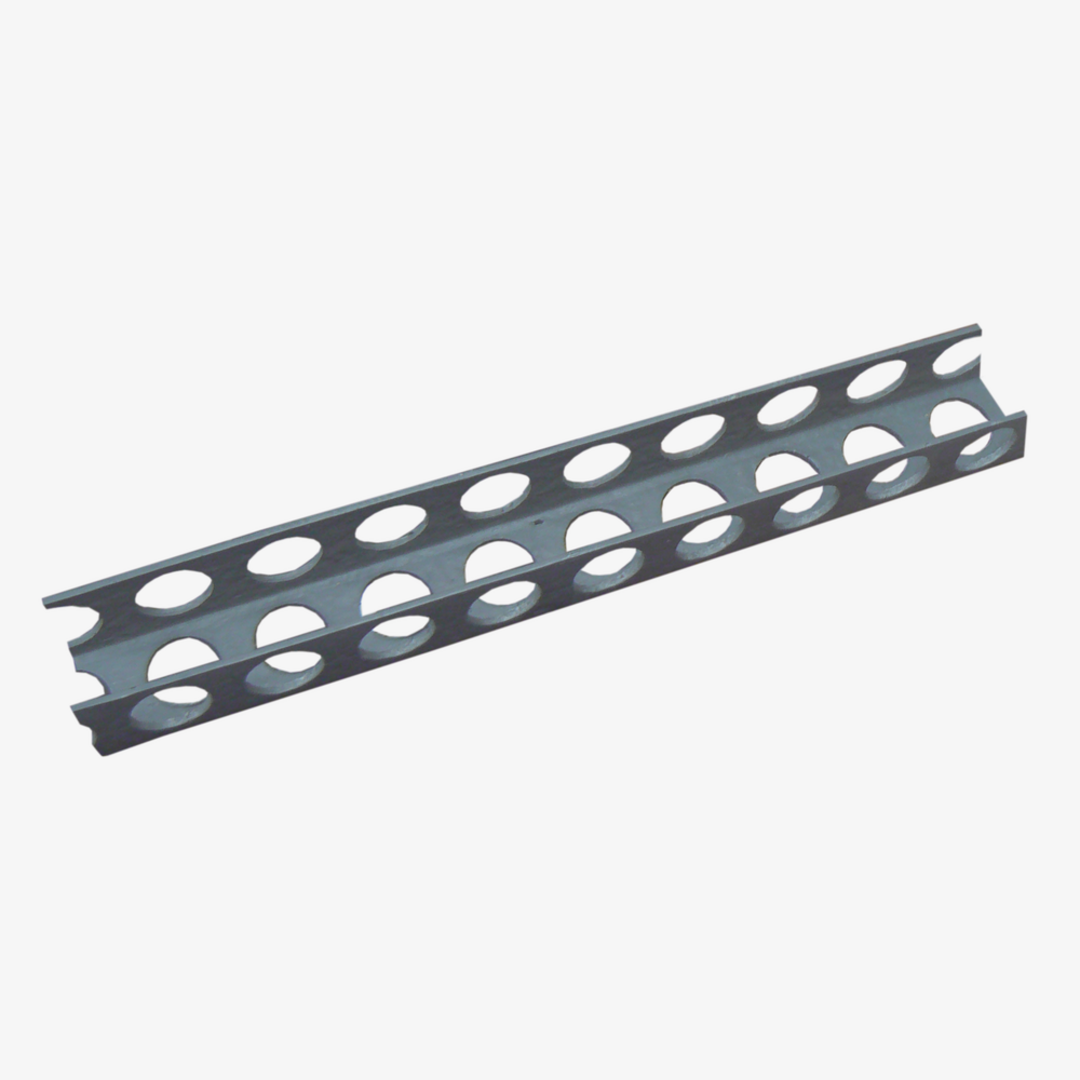

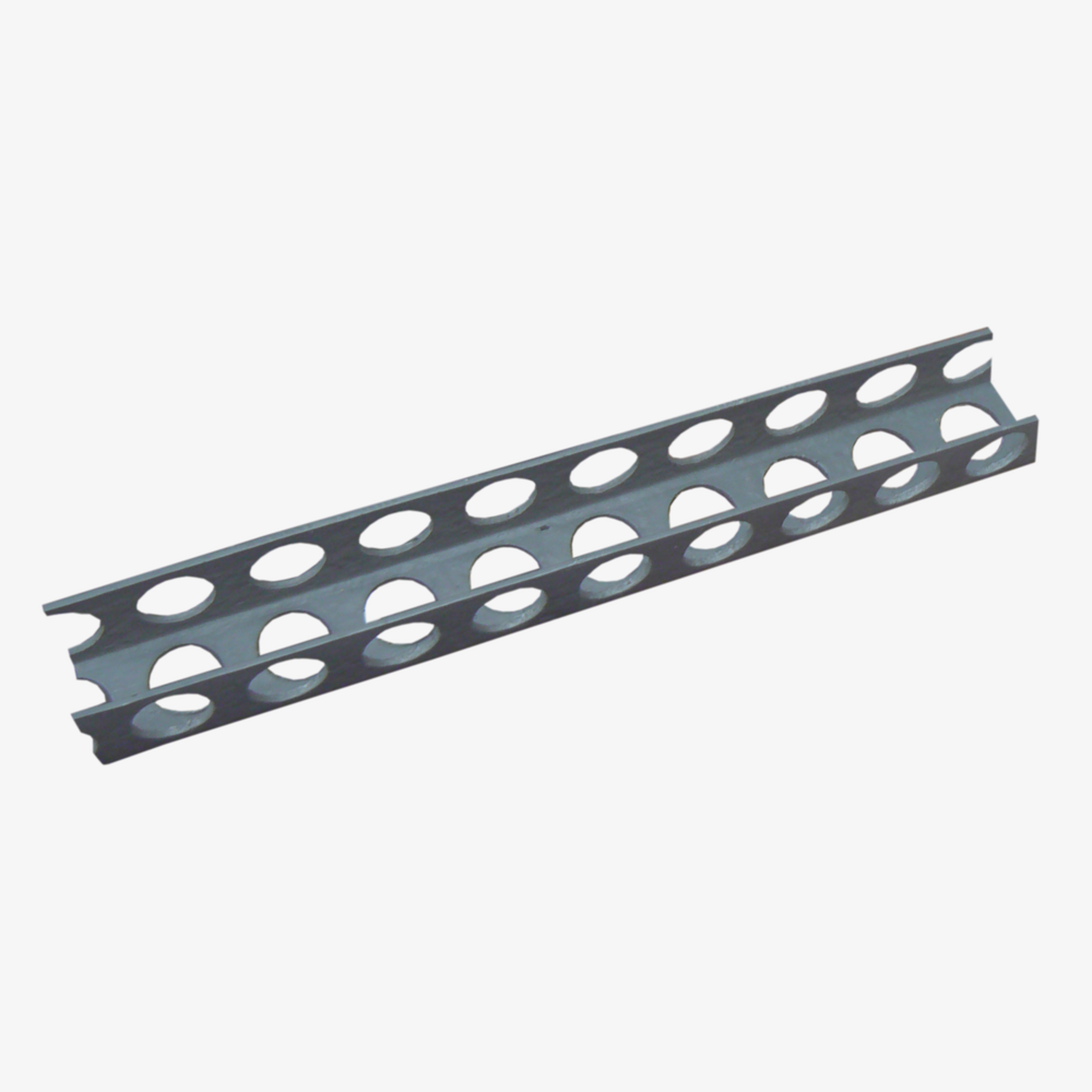

Drunterfix without cutout

Spacers for large reinforcement layers

Drunterfix without cutout linear surface spacers are used on horizontal reinforcements and are especially suitable for use on soft substrates such as insulation boards. The spacers are made of high-quality plastic, are approx. 2000 mm long and require a concrete cover of 15 to 50 mm.

Get in touchDownload datasheet

Variants

Article

G

Gewicht je Lagermengeneinheit

  • 630700005257
    Drunterfix o A 15
    Gewicht je Lagermengeneinheit
    0.145 kg
    More information
  • 630700005258
    Drunterfix o A 20
    Gewicht je Lagermengeneinheit
    0.166 kg
    More information
  • 630700005259
    Drunterfix o A 25 / 4200
    Gewicht je Lagermengeneinheit
    0.190 kg
    More information
  • 630700005260
    Drunterfix o A 30 / 3600
    Gewicht je Lagermengeneinheit
    0.203 kg
    More information
  • 630700005261
    Drunterfix o A 35 / 2880
    Gewicht je Lagermengeneinheit
    0.270 kg
    More information
  • 630700005262
    Drunterfix o A 40 / 2400
    Gewicht je Lagermengeneinheit
    0.320 kg
    More information
  • 630700005263
    Drunterfix o A 50 / 1680
    Gewicht je Lagermengeneinheit
    0.340 kg
    More information
