DKSL-BS

Ceiling brackets, light, maintenance of function

Fire protection
Get in touchDownload datasheet

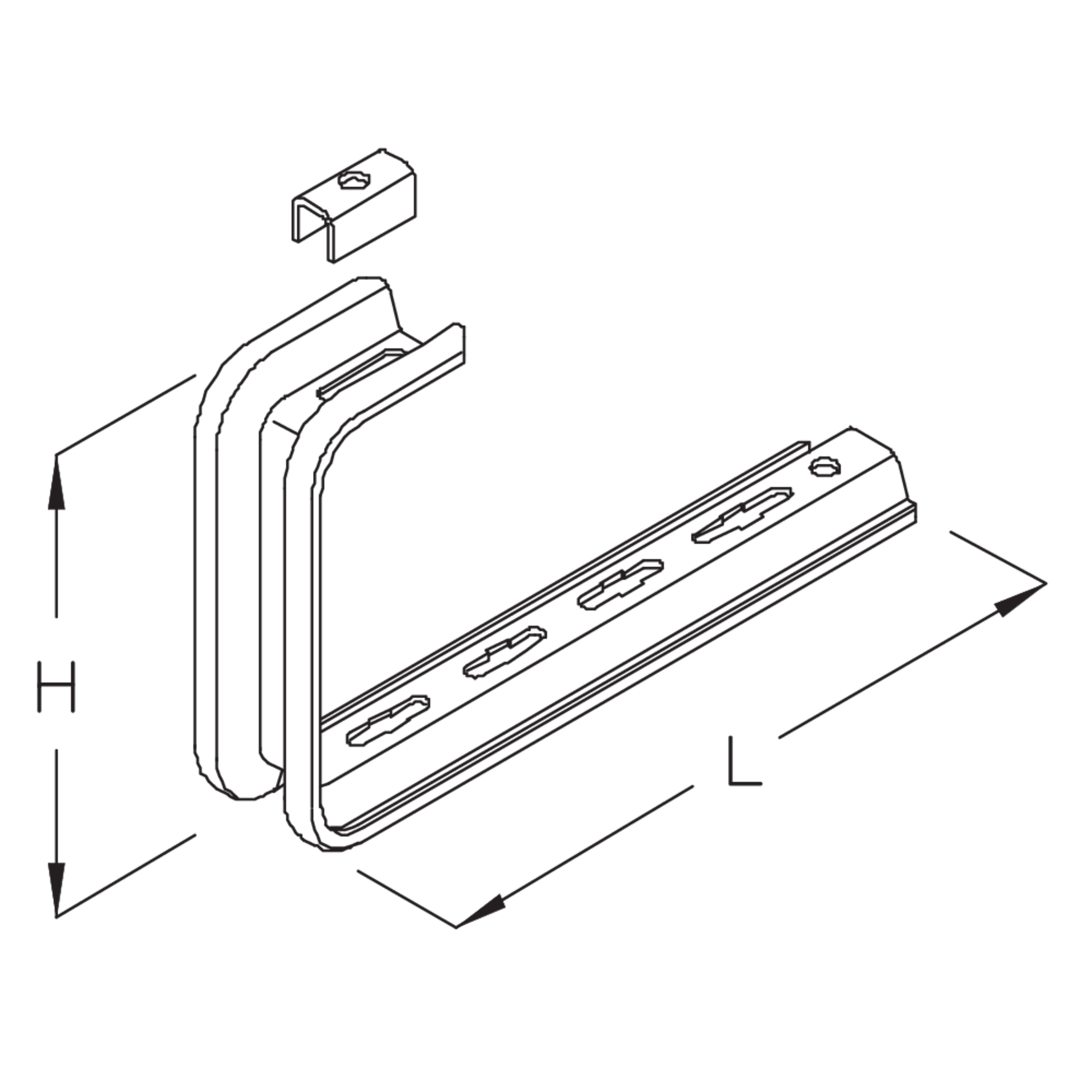

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

B1

width 1

B2

width 2

L

length

MG

thread size (metric)

G

Weight per storage unit

  • DKSL-BS 010S
    Bracket, fire prevention DKSL-BS 010S
    height
    170 mm
    width
    60 mm
    width 1
    100 mm
    width 2
    130 mm
    length
    150 mm
    thread size (metric)
    -
    Weight per storage unit
    0.690 kg
    More information
  • DKSL-BS 020S
    Bracket, fire prevention DKSL-BS 020S
    height
    170 mm
    width
    60 mm
    width 1
    200 mm
    width 2
    230 mm
    length
    250 mm
    thread size (metric)
    -
    Weight per storage unit
    0.780 kg
    More information
  • DKSL-BS 030S
    Bracket, fire prevention DKSL-BS 030S
    height
    170 mm
    width
    60 mm
    width 1
    300 mm
    width 2
    330 mm
    length
    350 mm
    thread size (metric)
    -
    Weight per storage unit
    0.960 kg
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

B1

width 1

B2

width 2

L

length

MG

thread size (metric)

G

Weight per storage unit

  • DKSL-BS 010F
    Bracket, fire prevention DKSL-BS 010F
    height
    170 mm
    width
    60 mm
    width 1
    100 mm
    width 2
    130 mm
    length
    150 mm
    thread size (metric)
    -
    Weight per storage unit
    0.740 kg
    More information
  • DKSL-BS 020F
    Bracket, fire prevention DKSL-BS 020F
    height
    170 mm
    width
    60 mm
    width 1
    200 mm
    width 2
    230 mm
    length
    250 mm
    thread size (metric)
    -
    Weight per storage unit
    0.830 kg
    More information
  • DKSL-BS 030F
    Bracket, fire prevention DKSL-BS 030F
    height
    170 mm
    width
    60 mm
    width 1
    300 mm
    width 2
    330 mm
    length
    350 mm
    thread size (metric)
    -
    Weight per storage unit
    1.020 kg
    More information

Details

  • Fire protection

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

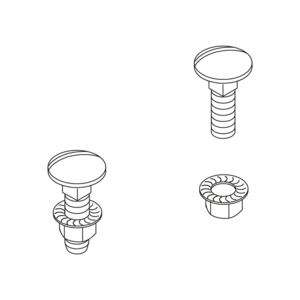

Included accessories
