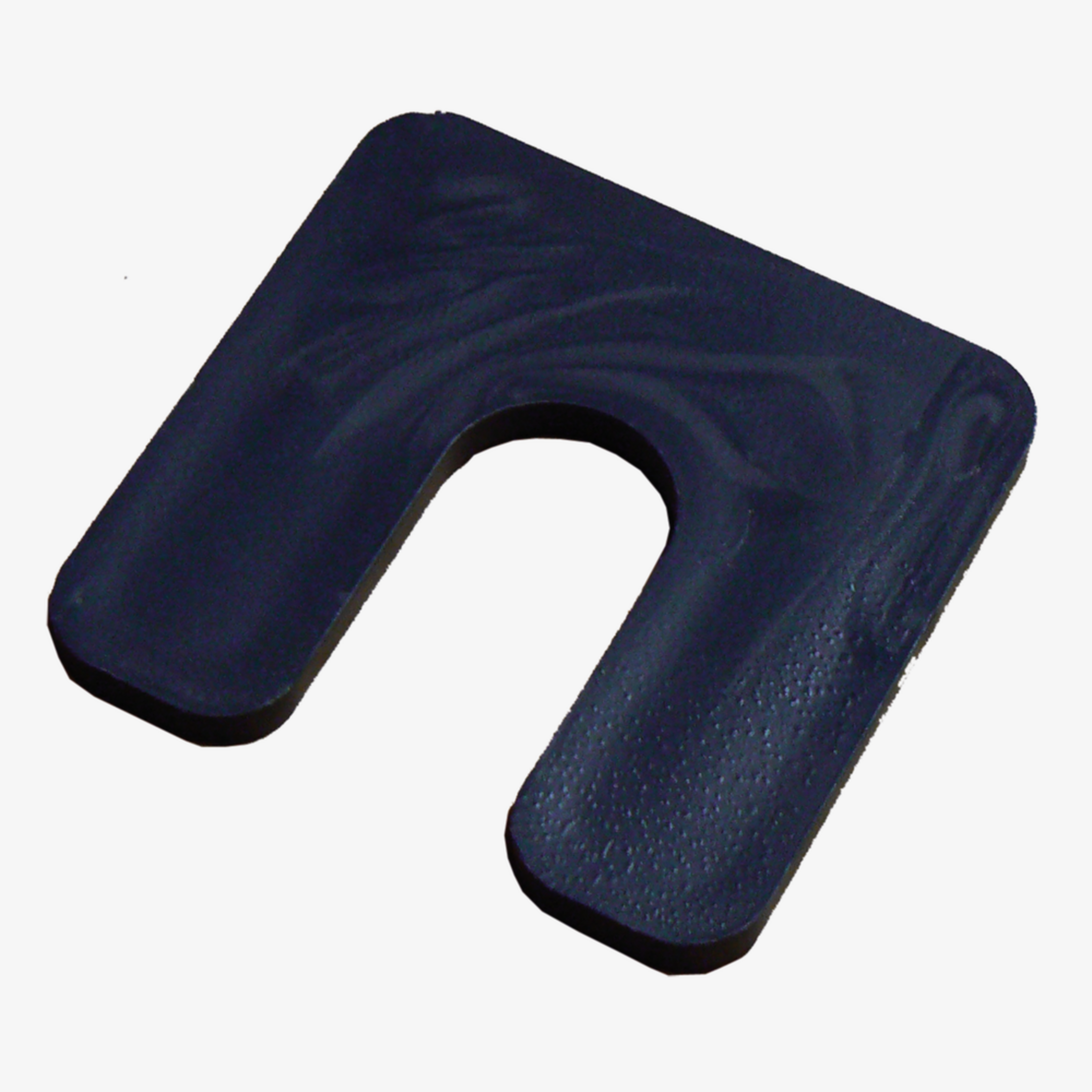

Base Plates Type S

Support plate with slot, mounting aid

Pressure-resistant Base Plates Type S with slots are used as assembly aids for aligning and erecting e.g. precast concrete elements. They are suitable for use between protruding reinforcing bars. They are 70 mm across, 2 to 30 mm thick and have slots 22 mm wide.

Get in touch Download datasheet

Variants

Article

G

Gewicht je Lagermengeneinheit
  • 730200005416
    Unterlagsplatten S 10
    Gewicht je Lagermengeneinheit
    0.038 kg
    More information
  • 730200005417
    Unterlagsplatten S 15
    Gewicht je Lagermengeneinheit
    0.057 kg
    More information
  • 730200005418
    Unterlagsplatten S 02
    Gewicht je Lagermengeneinheit
    0.008 kg
    More information
  • 730200005419
    Unterlagsplatten S 20
    Gewicht je Lagermengeneinheit
    0.076 kg
    More information
  • 730200005420
    Unterlagsplatten S 25
    Gewicht je Lagermengeneinheit
    0.096 kg
    More information
  • 730200005421
    Unterlagsplatten S 03
    Gewicht je Lagermengeneinheit
    0.011 kg
    More information
  • 730200005422
    Unterlagsplatten S 30
    Gewicht je Lagermengeneinheit
    0.110 kg
    More information
  • 730200005423
    Unterlagsplatten S 04
    Gewicht je Lagermengeneinheit
    0.015 kg
    More information
  • 730200005424
    Unterlagsplatten S 05
    Gewicht je Lagermengeneinheit
    0.018 kg
    More information
  • 730200005425
    Unterlagsplatten S 06
    Gewicht je Lagermengeneinheit
    0.023 kg
    More information
  • 730200005426
    Unterlagsplatten S 07
    Gewicht je Lagermengeneinheit
    0.027 kg
    More information
  • 730200005427
    Unterlagsplatten S 08
    Gewicht je Lagermengeneinheit
    0.030 kg
    More information
  • 730200005428
    Unterlagsplatten S 09
    Gewicht je Lagermengeneinheit
    0.034 kg
    More information
