Art.-Nr. AVSKH F

beam clamp

Beam clamp for mounting channels

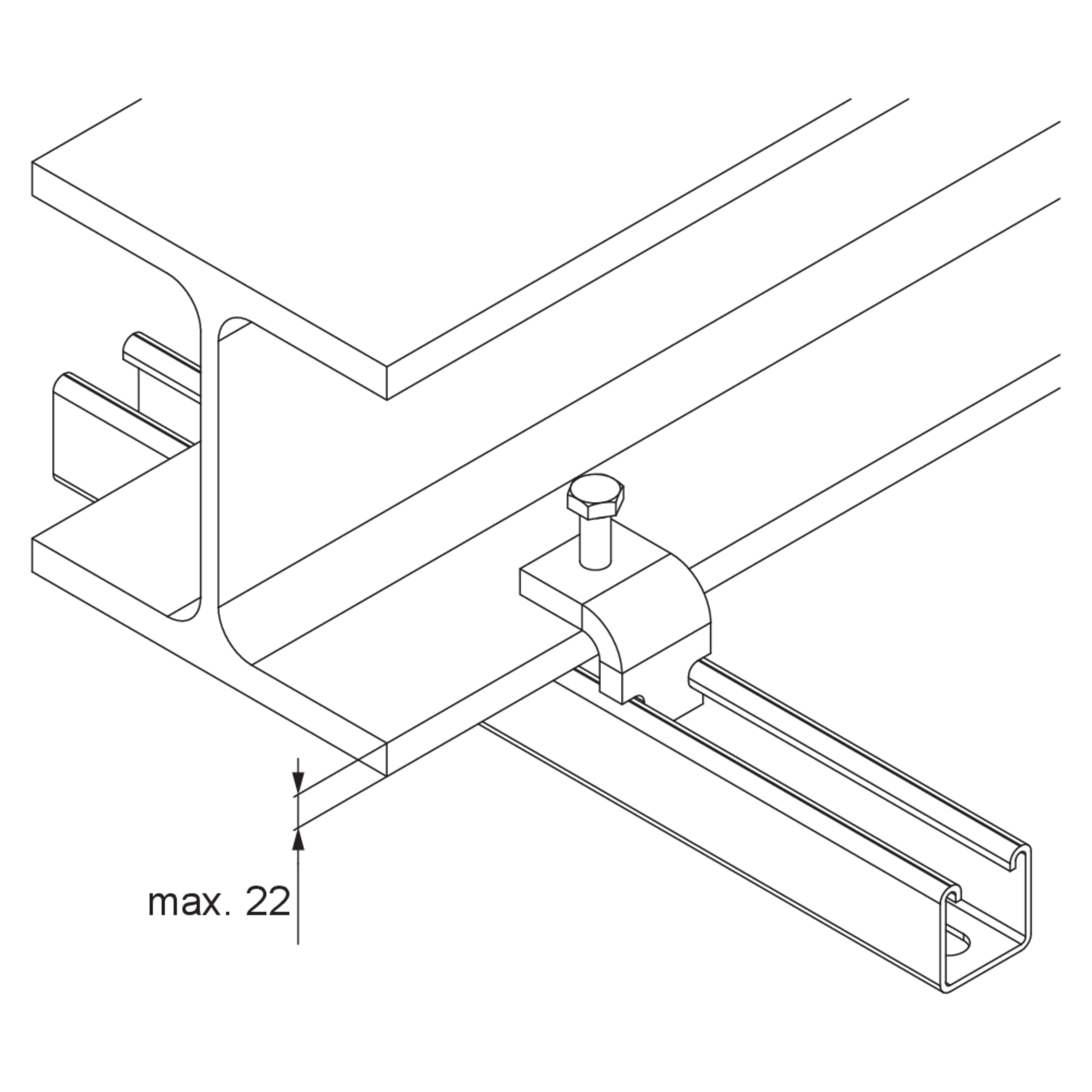

The beam clamp AVSKH is used to attach mounting channels (A 41, KHA 41, KHAL 41, KHA 42, KHA 82) to horizontal steel beams. The maximum flange thickness of the steel beam to be fastened is 22 mm. It is made of hot-dip galvanised steel.

Art.-Nr.
AVSKH F
height
58 mm
width
40 mm
length
52 mm
material thickness
10 mm
thread diameter
12 mm
clamping range
22 mm
Weight per storage unit
0.309 kg
Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

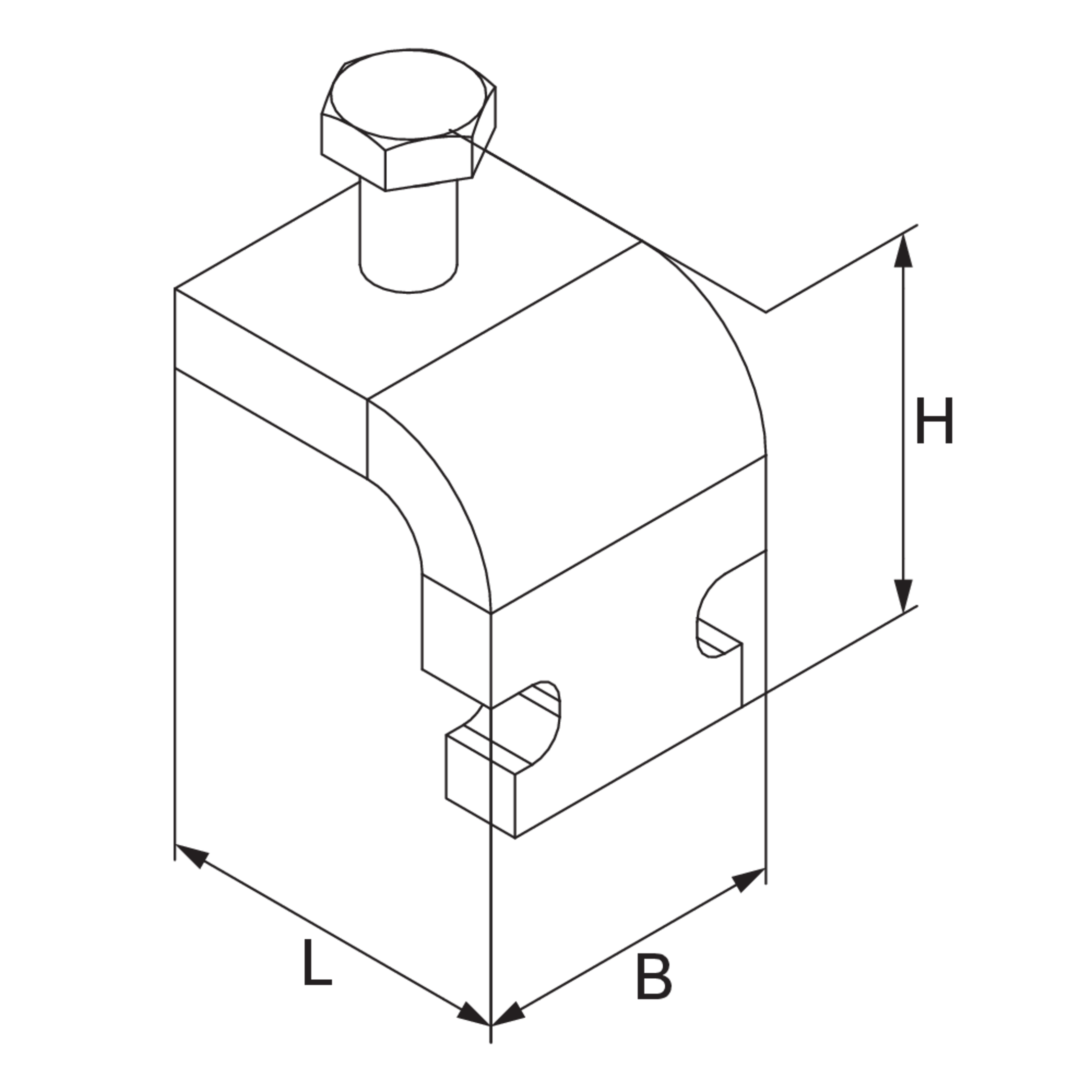

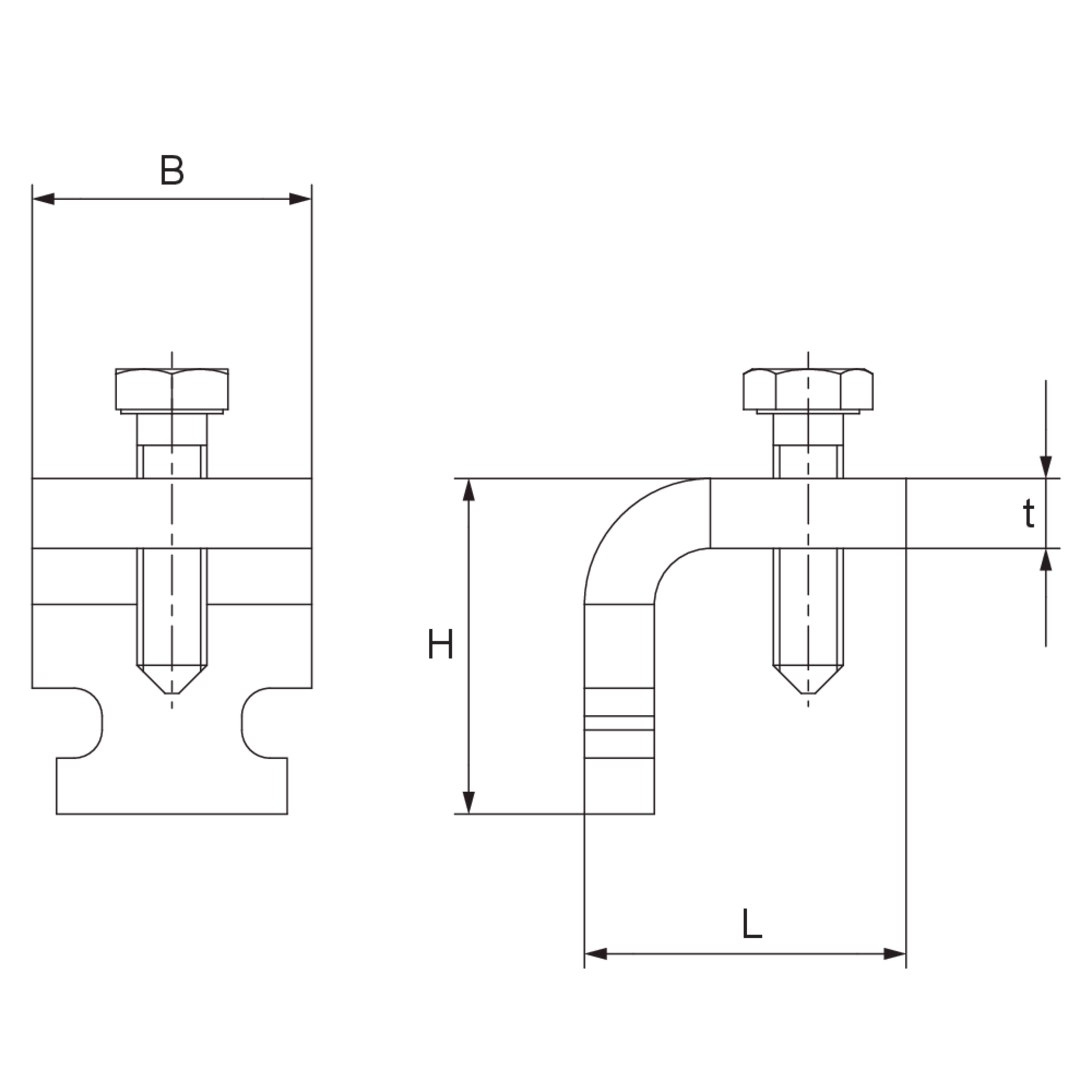

Article

H

height

B

width

L

length

t

material thickness

Ø

thread diameter

k

clamping range

G

Weight per storage unit

Included accessories
  • AVSKH F
    beam clamp
    height
    58 mm
    width
    40 mm
    length
    52 mm
    material thickness
    10 mm
    thread diameter
    12 mm
    clamping range
    22 mm
    Weight per storage unit
    0.309 kg
    Included accessories
