Weight per storage unit
- 110400022083
Penta moduleWeight per storage unit2.090 kg - 110400024200
Penta Modul 0.80Weight per storage unit1.400 kg
PENTAFLEX® Module
Water impermeable reinforcement connection

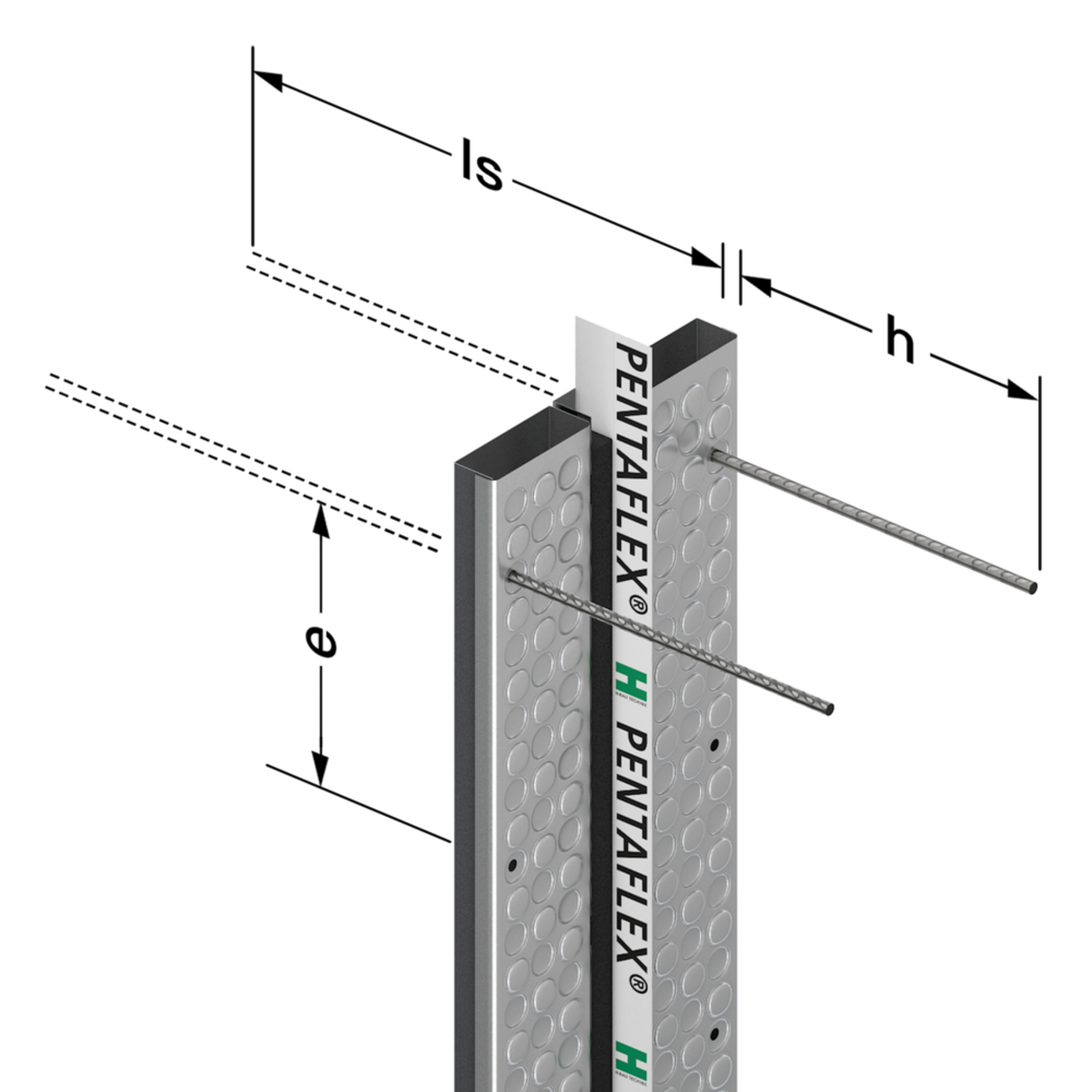

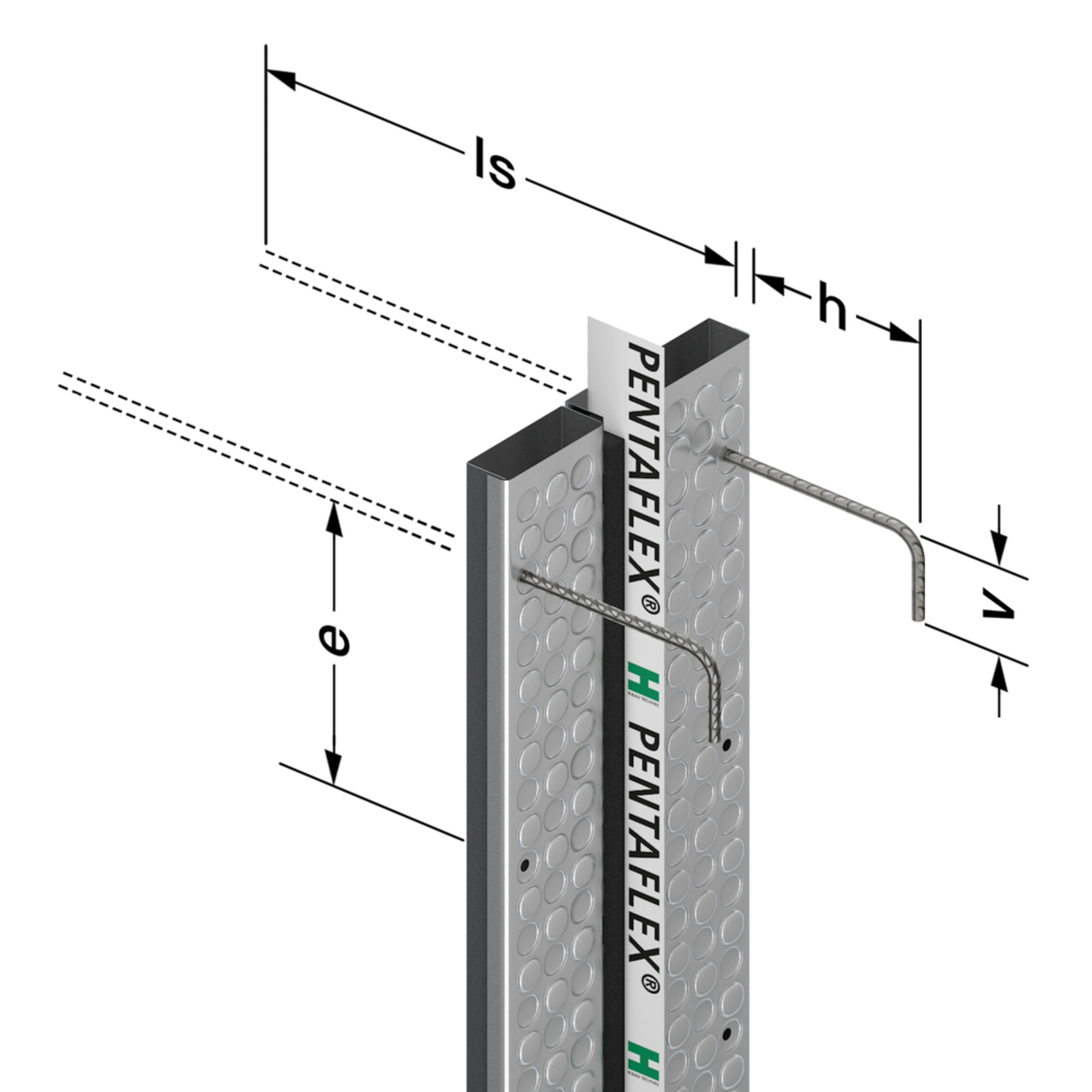

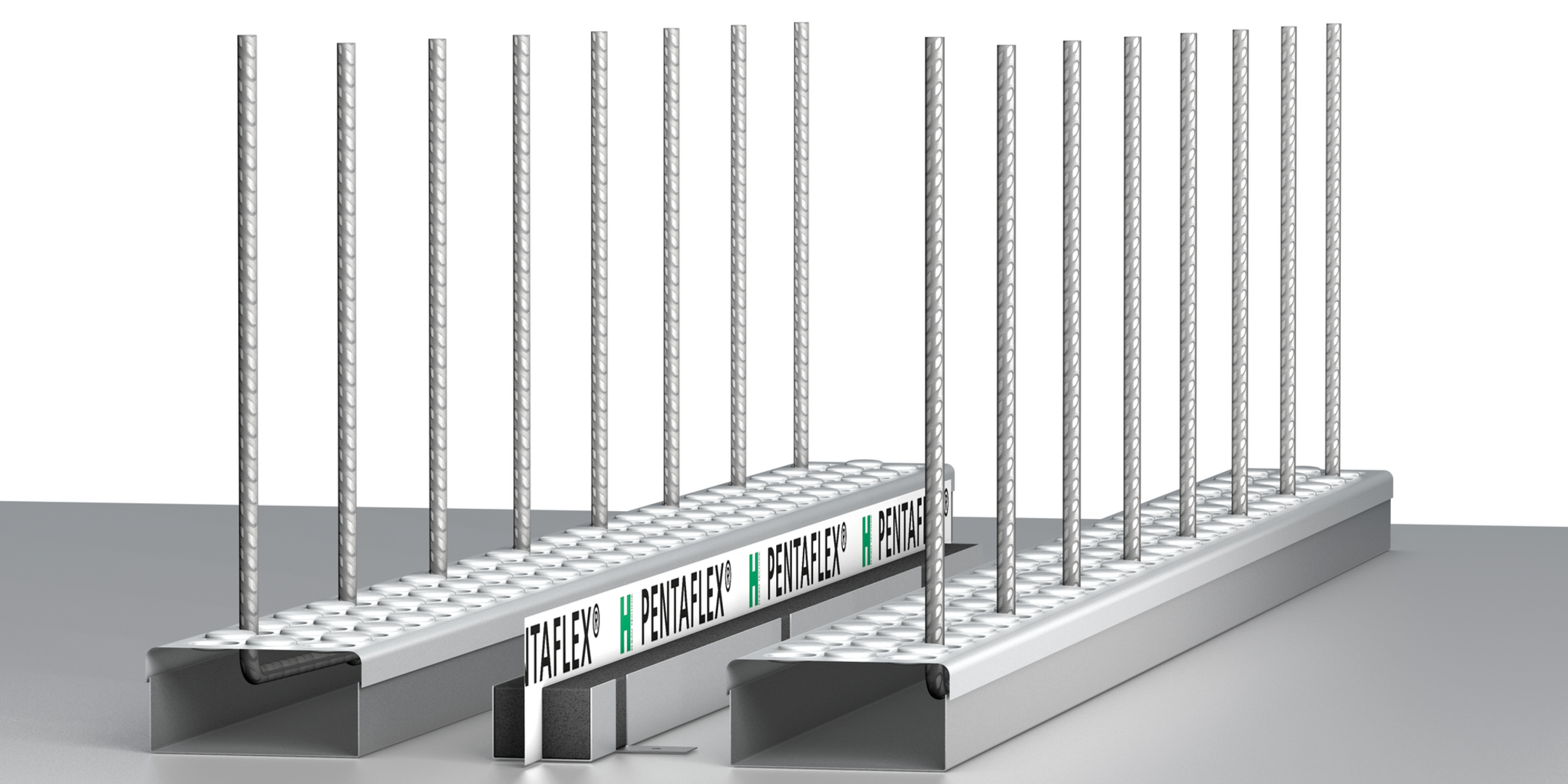

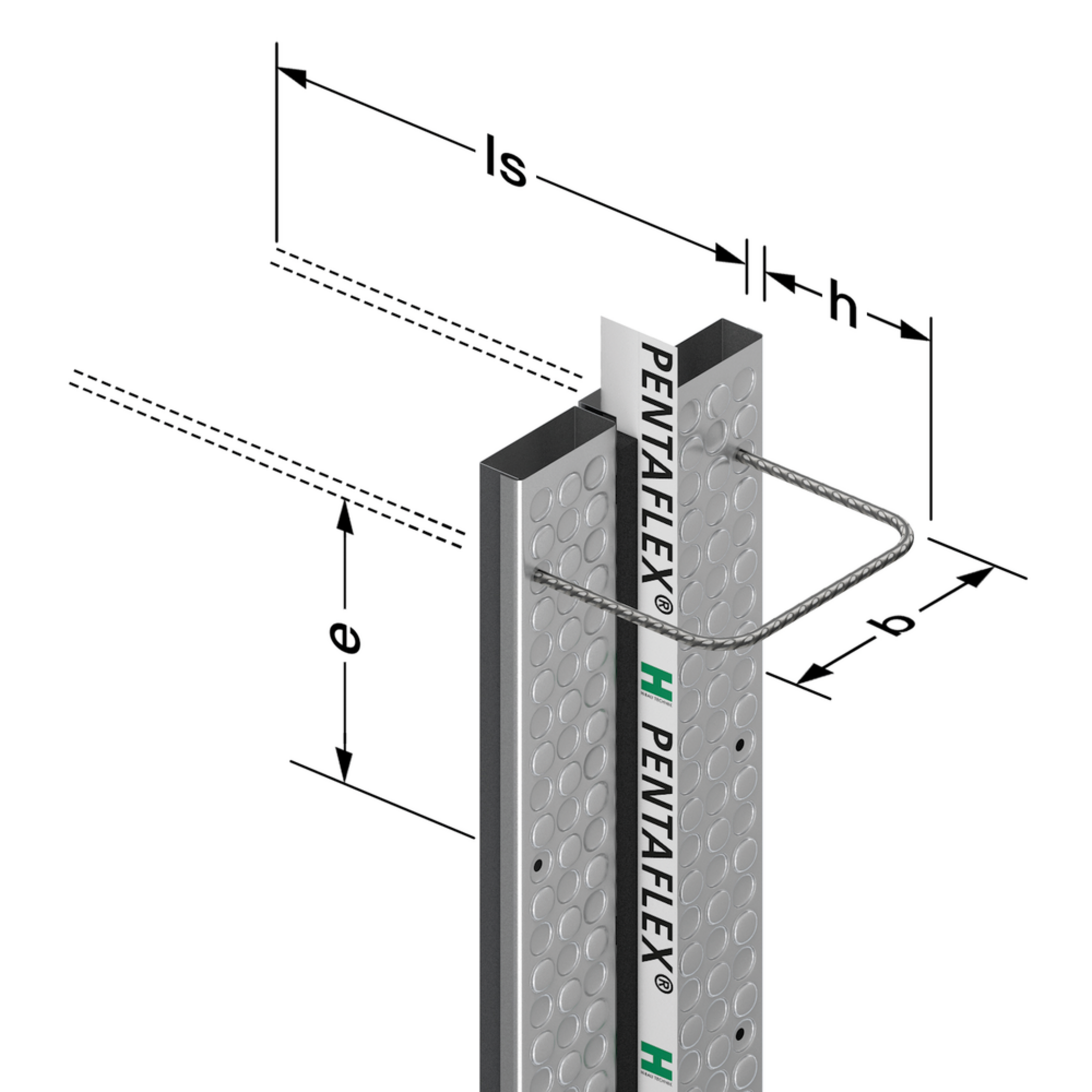

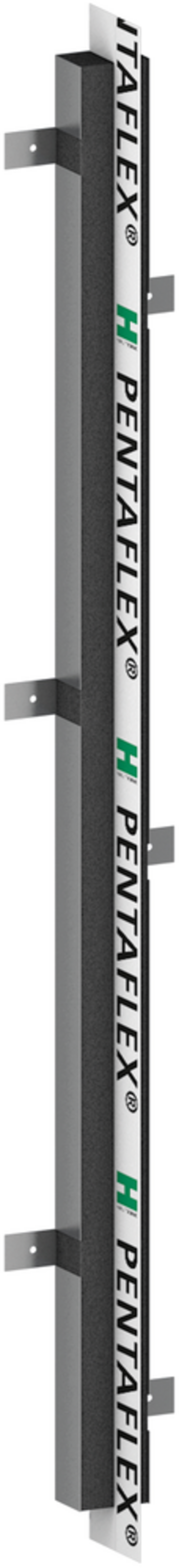

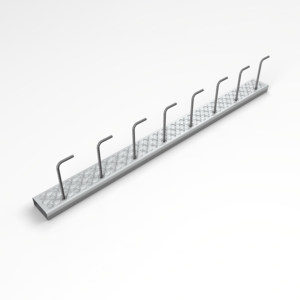

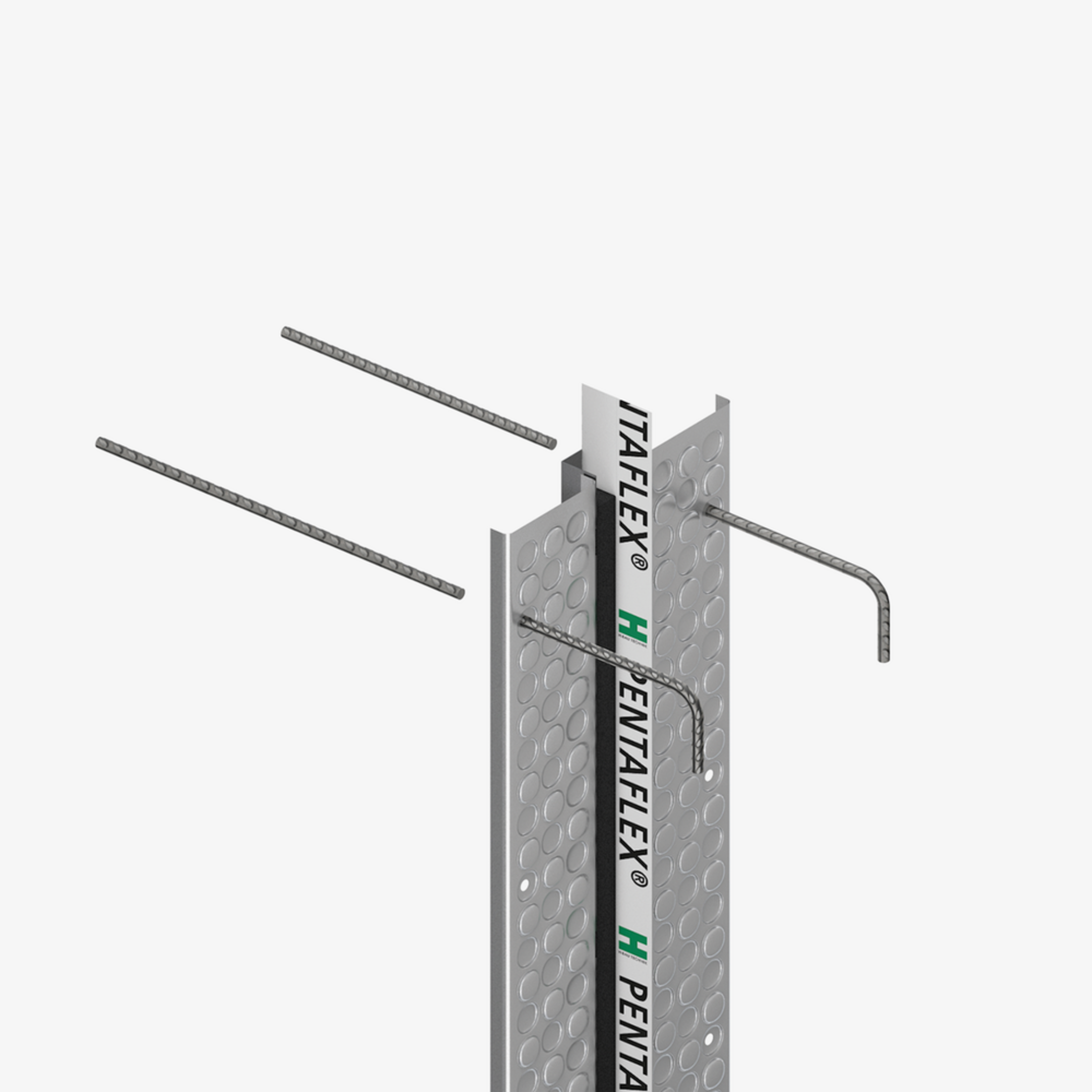

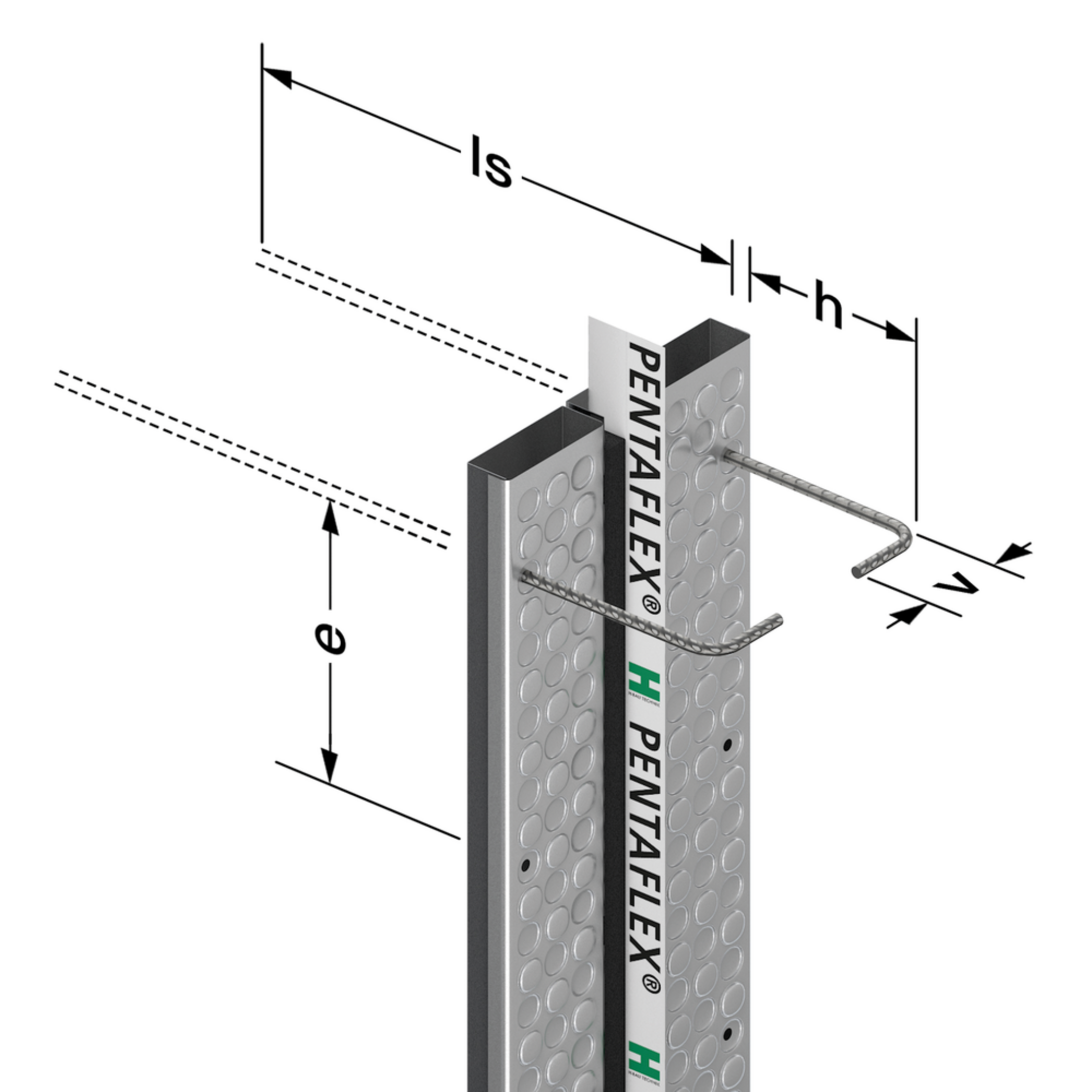

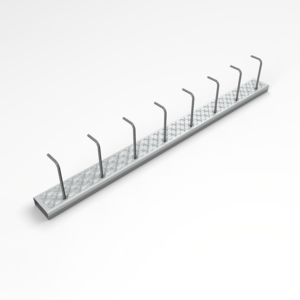

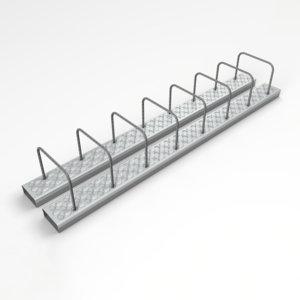

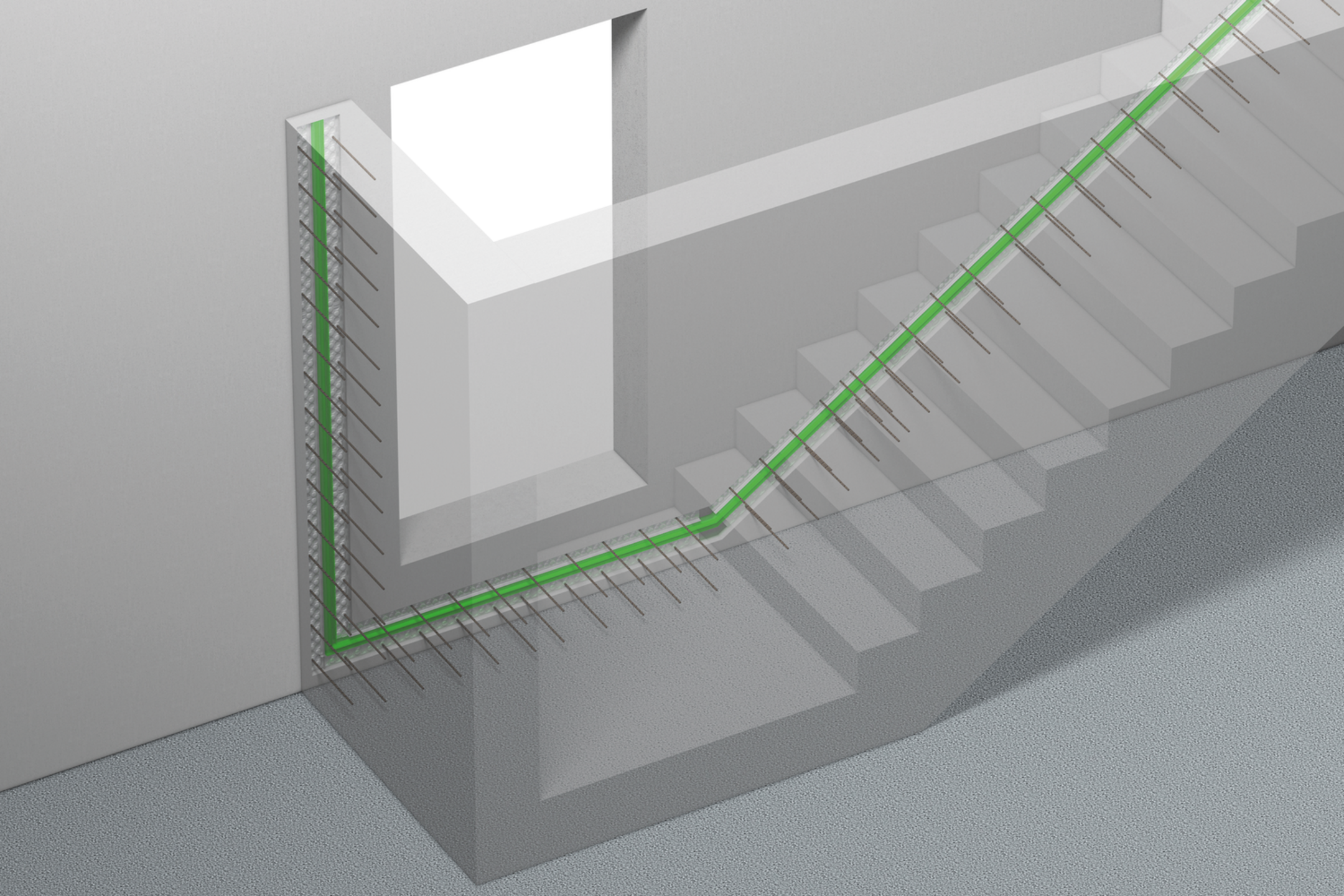

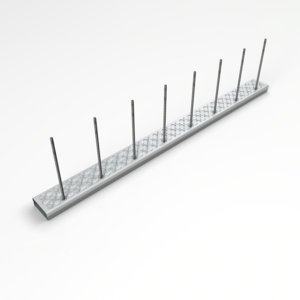

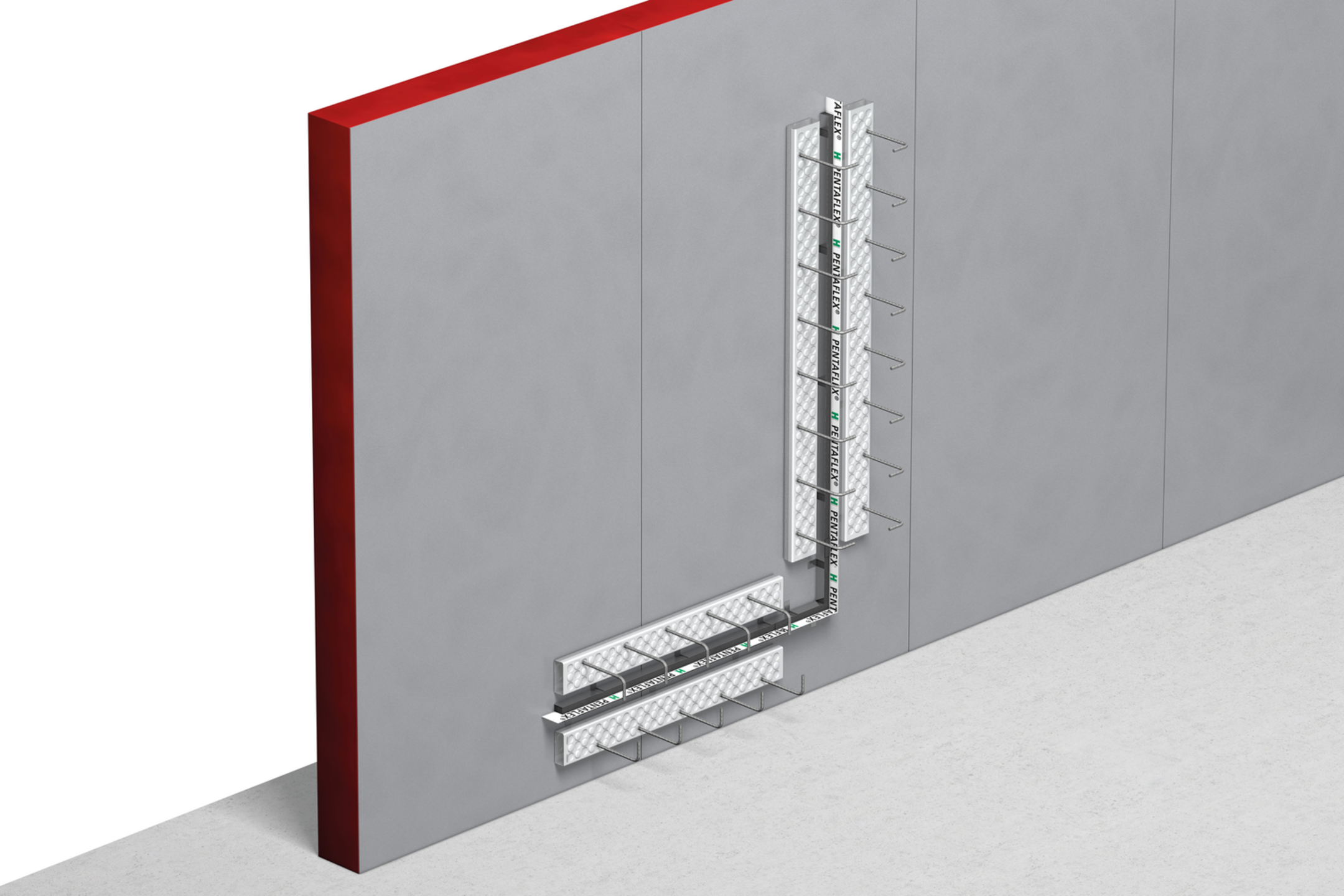

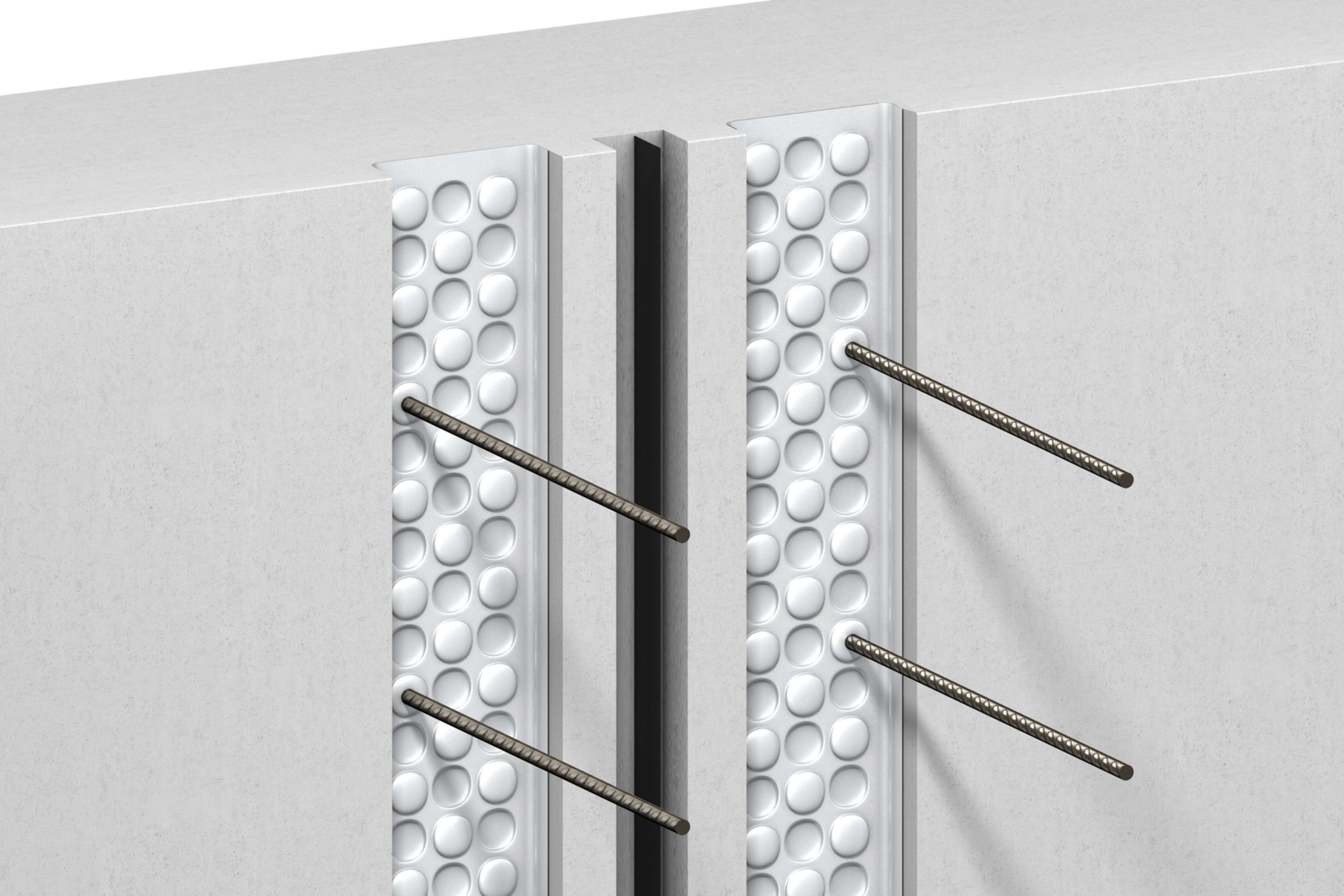

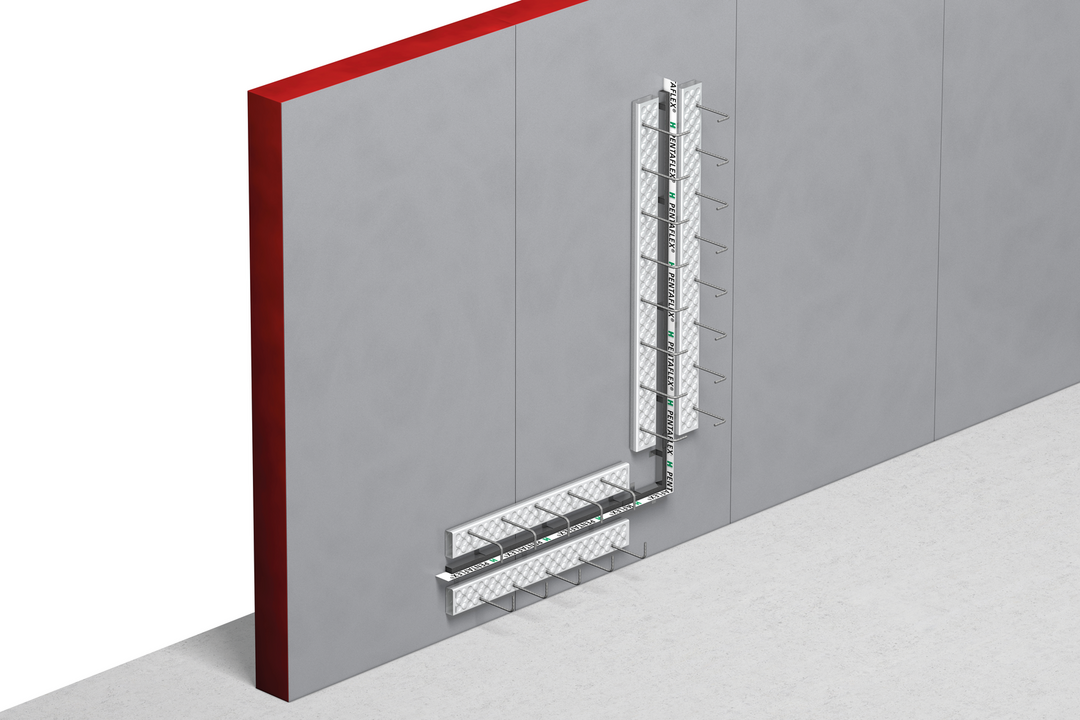

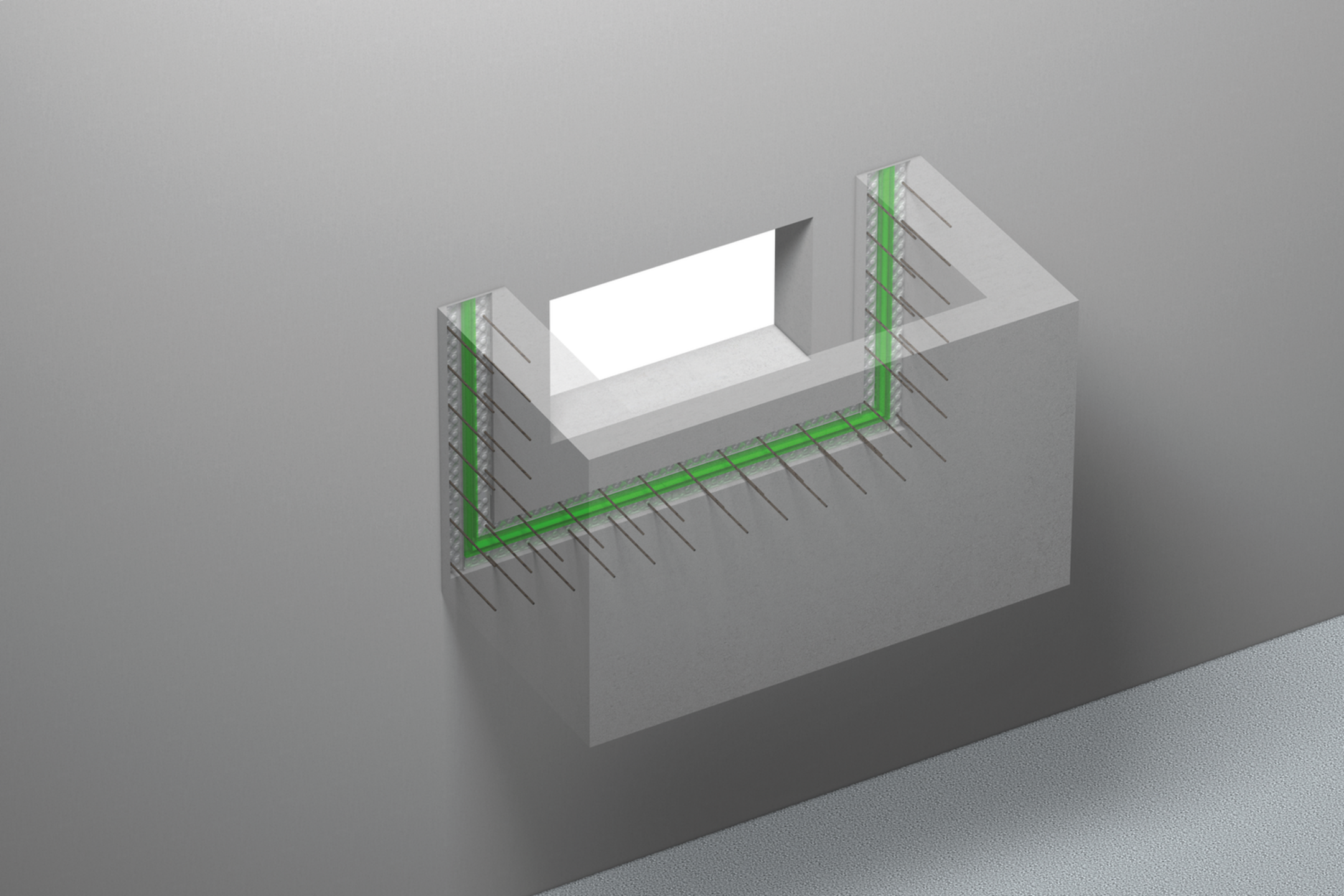

The PENTAFLEX® Module in combination with FERBOX® rebend connections is used wherever building components have to be joined together with a frictional and waterproof connection, especially in parts of buildings below ground level such as underground garages and basements. The PENTAFLEX® Module consists of the 60 mm high PENTAFLEX KB® joint sheet, a reinforcement box as an installation aid and foam filler strips for recesses. The module is available in lengths of 800 or 1200 mm. Other lengths are available on request.
General building authority test certificate: P-5120/231/09 MPA-BS
Details
- General building authority test certificate: P-5120/231/09 MPA-BS
- German building code test certificate (abP) P-5120/231/09 MPA-BS
Tender texts
Accessories
Downloads
de
en
de
de
de
en
Price list 2025 Shell construction / facade
Valid from February 1, 2025, updated version from 27/09/2025.

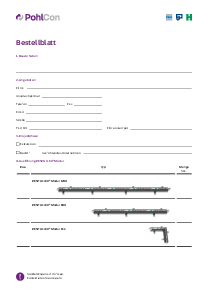

Order sheet PENTAFLEX® Modul
With this order sheet, you can easily and conveniently register your order on the screen, send it to us by e-mail, fax or letter. We would be pleased to receive your inquiries and orders personally by phone.
PDF (99.02 KB)
DownloadDownload
Installation instructions PENTAFLEX® Modul
Please observe these installation and application instructions before installation. Our application technology and consulting engineers will be happy to answer any questions you may have.
PDF (424.22 KB)
DownloadDownload
Technical Information PENTAFLEX® Modul
Technical Information
Included accessories
Anzahl:
Services: From planning to utilisation
We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.
