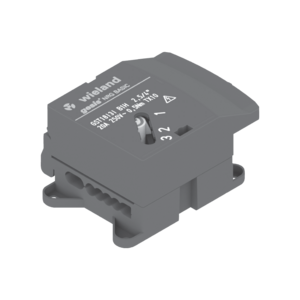

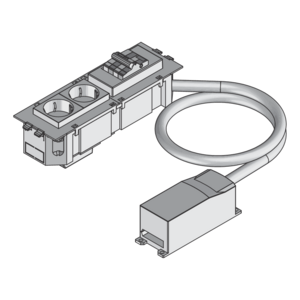

PohlCon carries RCCB connector systems suitable for our range of underfloor products. They consist of pre-assembled mounting boxes for raised floors, each with a combined residual current and miniature circuit breaker (RCCB), two sockets and flat cable connectors or flat cable adapters for direct connection to ribbon cables. They are prefabricated for quick assembly and the numerous models cover a wide range of applications. The type-tested systems are available in plastic versions with 6, 10 or 16 A, cables 2 or 3 metres long and a cable connection on the bottom of the mounting box for easy subsequent conversions.
Pin-and-socket Connector Systems FI/LS
Vorteile
- Quick installation and conversion due to pre-assembled compact solution
- Colour-coded sockets for easy identification of circuits
- Versatile application due to different designs
- Type-tested
