W

Cable clamps for wall fastening, maintenance of function

Fire protection
Get in touchDownload datasheet

Variants

steel, zinc plated

Article

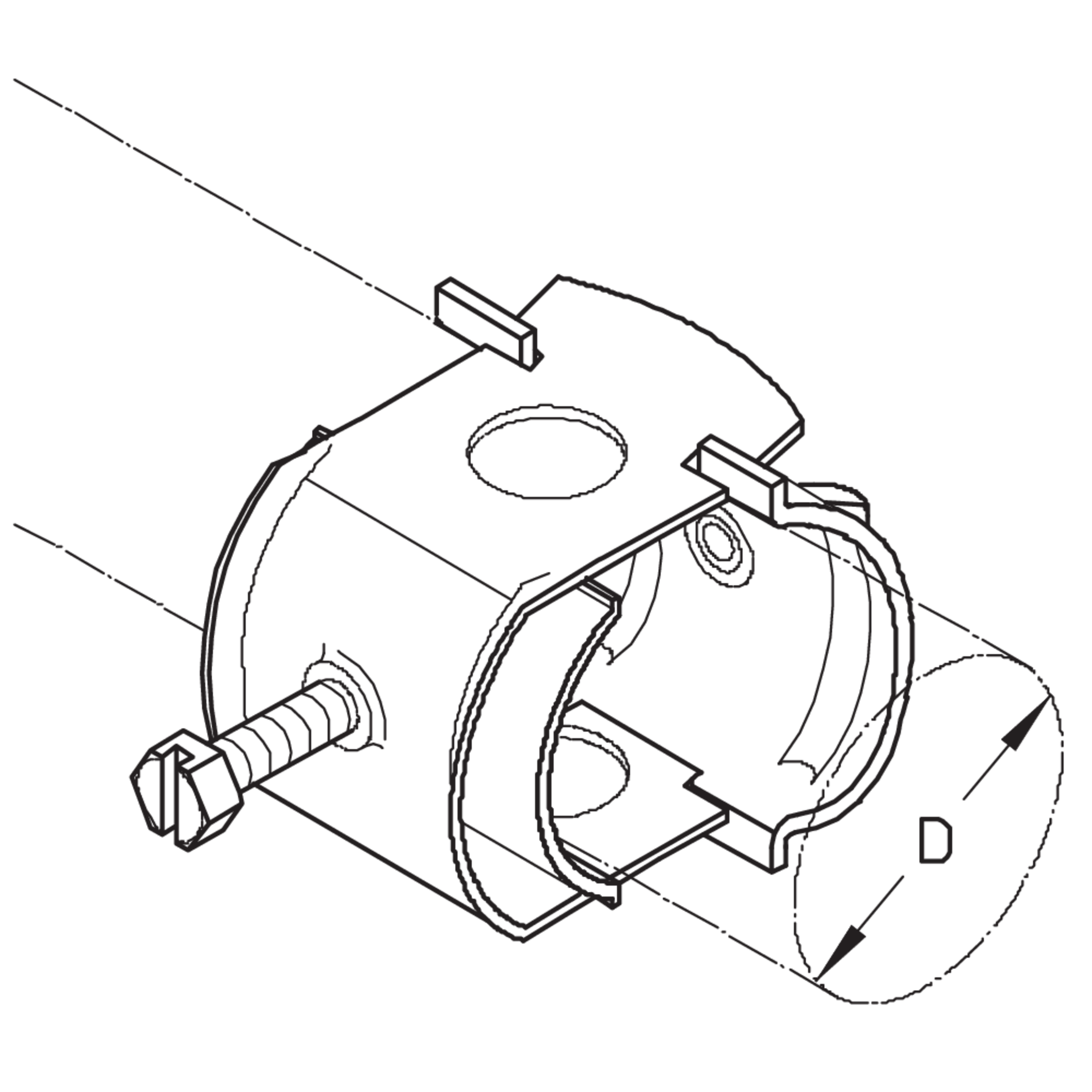

D

Diameter (mm)

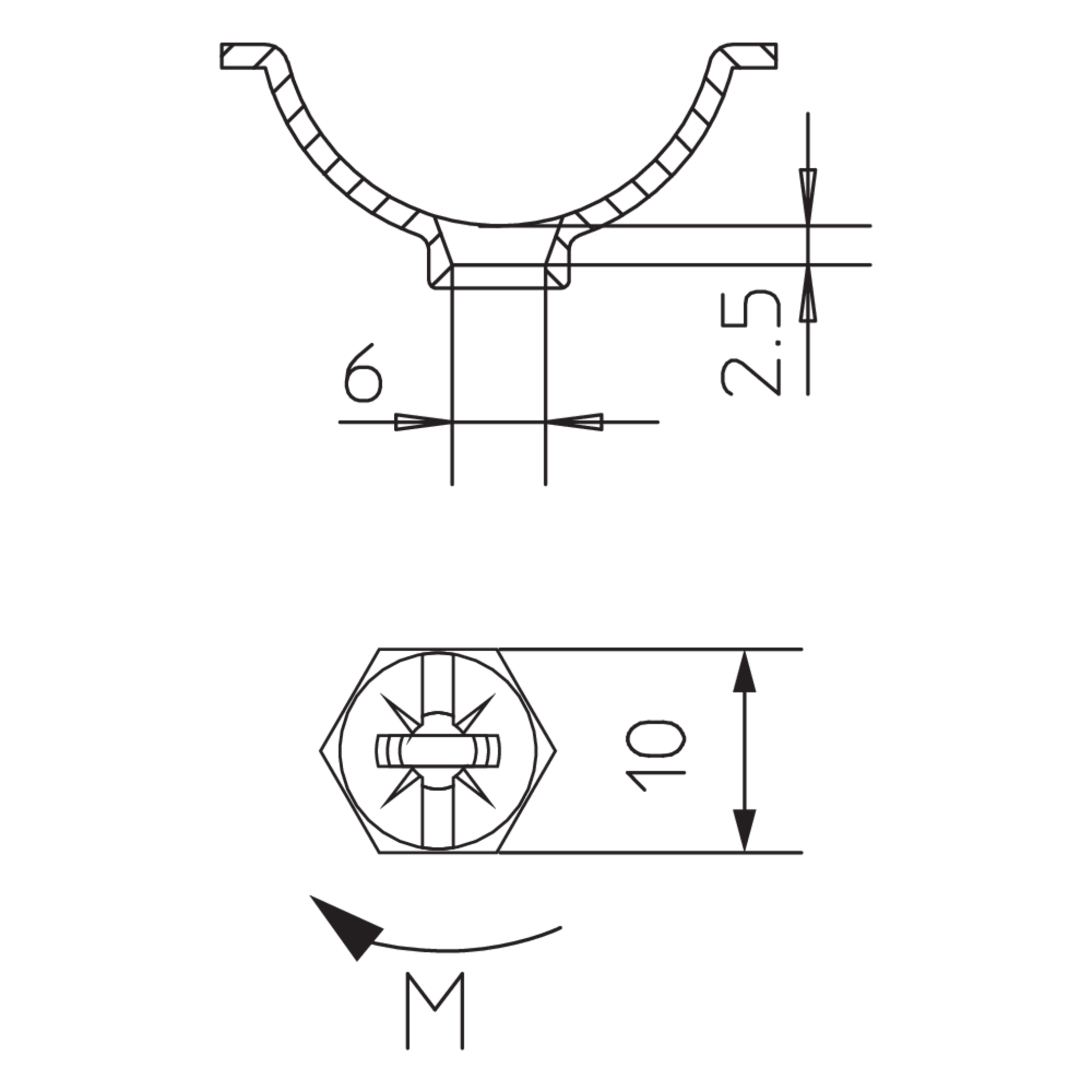

M

torque

G

Weight per storage unit

  • 16 W
    Cable clamp 16 W
    Diameter (mm)
    12-16 mm
    torque
    2 Nm
    Weight per storage unit
    0.041 kg
    More information
  • 20 W
    Cable clamp 20 W
    Diameter (mm)
    16-20 mm
    torque
    2 Nm
    Weight per storage unit
    0.050 kg
    More information
  • 24 W
    Cable clamp 24 W
    Diameter (mm)
    20-24 mm
    torque
    2 Nm
    Weight per storage unit
    0.054 kg
    More information
  • 28 W
    Cable clamp 28 W
    Diameter (mm)
    24-28 mm
    torque
    2 Nm
    Weight per storage unit
    0.060 kg
    More information
  • 32 W
    Cable clamp 32 W
    Diameter (mm)
    28-32 mm
    torque
    4 Nm
    Weight per storage unit
    0.072 kg
    More information

Details

  • Fire protection

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Included accessories
