VB-BS

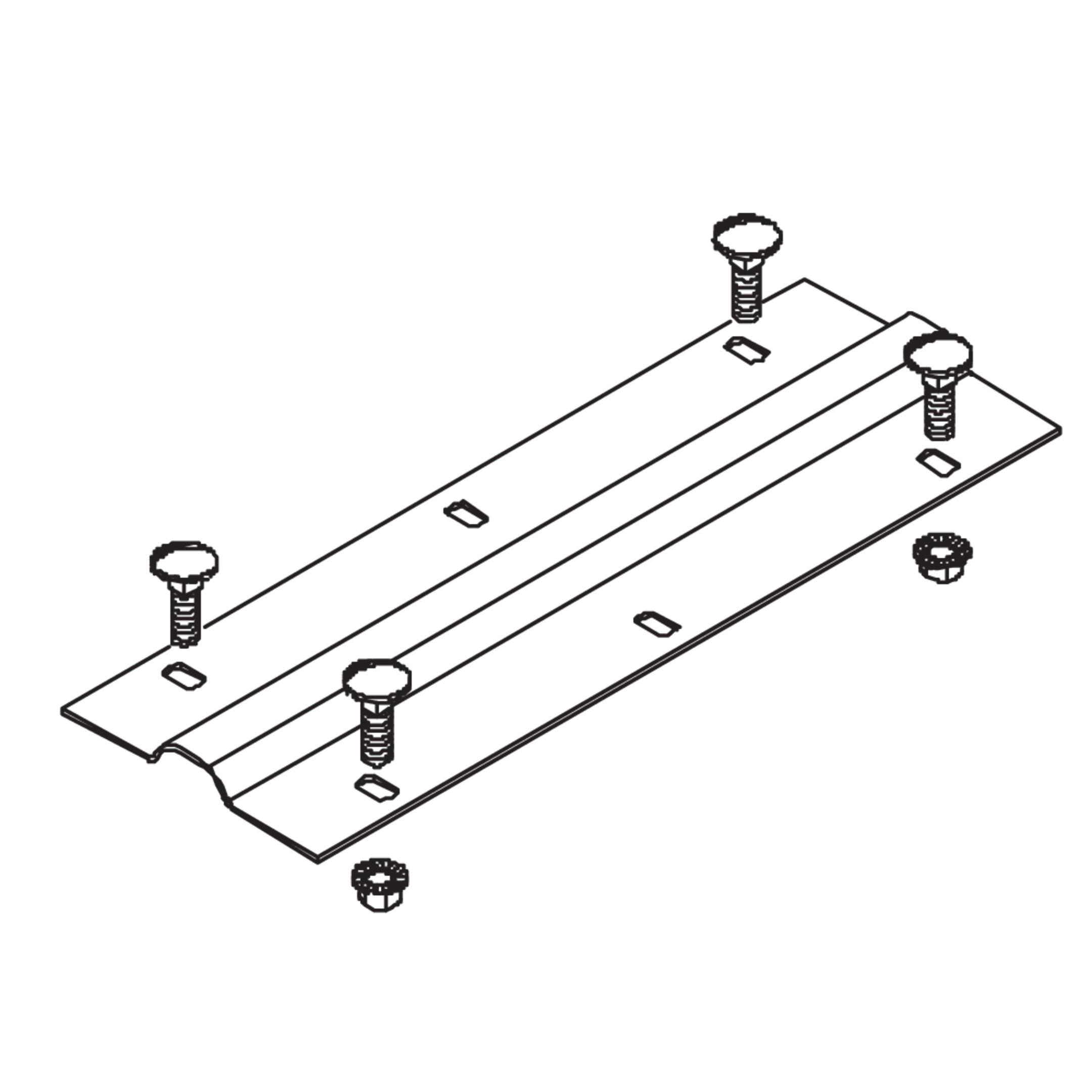

Floor connector, maintenance of function

Fire protection
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

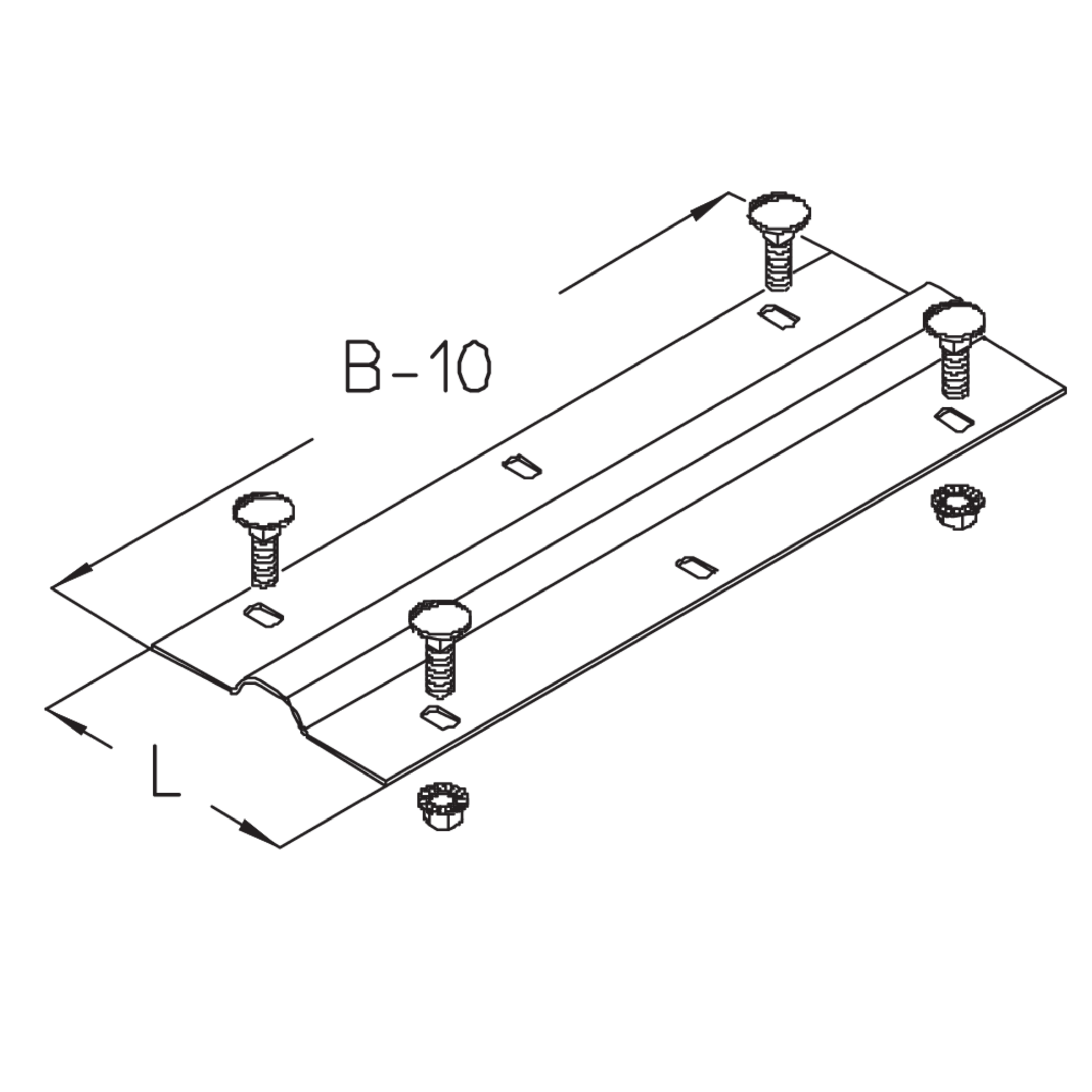

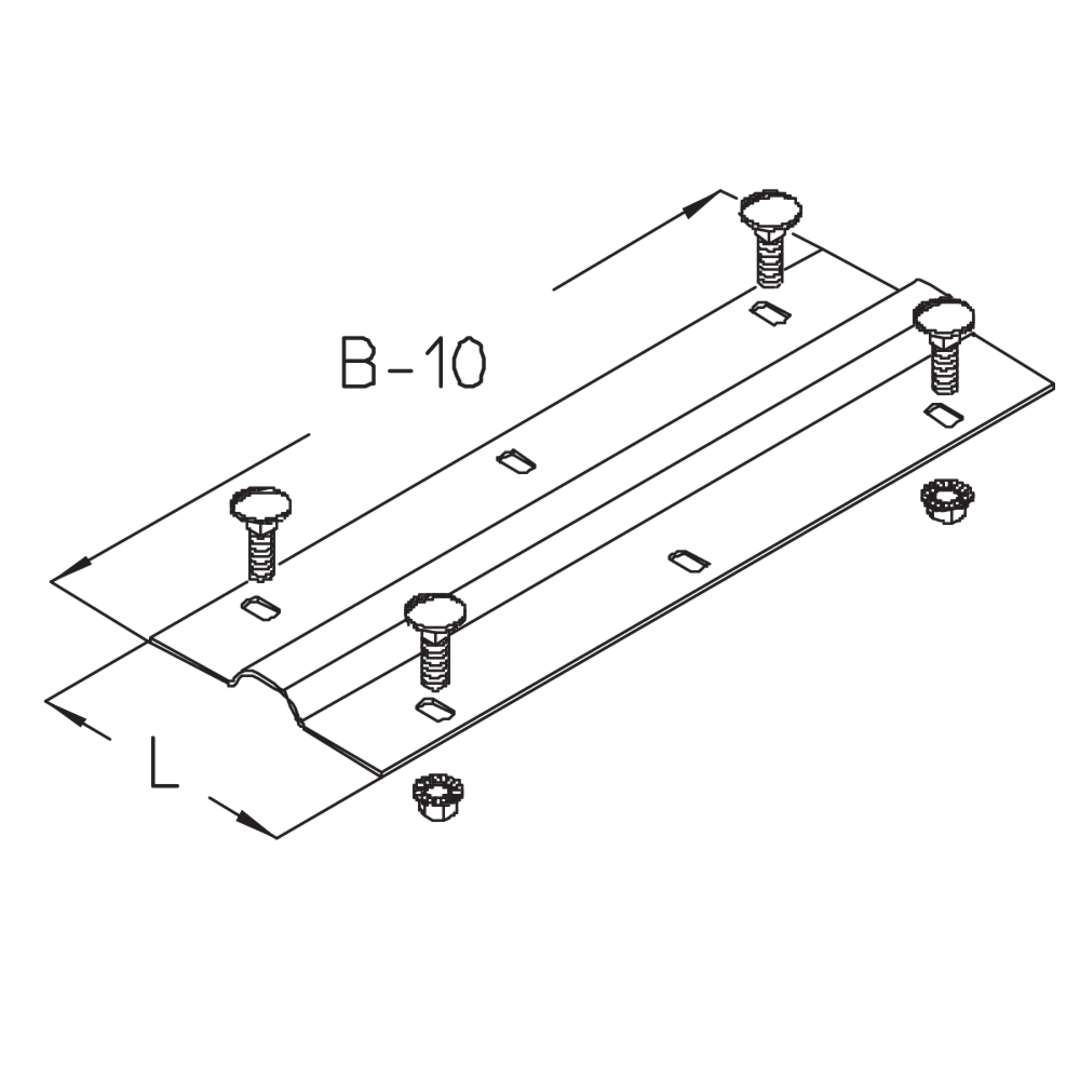

Article

B

width

L

length

G

Weight per storage unit

Included accessories
  • VB-BS 10S
    Floor connector, cable tray
    width
    84 mm
    length
    99 mm
    Weight per storage unit
    0.099 kg
    Included accessories
    More information
  • VB-BS 20S
    Floor connector, cable tray
    width
    184 mm
    length
    99 mm
    Weight per storage unit
    0.214 kg
    Included accessories
    More information
  • VB-BS 30S
    Floor connector, cable tray
    width
    284 mm
    length
    99 mm
    Weight per storage unit
    0.316 kg
    Included accessories
    More information
  • VB-BS 40S
    Floor connector, cable tray
    width
    384 mm
    length
    99 mm
    Weight per storage unit
    0.467 kg
    Included accessories
    More information
  • VB-BS 50S
    Floor connector, cable tray
    width
    484 mm
    length
    99 mm
    Weight per storage unit
    0.565 kg
    Included accessories
    More information
  • VB-BS 60S
    Floor connector, cable tray
    width
    584 mm
    length
    99 mm
    Weight per storage unit
    0.638 kg
    Included accessories
    More information

Steel, hot-dip galvanised

Article

B

width

L

length

G

Weight per storage unit

Included accessories
  • VB-BS 10F
    Floor connector, cable tray
    width
    84 mm
    length
    99 mm
    Weight per storage unit
    0.107 kg
    Included accessories
    More information
  • VB-BS 20F
    Floor connector, cable tray
    width
    184 mm
    length
    99 mm
    Weight per storage unit
    0.231 kg
    Included accessories
    More information
  • VB-BS 30F
    Floor connector, cable tray
    width
    284 mm
    length
    99 mm
    Weight per storage unit
    0.340 kg
    Included accessories
    More information
  • VB-BS 40F
    Floor connector, cable tray
    width
    384 mm
    length
    99 mm
    Weight per storage unit
    0.466 kg
    Included accessories
    More information

Details

  • Fire protection

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    • de

    P-MPA-E-15-019 - KDU57 - Functional maintenance certificate

    General building authority test certificate
    DIN 4102-12
    Cable manufacturers: Dätwyler, Eupen, Leoni Studer, Prysmian, Nexans
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: ≤ 20 kg/m
    Fastening distance: ≤ 1.5 m
    Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
    Period of validity: 09.10.2026

    PDF (10.27 MB)

    DownloadDownload

    • de

    P-MPA-E-14-010 - KDU57/KDU 60 - Functional maintenance certificate

    General building authority test certificate
    DIN 4102-12
    Cable manufacturer: Kabelwerke Eupen AG
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: 20 kg/m
    Fastening distance: ≤ 1.5 m
    Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
    Period of validity: 23/07/2029

    PDF (4.94 MB)

    DownloadDownload

    • de

    P-MPA-E-16-013 - KDU57/KDU 60 - Functional maintenance certificate

    General building authority test certificate
    DIN 4102-12
    Cable manufacturer: Studer Cables AG
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: 20 kg/m
    Fastening distance: ≤ 1.5 m
    Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
    Period of validity: 30.08.2027

    PDF (7.84 MB)

    DownloadDownload

    • de

    P-MPA-E-16-007 - KDU60 - Functional maintenance certificate

    DIN 4102-12
    Cable manufacturer: Dätwyler
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: ≤ 30 kg/m
    Fastening distance: ≤ 1.5 m
    Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
    Validity period: 01.02.2027

    PDF (8.13 MB)

    DownloadDownload

    • de

    MPABS-2402543 - Fire protection statement

    DIN 4102-12
    Standardised supporting structure: Cable trays
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: ≤ 10 kg/m

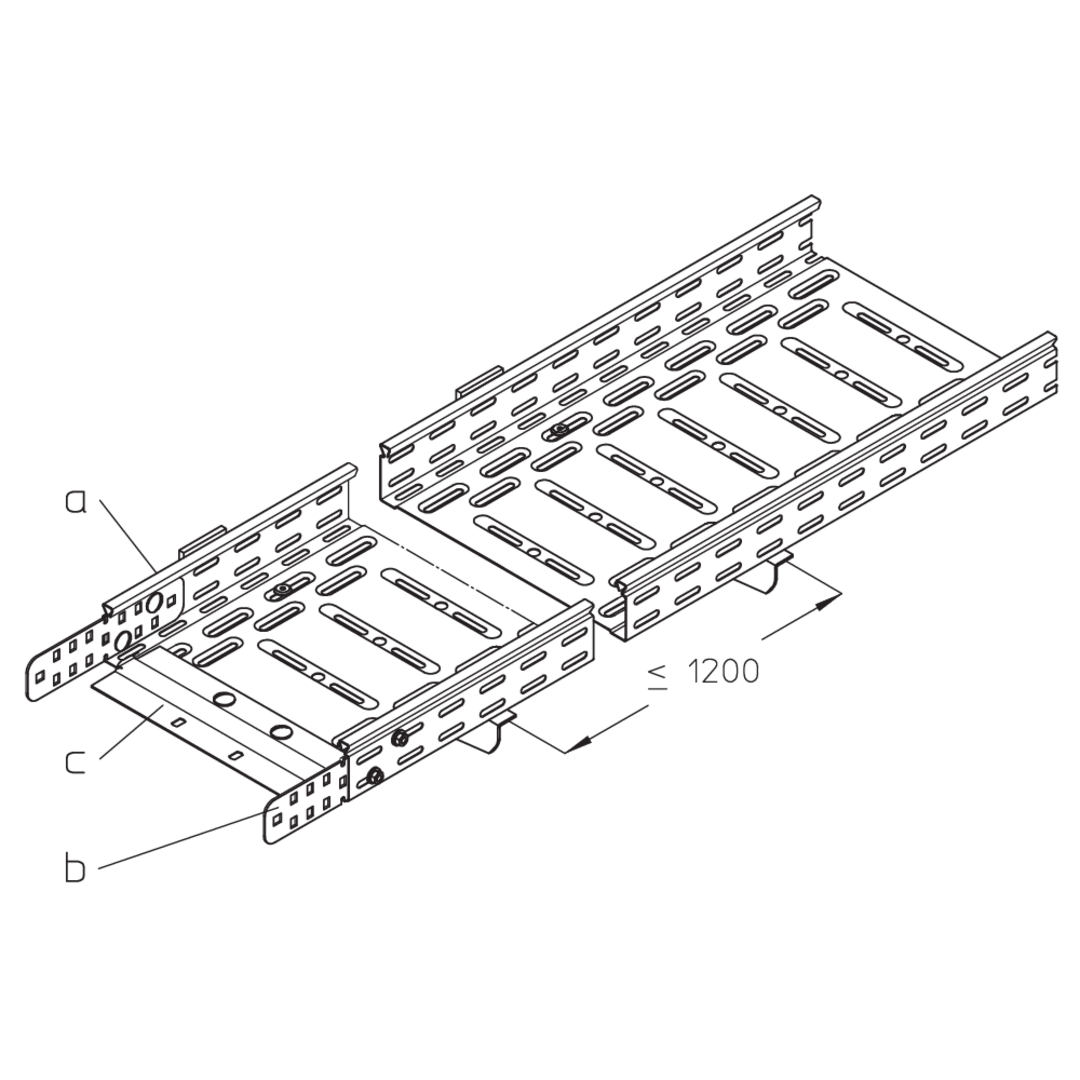

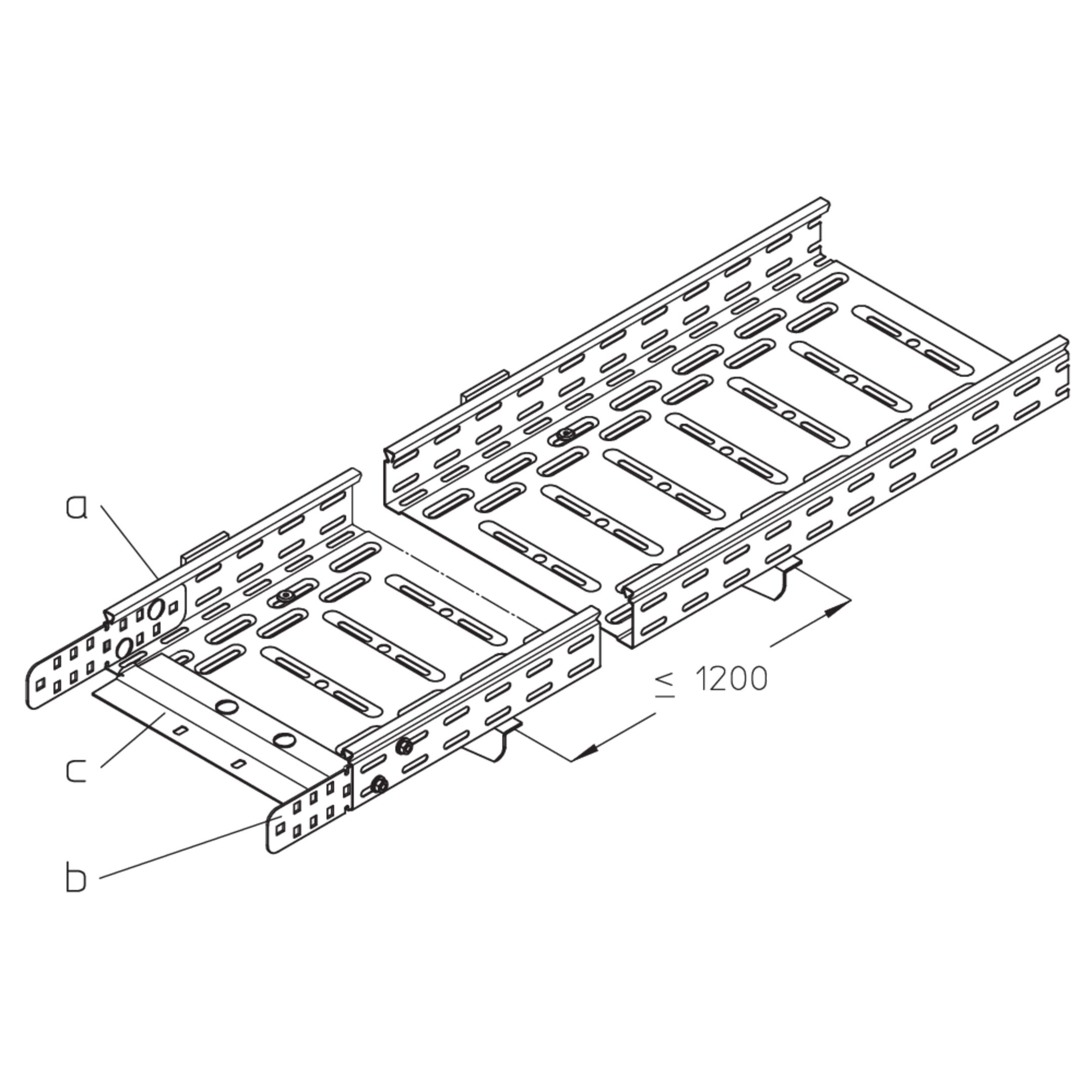

    Fastening distance: ≤ 1.2 m
    Period of validity: 15.01.2030

    PDF (11.03 MB)

    DownloadDownload

    • de

    2104/681/23 - Fire protection assessment

    False ceiling installation, escape route installation, MLAR, LAR
    Fire resistance duration: F30
    Fire resistance: 30 minutes
    Fastening distance: ≤ 1.5 m
    Period of validity: 18.12.2028

    PDF (5.77 MB)

    DownloadDownload

    • de

    GA-2017/068 - Expert statement

    DIN 4102-12
    Fire protection fastening on load-bearing timber components
    Fire resistance duration: F30; F60
    Functional maintenance classes: E30; E60
    Cable load: ≤ 10 kg/m, ≤ 20 kg/m, ≤ 30 kg/m
    Mounting distance: ≤ 1.5 m
    Period of validity: 22/08/2027

    PDF (1.49 MB)

    DownloadDownload
