Weight per storage unit
- 220400025419
IP120 HQ10-h180Weight per storage unit16.061 kg

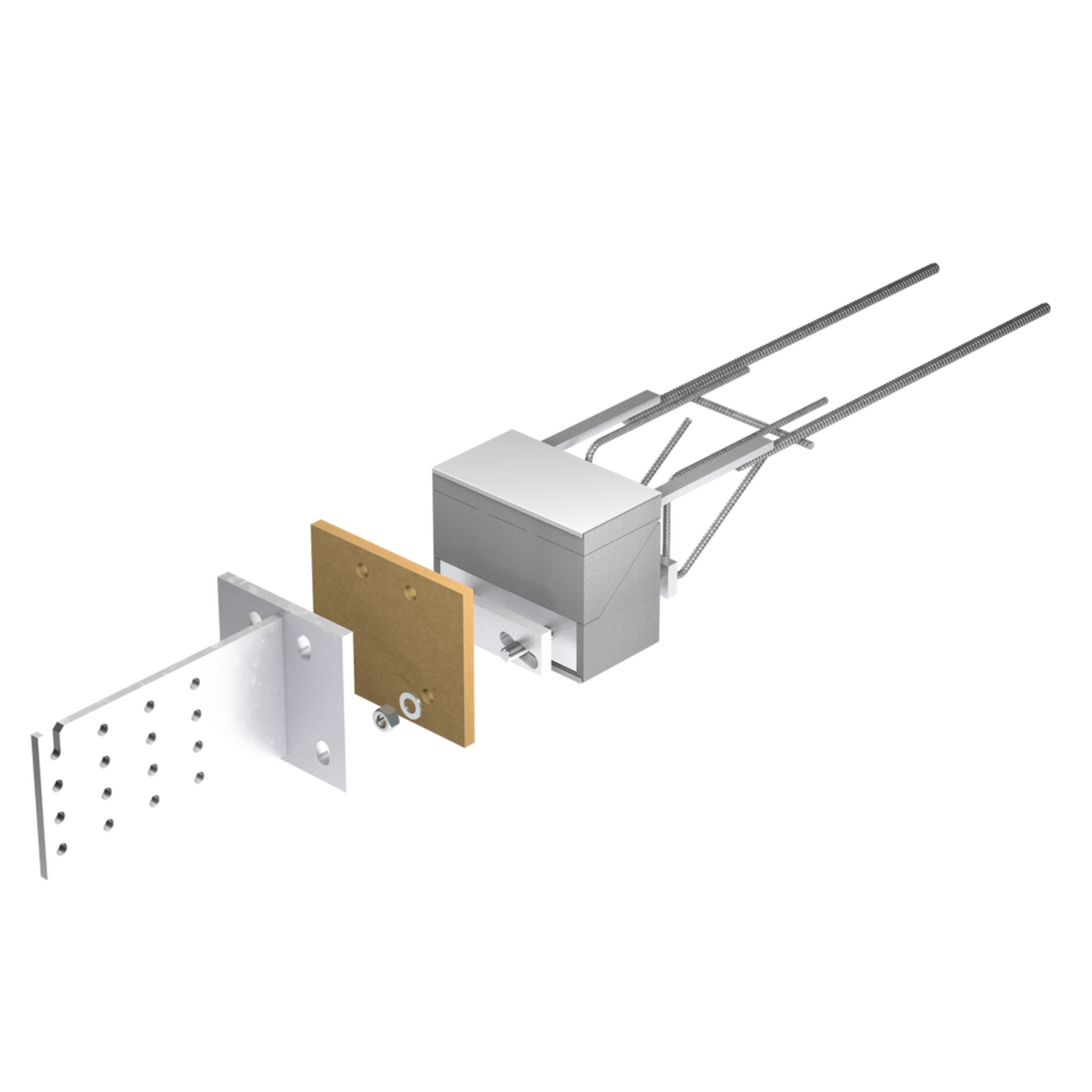

ISOPRO® 120 HQ
ISOPRO® 120 HQ is a thermally insulated connection with a 120 mm insulating body for connecting supported timber structures with reinforced concrete components. It is suitable for transmitting positive shear forces and horizontal forces. The element consists of an EPS insulating body with extremely low thermal conductivity and a structurally effective framework made of stainless steel. The elements are installed in the shell over the course of the reinforcement and casting work. The wooden construction will be assembled by a carpenter at a later date. Please specify the load-bearing capacity and element height when ordering.
General building approval: Z-15.7-313
Details
- General building authority approval Z-15.7-313
Tender texts
Downloads
de
en
de
de
en
de
en
ISOPRO® 80/120 Steel and timber connections - Technical information
Technical Information
Approval ISOPRO® Reinforcing Steel SM / SQ
Approval
PDF (1.78 MB)
DownloadDownload
Declaration of Performance ISOPRO®
Declaration of Performance for ISOPRO® thermal insulation elements
Price list 2026 Shell construction / facade
Valid from February 1st, 2026
