FERBOX® Type EE

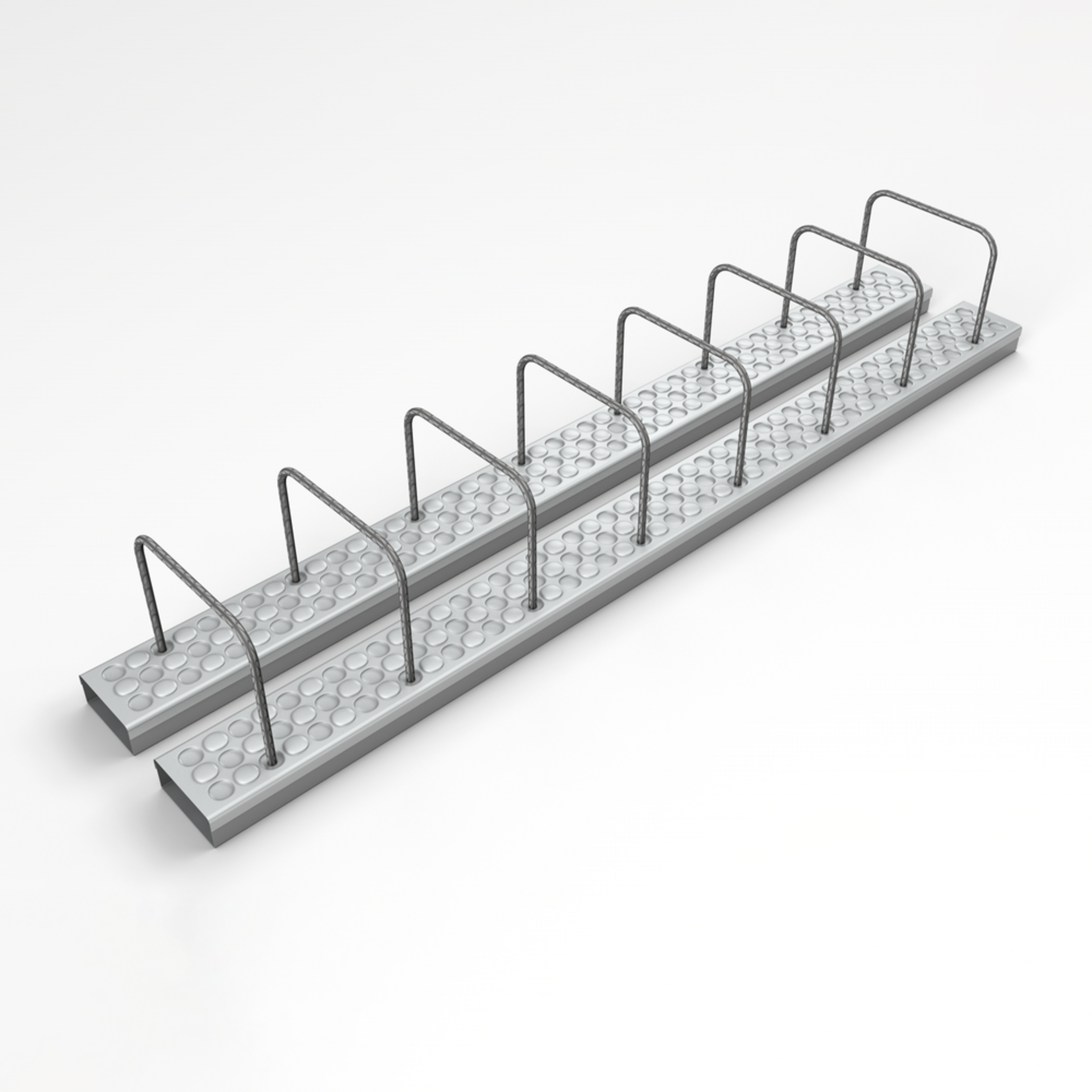

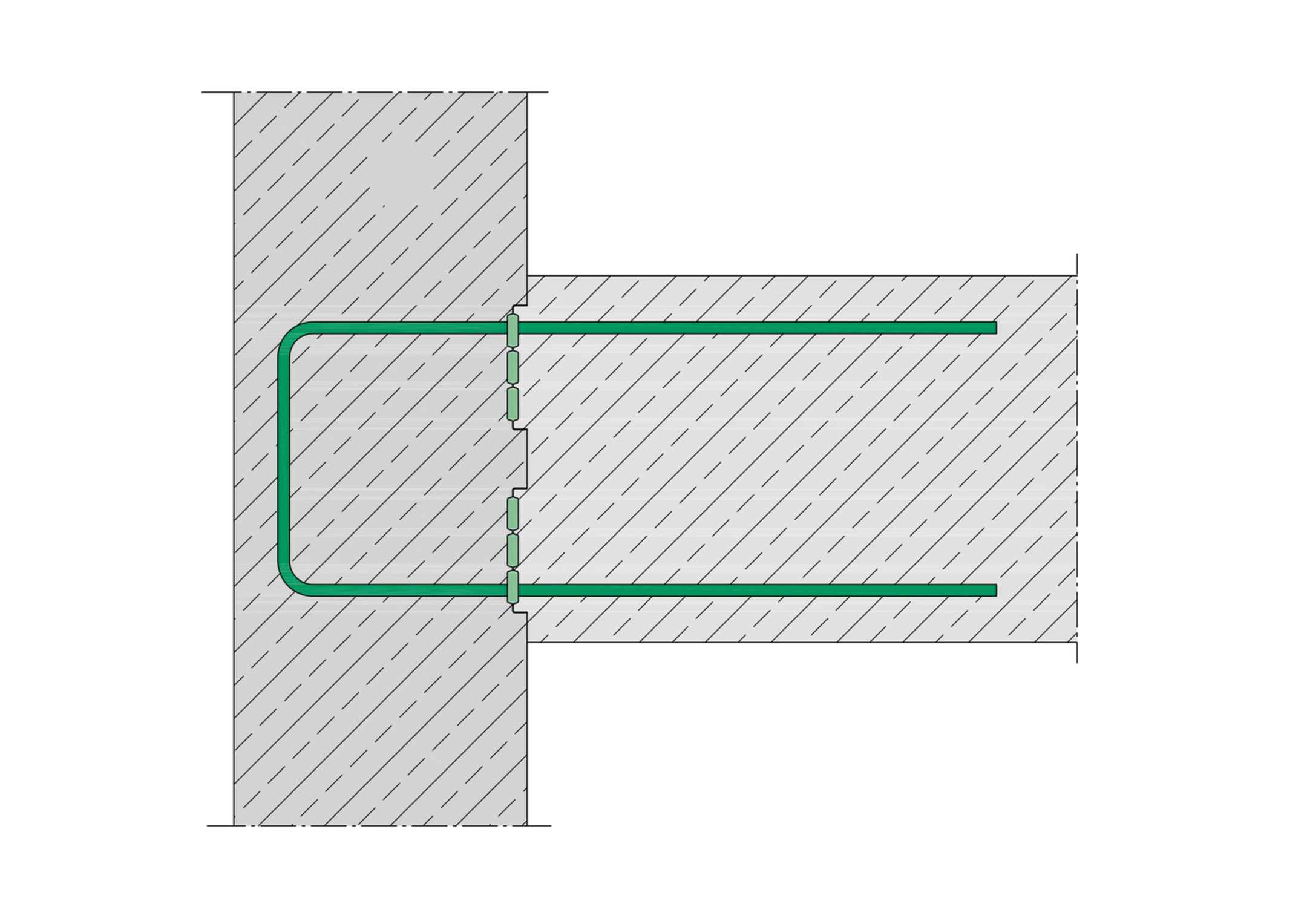

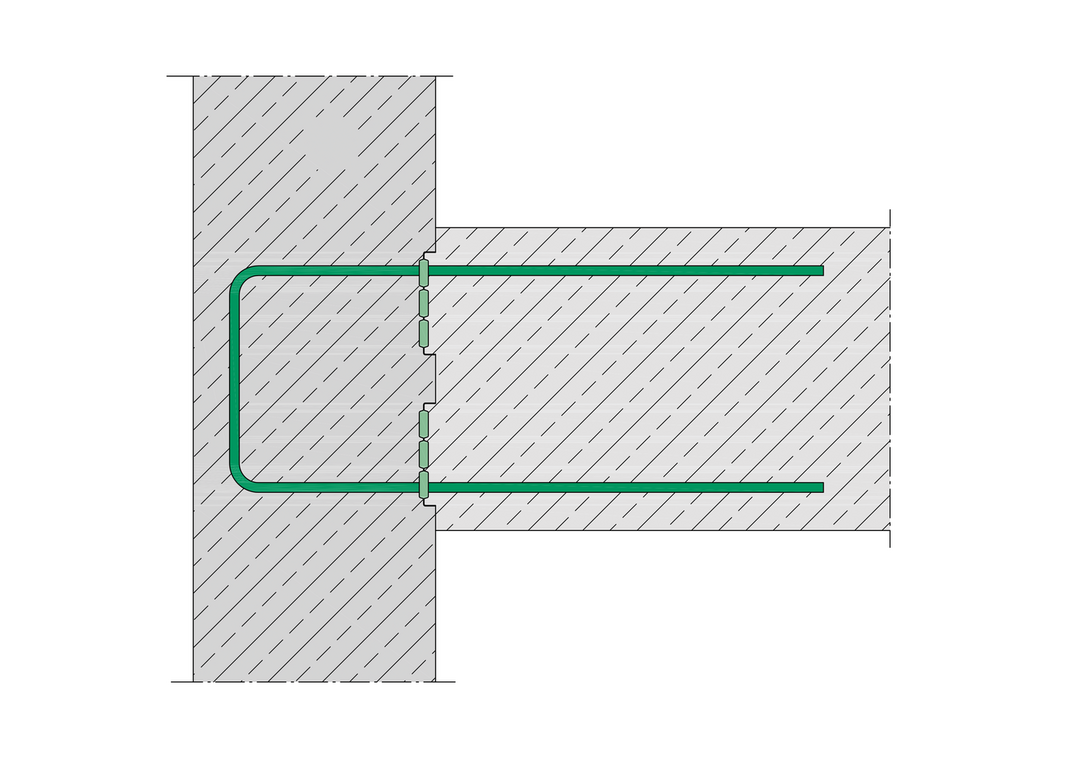

FERBOX® Type EE single-row connected rebend connections are used for the frictional connection and reinforcement of reinforced concrete parts. They are suitable for wide walls from 280 mm wall thick. They have the highest joint category – Interlocked – in transverse and longitudinal directions. Its studded reinforcement box and cover are made of galvanised sheet metal and the reinforcing bars are made of B500 B. The stirrups are U-shaped for the first casting section, ending in both parallel boxes. The FERBOX® box is either 800 or 1200 mm long and the stirrups are up to 500 mm wide. The standard diameter of the rods is 8 to 10 mm. Other versions and special solutions are available on request.

European Technical Assessment: ETA-20/0842

Variants

Article

G

Gewicht je Lagermengeneinheit

  • 512600022077
    Ferb EE 60 08 150 1.20
    Gewicht je Lagermengeneinheit
    5.808 kg
  • 512600022078
    Ferb EE 60 08 200 1.20
    Gewicht je Lagermengeneinheit
    4.956 kg
  • 512600022080
    Ferb EE 60 10 200 1.20
    Gewicht je Lagermengeneinheit
    6.876 kg
  • 512600022082
    Ferb EE 85 12 200 1.20
    Gewicht je Lagermengeneinheit
    9.156 kg
  • 512600022734
    Ferb EE 60 08 150 0.80
    Gewicht je Lagermengeneinheit
    3.872 kg
  • 512600022735
    Ferb EE 60 08 200 0.80
    Gewicht je Lagermengeneinheit
    3.304 kg
  • 512600022736
    Ferb EE 60 10 150 0.80
    Gewicht je Lagermengeneinheit
    5.584 kg
  • 512600022737
    Ferb EE 60 10 200 0.80
    Gewicht je Lagermengeneinheit
    4.584 kg
  • 512600022738
    Ferb EE 85 12 150 0.80
    Gewicht je Lagermengeneinheit
    7.968 kg
  • 512600022739
    Ferb EE 85 12 200 0.80
    Gewicht je Lagermengeneinheit
    6.104 kg

Details

  • European Technical Assessment: ETA-20/0842
  • Approved throughout Europe by ETA-20/0842
  • Type-tested according to DIN EN 1992-1-1
  • KOMO certificate

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
