FERBOX® Type E03

Rebend connection with straight bars

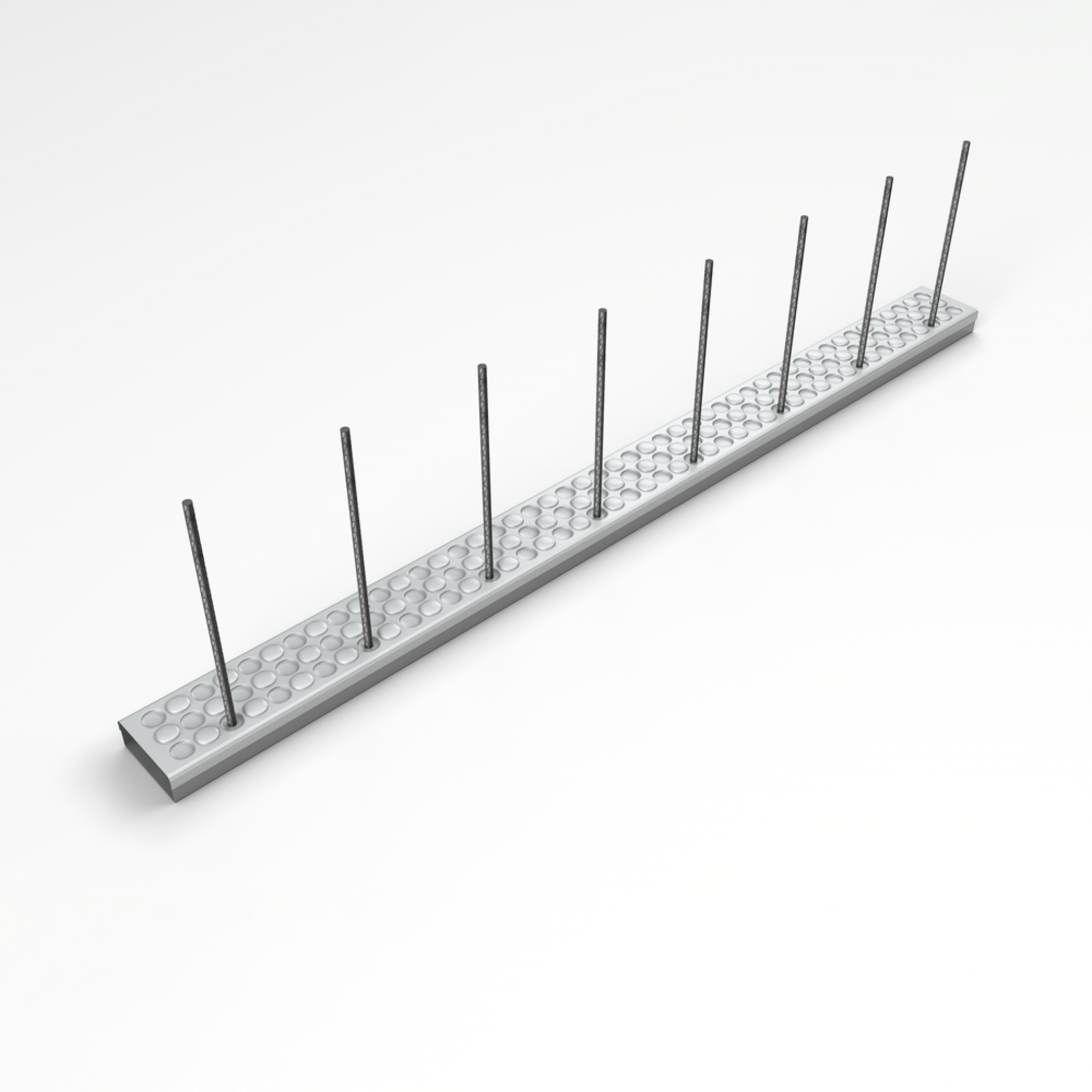

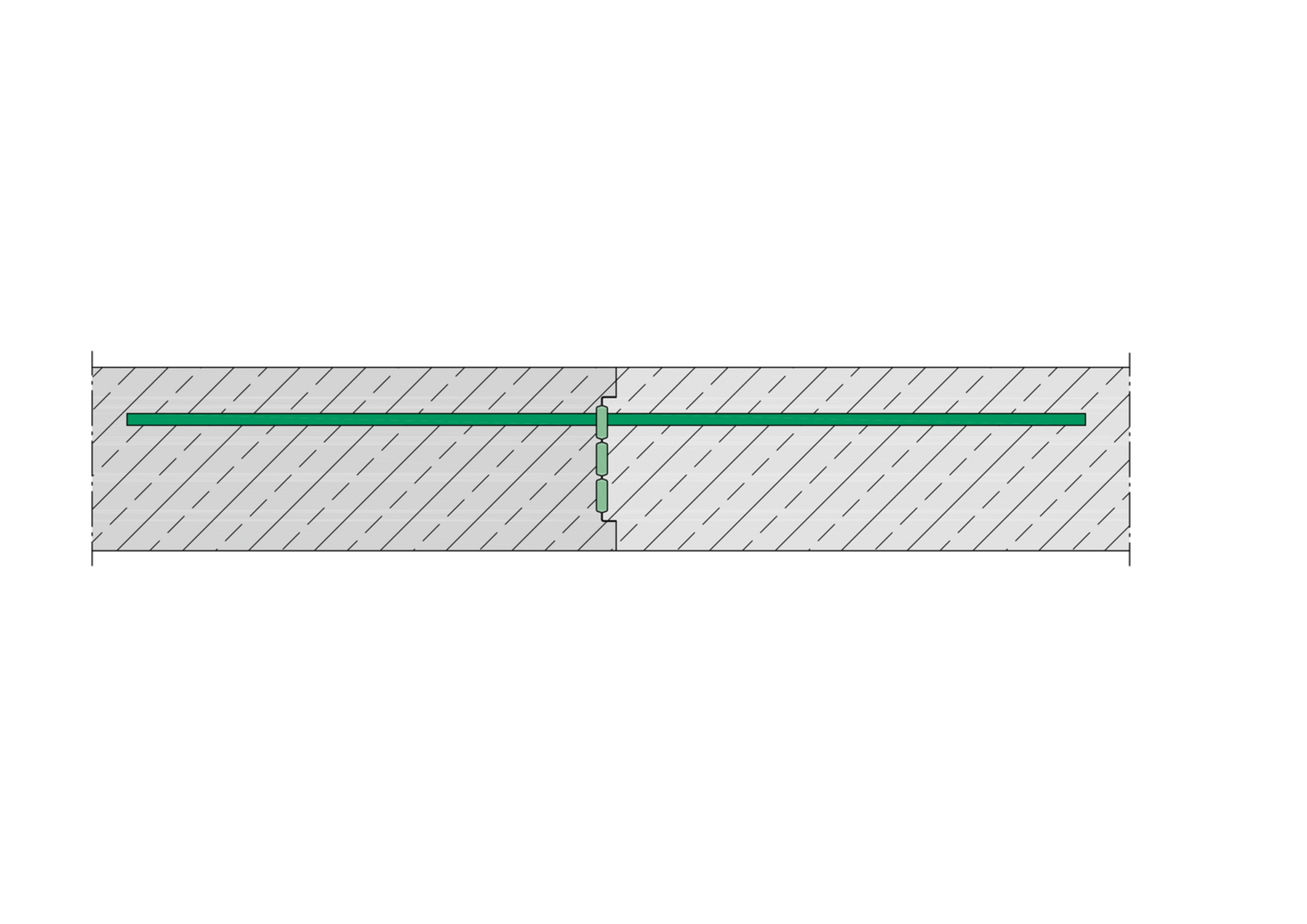

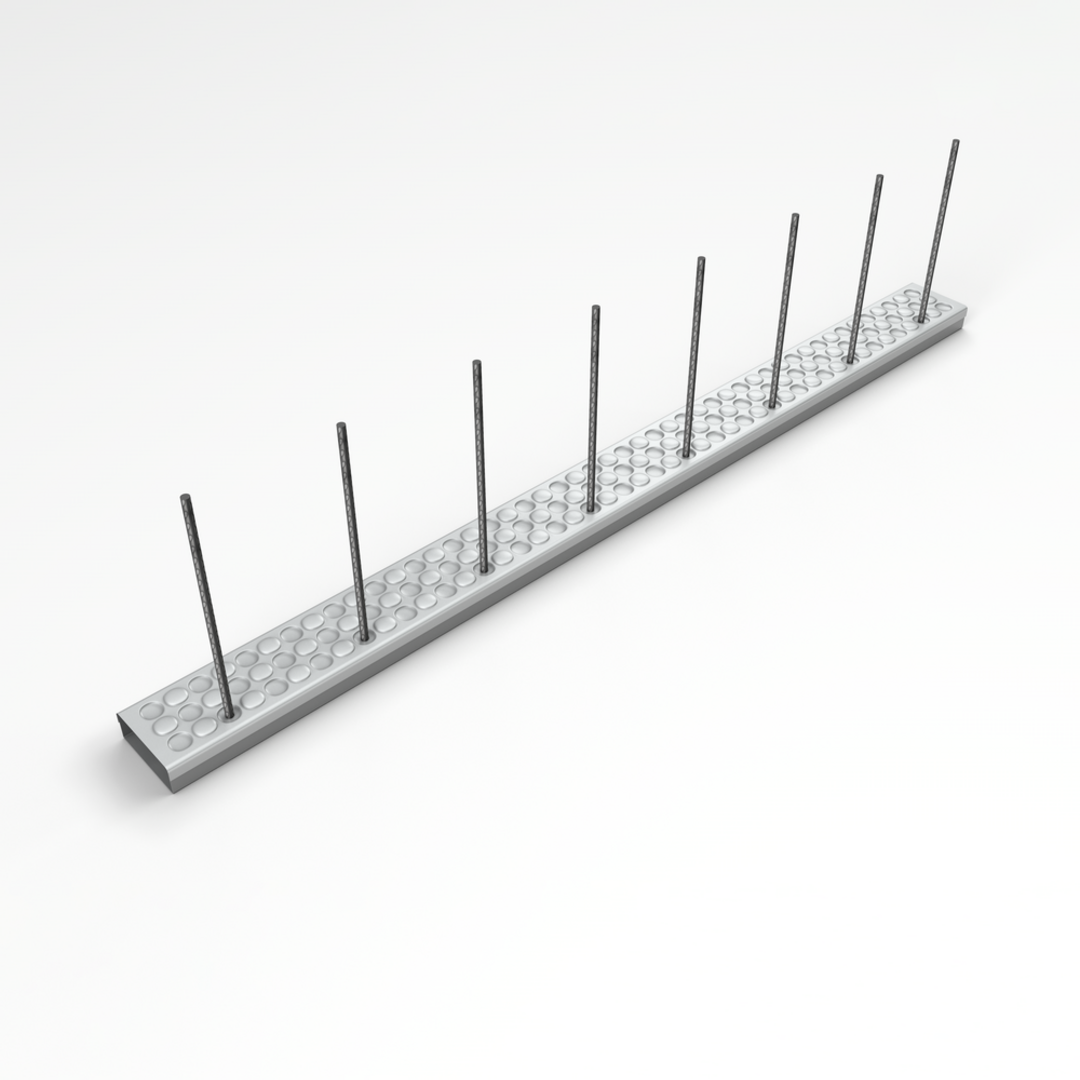

FERBOX® Type E03 single-row rebend connections are used for the frictional connection and reinforcement of reinforced concrete parts. They are suitable for narrow walls from 100 mm wall thick. They have the highest joint category – Interlocked – in transverse and longitudinal directions.. Its studded reinforcement box and cover are made of galvanised sheet metal and the reinforcing bars are made of B500 B. The bars run straight for the first casting section. The FERBOX® box is either 800 or 1200 mm long and 60 to 135 mm wide. The standard diameter of the rods is 8 to 10 mm. Other versions and special solutions are available on request.

European Technical Assessment: ETA-20/0842
Get in touch Download datasheet

Variants

Article

G

Gewicht je Lagermengeneinheit
  • 512400022063
    Ferb E03 60 08 200 1.20
    Gewicht je Lagermengeneinheit
    2.112 kg
    More information
  • 512400022064
    Ferb E03 60 08 250 1.20
    Gewicht je Lagermengeneinheit
    1.872 kg
    More information
  • 512400022066
    Ferb E03 60 10 200 1.20
    Gewicht je Lagermengeneinheit
    3.432 kg
    More information
  • 512400022067
    Ferb E03 60 10 250 1.20
    Gewicht je Lagermengeneinheit
    2.976 kg
    More information
  • 512400022069
    Ferb E03 85 12 200 1.20
    Gewicht je Lagermengeneinheit
    6.180 kg
    More information
  • 512400022070
    Ferb E03 85 12 250 1.20
    Gewicht je Lagermengeneinheit
    5.400 kg
    More information
  • 512400022725
    Ferb E03 60 08 150 0.80
    Gewicht je Lagermengeneinheit
    1.736 kg
    More information
  • 512400022726
    Ferb E03 60 08 200 0.80
    Gewicht je Lagermengeneinheit
    1.408 kg
    More information
  • 512400022727
    Ferb E03 60 08 250 0.80
    Gewicht je Lagermengeneinheit
    1.248 kg
    More information
  • 512400022728
    Ferb E03 60 10 150 0.80
    Gewicht je Lagermengeneinheit
    2.912 kg
    More information
  • 512400022729
    Ferb E03 60 10 200 0.80
    Gewicht je Lagermengeneinheit
    2.288 kg
    More information
  • 512400022730
    Ferb E03 60 10 250 0.80
    Gewicht je Lagermengeneinheit
    1.984 kg
    More information
  • 512400022731
    Ferb E03 85 12 150 0.80
    Gewicht je Lagermengeneinheit
    5.168 kg
    More information
  • 512400022732
    Ferb E03 85 12 200 0.80
    Gewicht je Lagermengeneinheit
    4.120 kg
    More information
  • 512400022733
    Ferb E03 85 12 250 0.80
    Gewicht je Lagermengeneinheit
    3.600 kg
    More information

Details

  • European Technical Assessment: ETA-20/0842
