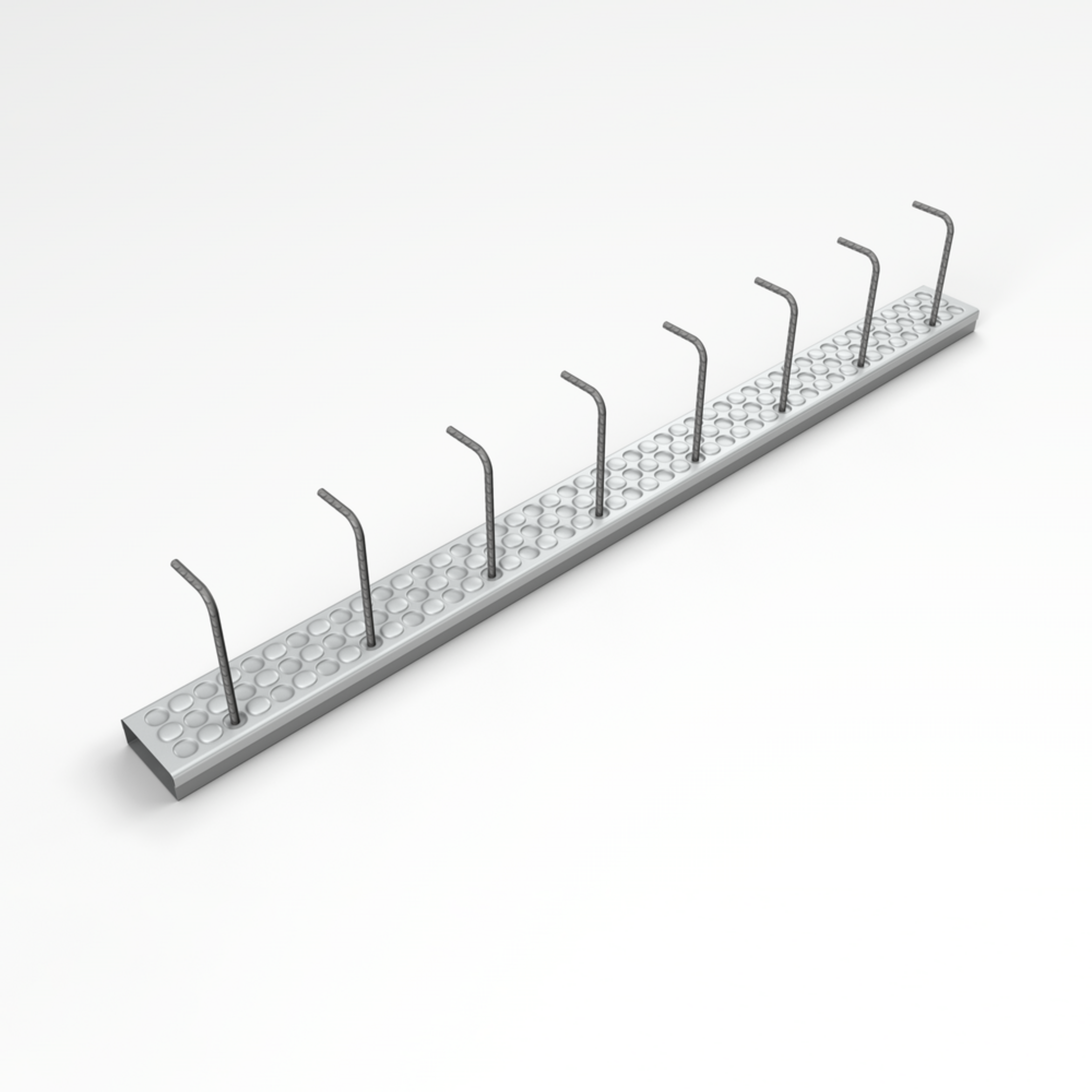

FERBOX® Type E02

Rebend connection, angled hooks perpendicular to the box

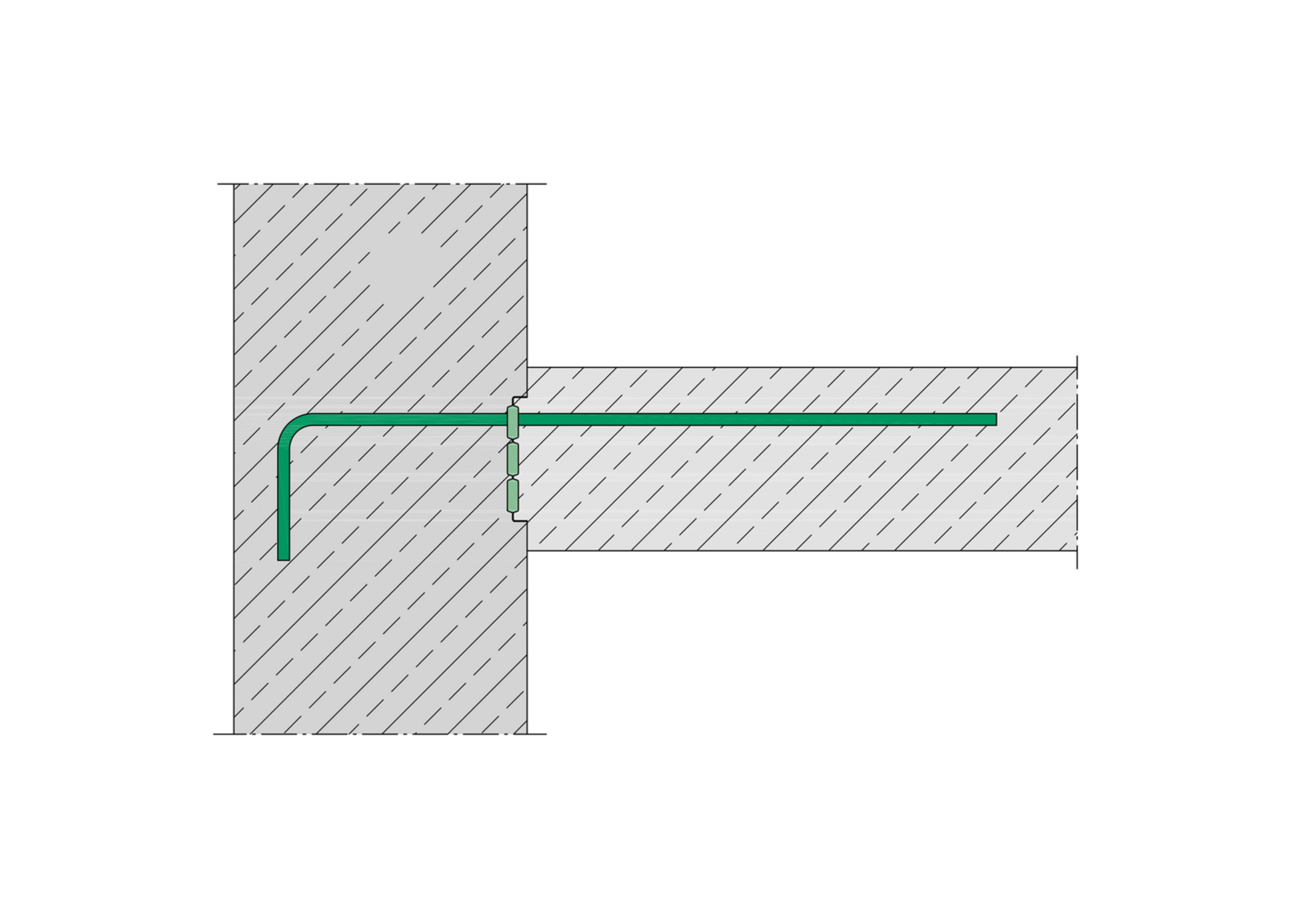

FERBOX® Type E02 single-row rebend connections are used for the frictional connection and reinforcement of reinforced concrete parts. They are suitable for narrow walls from 100 mm wall thick. They have the highest joint category – Interlocked – in transverse and longitudinal directions.. Their studded reinforcement box and cover are made of galvanised sheet metal and the reinforcing bars are made of B500 B or stainless steel. The bars have an L-shape parallel to the box for the first casting section. The FERBOX® box is either 800 or 1200 mm long and 60 to 135 mm wide. The standard diameter of the rods is 8 to 10 mm. Other versions and special solutions are available on request.

European Technical Assessment: ETA-20/0842
Get in touch Download datasheet

Variants

Article

G

Weight per storage unit

Details

  • European Technical Assessment: ETA-20/0842

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • Declaration of Performance FERBOX®

    Erklärung

    PDF, 25 KB

    de en
  • FERBOX® Design Software

    FERBOX® Design Software

    Planning Software for FERBOX reverse bending connectors v.2021

    ZIP, 17 MB

    de en

  • CARES Technical Approval FERBOX®

    Erklärung

    PDF, 2 MB

    en
    Download

  • Installation Instructions FERBOX®

    Einbauanleitung

    PDF, 331 KB

    de
    Download

  • Installation Instructions FERBOX®

    Einbauanleitung

    PDF, 302 KB

    en
    Download

  • ETA-20/0842 FERBOX®

    European Technical Assesment

    PDF, 2 MB

    de en

  • Static Type Test FERBOX 4117-7395/2021

    Typenprüfung

    PDF, 7 MB

    de
    Download

  • Order sheet FERBOX®

    Bestellblatt

    PDF, 149 KB

    de en

  • Technical Information FERBOX®

    Technische Information

    PDF, 2 MB

    de en

  • KOMO Product Certificate L22915/05

    Zertifikat

    PDF, 190 KB

    de en

  • General type approval FERBOX®

    Erklärung

    PDF, 2 MB

    de
    Download

BIM- and CAD-Data

  • BIM for Installation parts FERBOX® Rebend connection (ALLPLAN)

    BIM for Installation parts FERBOX® Rebend connection (ALLPLAN)

    SUPPARTS© Installation parts

    ZIP, 3 MB

    de en

Included accessories

Services: From planning to utilisation

We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.

Consulting, planning, design

Customised solutions
