FERBOX® Type B06

Rebend connection with fold-out stirrup

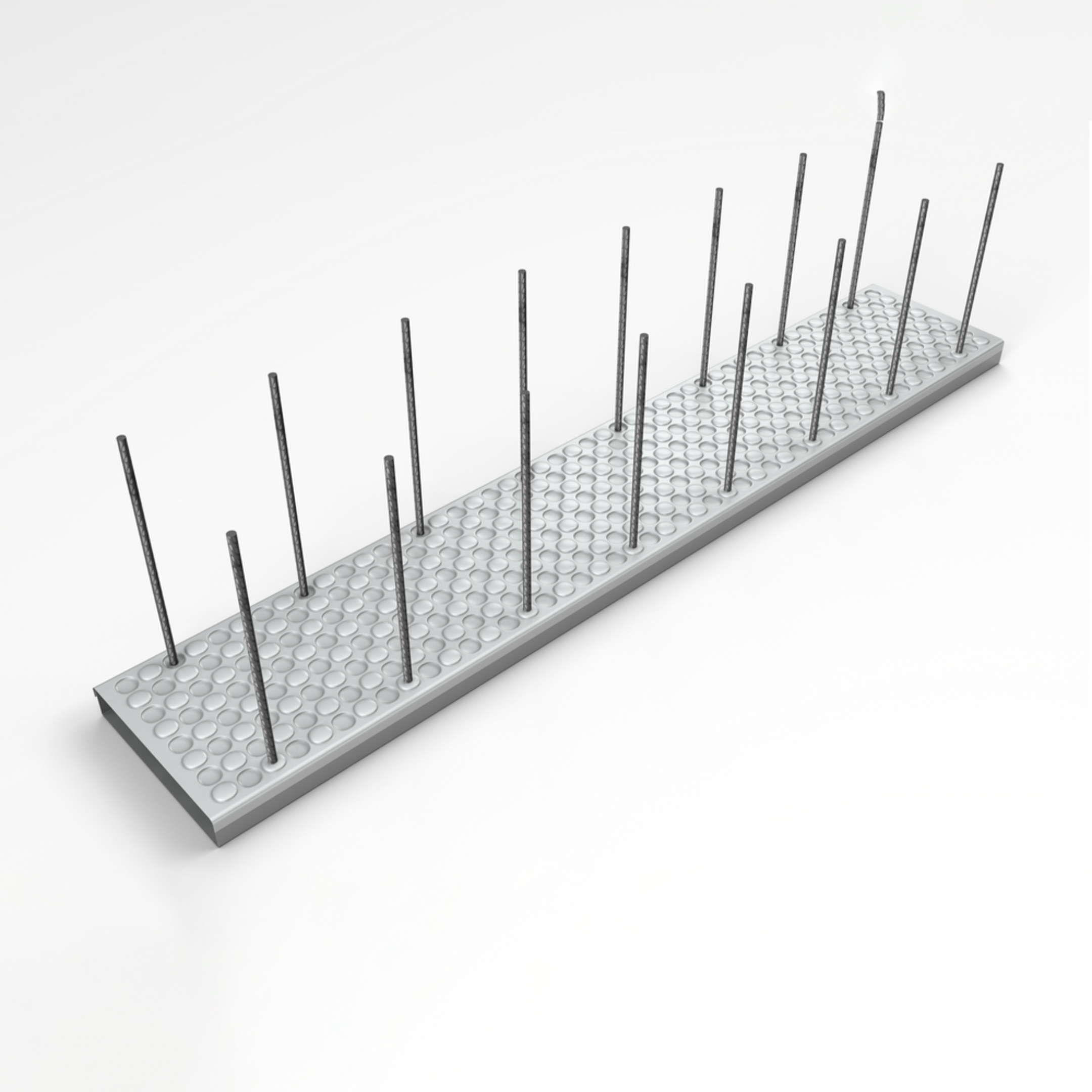

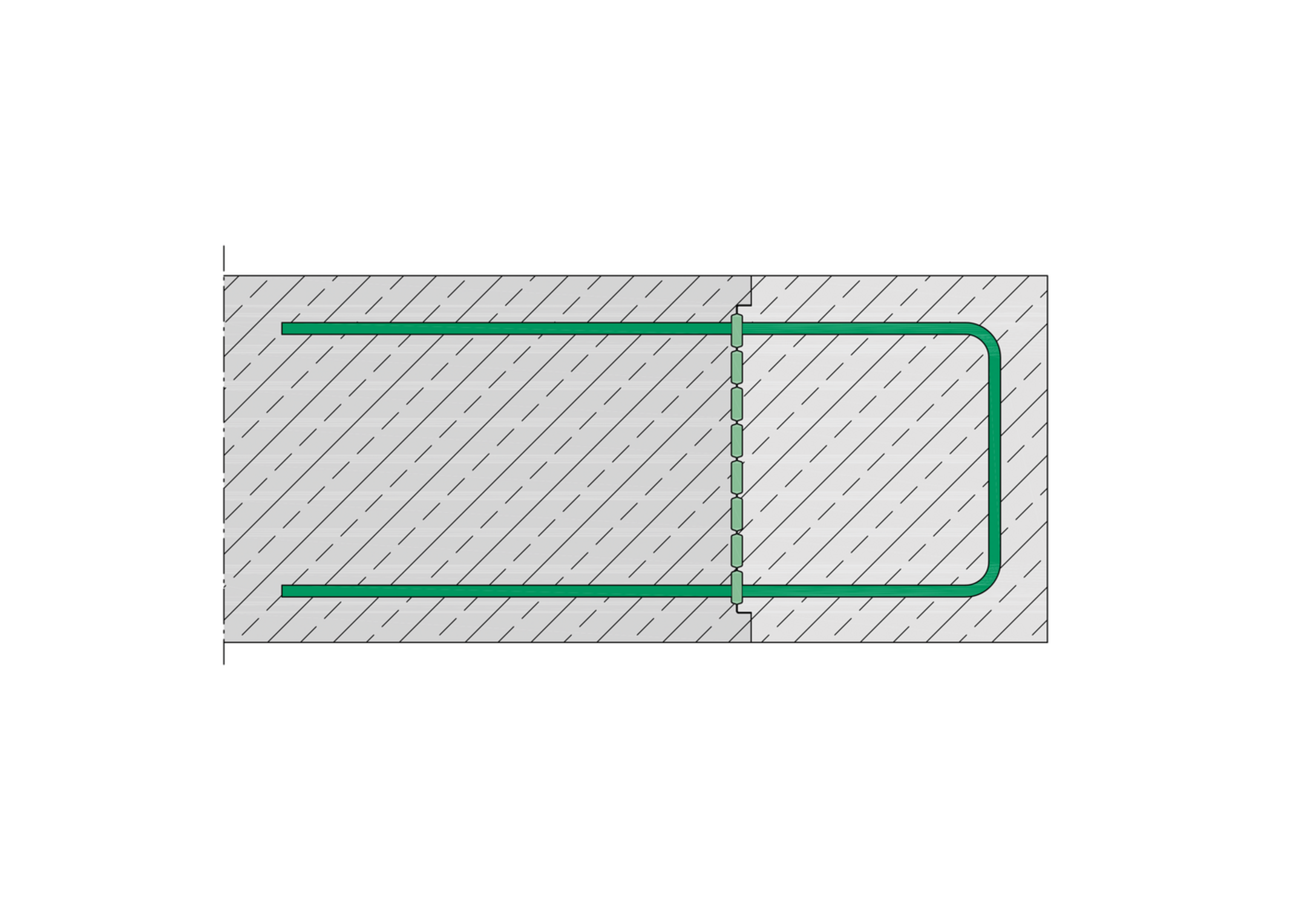

FERBOX® Type B06 double-row rebend connections are used for the frictional connection and reinforcement of reinforced concrete parts from two different casting stages. These are solutions for walls from 120 mm thick. They have the highest joint category – Interlocked – in transverse and longitudinal directions.. Their studded reinforcement box and cover are made of galvanised sheet metal and the reinforcement stirrups are made of B500 B or stainless steel. The stirrups have two straight bars for the first casting section. The FERBOX® box is either 800 or 1200 mm long and 85 to 260 mm wide. The standard diameter of the rods is 8 to 12 mm. Special solutions are available on request.

European Technical Assessment: ETA-20/0842
Get in touchDownload datasheet

Variants

Article

G

Weight per storage unit

Details

  • European Technical Assessment: ETA-20/0842
  • Approved throughout Europe by ETA-20/0842
  • Type-tested according to DIN EN 1992-1-1
  • KOMO certificate
