KDAG 41

Ceiling bracket support, 41x41 mm

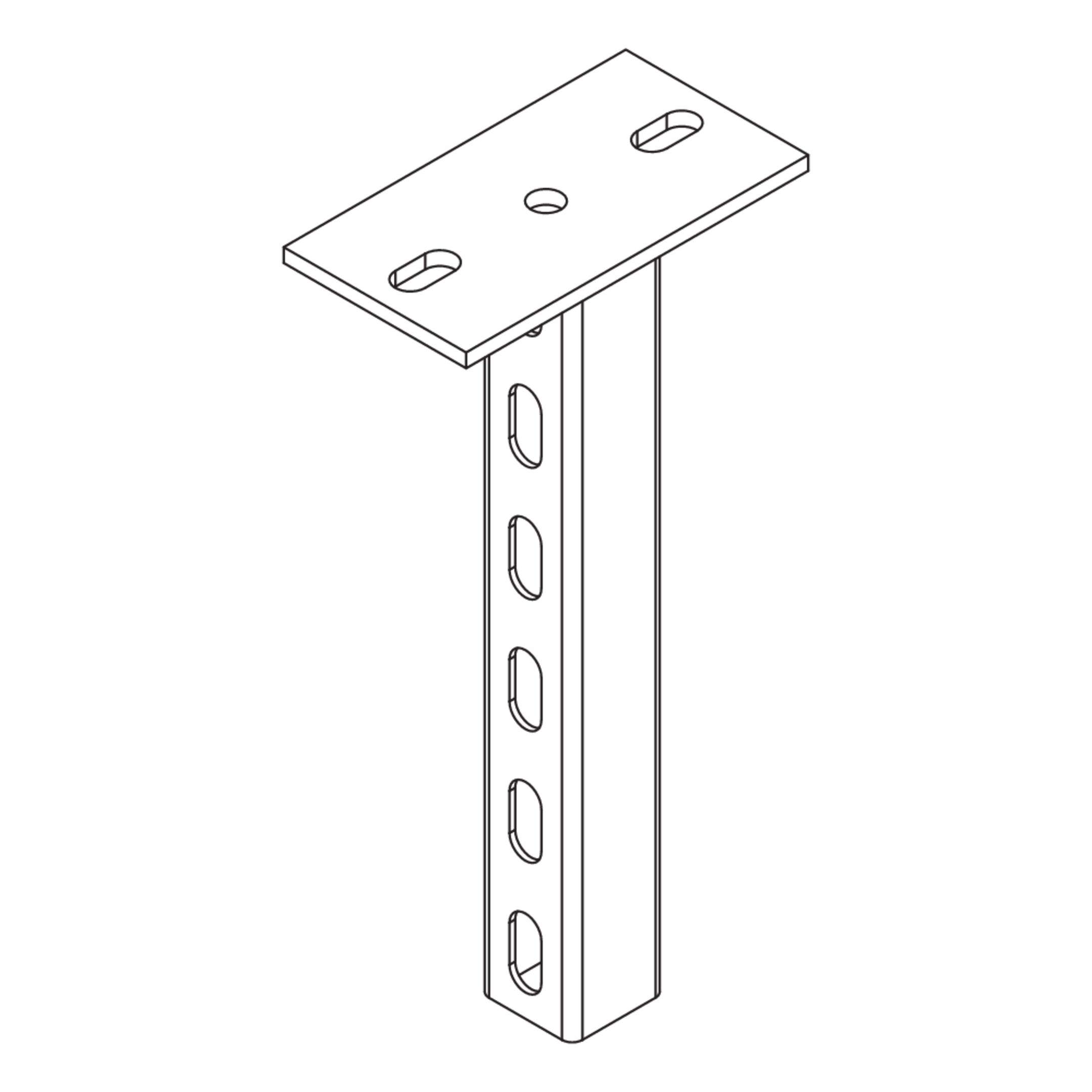

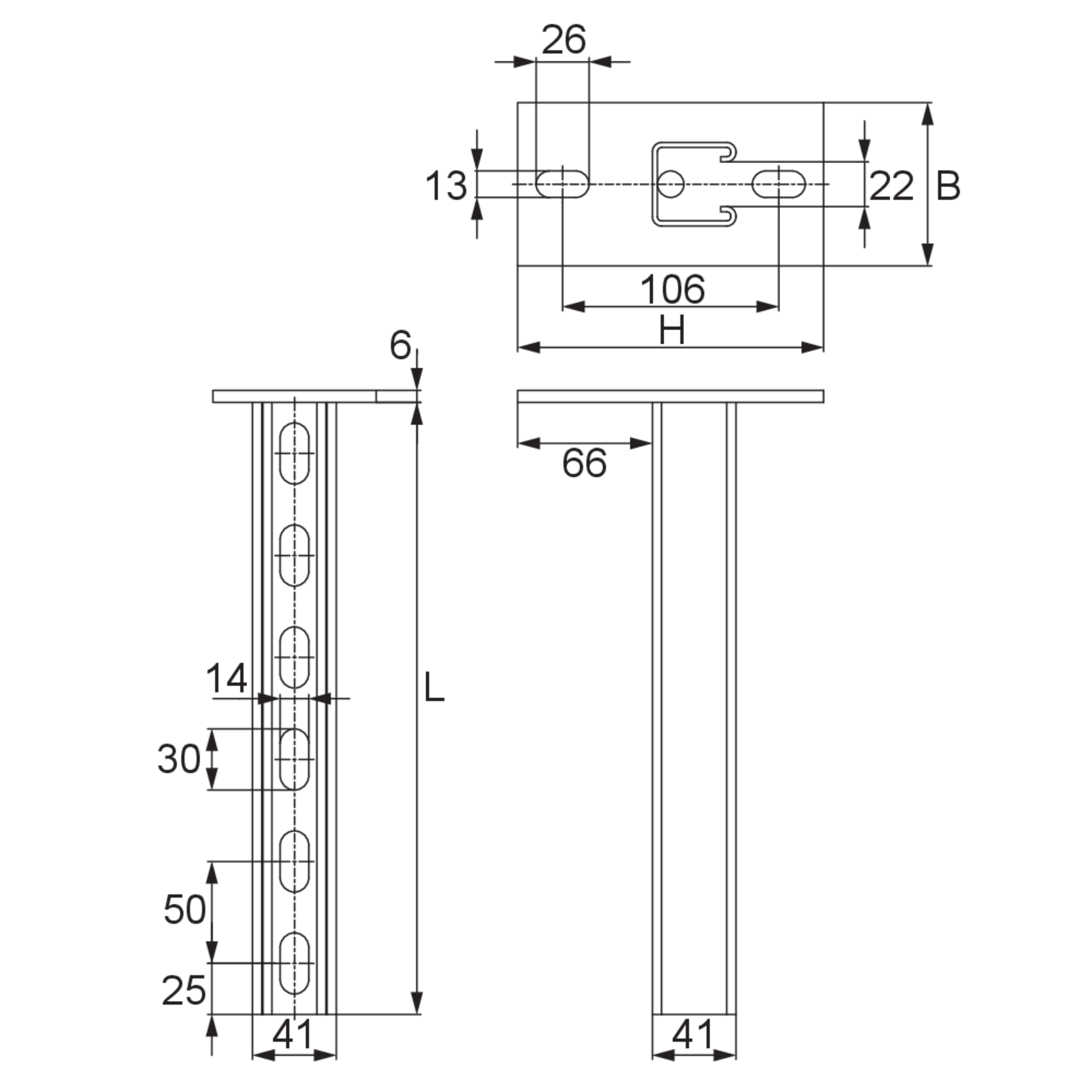

The bracket holder KDAG 41 with welded-on head plate consists of a C+ profile 41 x 41 mm with continuous perforation and a slot 22 mm wide. It is made of hot-dip galvanised steel and is available in lengths of up to 1000 mm. (Profile material thickness = 2.5 mm; head plate = 6 mm) FD/P: factor for calculating the dowel load FD with the actual bracket load P or the sum of the actual bracket loads.

Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

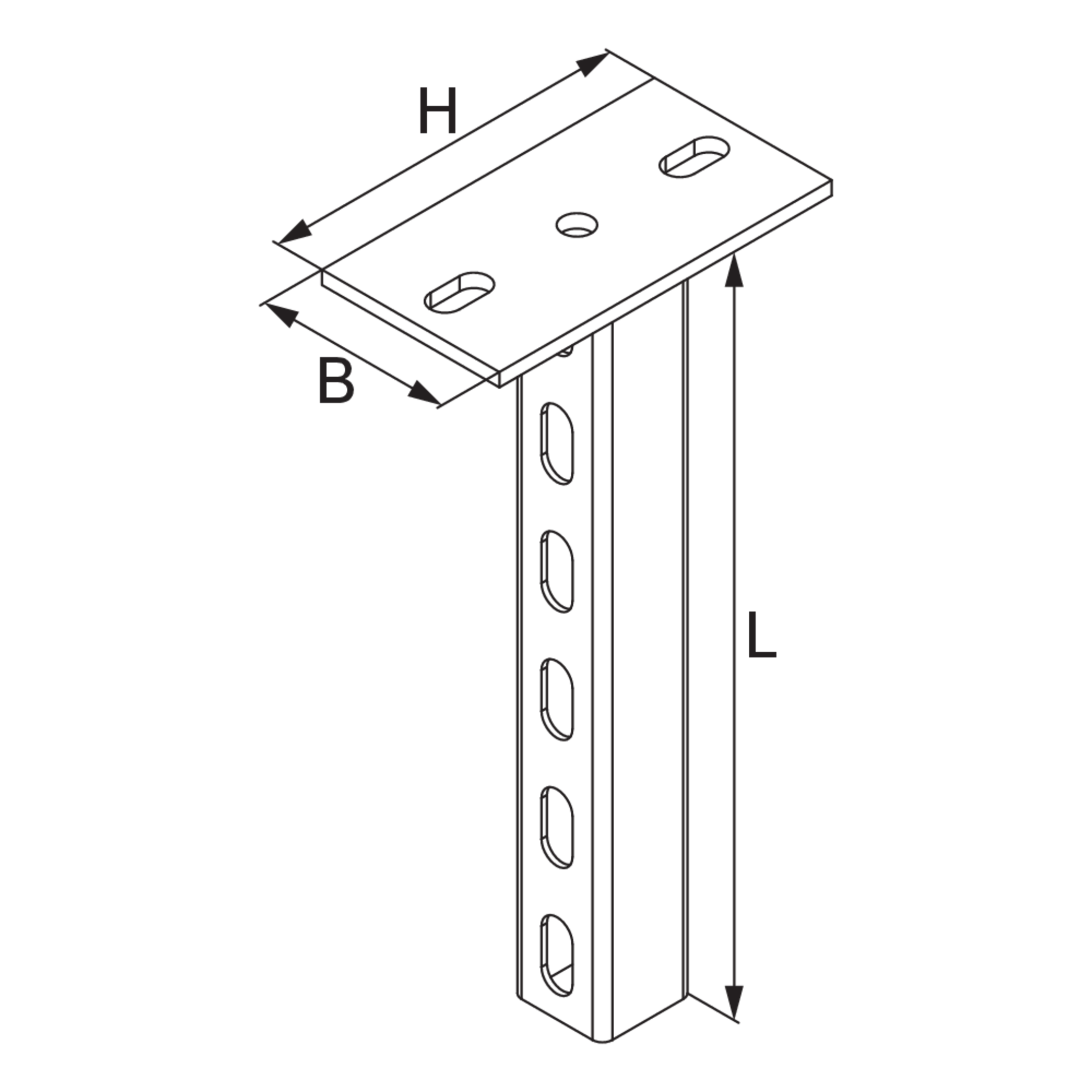

Article

H

height

HP

profile height

B

width

BP

profile width

L

length

t

Material strength

G

Weight per storage unit
  • KDAG 41-02F
    Bracket support KDAG 41-02F
    height
    150 mm
    profile height
    41 mm
    width
    80 mm
    profile width
    41 mm
    length
    200 mm
    Material strength
    2.5 mm
    Weight per storage unit
    1.091 kg
    More information
  • KDAG 41-03F
    Bracket support KDAG 41-03F
    height
    150 mm
    profile height
    41 mm
    width
    80 mm
    profile width
    41 mm
    length
    300 mm
    Material strength
    2.5 mm
    Weight per storage unit
    1.348 kg
    More information
  • KDAG 41-04F
    Bracket support KDAG 41-04F
    height
    150 mm
    profile height
    41 mm
    width
    80 mm
    profile width
    41 mm
    length
    400 mm
    Material strength
    2.5 mm
    Weight per storage unit
    1.616 kg
    More information
  • KDAG 41-05F
    Bracket support KDAG 41-05F
    height
    150 mm
    profile height
    41 mm
    width
    80 mm
    profile width
    41 mm
    length
    500 mm
    Material strength
    2.5 mm
    Weight per storage unit
    1.873 kg
    More information
  • KDAG 41-06F
    Bracket support KDAG 41-06F
    height
    150 mm
    profile height
    41 mm
    width
    80 mm
    profile width
    41 mm
    length
    600 mm
    Material strength
    2.5 mm
    Weight per storage unit
    2.129 kg
    More information
  • KDAG 41-07F
    Bracket support KDAG 41-07F
    height
    150 mm
    profile height
    41 mm
    width
    80 mm
    profile width
    41 mm
    length
    700 mm
    Material strength
    2.5 mm
    Weight per storage unit
    2.379 kg
    More information
  • KDAG 41-08F
    Bracket support KDAG 41-08F
    height
    150 mm
    profile height
    41 mm
    width
    80 mm
    profile width
    41 mm
    length
    800 mm
    Material strength
    2.5 mm
    Weight per storage unit
    2.654 kg
    More information
  • KDAG 41-09F
    Bracket support KDAG 41-09F
    height
    150 mm
    profile height
    41 mm
    width
    80 mm
    profile width
    41 mm
    length
    900 mm
    Material strength
    2.5 mm
    Weight per storage unit
    2.910 kg
    More information
  • KDAG 41-10F
    Bracket support KDAG 41-10F
    height
    150 mm
    profile height
    41 mm
    width
    80 mm
    profile width
    41 mm
    length
    1000 mm
    Material strength
    2.5 mm
    Weight per storage unit
    3.178 kg
    More information
