KA 41

Stem support, standard, KDAG 41, A/KHA 21/41/42/82

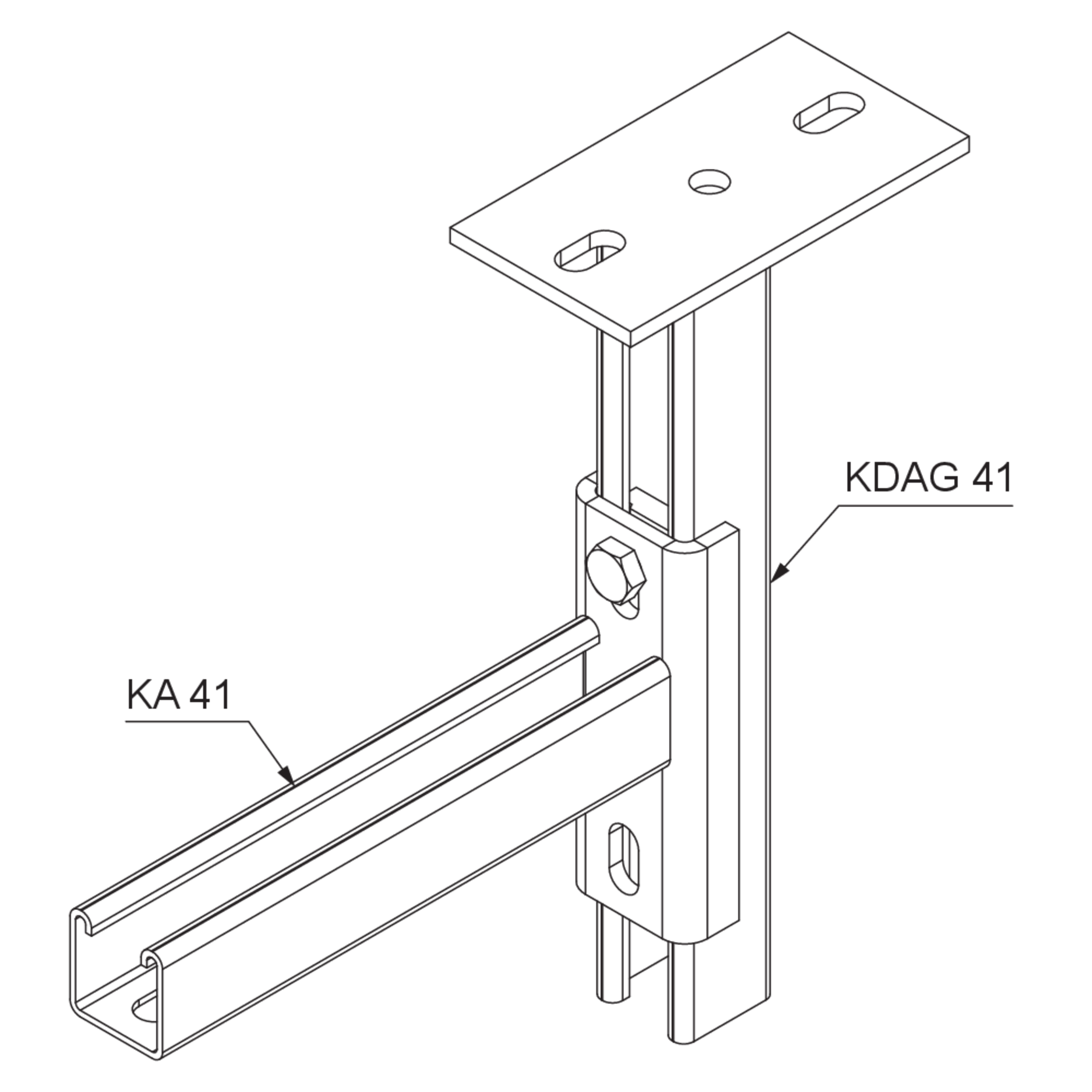

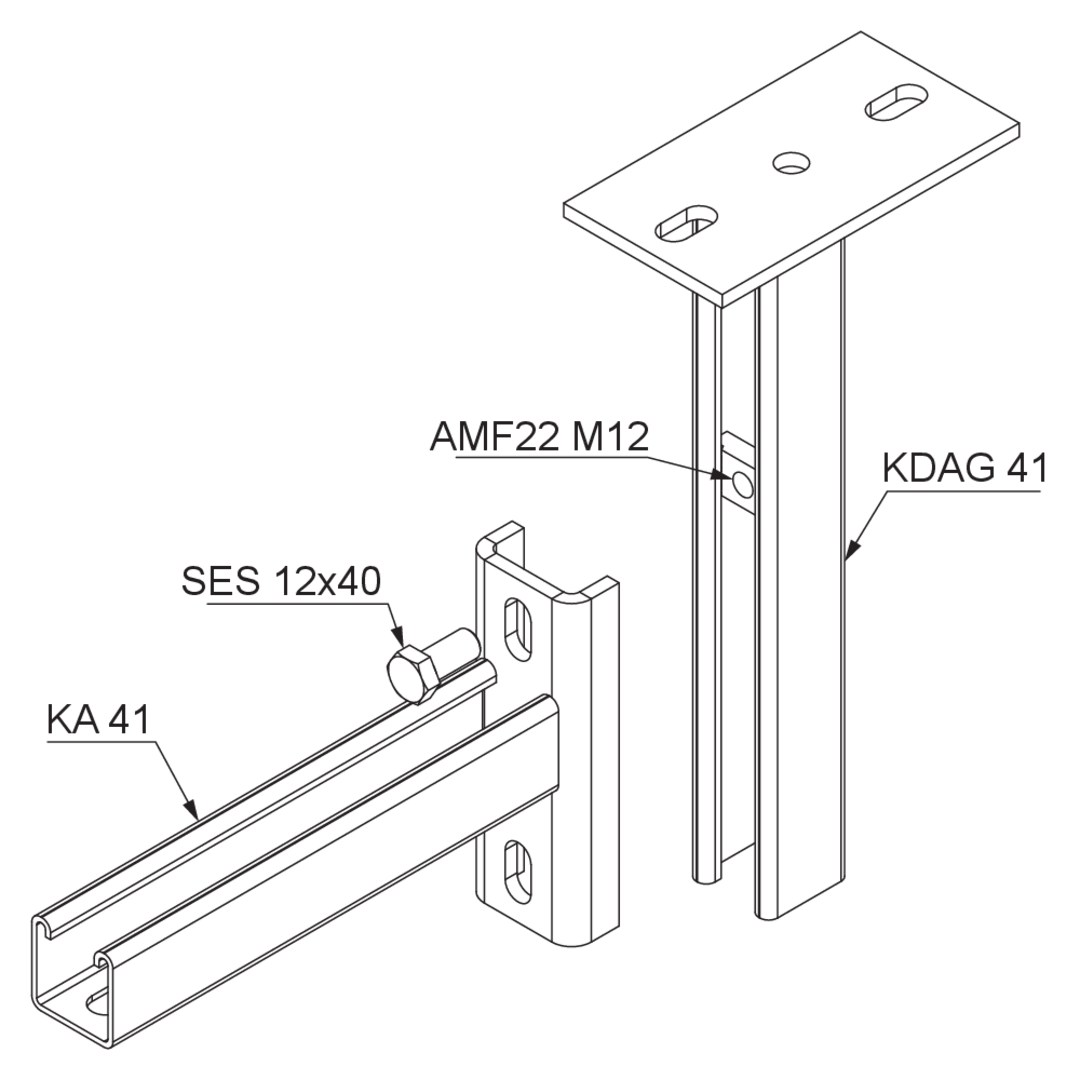

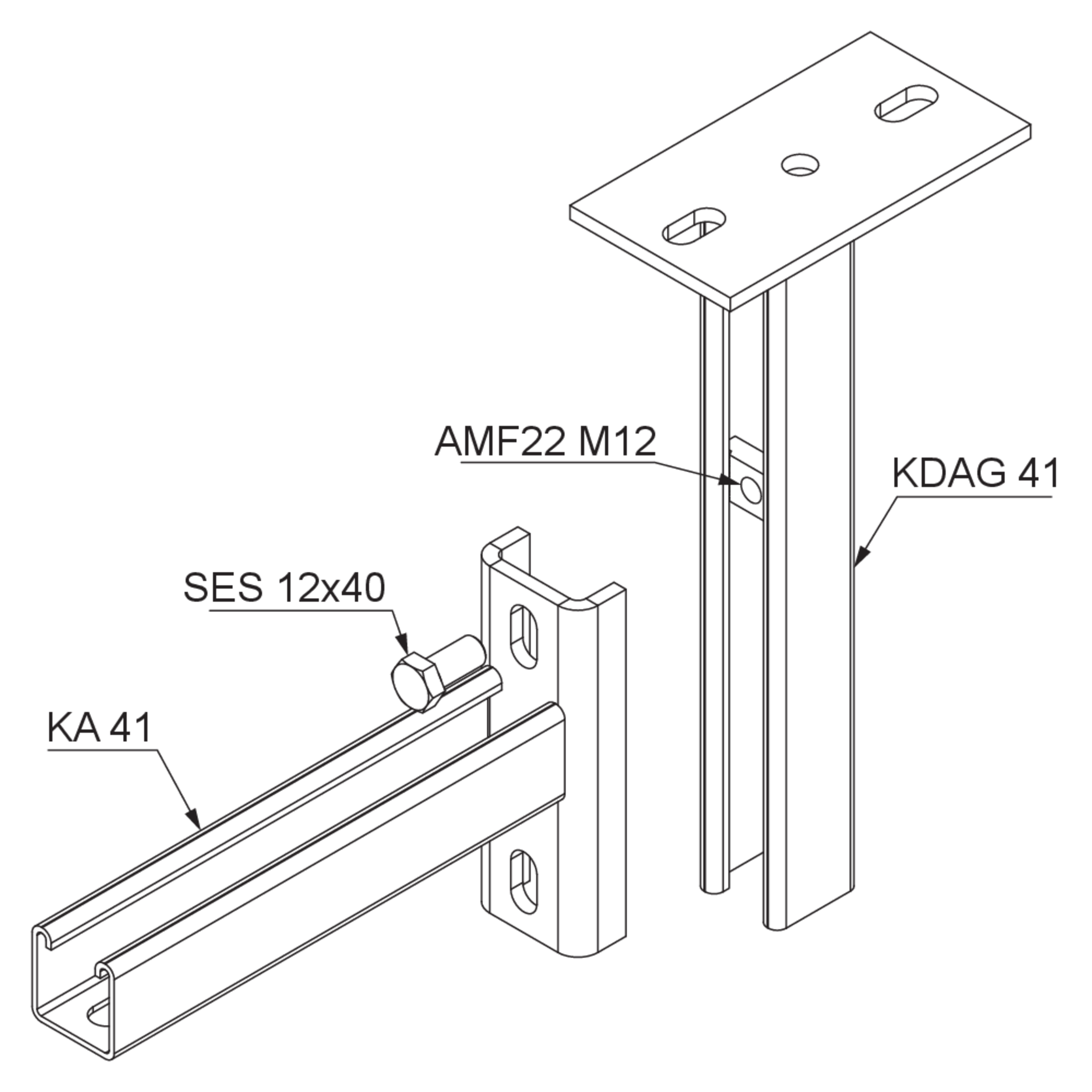

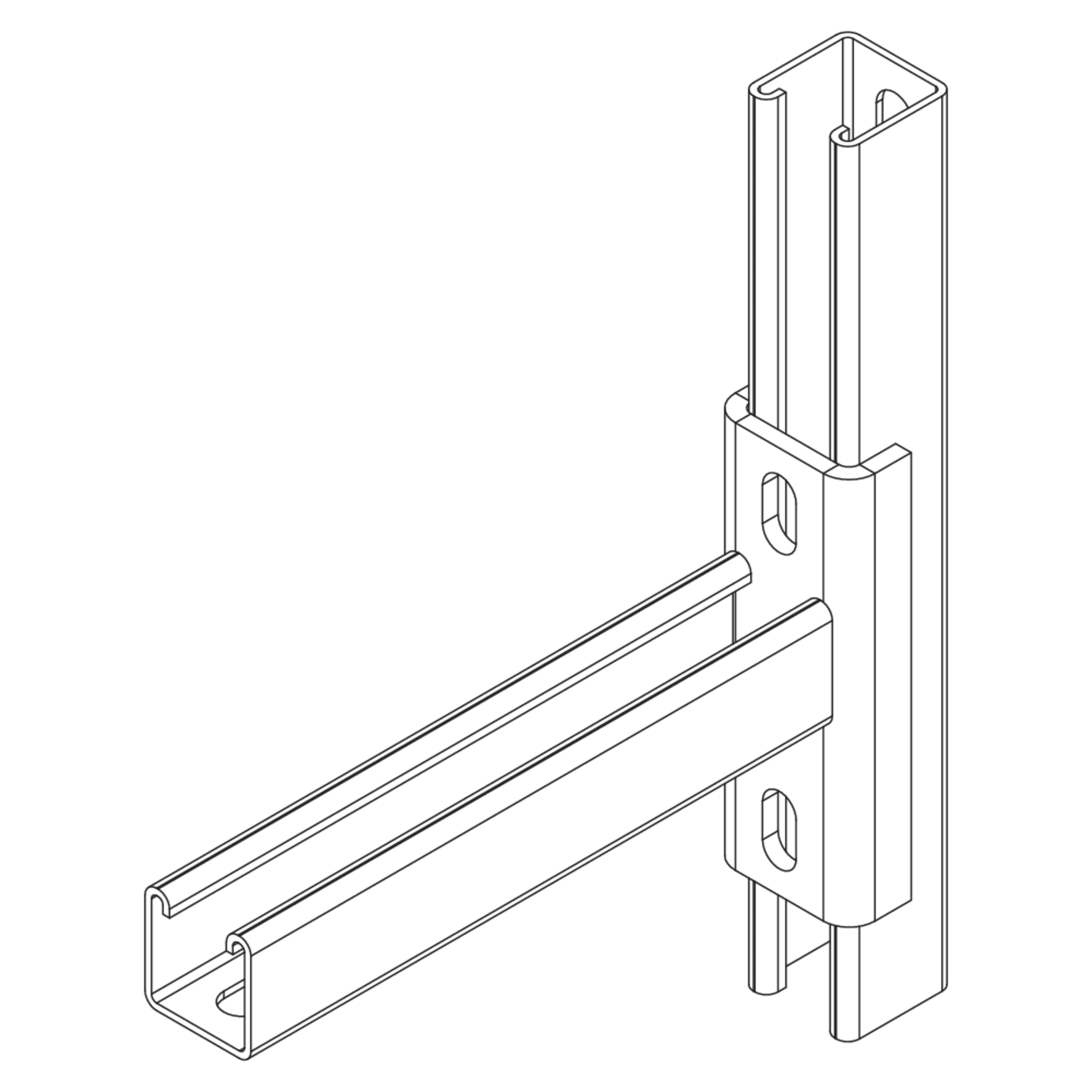

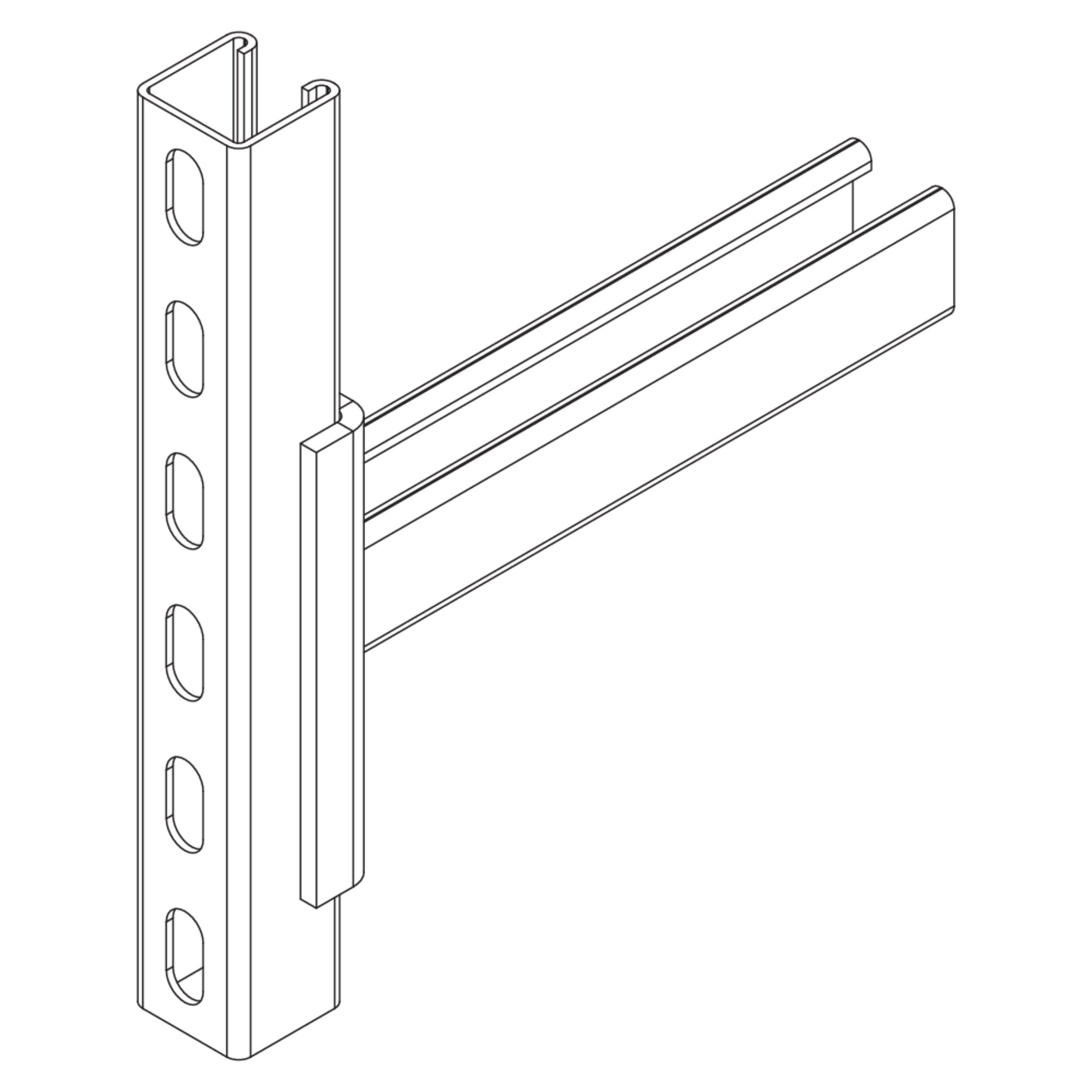

The strut bracket KA 41 is attached to bracket holder KDAG 41 or KHA 41/KHAL 41 and is intended for loads up to 4.3 kN. The system is ideal for suspending mesh cable trays, cable trays and ladders up to 600 mm wide. The bracket is made of hot-dip galvanised steel.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

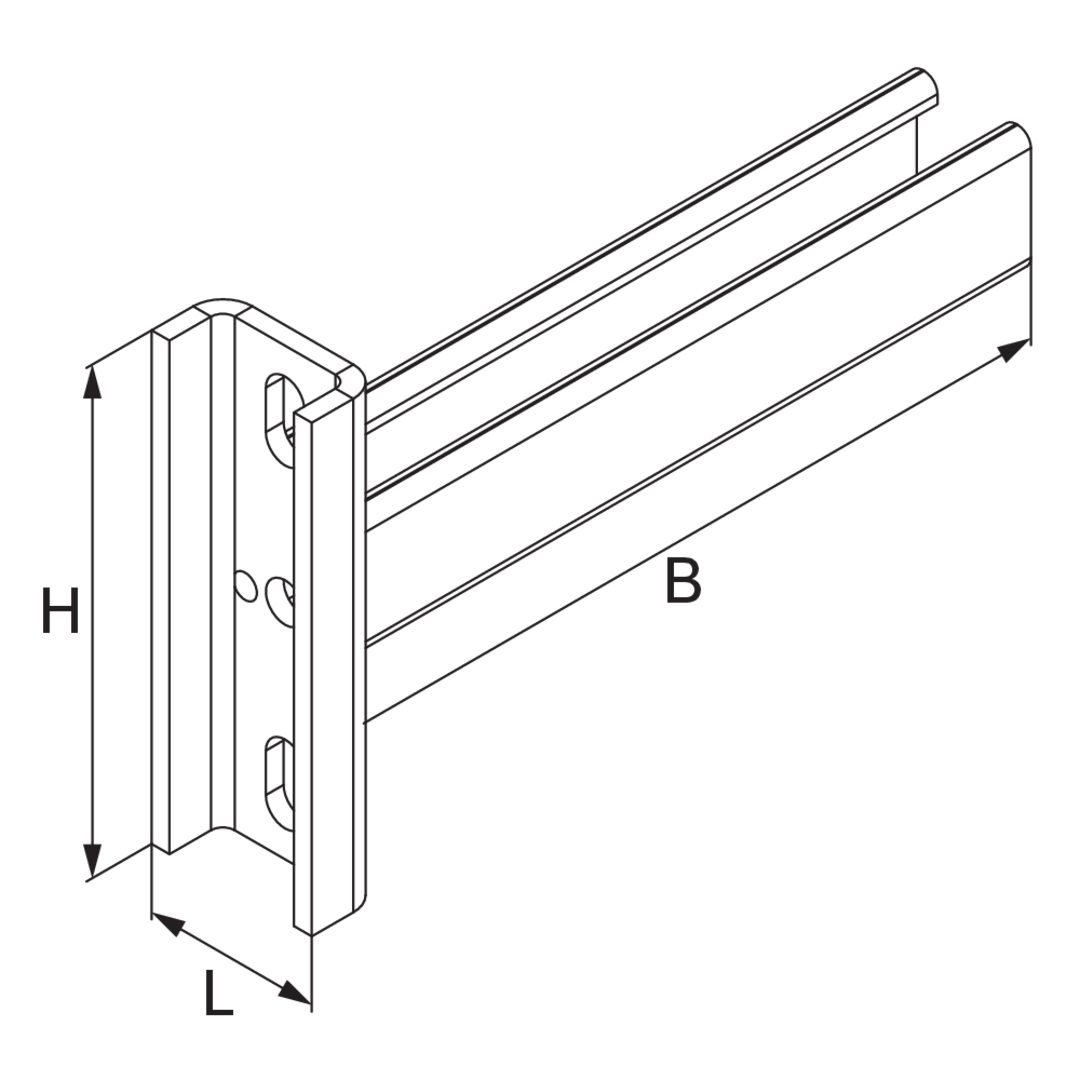

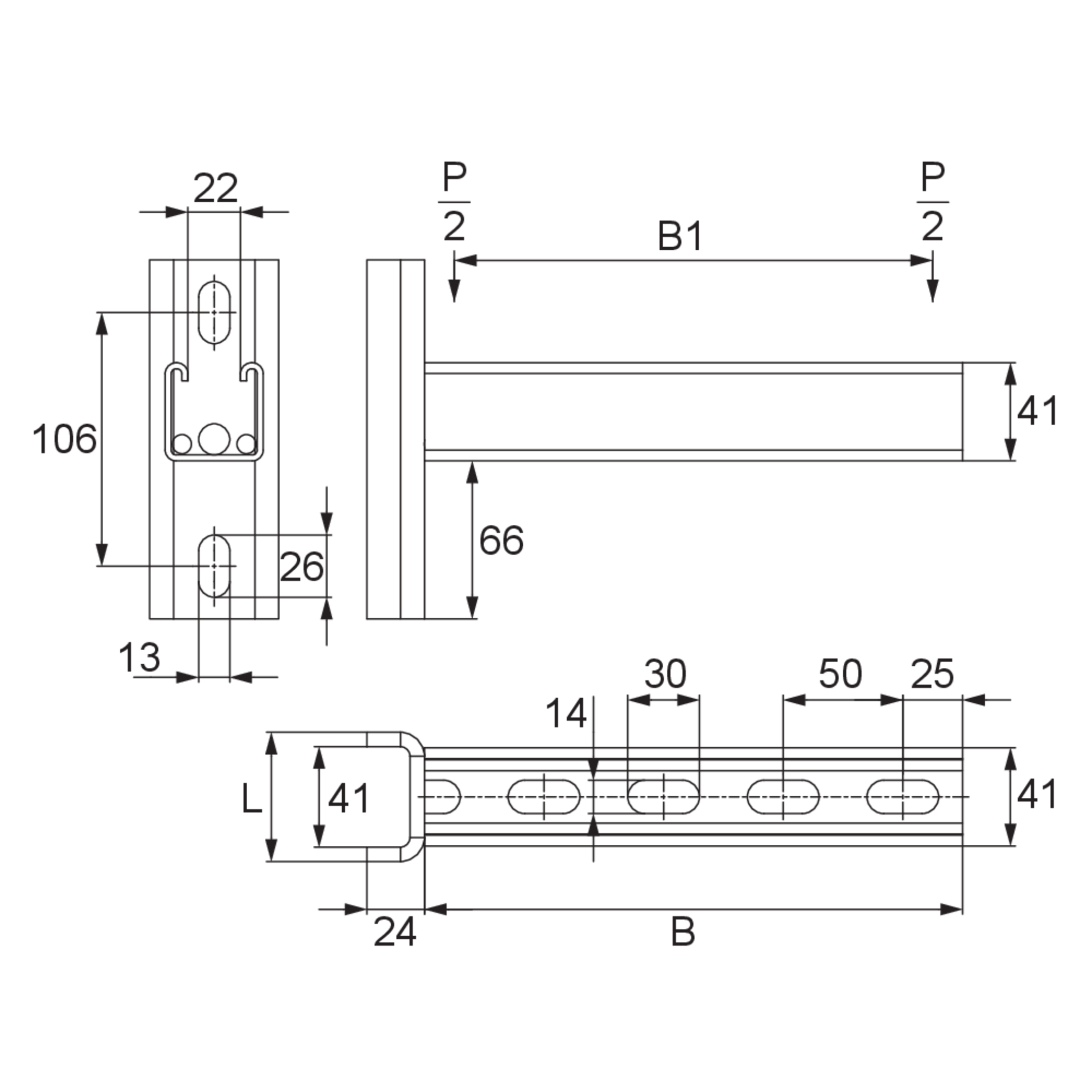

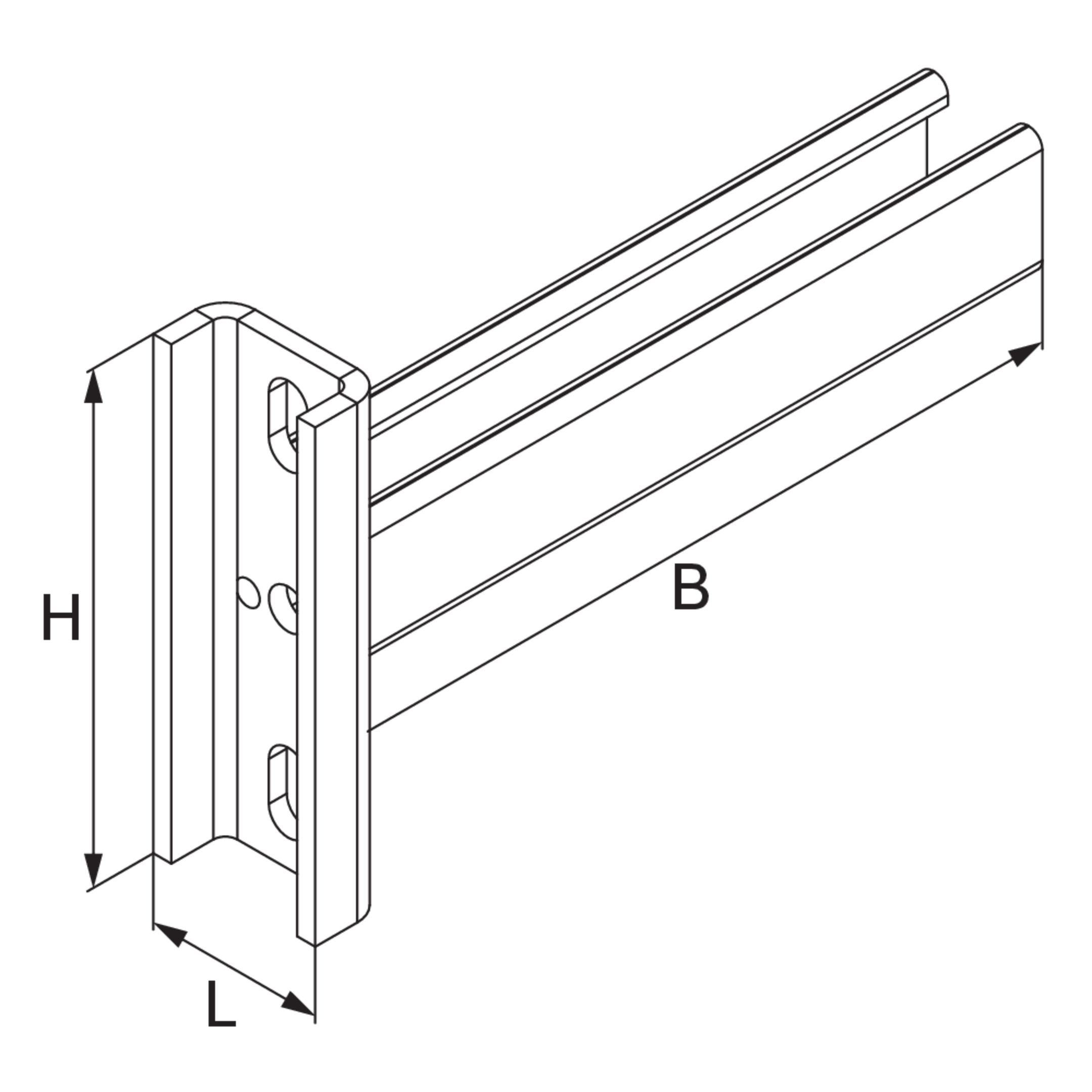

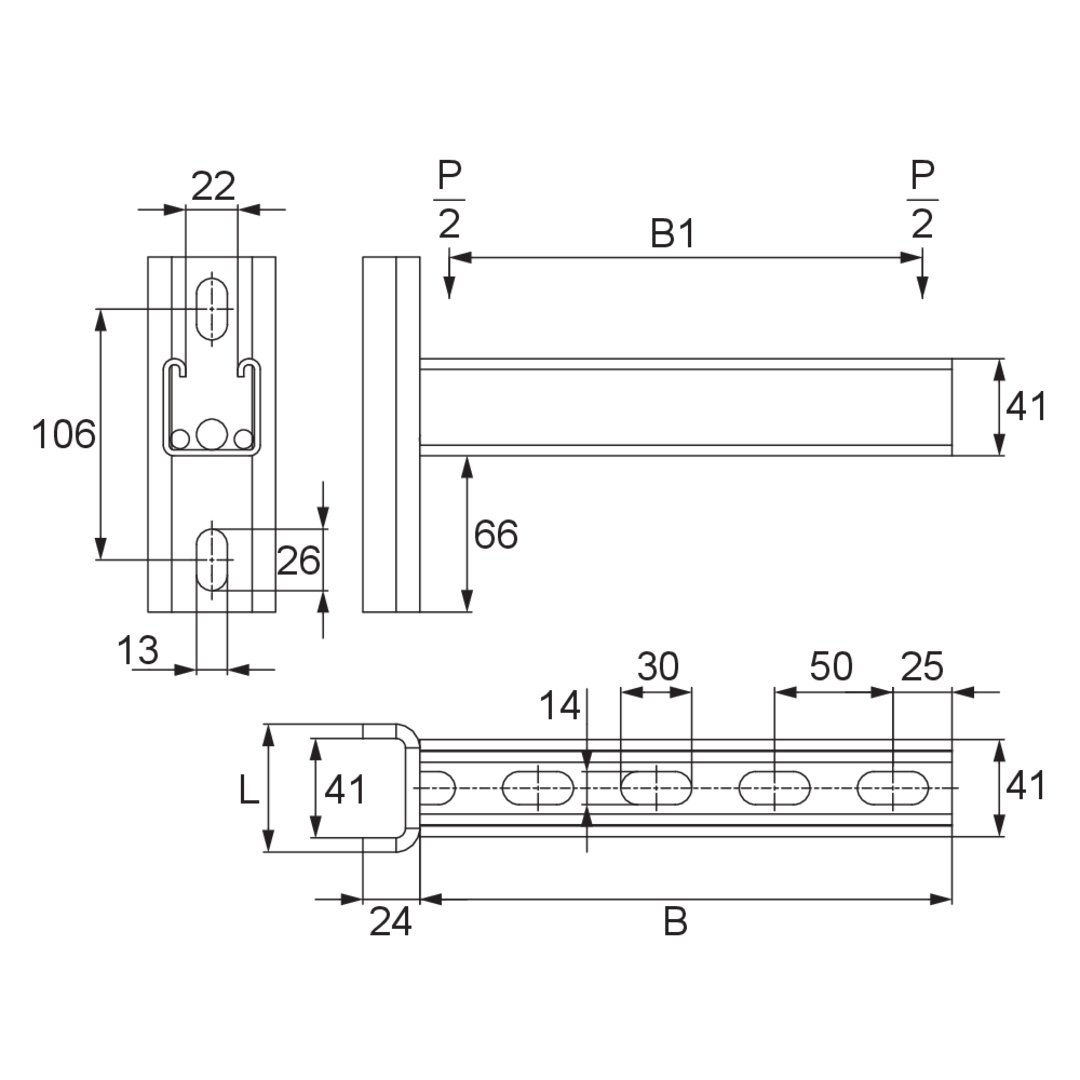

Article

H

height

B

width

B1

width 1

L

length

Pmax

maximum load

G

Weight per storage unit

Geeignet für Funktionserhalt

  • KA 41-010F
    Bracket KA 41-010F
    height
    150 mm
    width
    125 mm
    width 1
    100 mm
    length
    54 mm
    maximum load
    4.30 kN
    Weight per storage unit
    0.890 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • KA 41-015F
    Bracket KA 41-015F
    height
    150 mm
    width
    175 mm
    width 1
    150 mm
    length
    54 mm
    maximum load
    4.30 kN
    Weight per storage unit
    1.020 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • KA 41-020F
    Bracket KA 41-020F
    height
    150 mm
    width
    225 mm
    width 1
    200 mm
    length
    54 mm
    maximum load
    4.30 kN
    Weight per storage unit
    1.150 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • KA 41-025F
    Bracket KA 41-025F
    height
    150 mm
    width
    275 mm
    width 1
    250 mm
    length
    54 mm
    maximum load
    4.30 kN
    Weight per storage unit
    1.280 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • KA 41-030F
    Bracket KA 41-030F
    height
    150 mm
    width
    325 mm
    width 1
    300 mm
    length
    54 mm
    maximum load
    4.30 kN
    Weight per storage unit
    1.410 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • KA 41-040F
    Bracket KA 41-040F
    height
    150 mm
    width
    425 mm
    width 1
    400 mm
    length
    54 mm
    maximum load
    4.30 kN
    Weight per storage unit
    1.670 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • KA 41-050F
    Bracket KA 41-050F
    height
    150 mm
    width
    525 mm
    width 1
    500 mm
    length
    54 mm
    maximum load
    4.30 kN
    Weight per storage unit
    1.930 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • KA 41-060F
    Bracket KA 41-060F
    height
    150 mm
    width
    625 mm
    width 1
    600 mm
    length
    54 mm
    maximum load
    4.30 kN
    Weight per storage unit
    2.200 kg
    Geeignet für Funktionserhalt
    Nein
    More information
