AVAW

Rail connector bracket

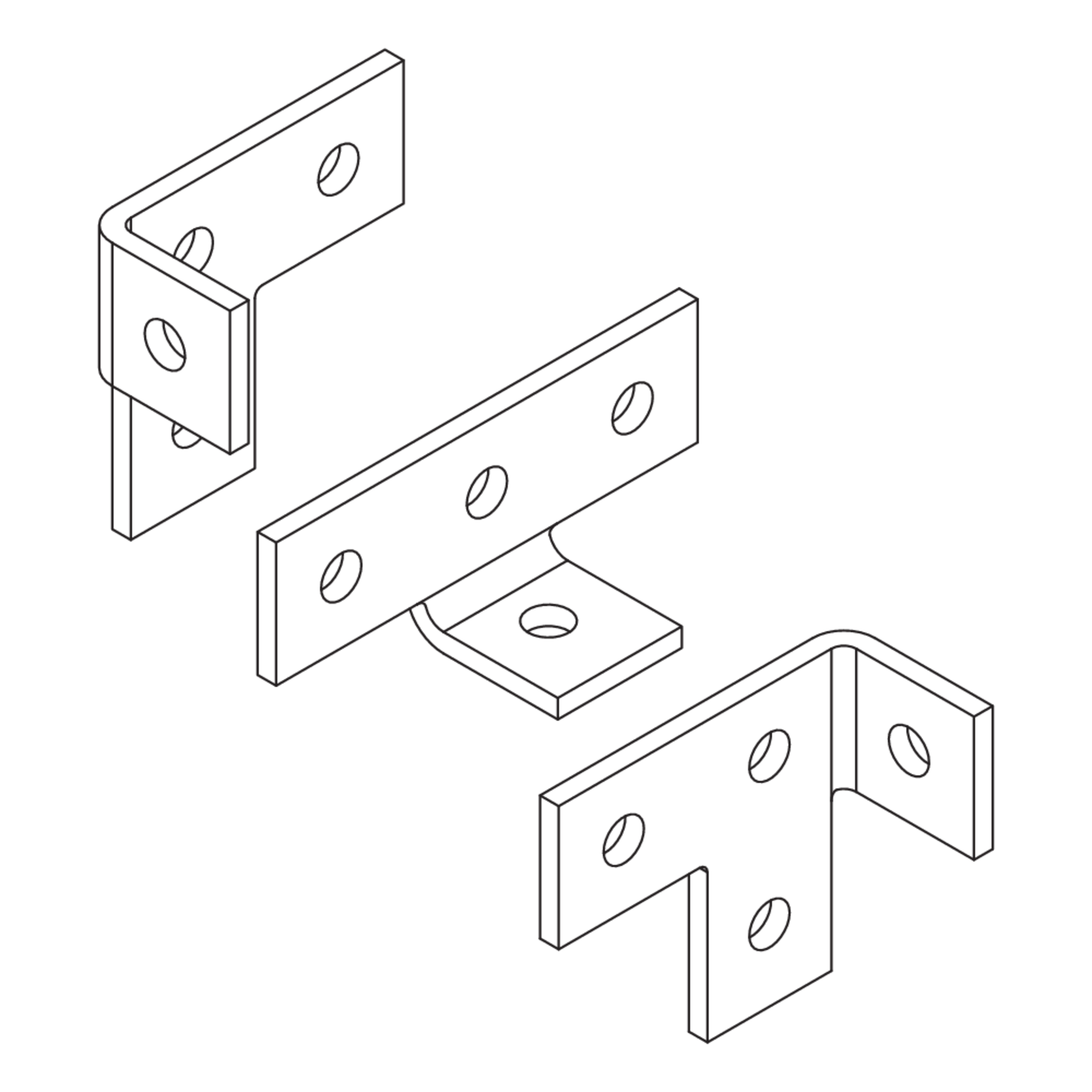

The channel connector bracket AVAW can be used to connect mounting channels together as crossings or branches. The channel connector brackets consist of a T branch angled to the left, centre or right. They are made of hot-dip galvanised steel.

Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

W

Angle

G

Weight per storage unit

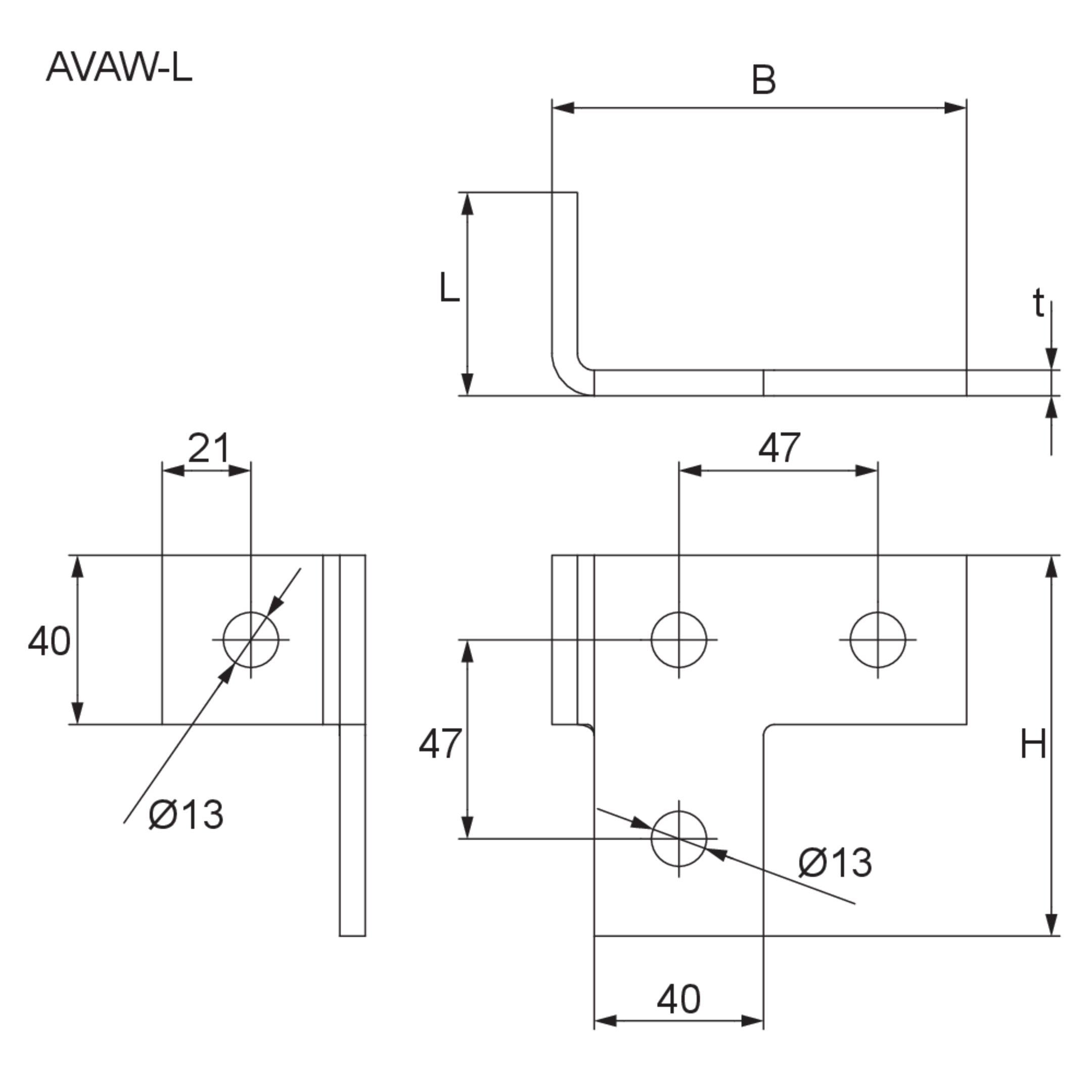

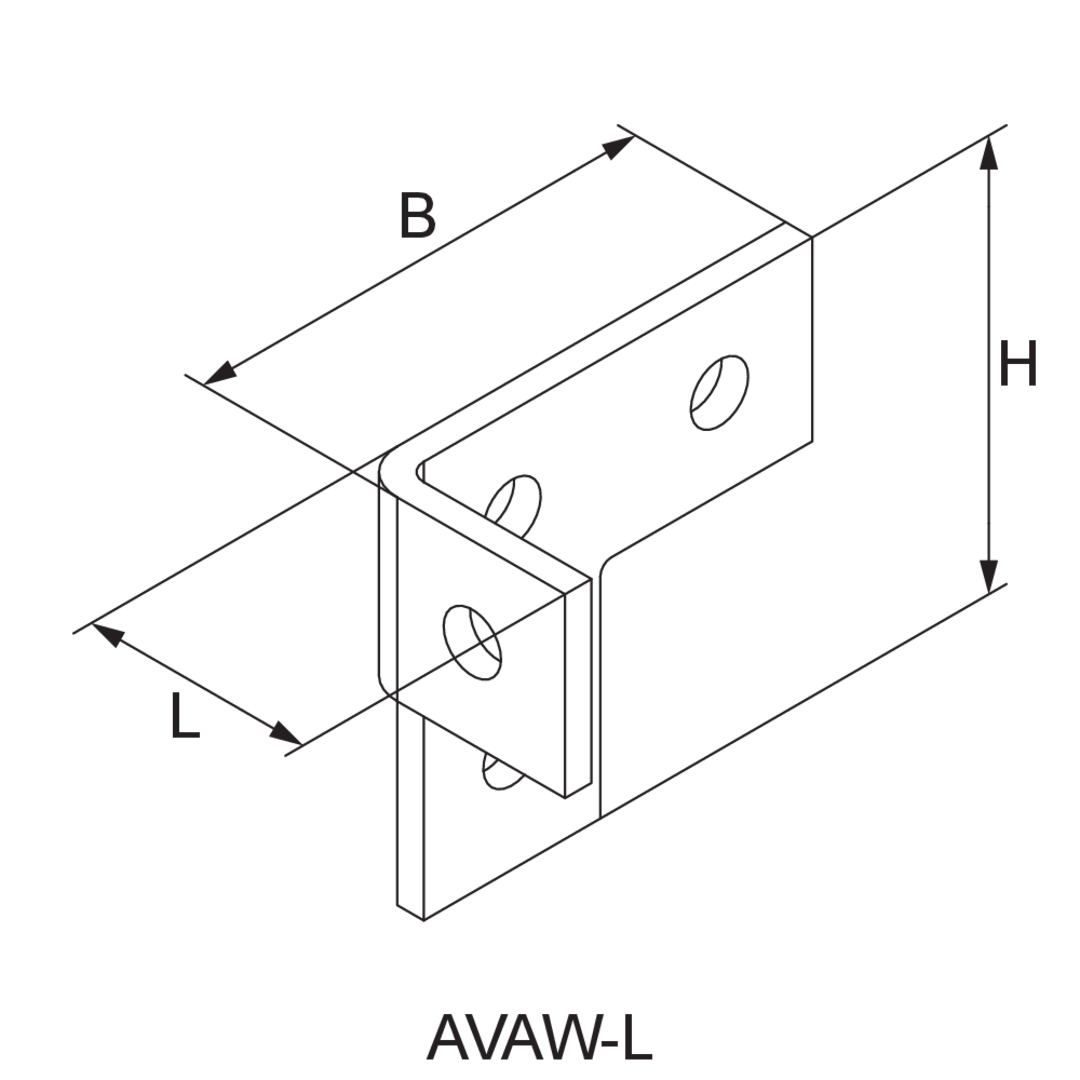

  • AVAW-L F
    Rail coupler angle AVAW-L F
    height
    90 mm
    width
    98 mm
    length
    48 mm
    material thickness
    6.00 mm
    Angle
    90°
    Weight per storage unit
    0.350 kg
    More information

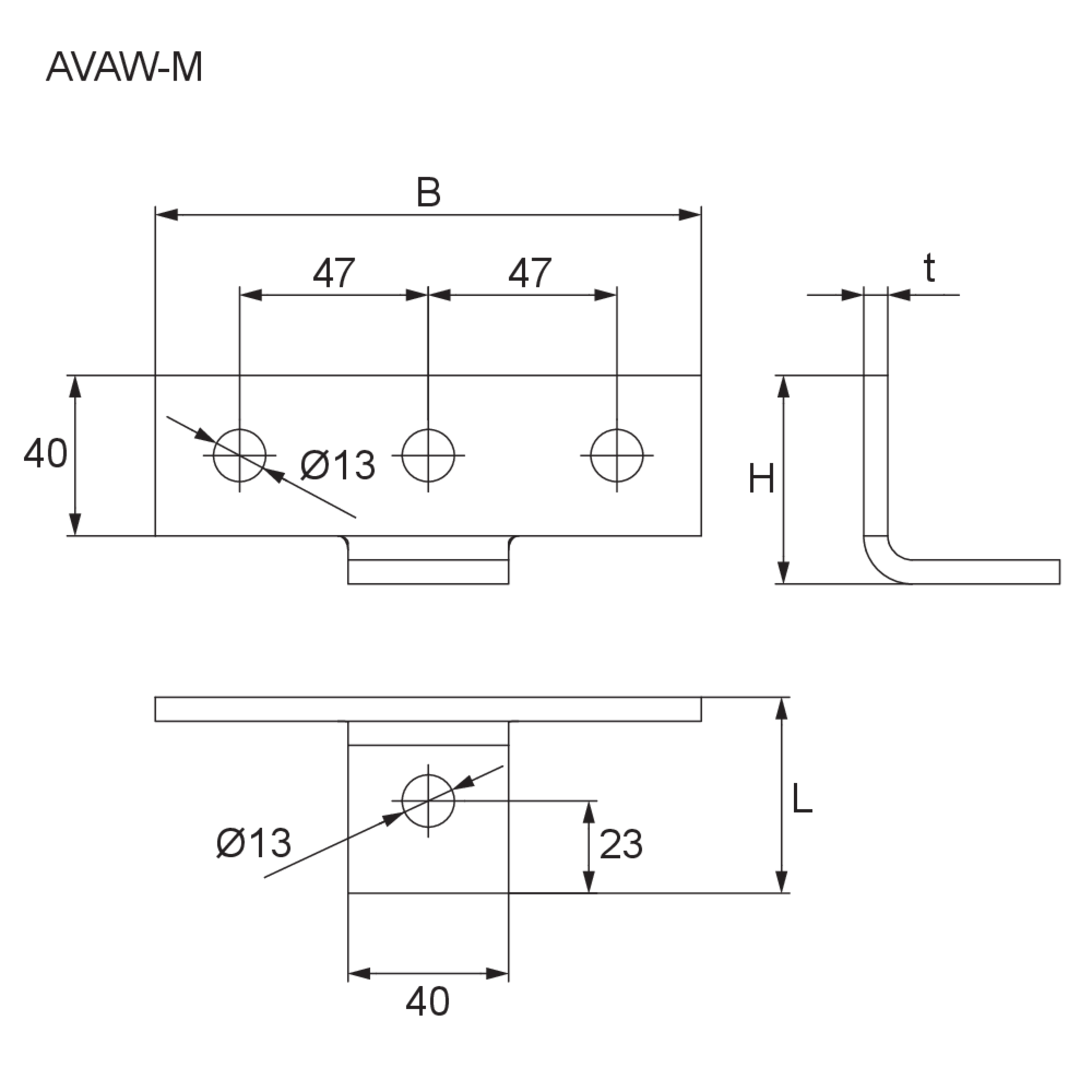

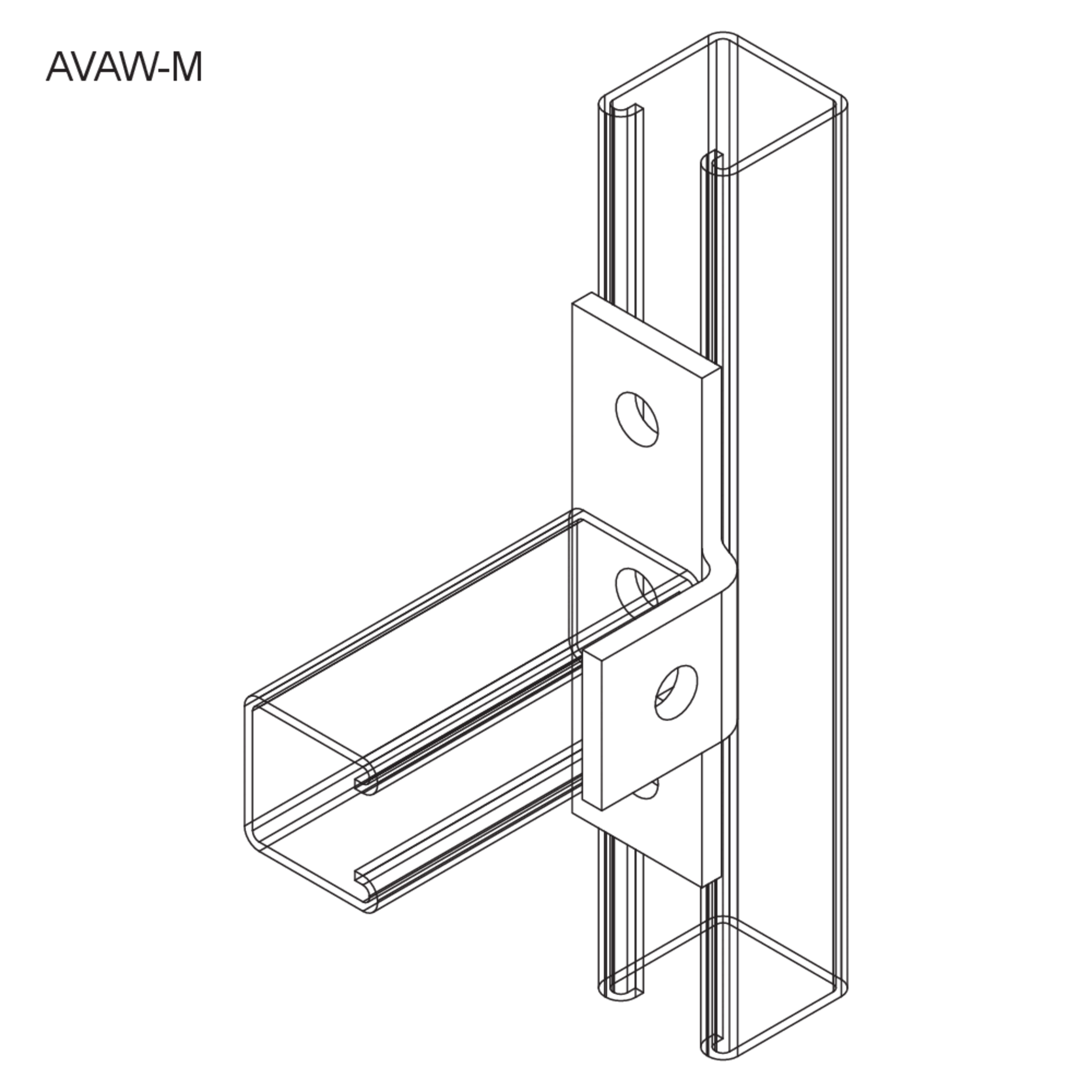

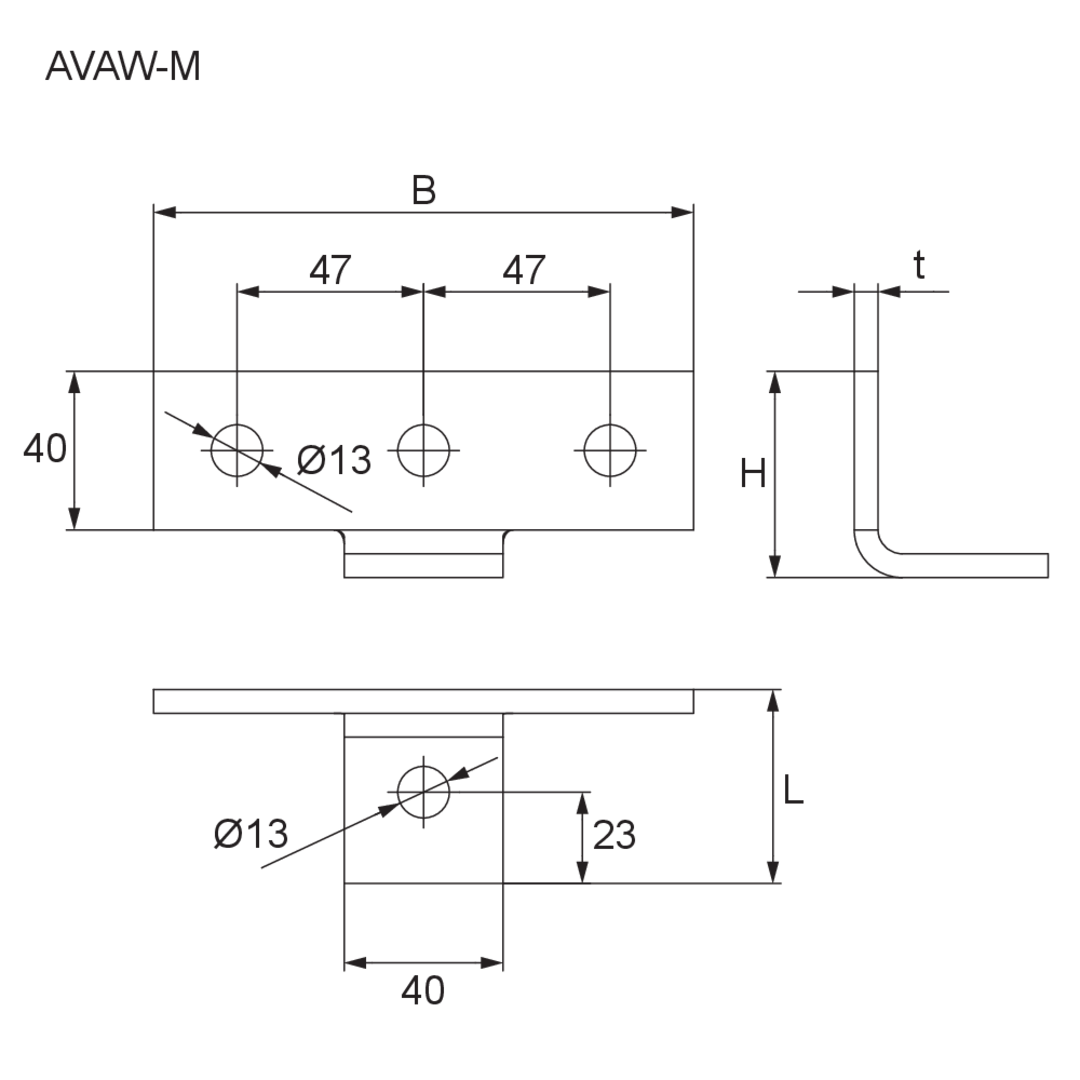

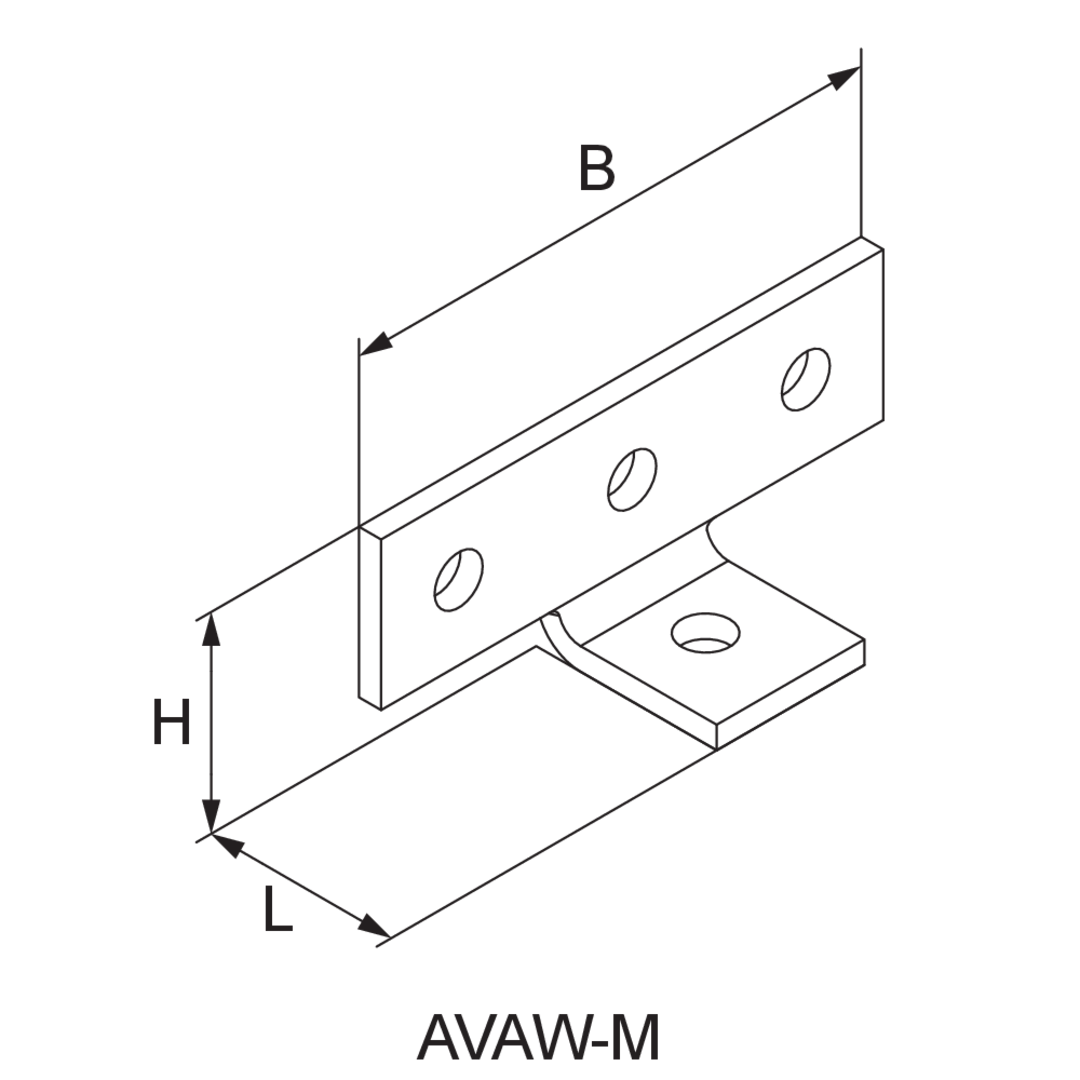

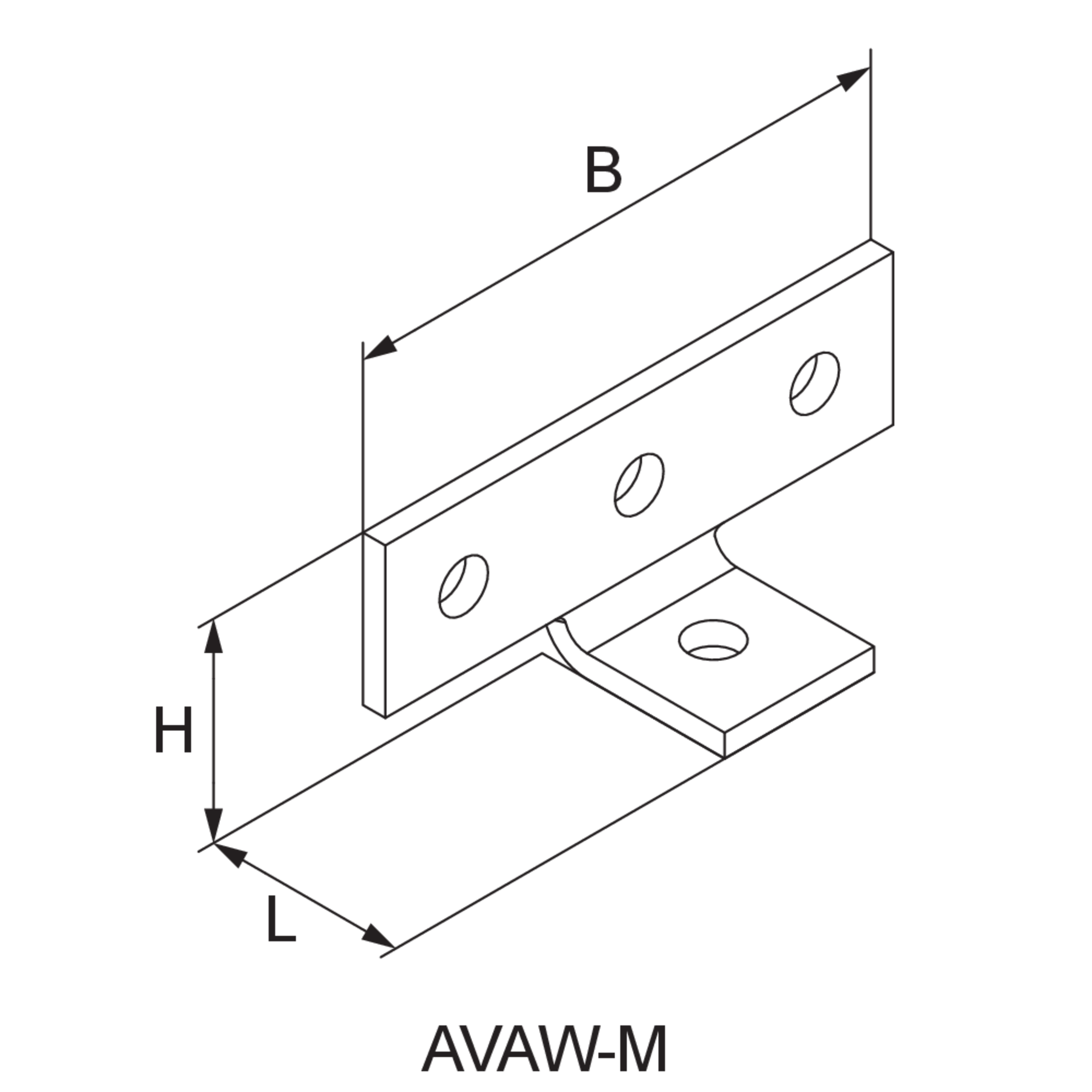

  • AVAW-M F
    Rail coupler angle AVAW-M F
    height
    50 mm
    width
    136 mm
    length
    51 mm
    material thickness
    6.00 mm
    Angle
    90°
    Weight per storage unit
    0.350 kg
    More information

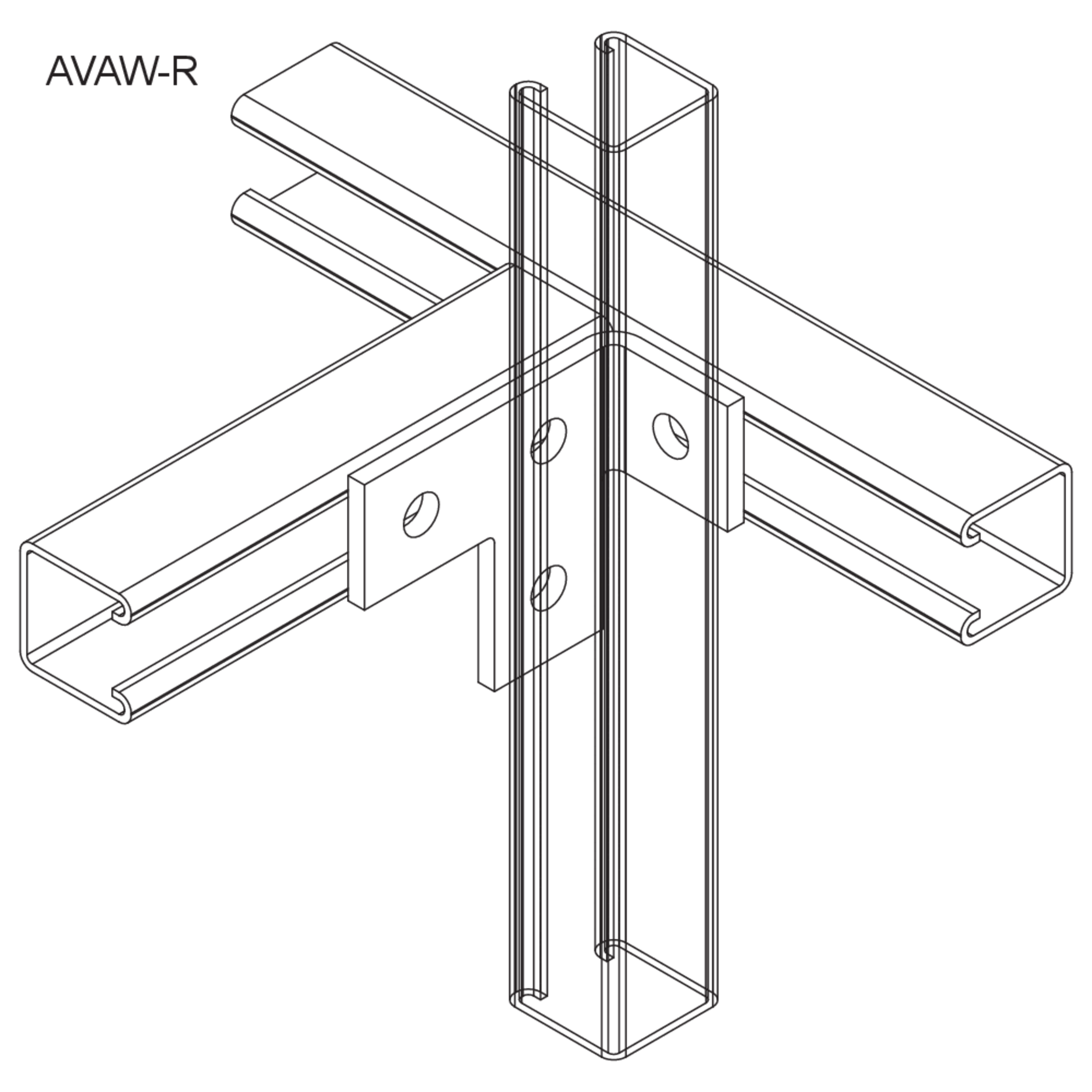

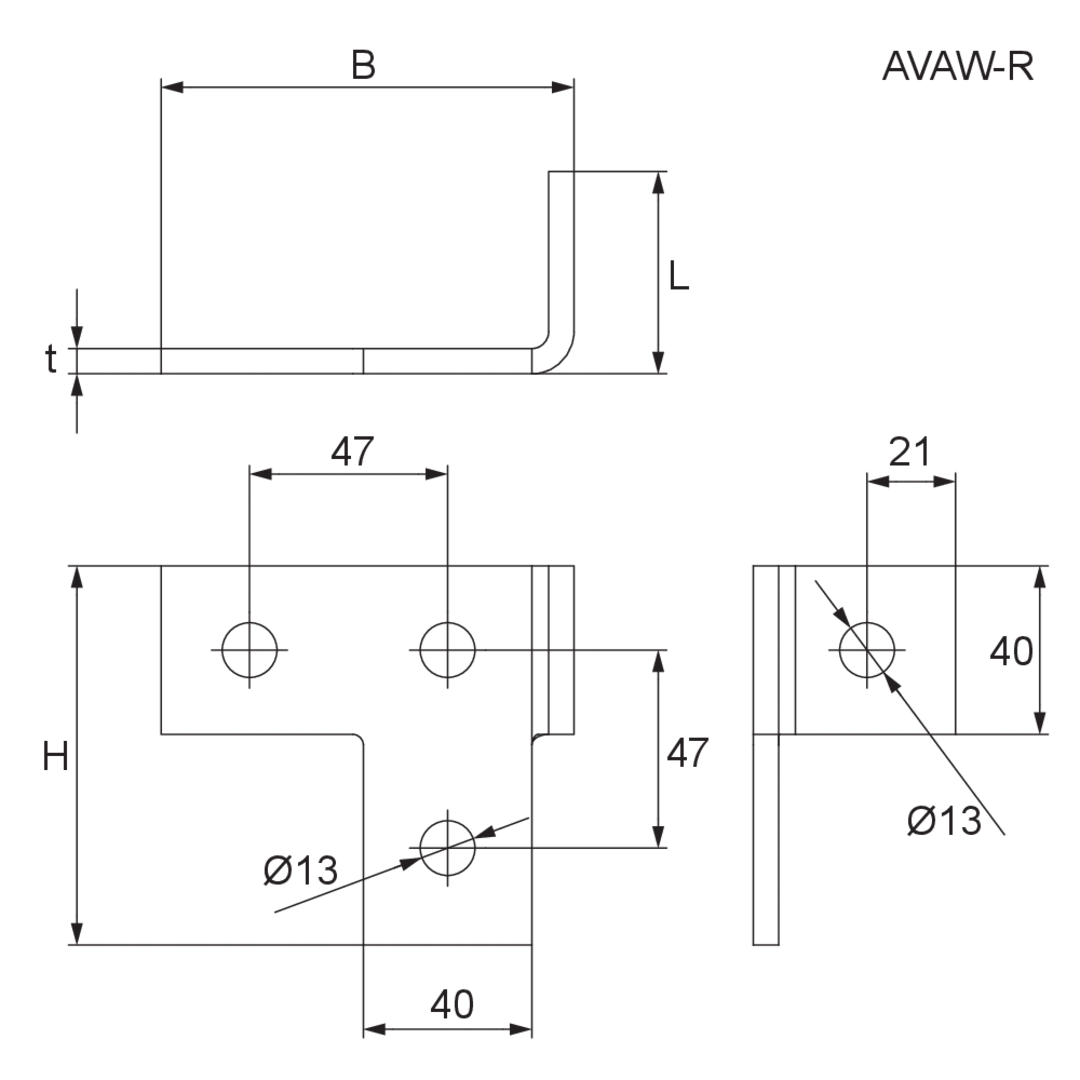

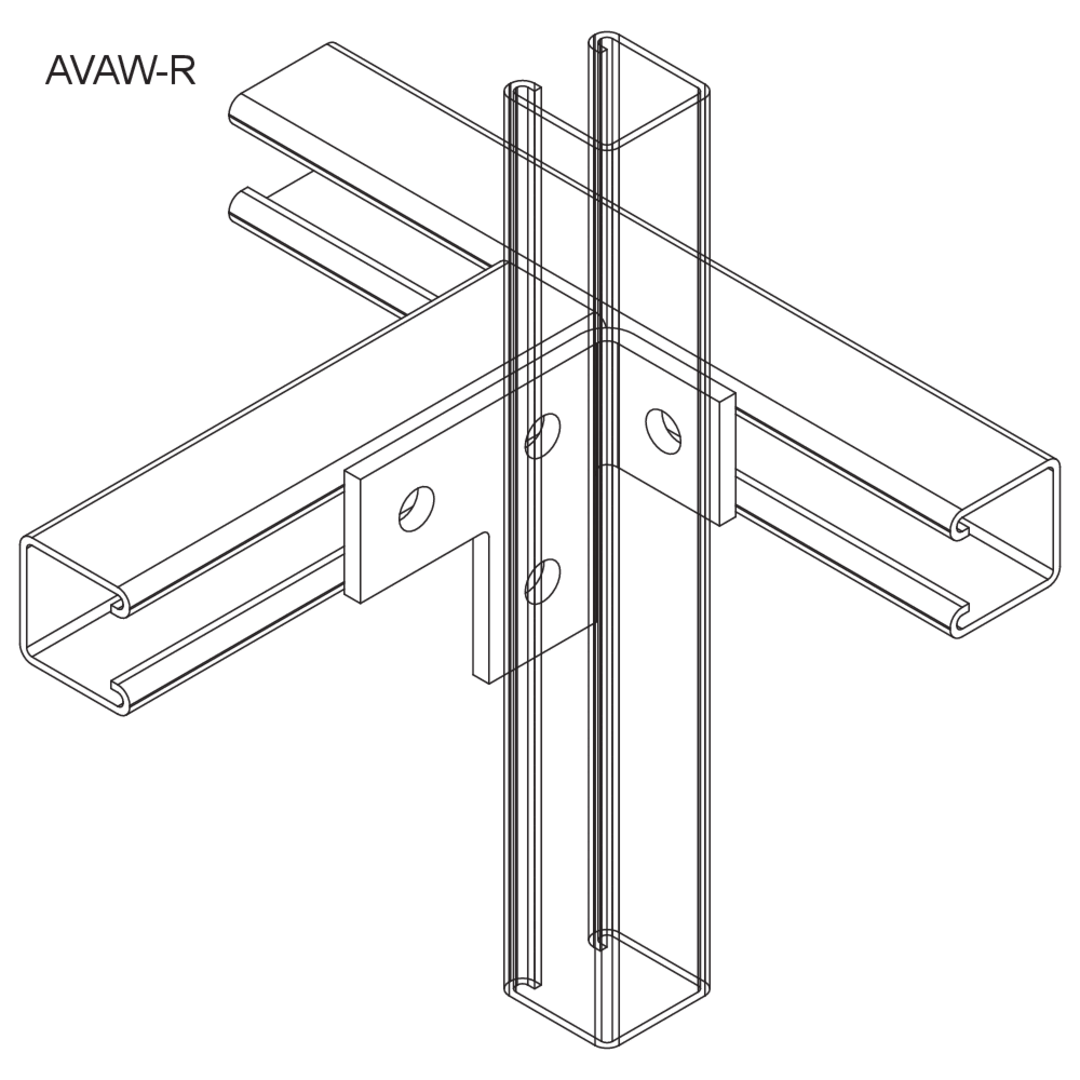

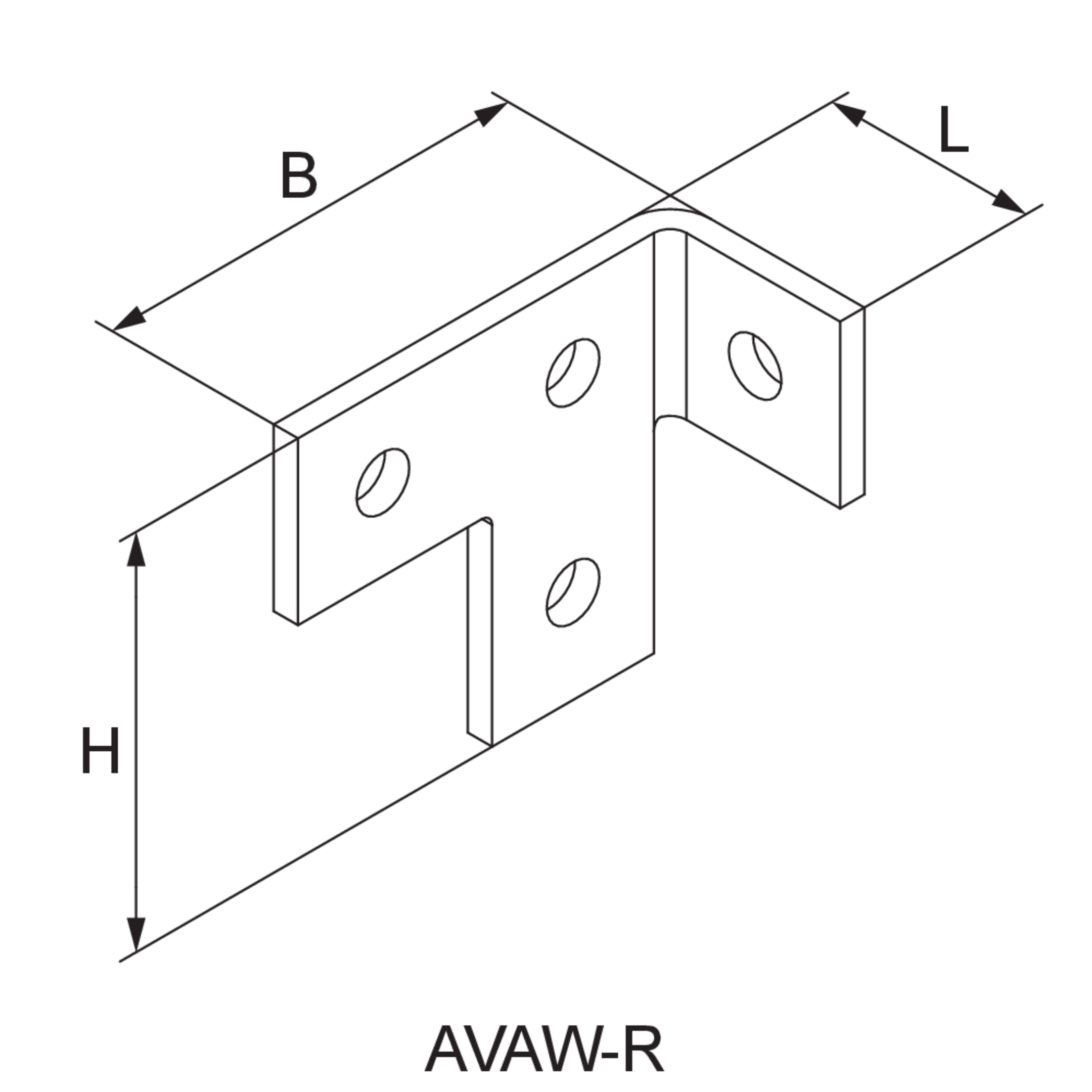

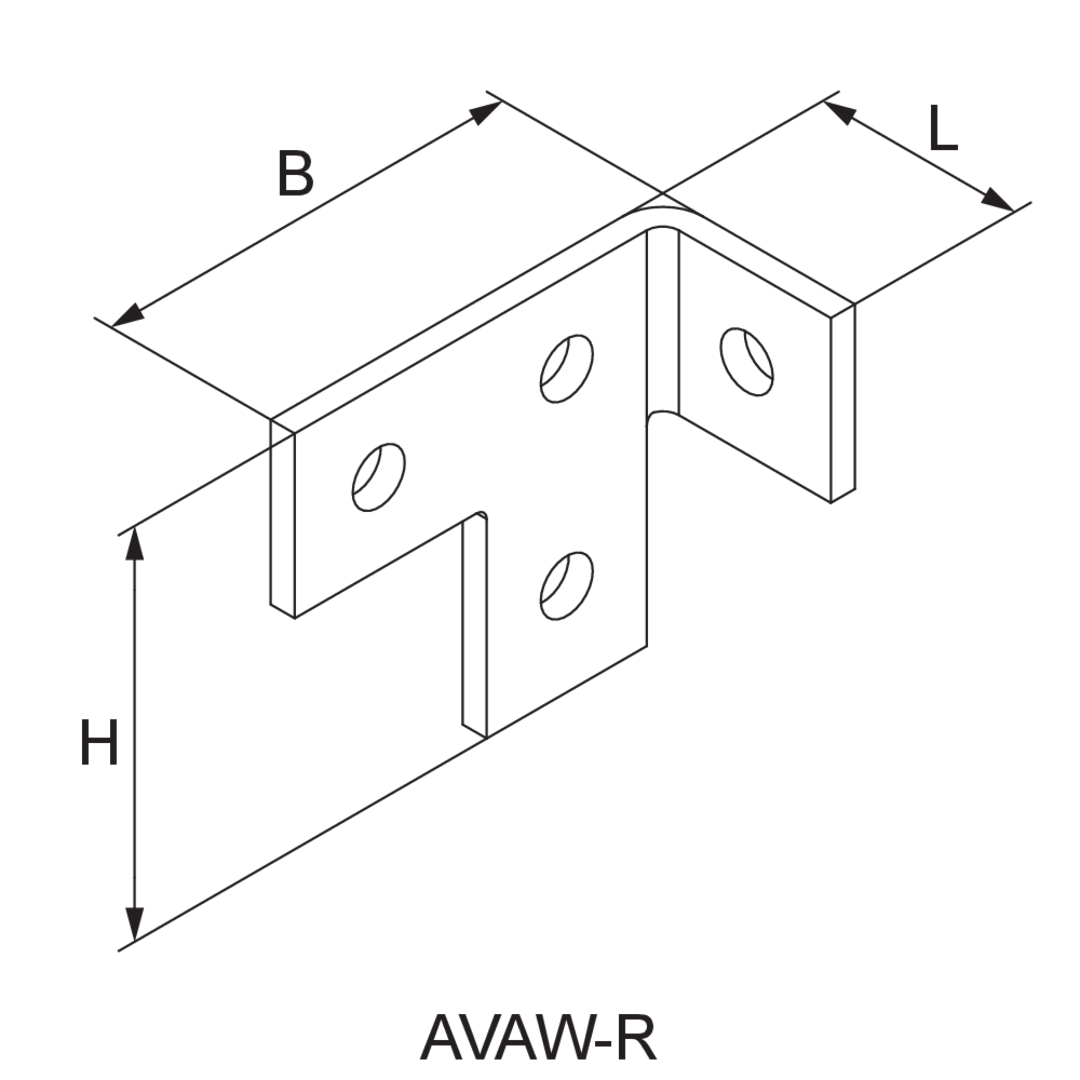

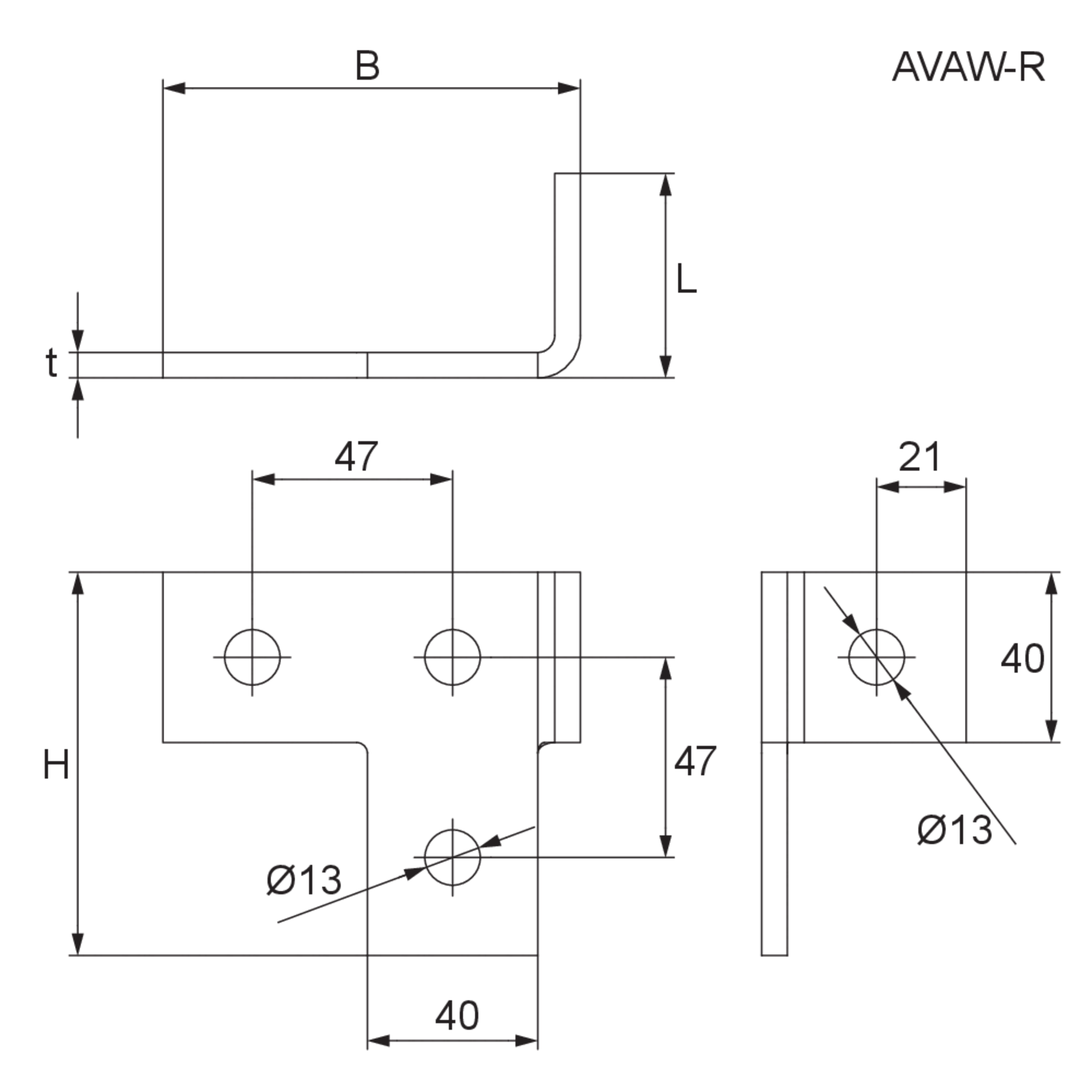

  • AVAW-R F
    Rail coupler angle AVAW-R F
    height
    90 mm
    width
    98 mm
    length
    48 mm
    material thickness
    6.00 mm
    Angle
    90°
    Weight per storage unit
    0.350 kg
    More information
