AVB

Rail connector bracket

The rail connector bracket AVB connects mounting channels 41 x 41 and 82 x 41 together as crossings. It is made of hot-dip galvanised steel.

Get in touch Download datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

H

Höhe

B

Breite

L

Länge

t

Materialstärke

G

Gewicht je Lagermengeneinheit

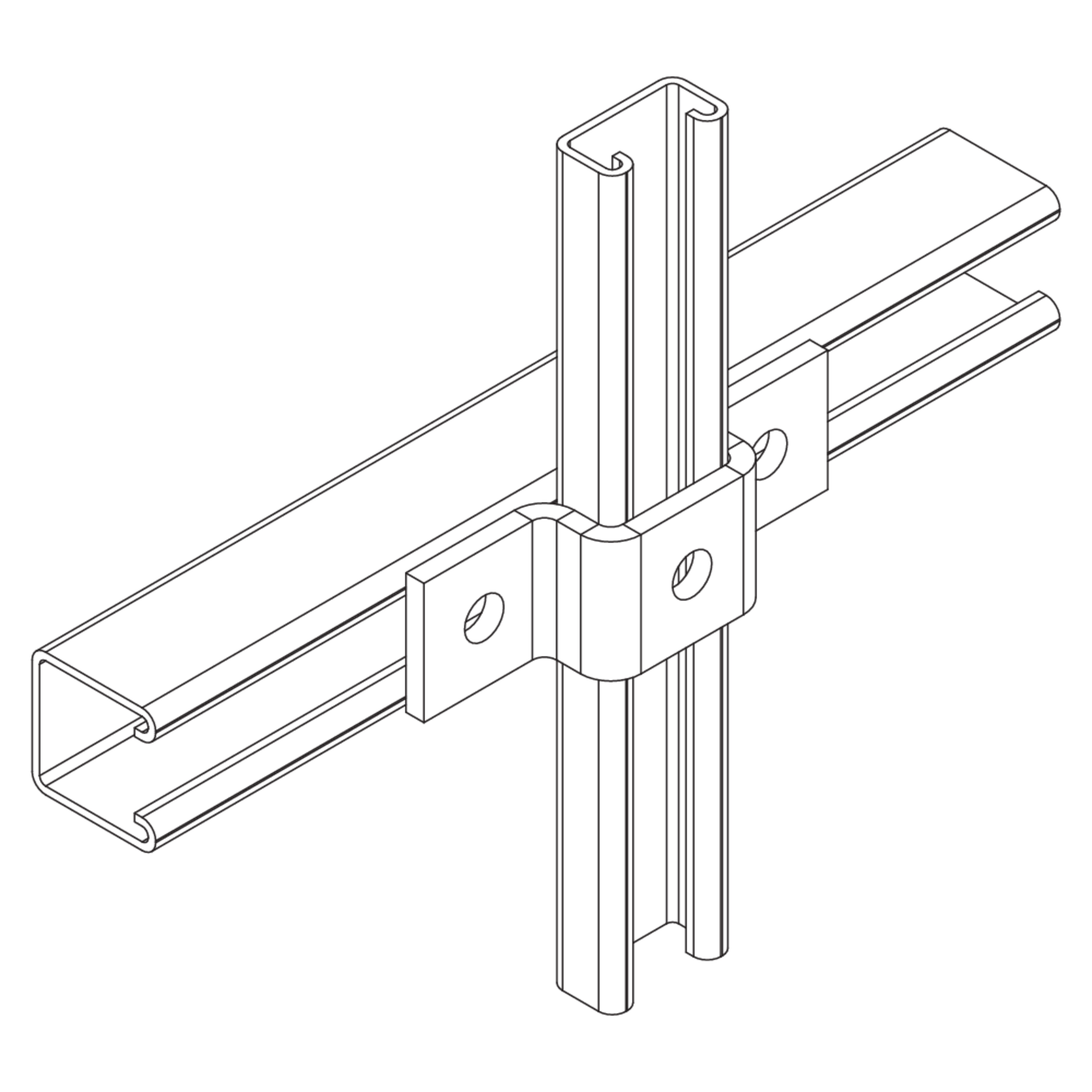

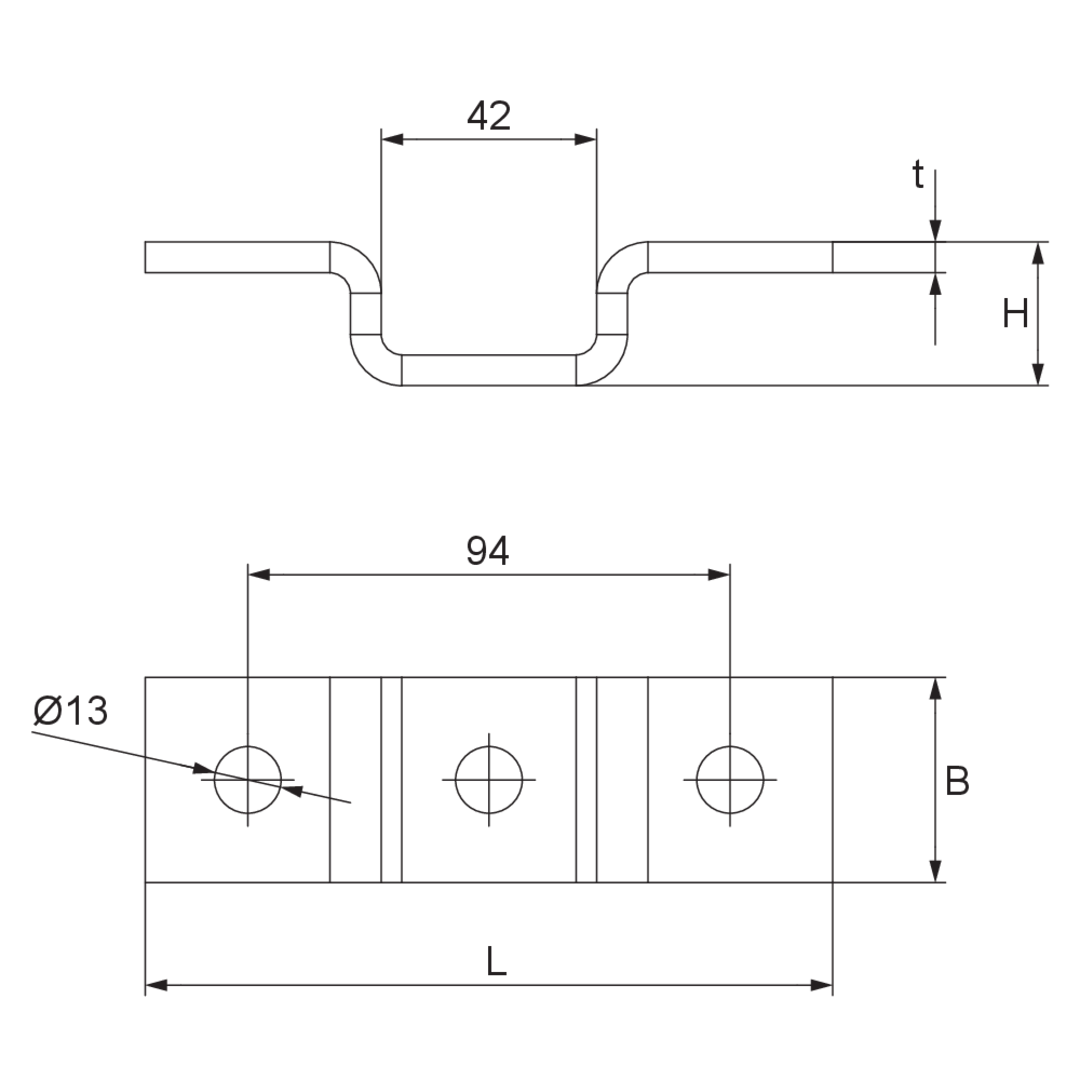

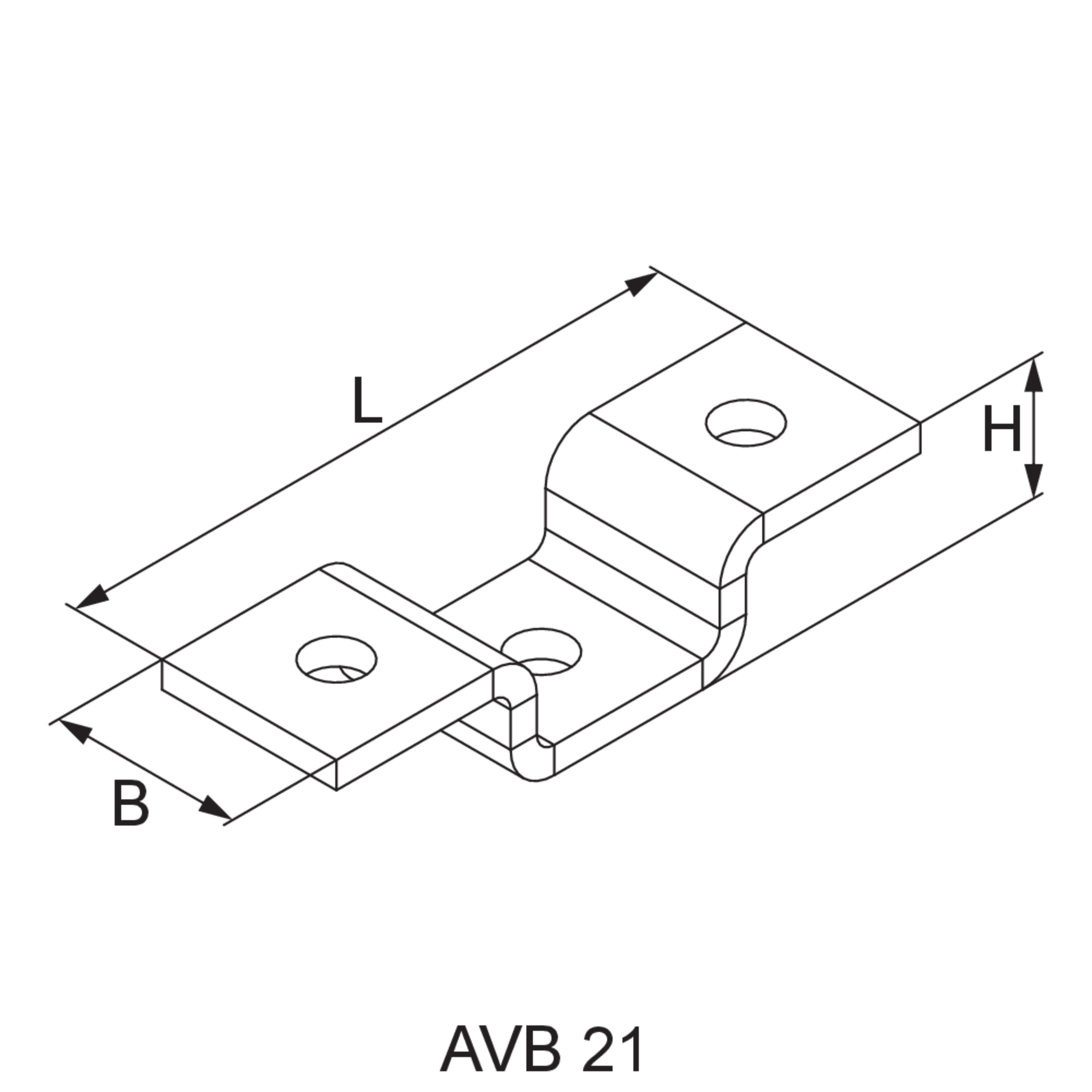

  • AVB 21F
    Profilschienenverbinder
    Höhe
    28 mm
    Breite
    40 mm
    Länge
    134 mm
    Materialstärke
    6.00 mm
    Gewicht je Lagermengeneinheit
    0.315 kg
    More information

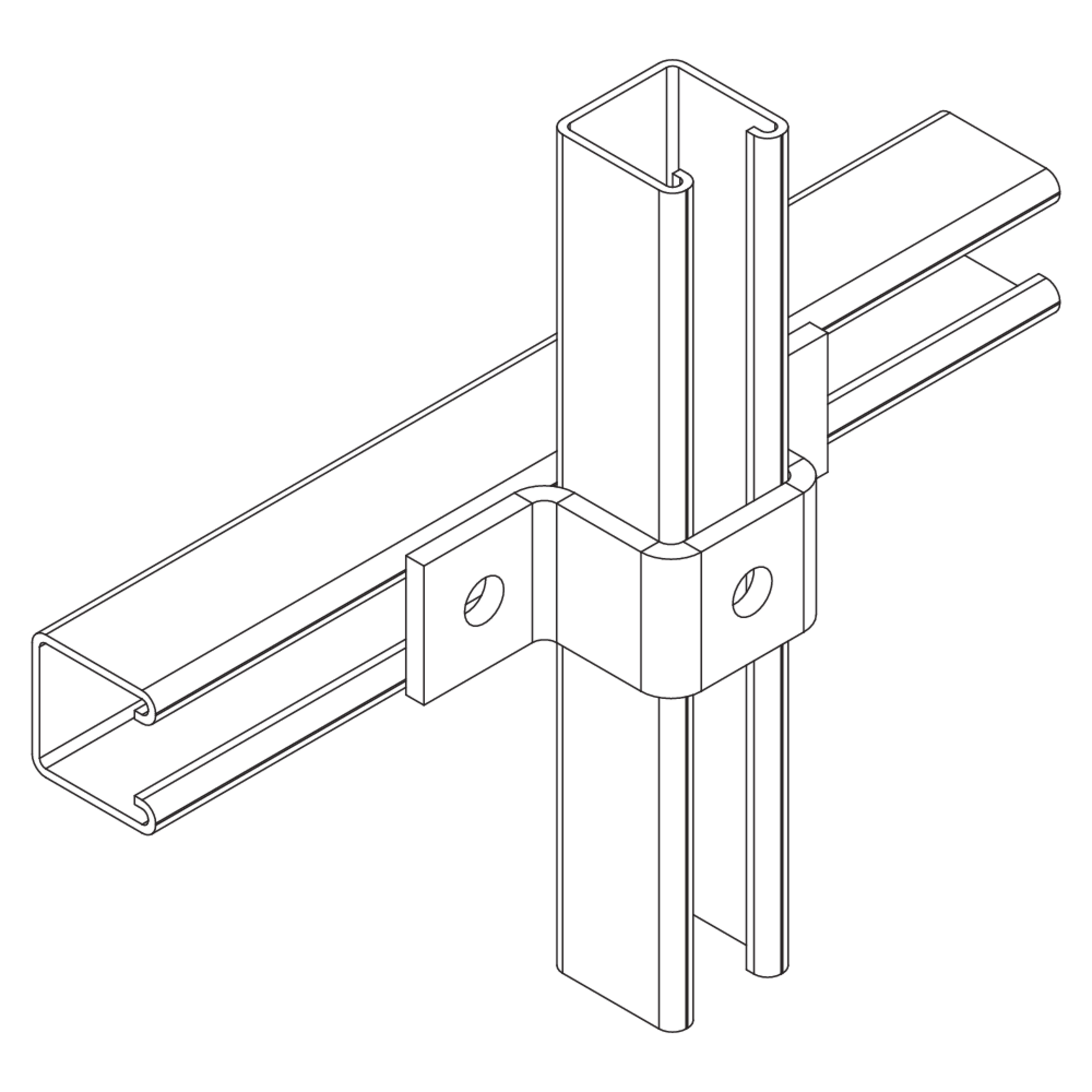

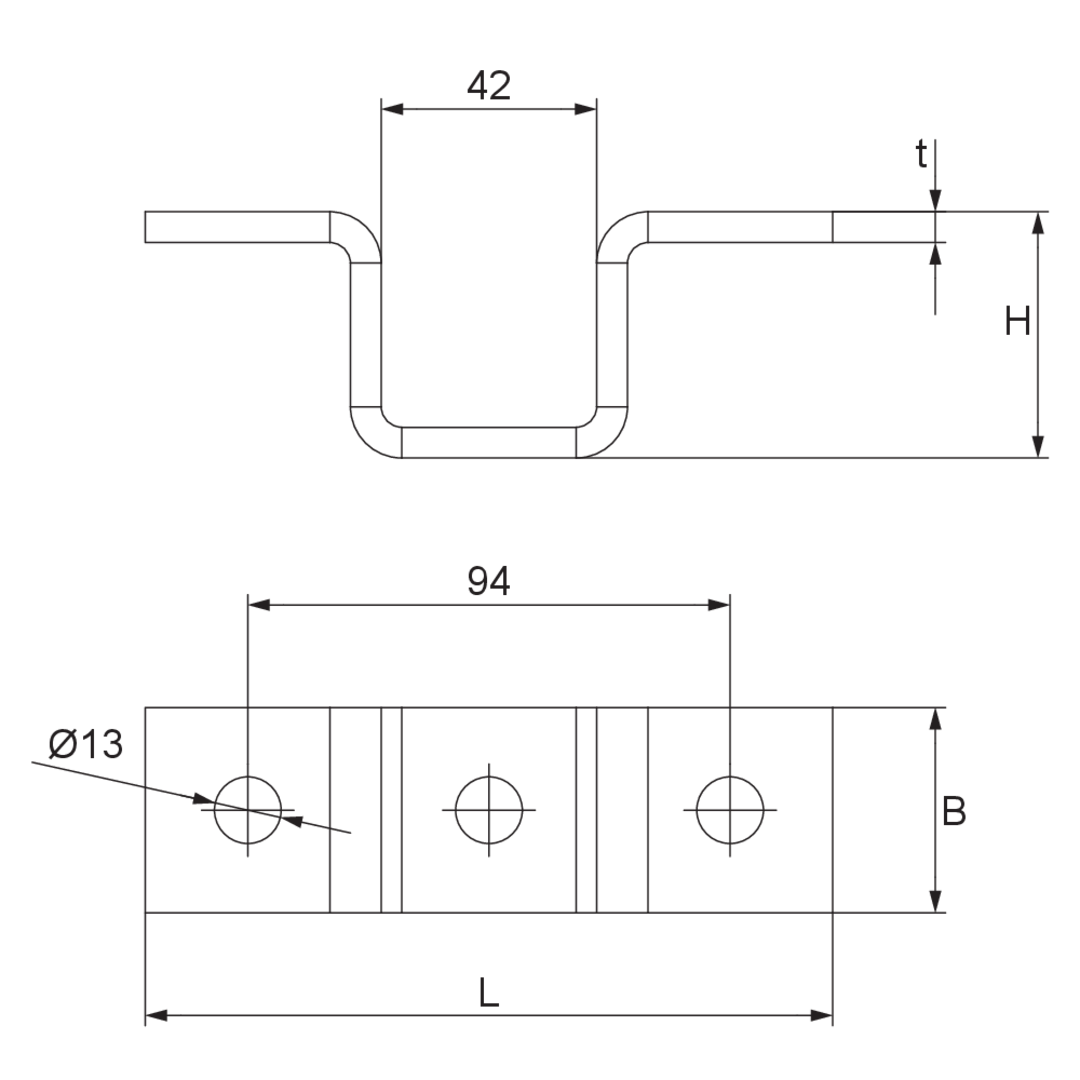

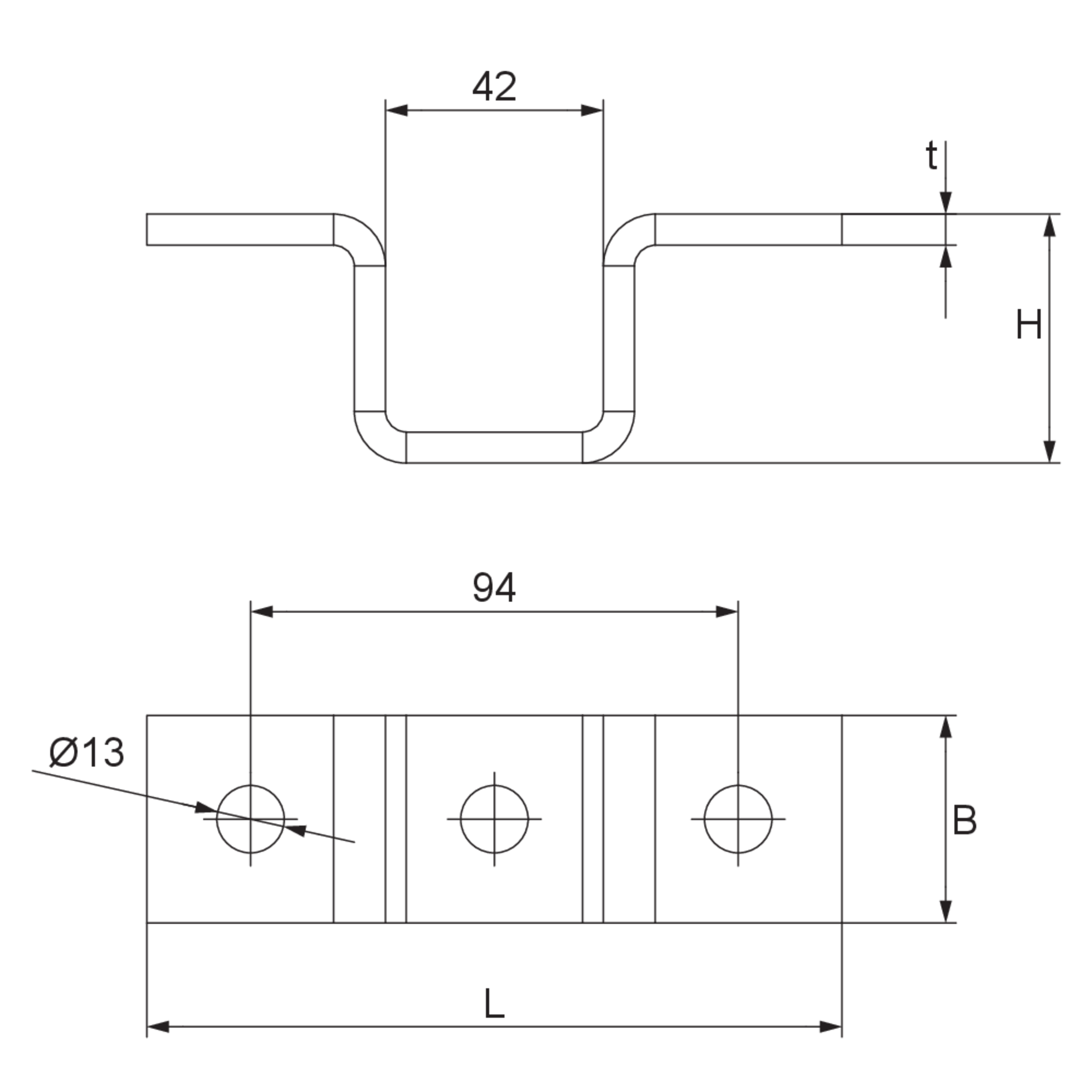

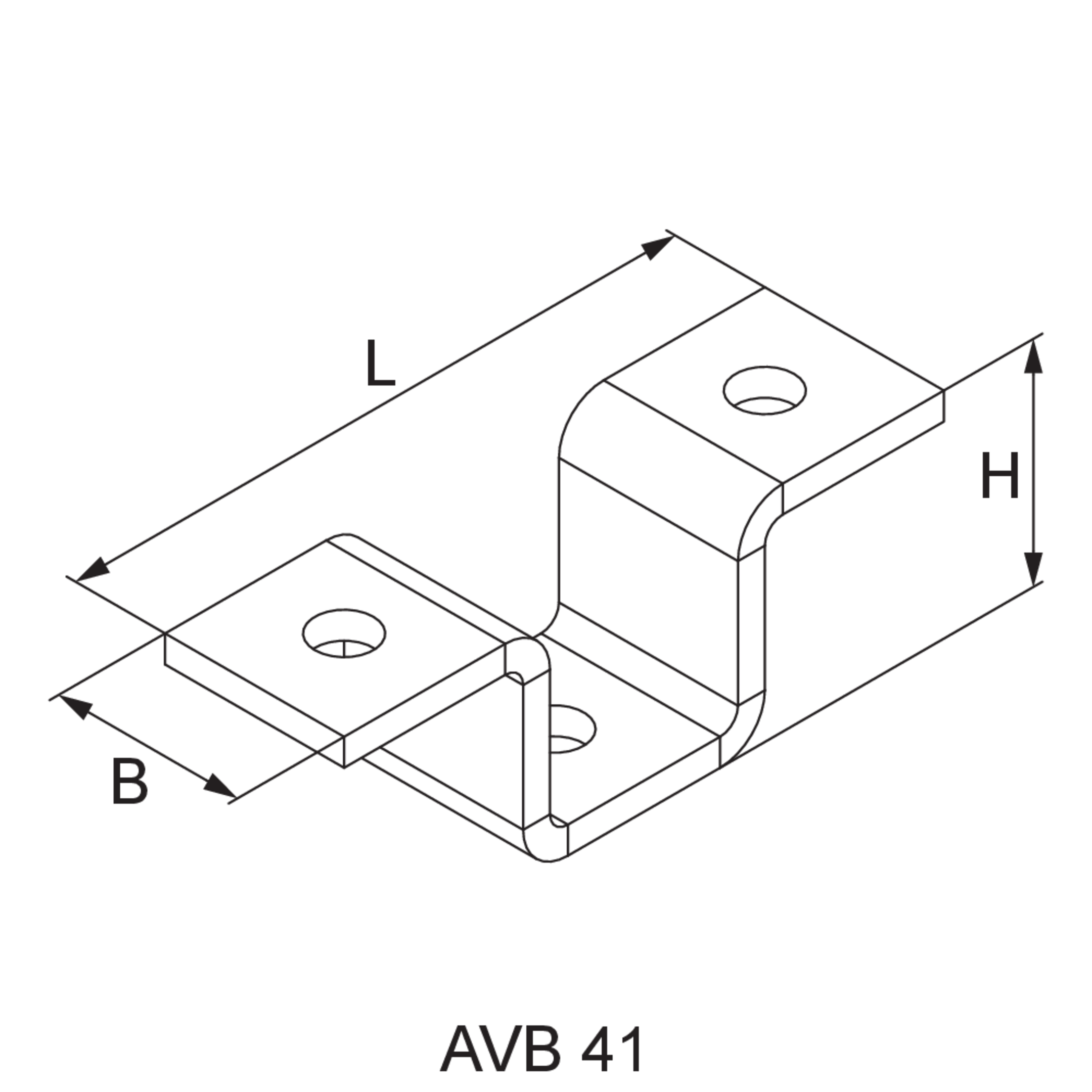

  • AVB 41F
    Profilschienenverbinder
    Höhe
    48 mm
    Breite
    40 mm
    Länge
    134 mm
    Materialstärke
    6.00 mm
    Gewicht je Lagermengeneinheit
    0.565 kg
    More information

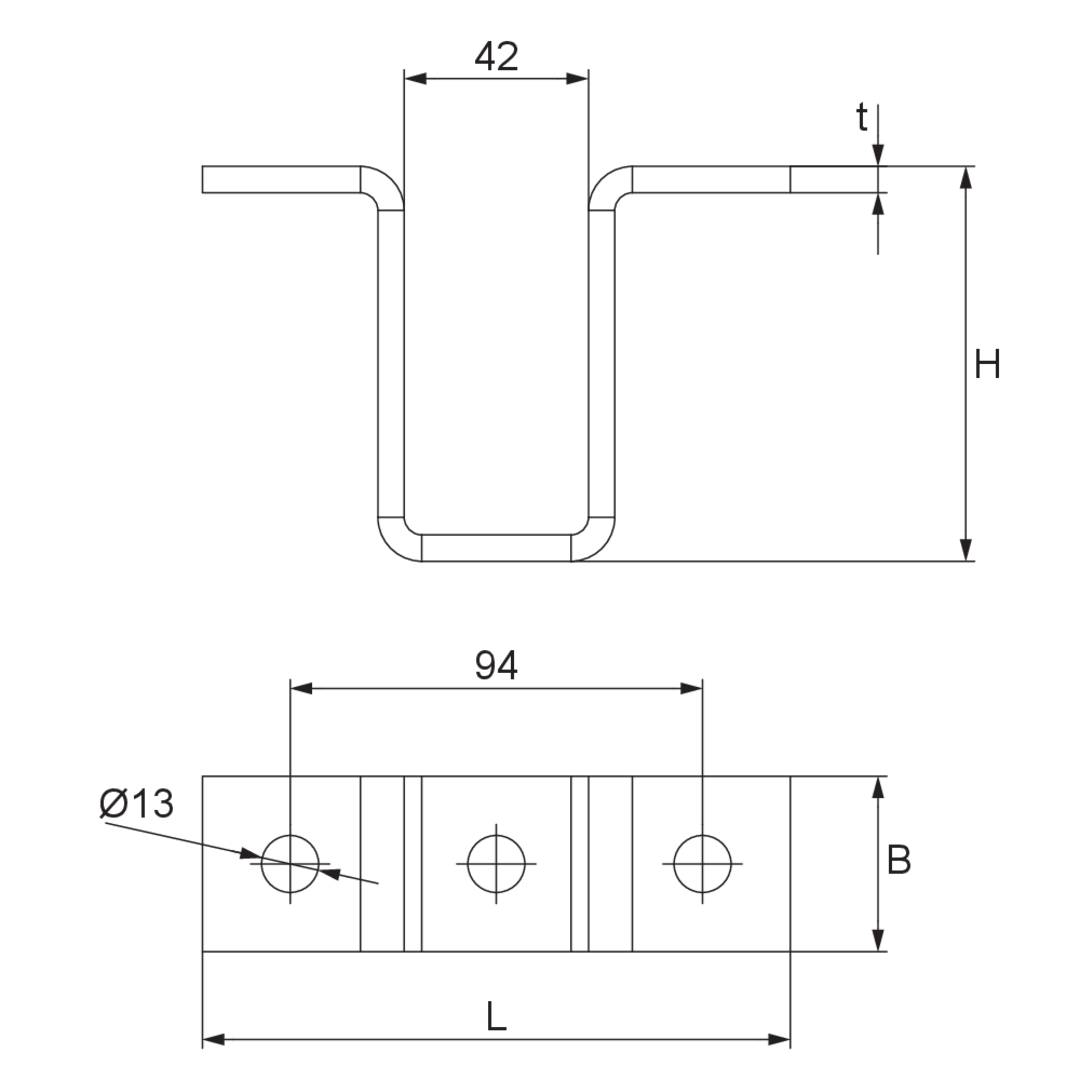

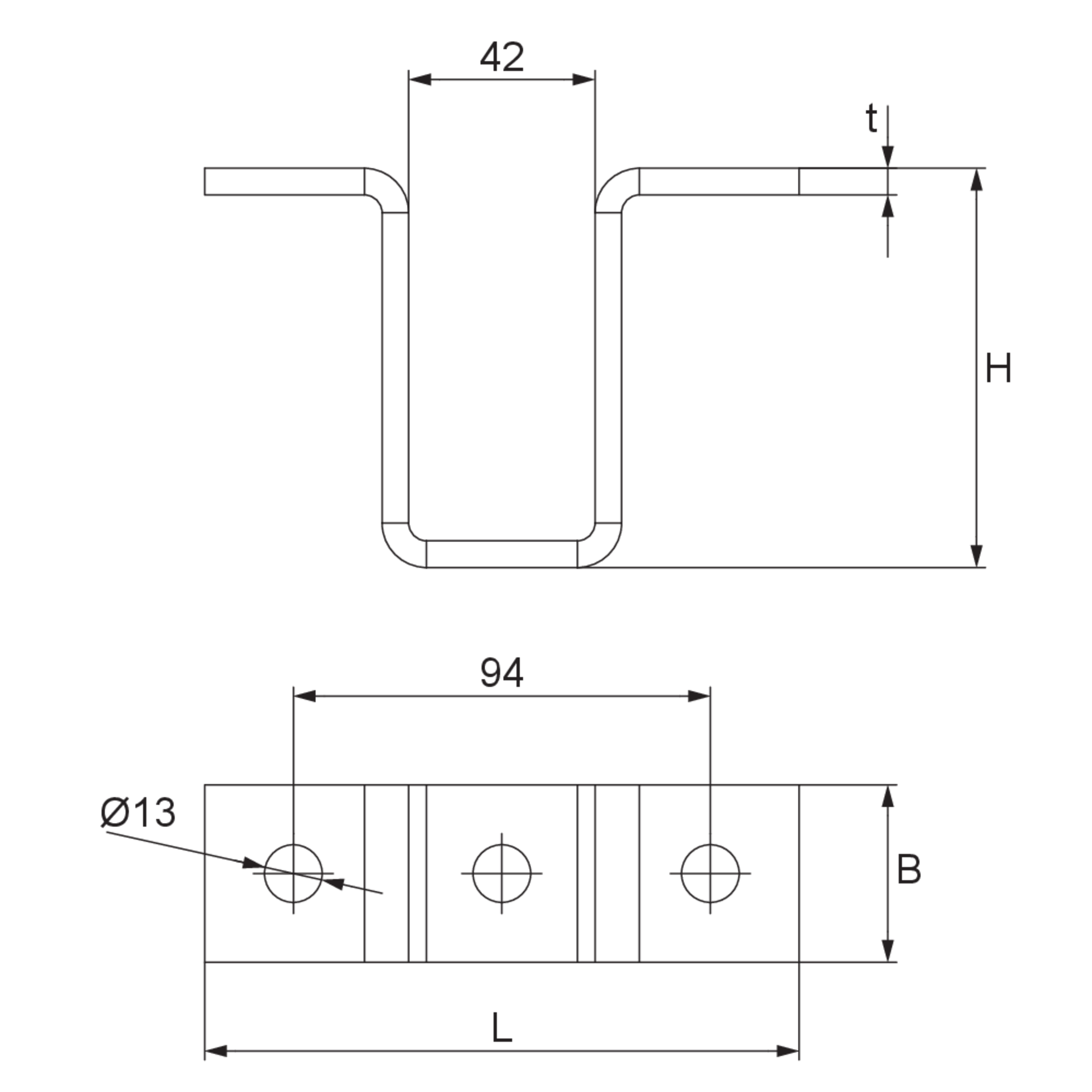

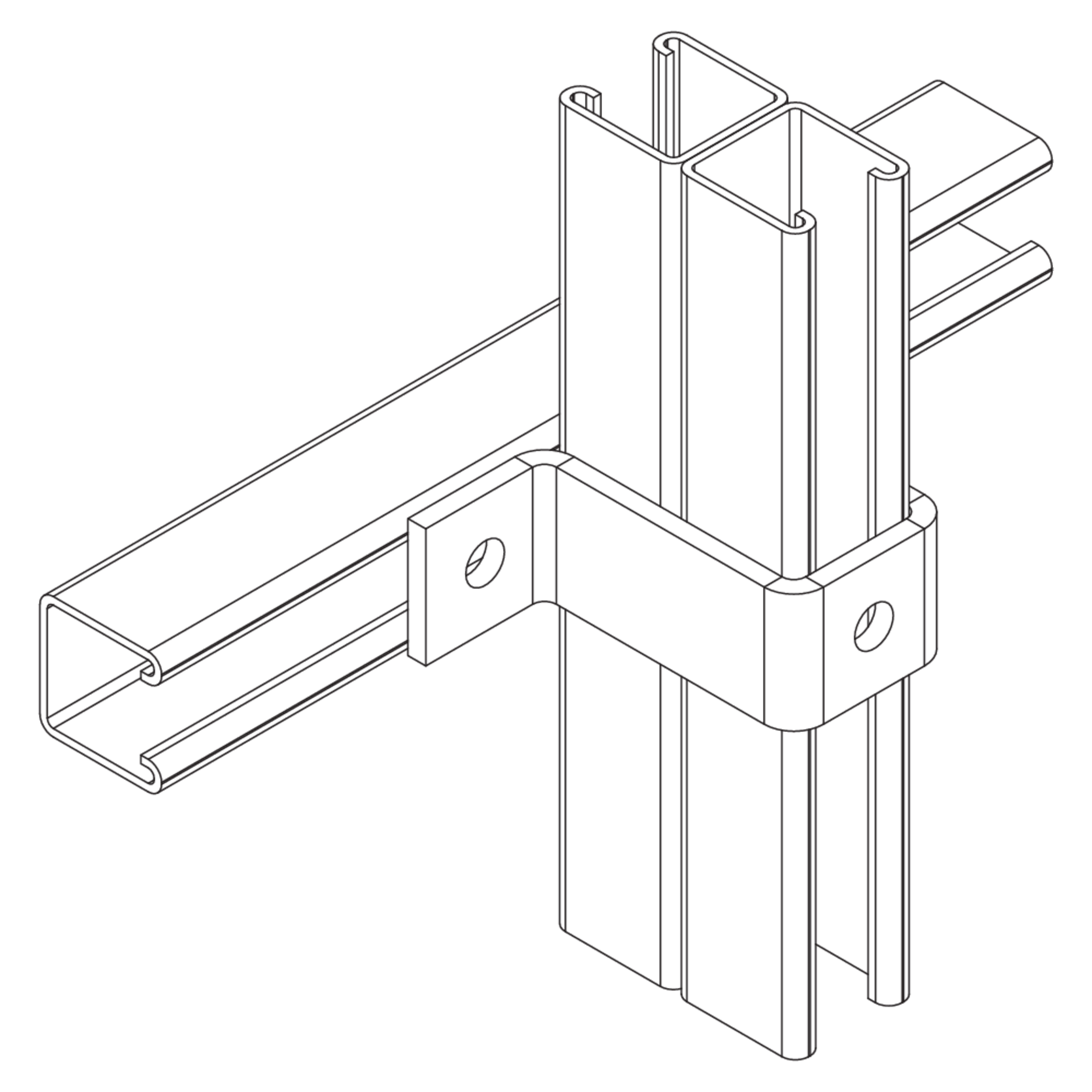

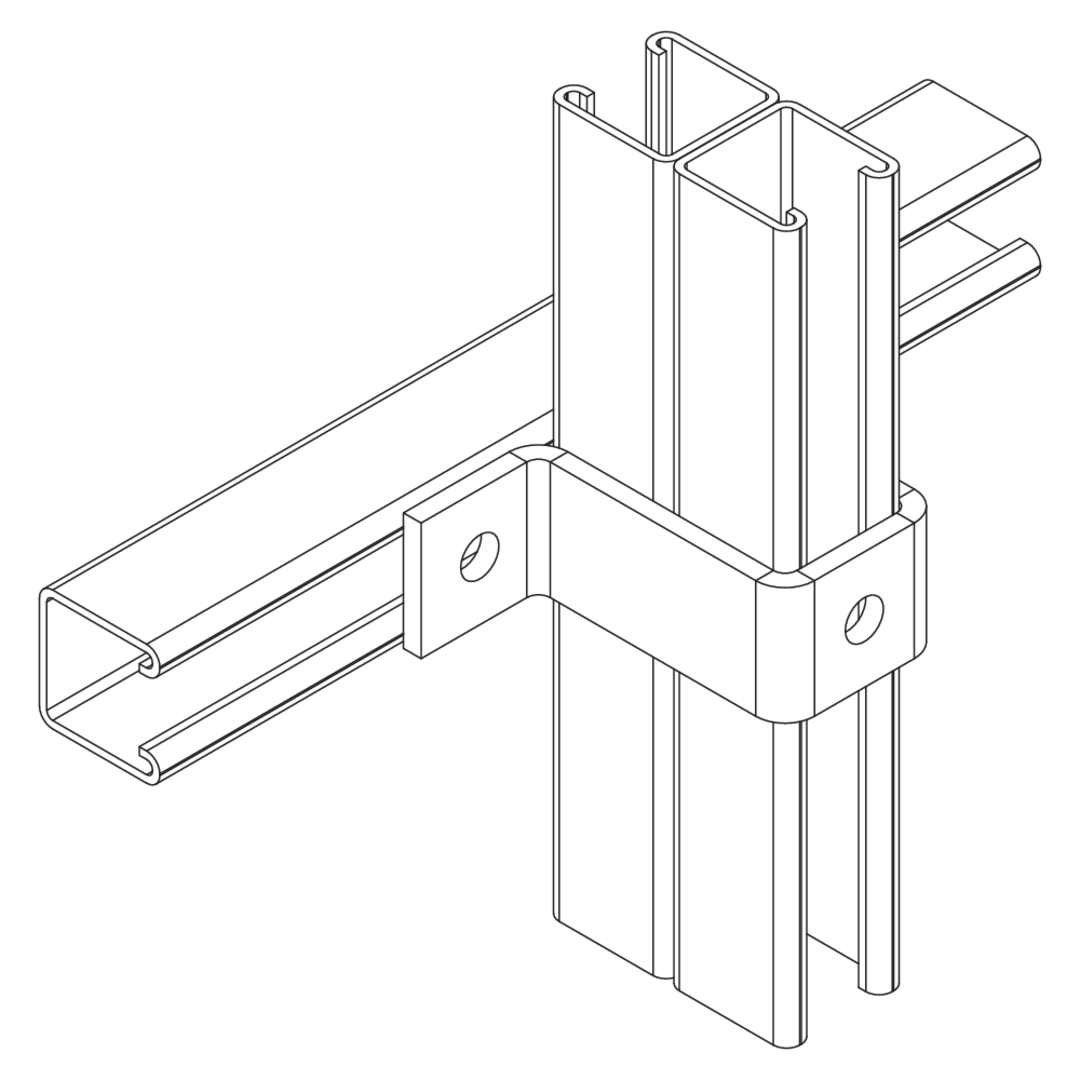

  • AVB 41/2F
    Profilschienenverbinder
    Höhe
    90 mm
    Breite
    40 mm
    Länge
    134 mm
    Materialstärke
    6.00 mm
    Gewicht je Lagermengeneinheit
    0.369 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
