AVL

Rail connector

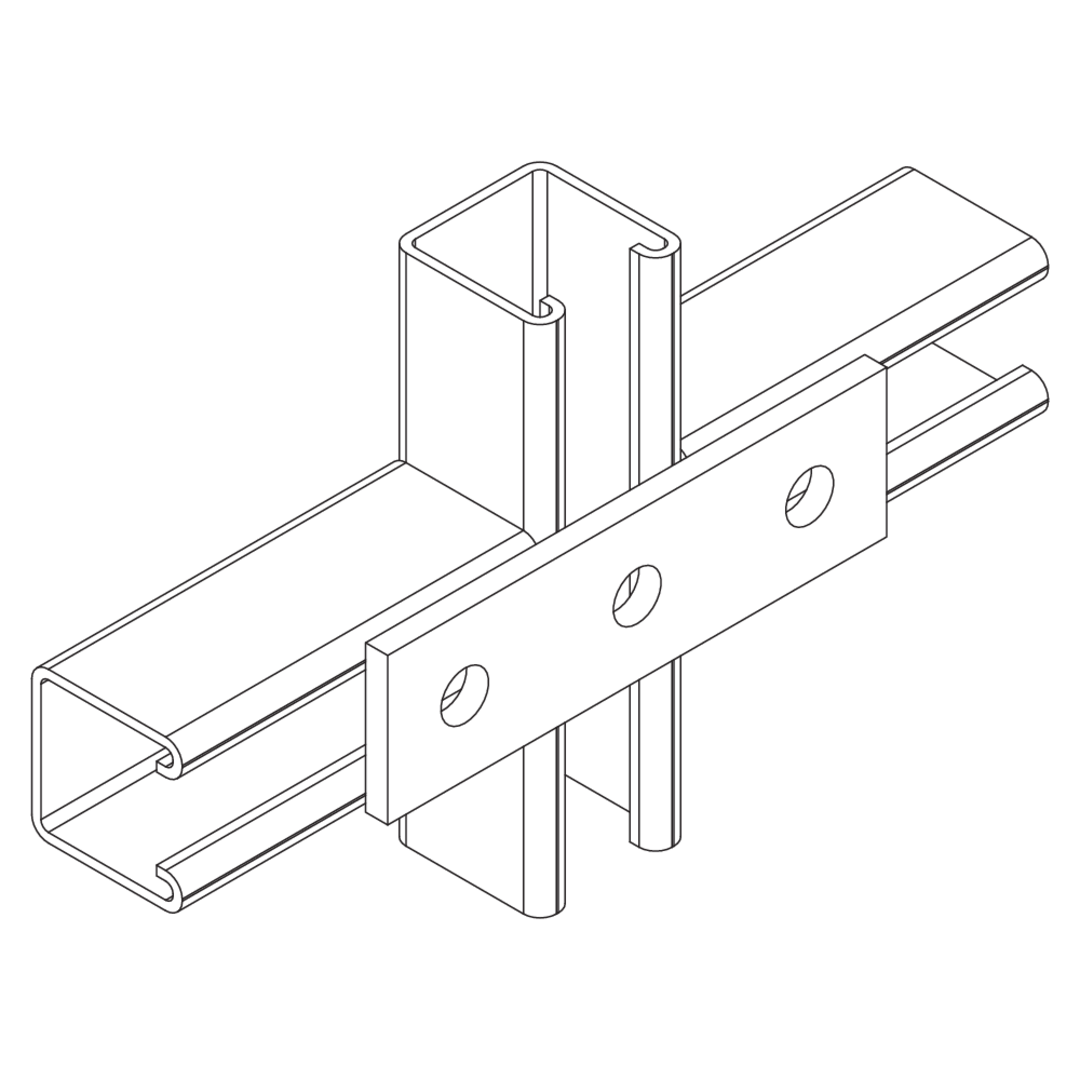

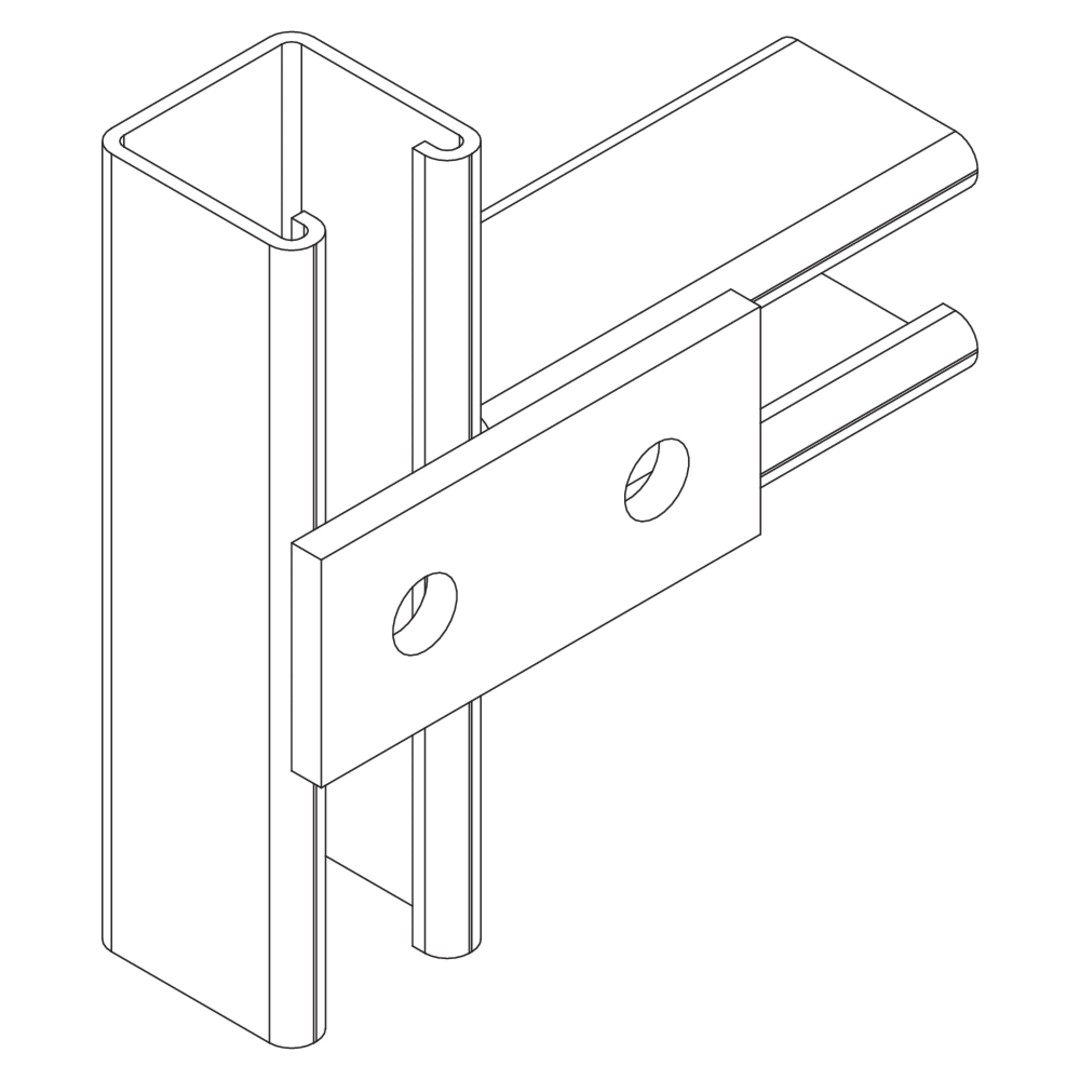

The rail connector AVL can be used to connect mounting channels together end to end, or as branches or crossings. It is made of hot-dip galvanised steel.

Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

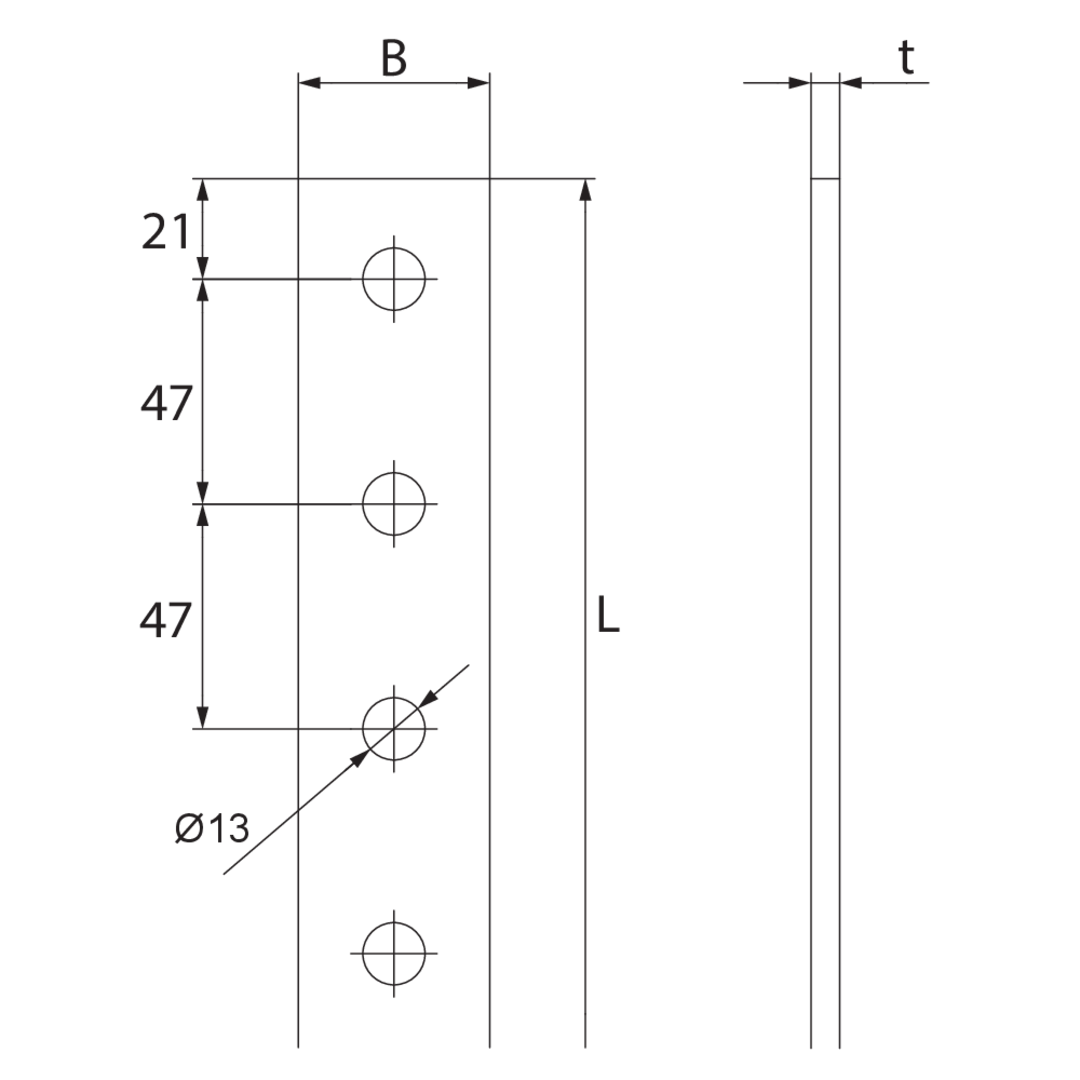

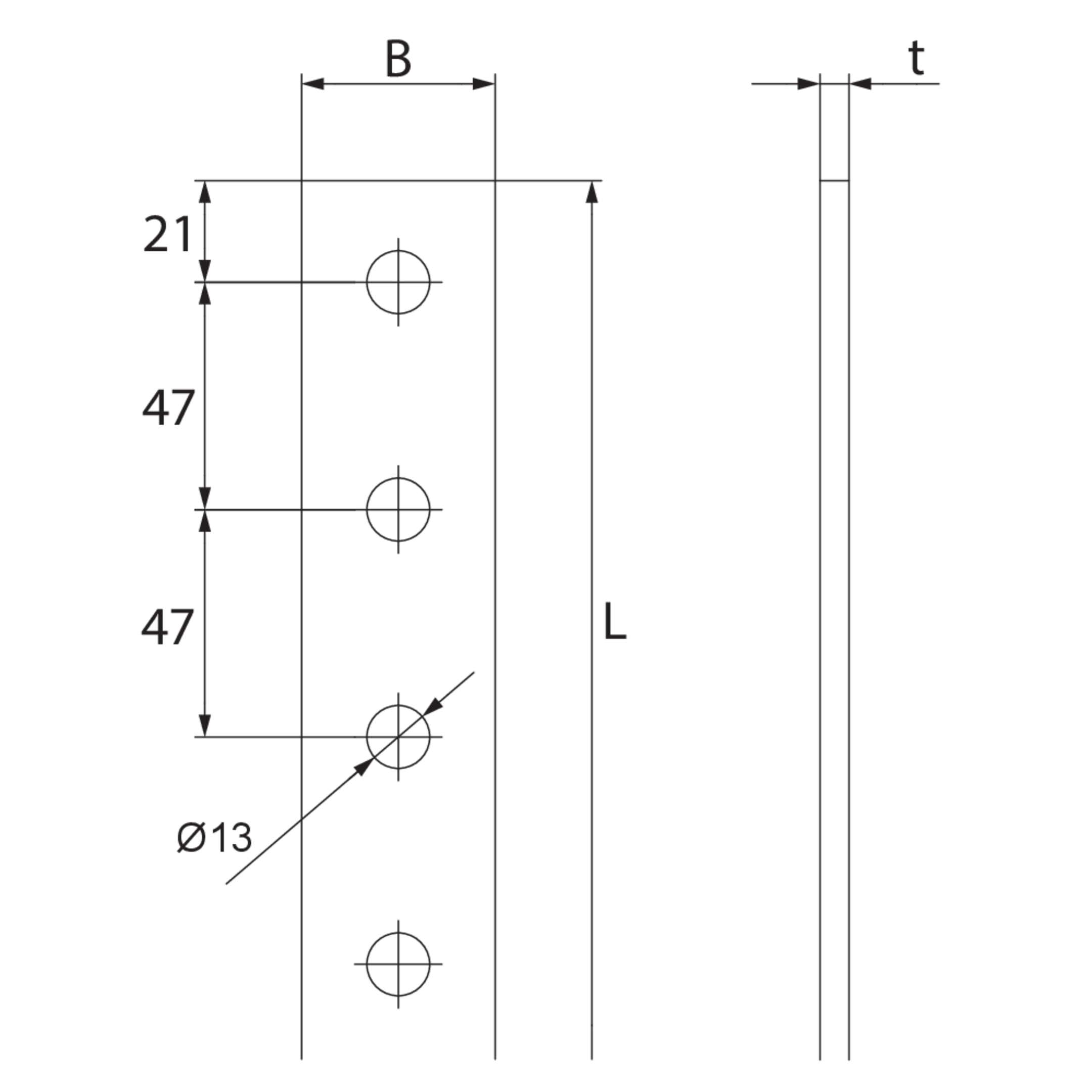

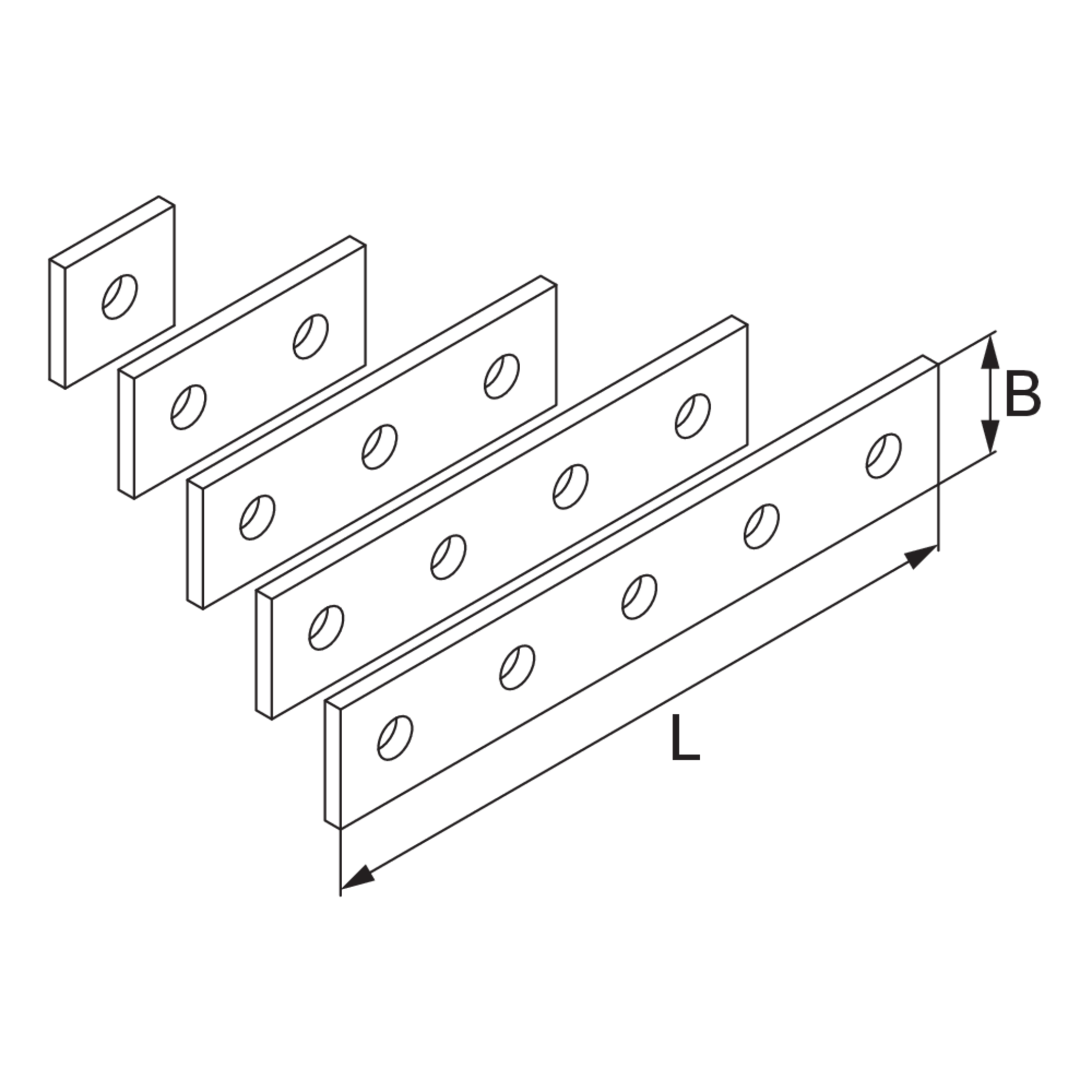

Article

B

width

L

length

t

material thickness

G

Weight per storage unit

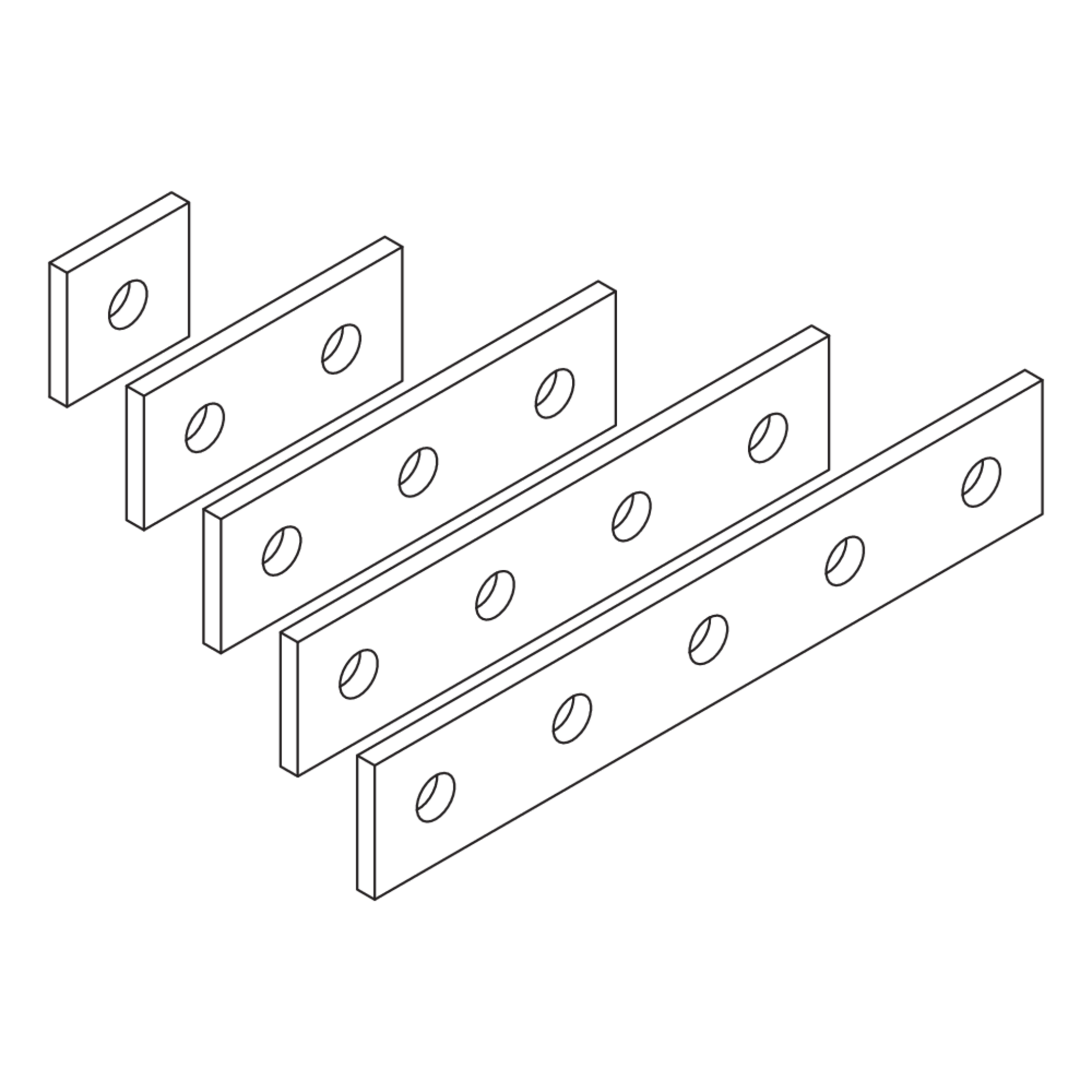

  • AVL-1F
    Rail coupler bracket AVL-1F
    width
    40 mm
    length
    42 mm
    material thickness
    6.00 mm
    Weight per storage unit
    0.078 kg
    More information
  • AVL-2F
    Rail coupler bracket AVL-2F
    width
    40 mm
    length
    89 mm
    material thickness
    6.00 mm
    Weight per storage unit
    0.165 kg
    More information
  • AVL-3F
    Rail coupler bracket AVL-3F
    width
    40 mm
    length
    136 mm
    material thickness
    6.00 mm
    Weight per storage unit
    0.239 kg
    More information
  • AVL-4F
    Rail coupler bracket AVL-4F
    width
    40 mm
    length
    183 mm
    material thickness
    6.00 mm
    Weight per storage unit
    0.322 kg
    More information
  • AVL-5F
    Rail coupler bracket AVL-5F
    width
    40 mm
    length
    230 mm
    material thickness
    6.00 mm
    Weight per storage unit
    0.404 kg
    More information
