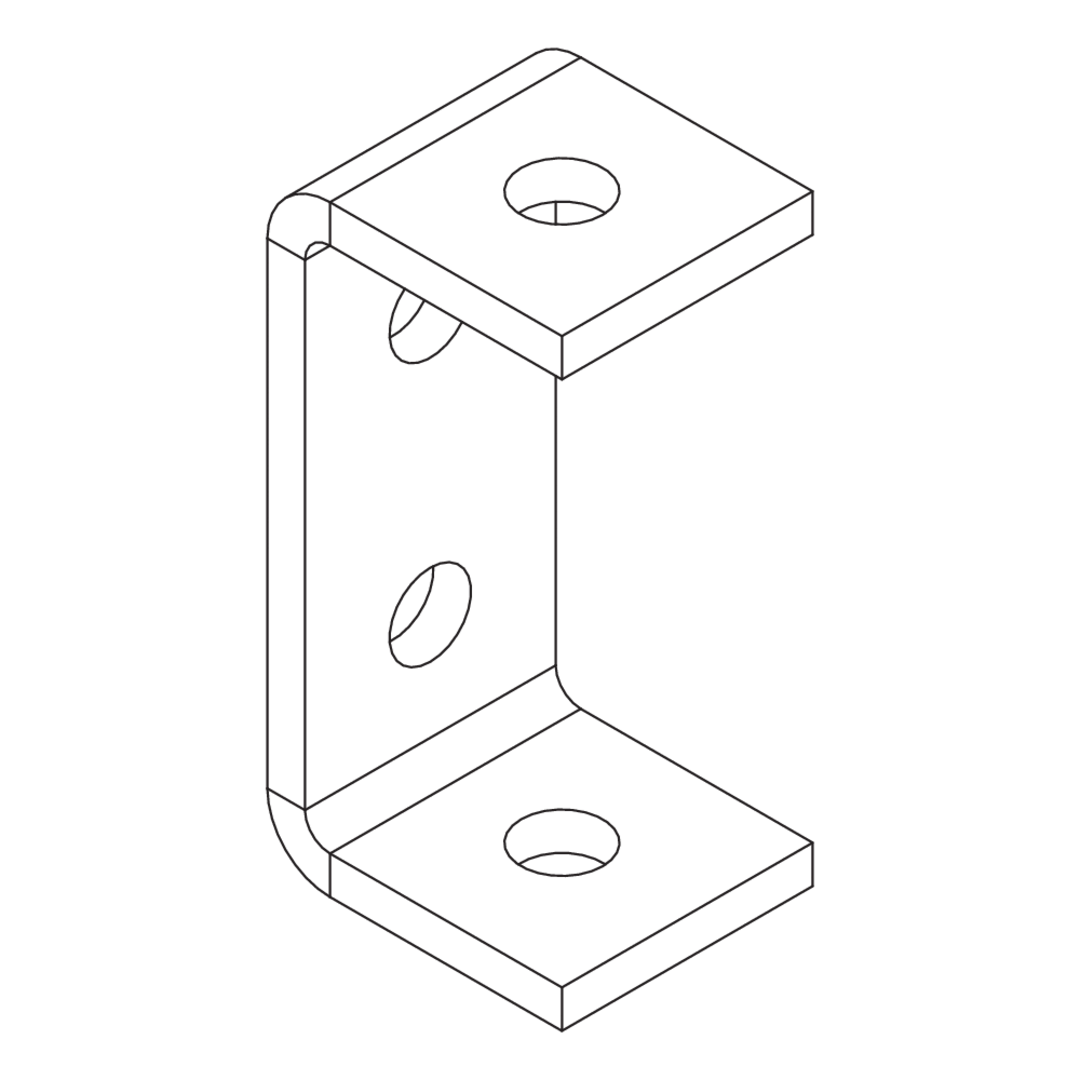

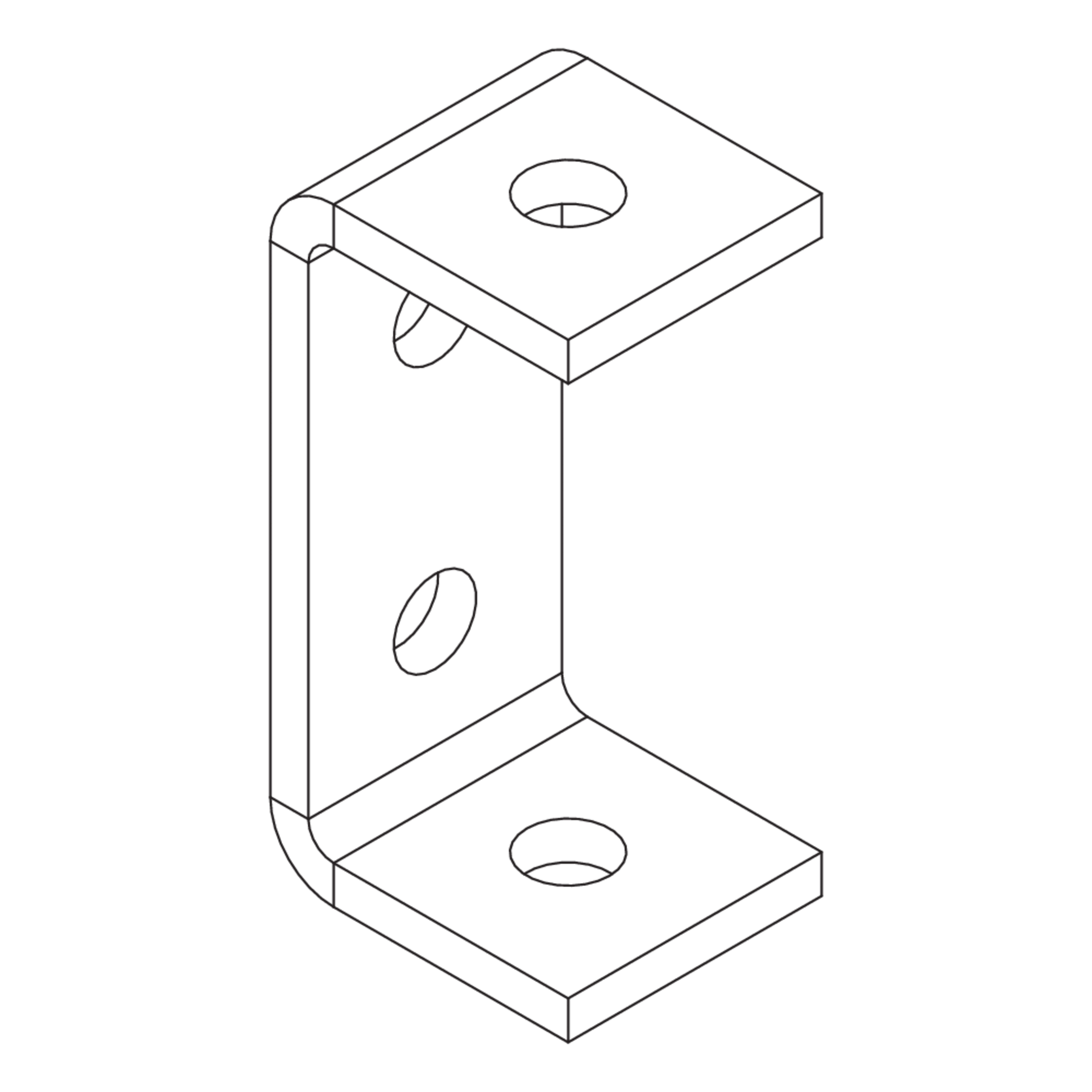

AKL 41

Rail clamp

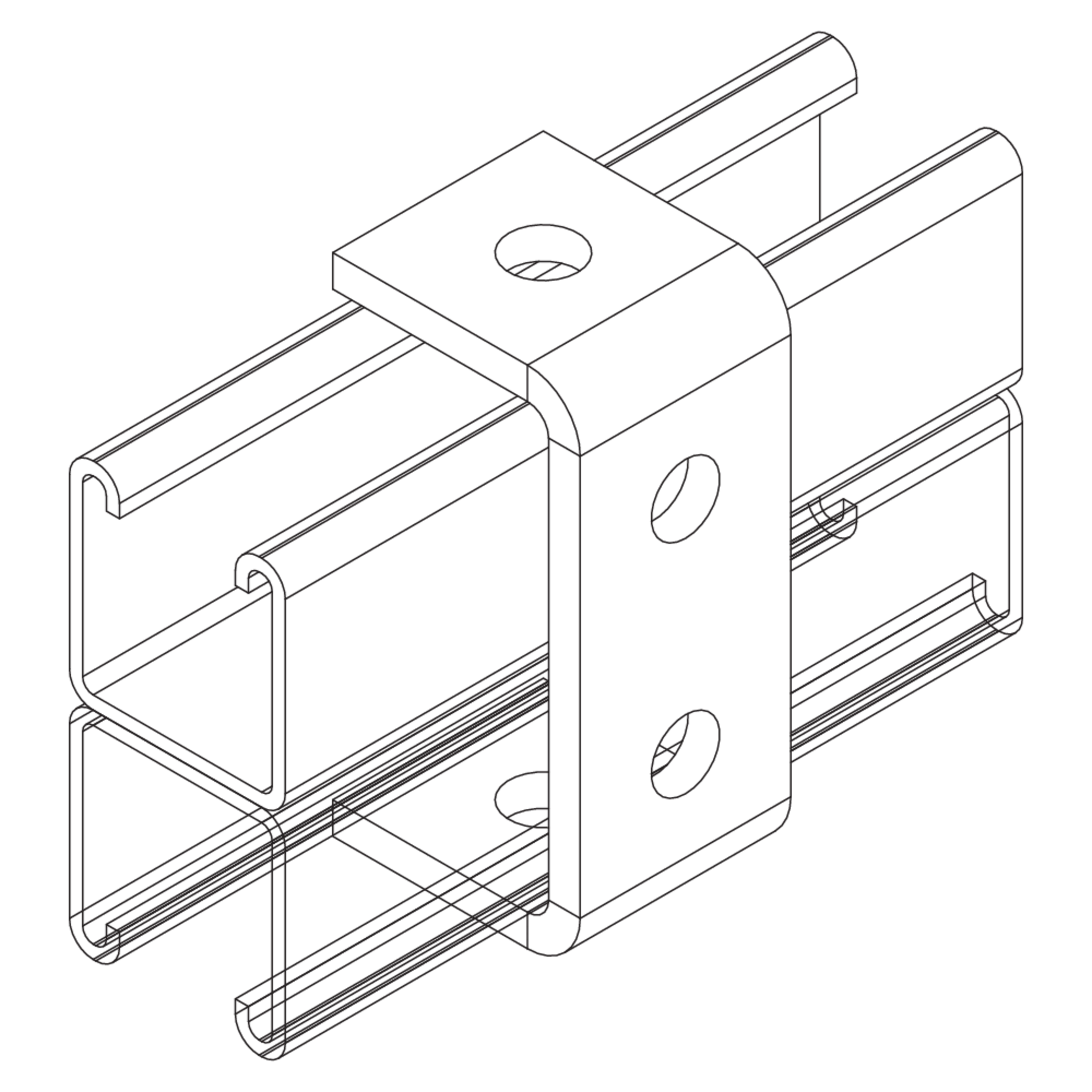

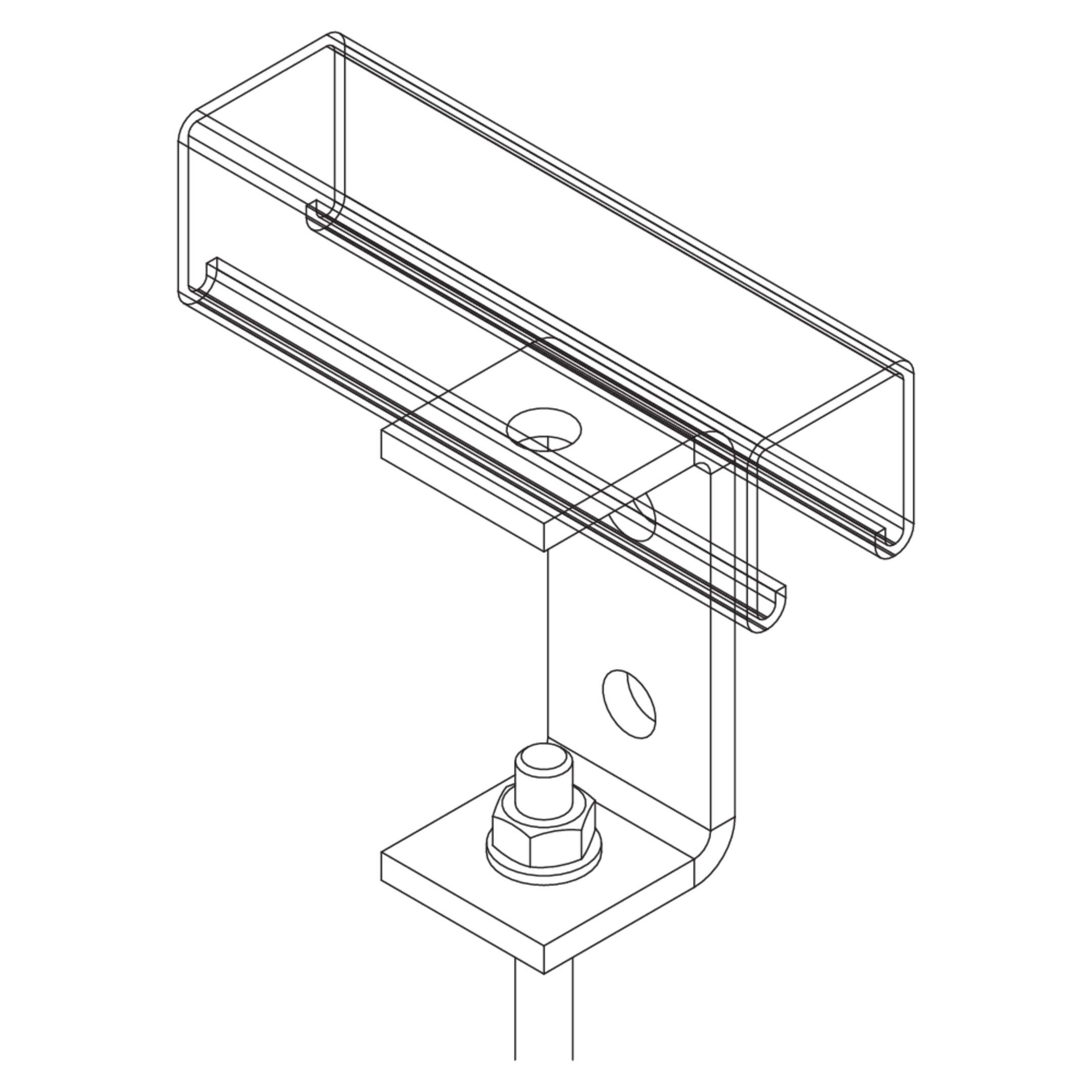

The channel clamp AKL 41 is attached to the channel and is used, among other things, for suspension using a threaded rod. It is made of hot-dip galvanised steel.

Get in touchDownload datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

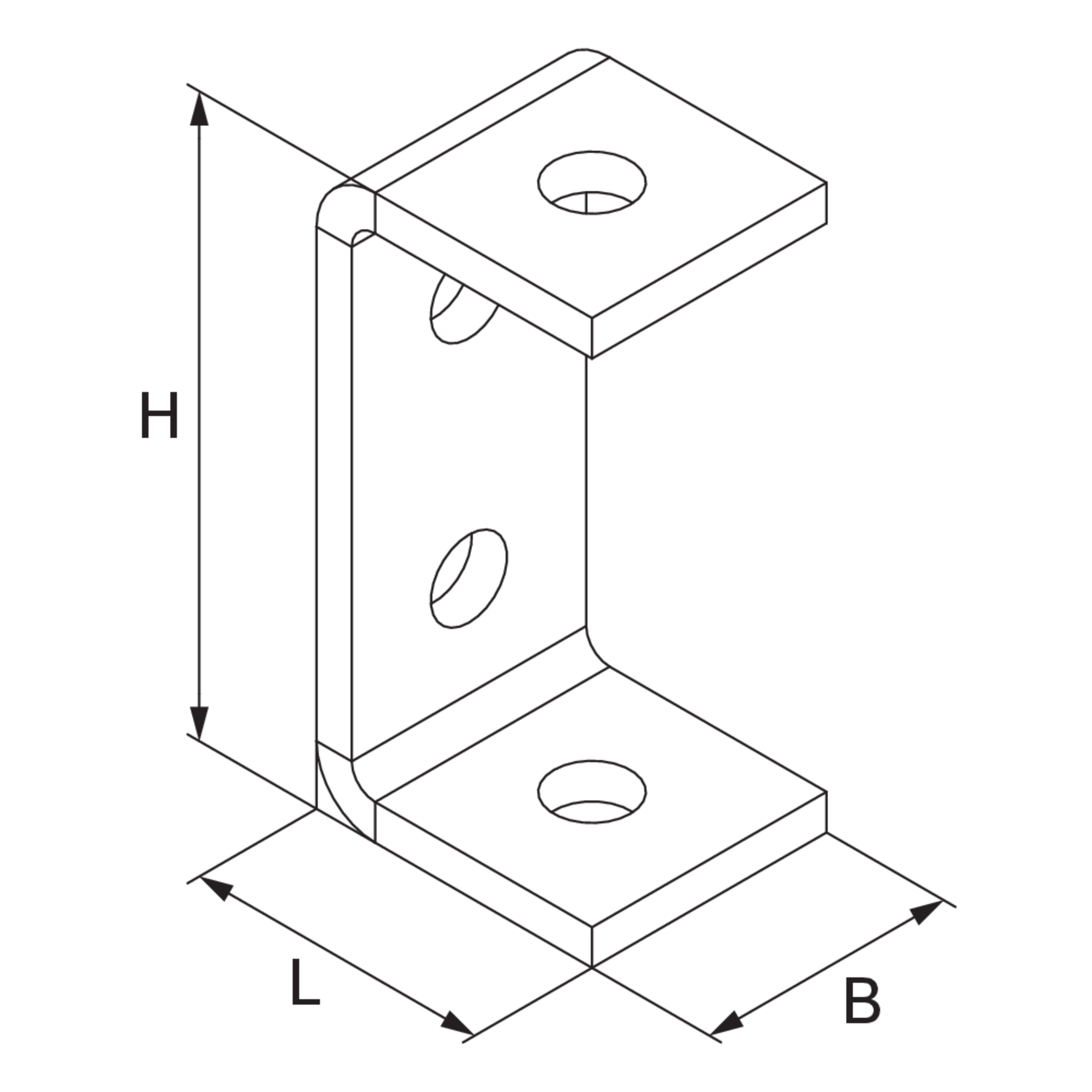

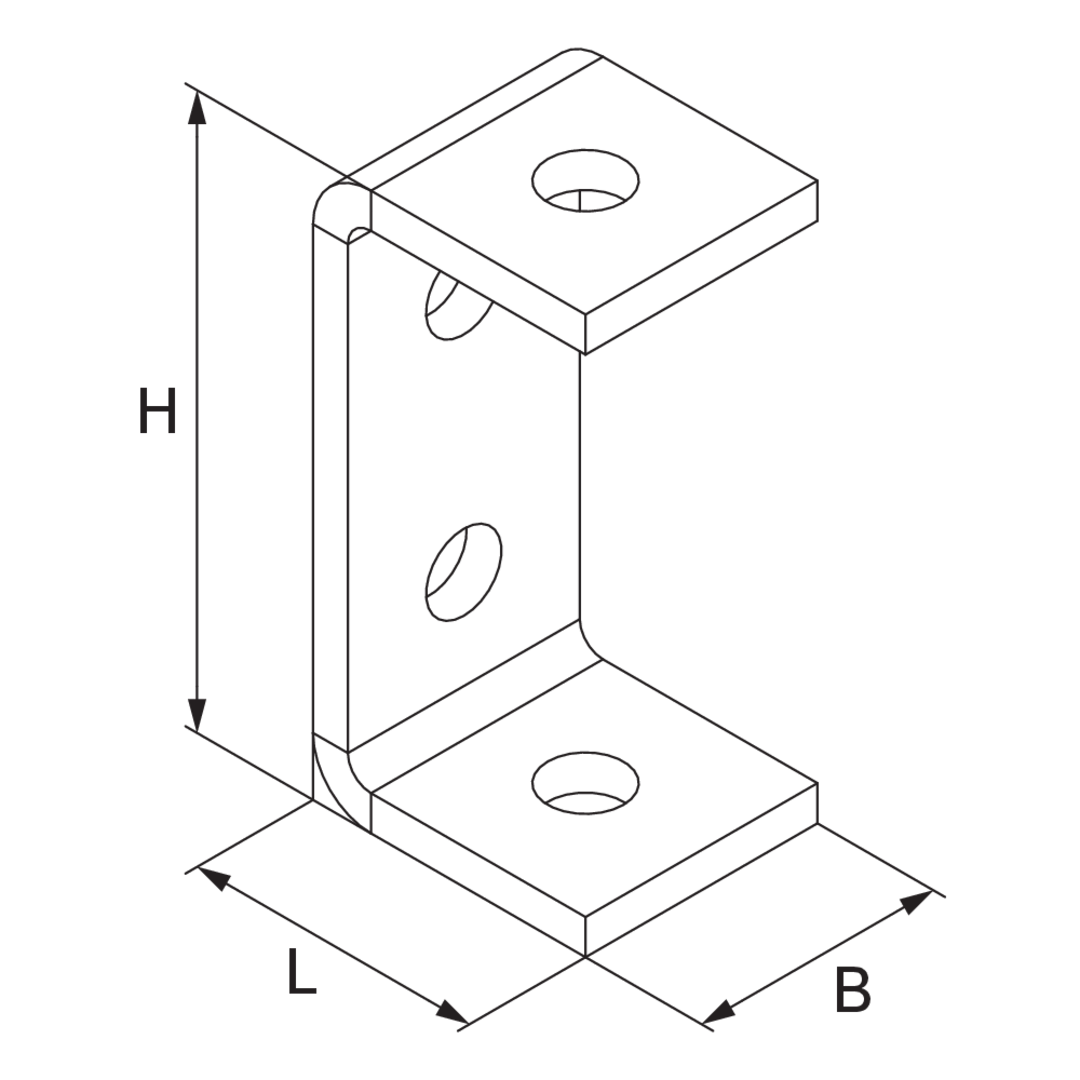

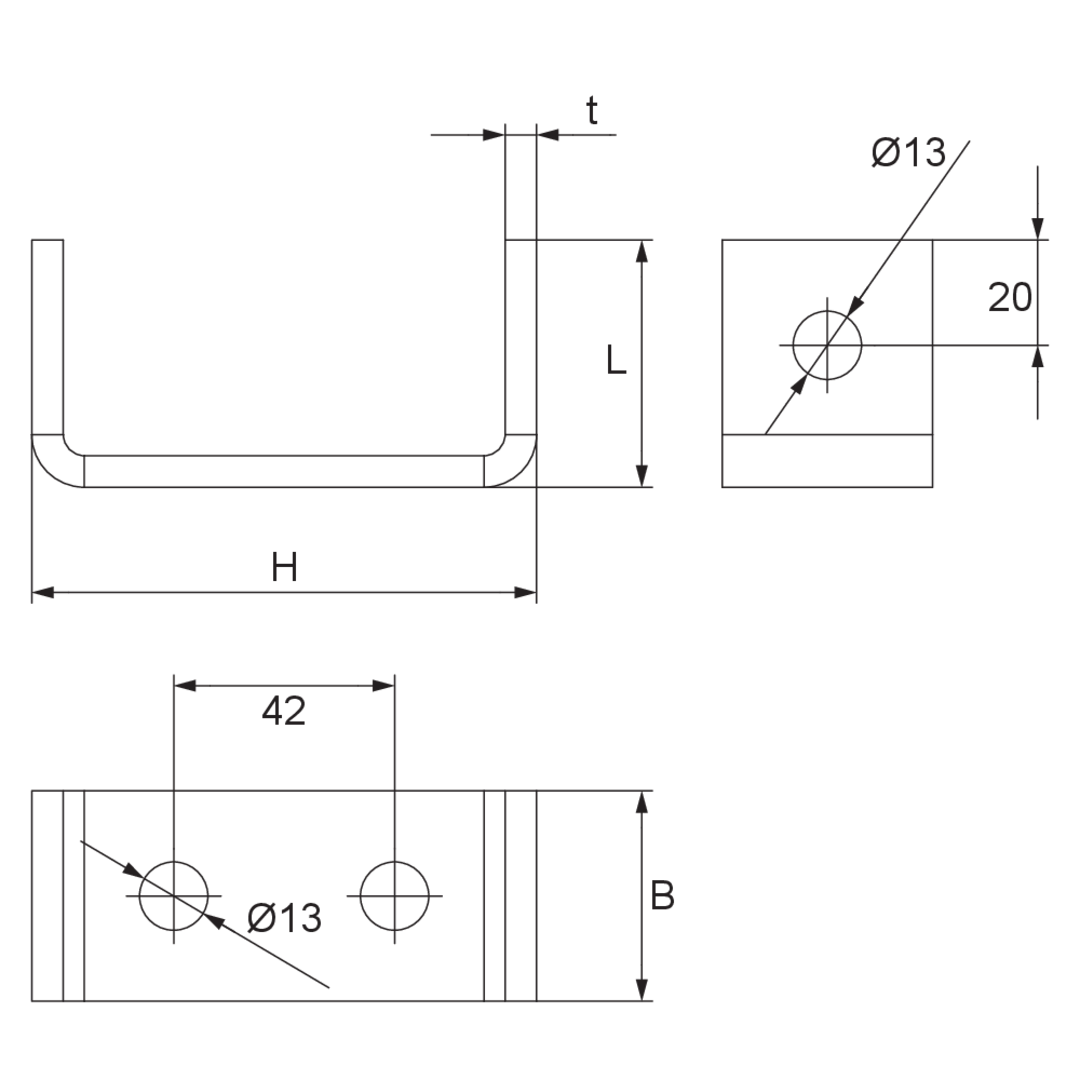

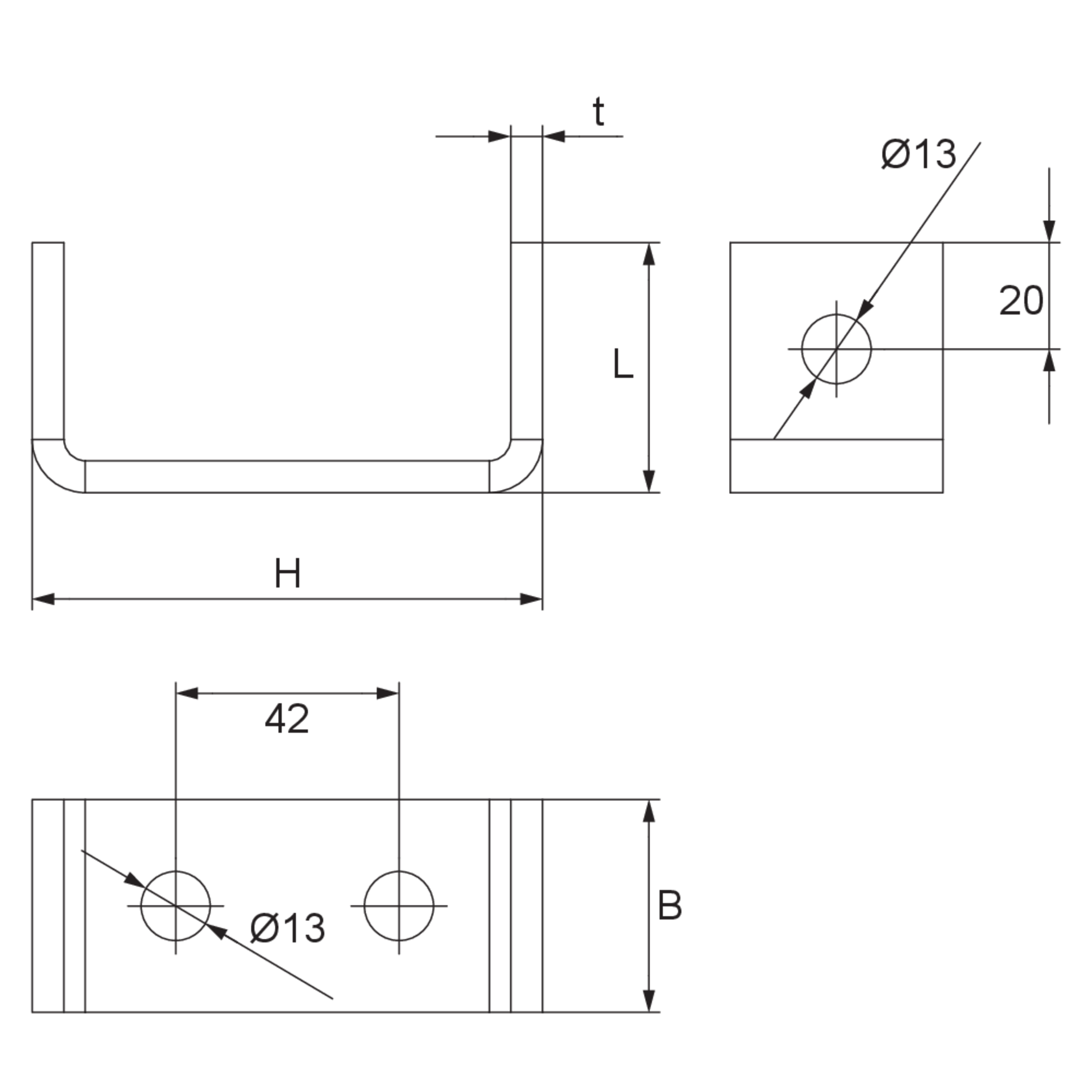

H

Höhe

B

Breite

L

Länge

t

Materialstärke

G

Gewicht je Lagermengeneinheit

  • AKL 41F
    Klammer
    Höhe
    96 mm
    Breite
    40 mm
    Länge
    47 mm
    Materialstärke
    6.00 mm
    Gewicht je Lagermengeneinheit
    0.314 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

    Support systems Assembling instruction

    • de

    • en

    Support systems - Technical information

    Technical information

    • de

    • en

Included accessories
