BGA 41/2

Screw-on head plate, KHA 41/82

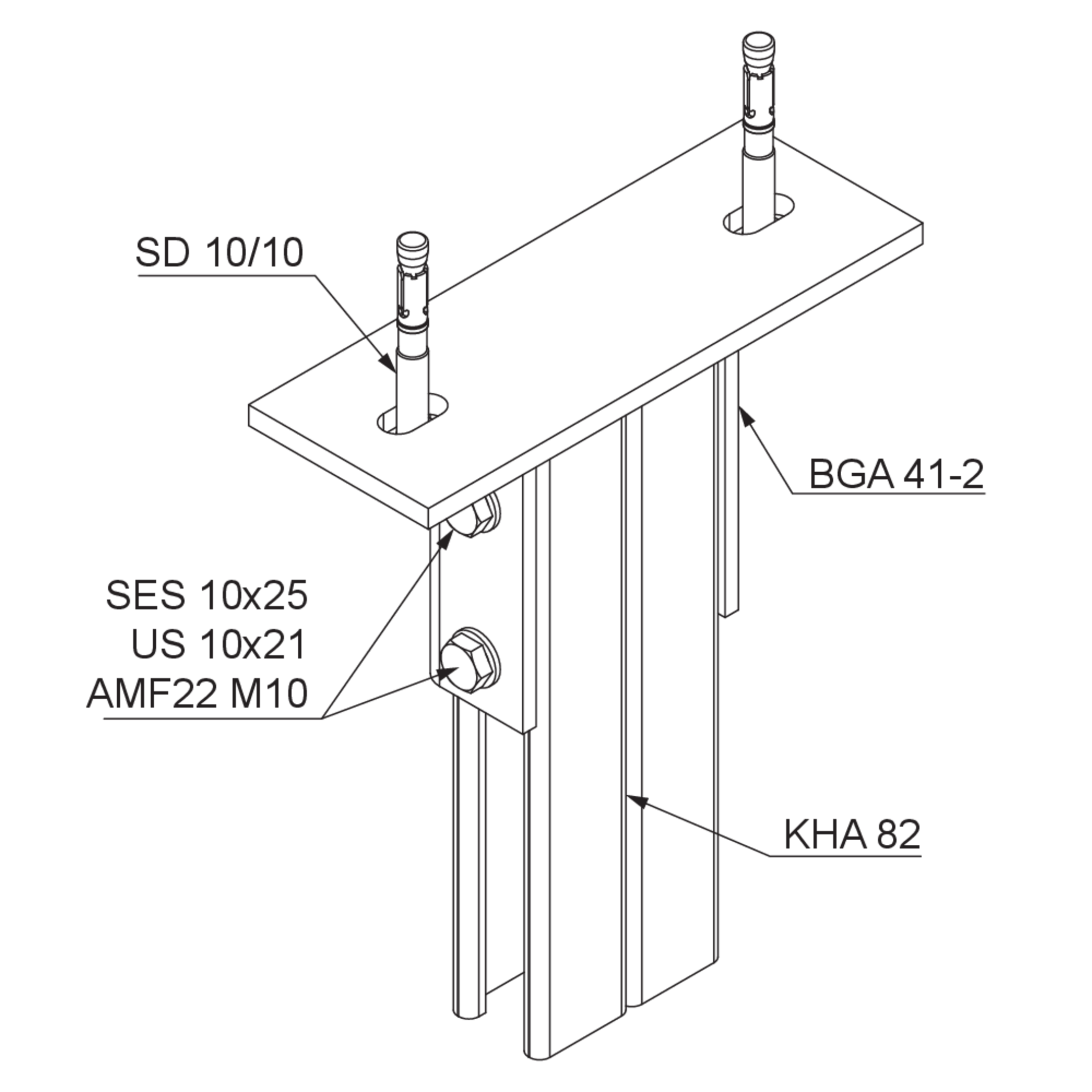

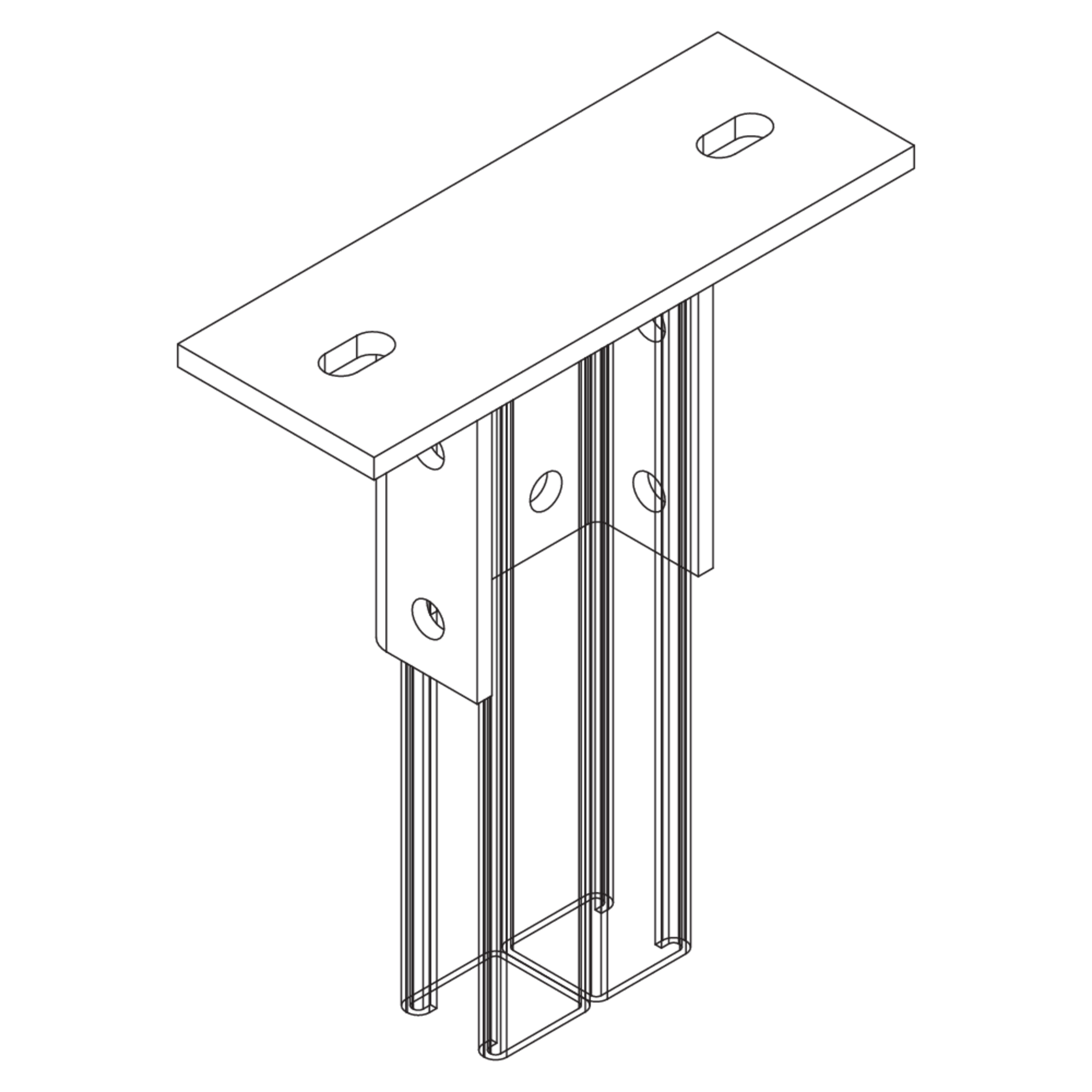

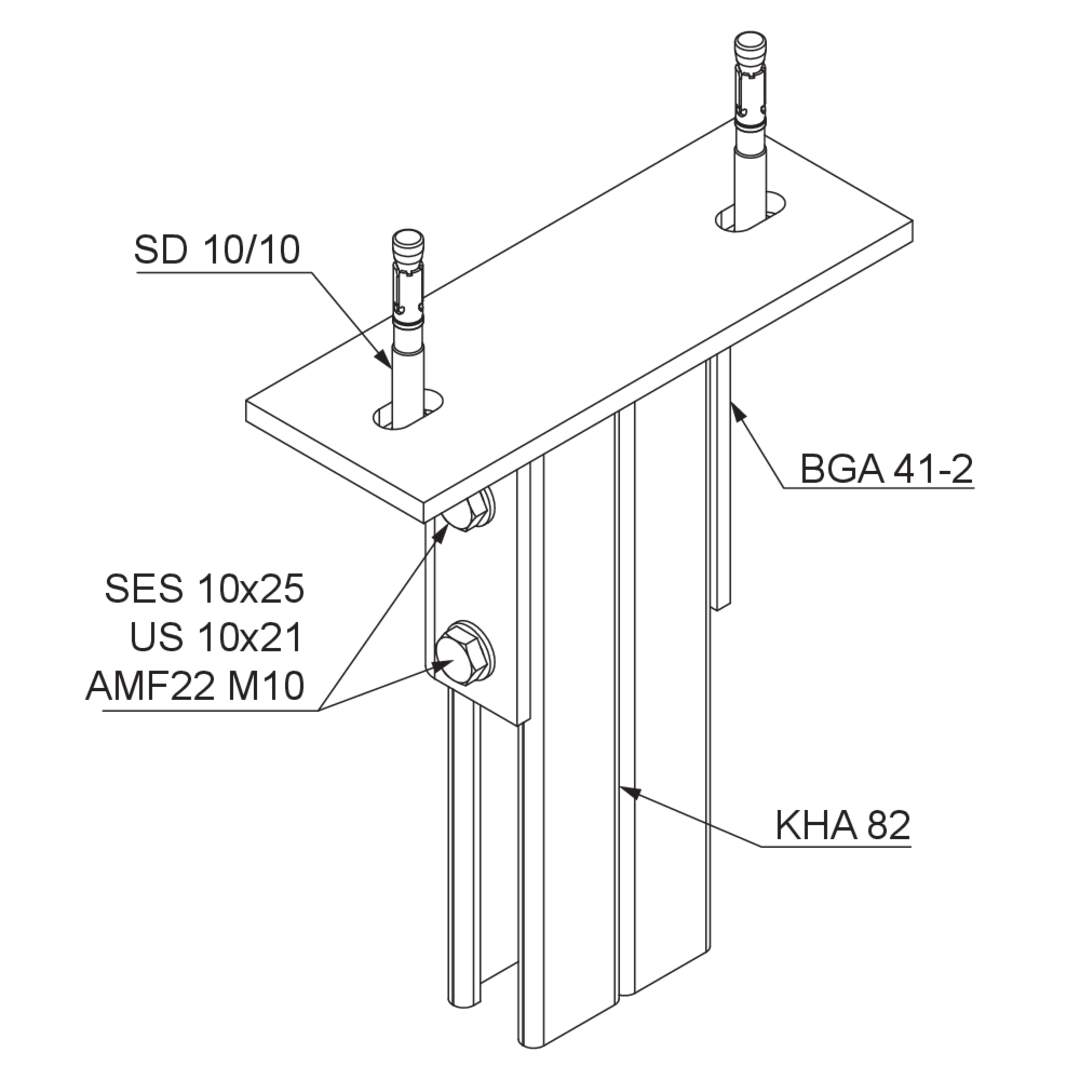

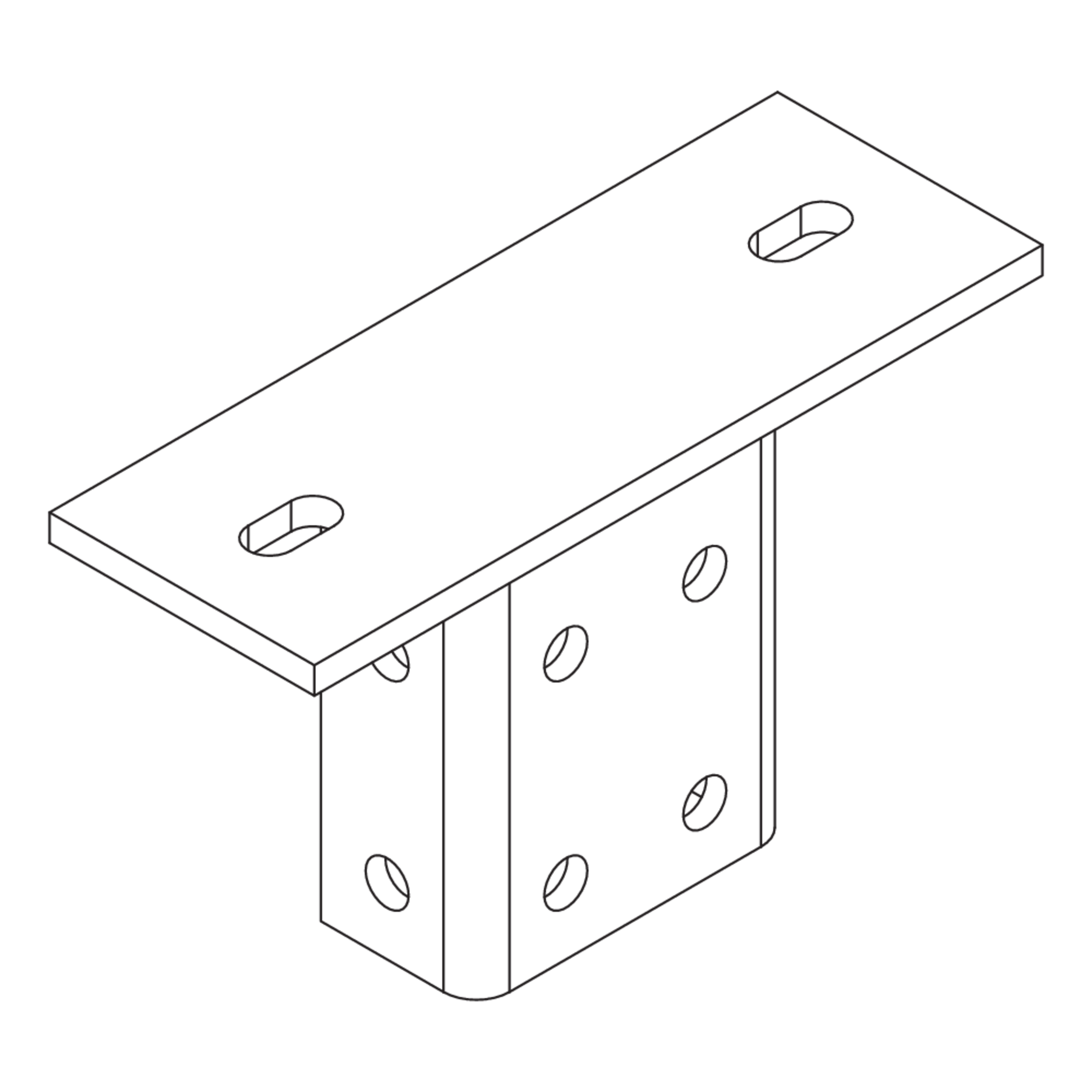

The head plate BGA 41/2 is used for mounting two bracket holders KHA 41 / KHAL 41 or the profile rail KHA 82 on ceilings. It is bolted to the profile rails and dowelled to the ceiling. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touch Download datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

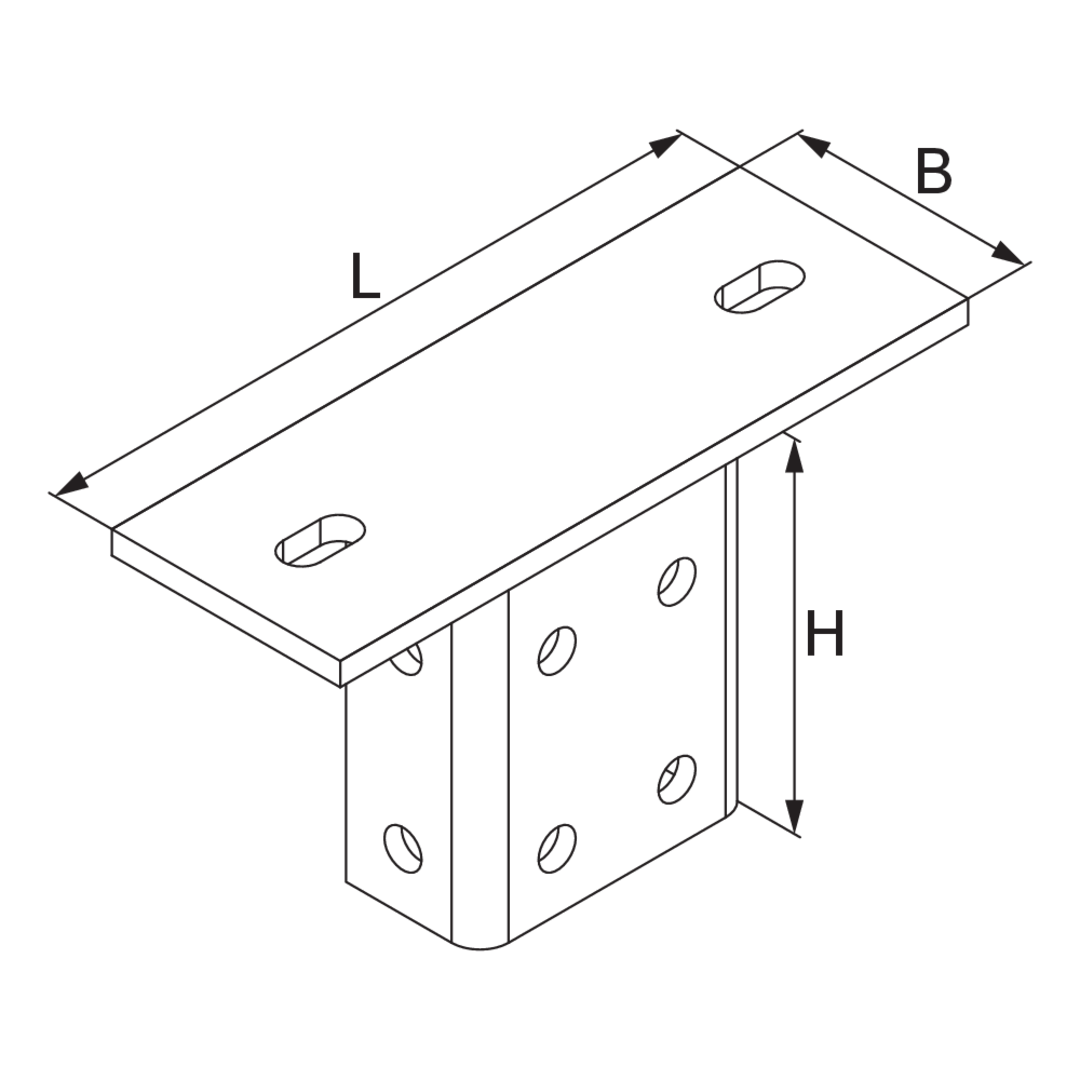

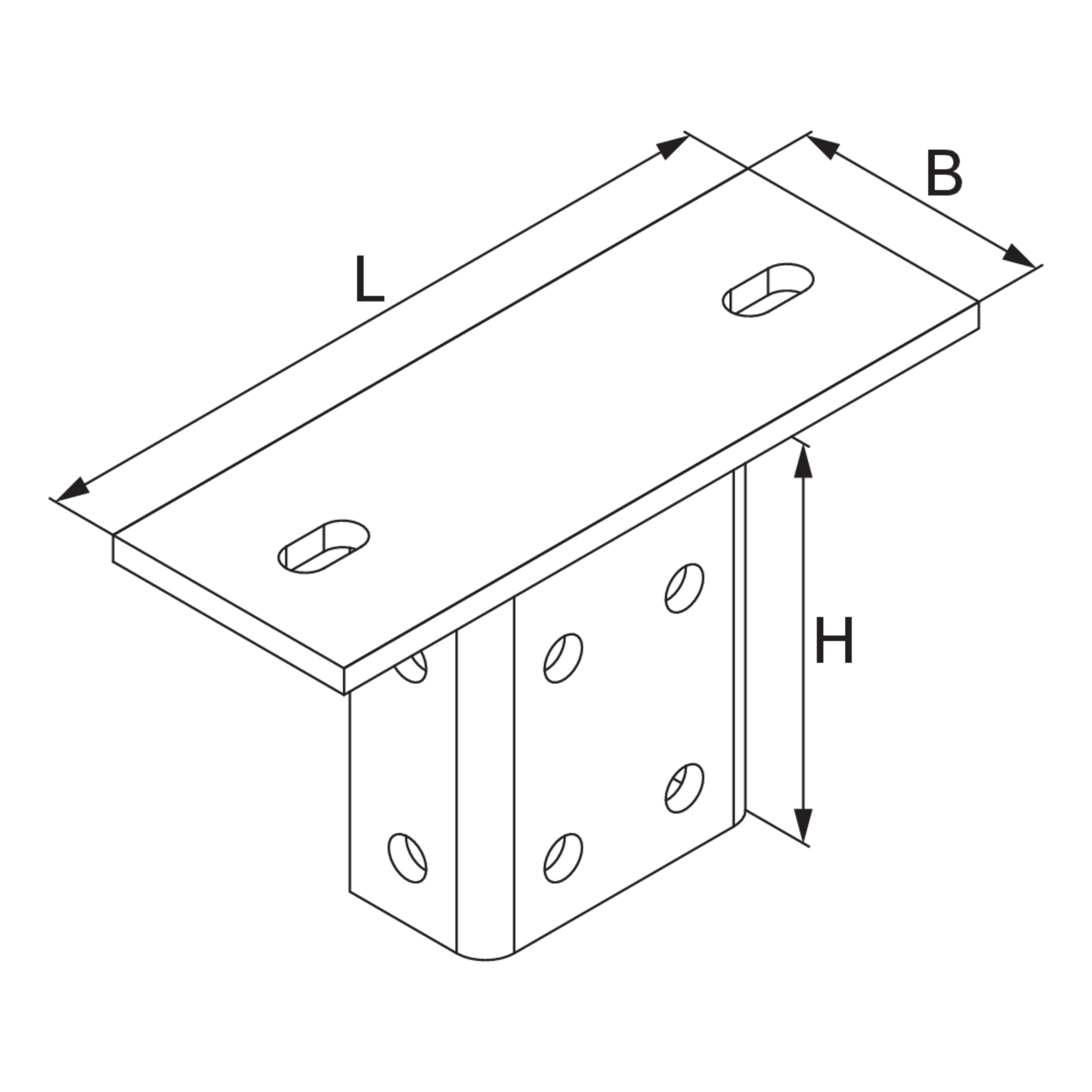

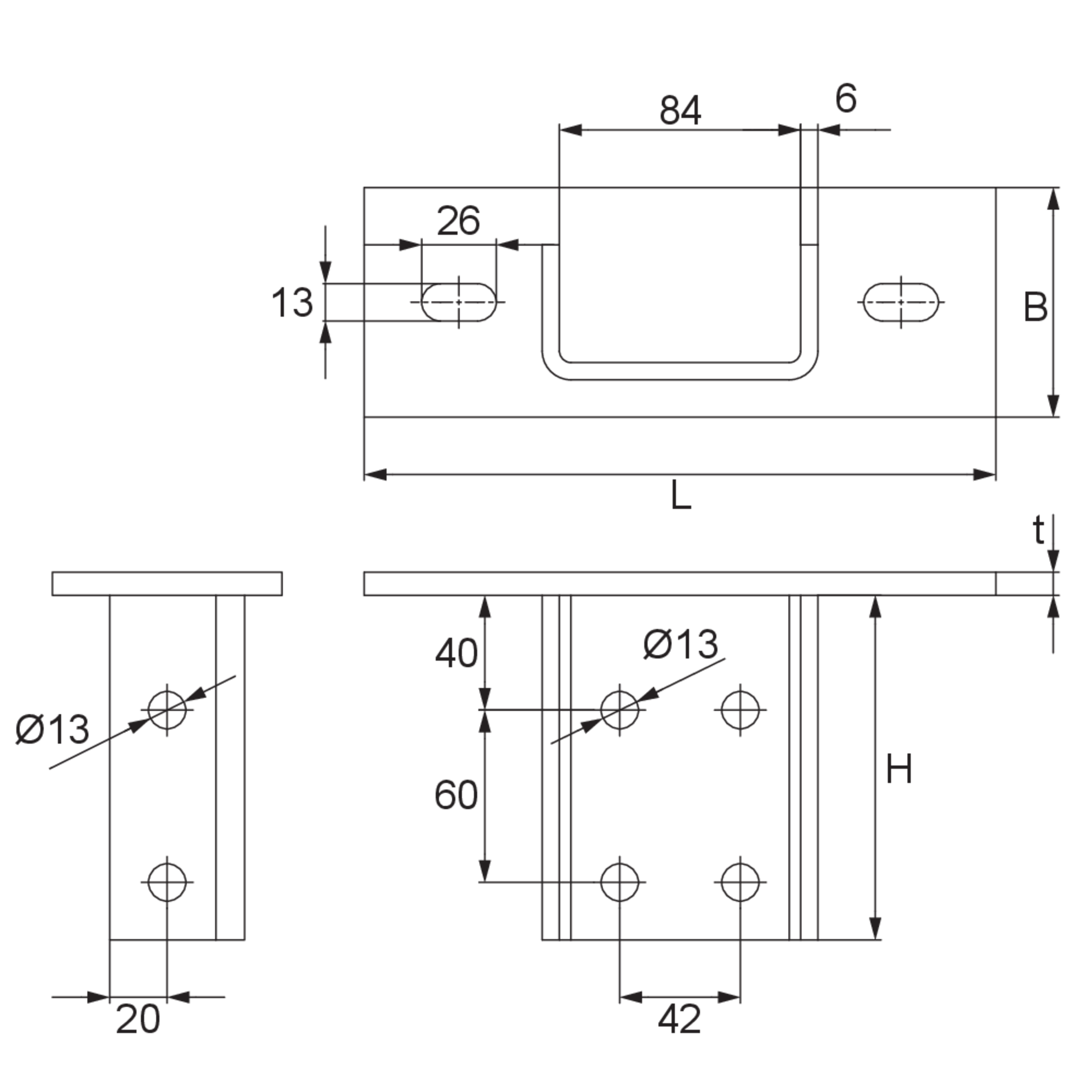

H

Höhe

B

Breite

L

Länge

t

Materialstärke

G

Gewicht je Lagermengeneinheit
  • BGA 41/2F
    Kopfplatte
    Höhe
    120 mm
    Breite
    80 mm
    Länge
    220 mm
    Materialstärke
    8 mm
    Gewicht je Lagermengeneinheit
    2.150 kg
    More information

Stahl, galvanisch verzinkt

Article

H

Höhe

B

Breite

L

Länge

t

Materialstärke

G

Gewicht je Lagermengeneinheit
  • BGA 41/2GV
    Kopfplatte
    Höhe
    120 mm
    Breite
    80 mm
    Länge
    220 mm
    Materialstärke
    8 mm
    Gewicht je Lagermengeneinheit
    1.991 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Support systems Assembling instruction

    Montageanleitung

    PDF, 2 MB

    de en

  • Support systems - Technical information

    Technical information

    PDF, 19 MB

    de en
