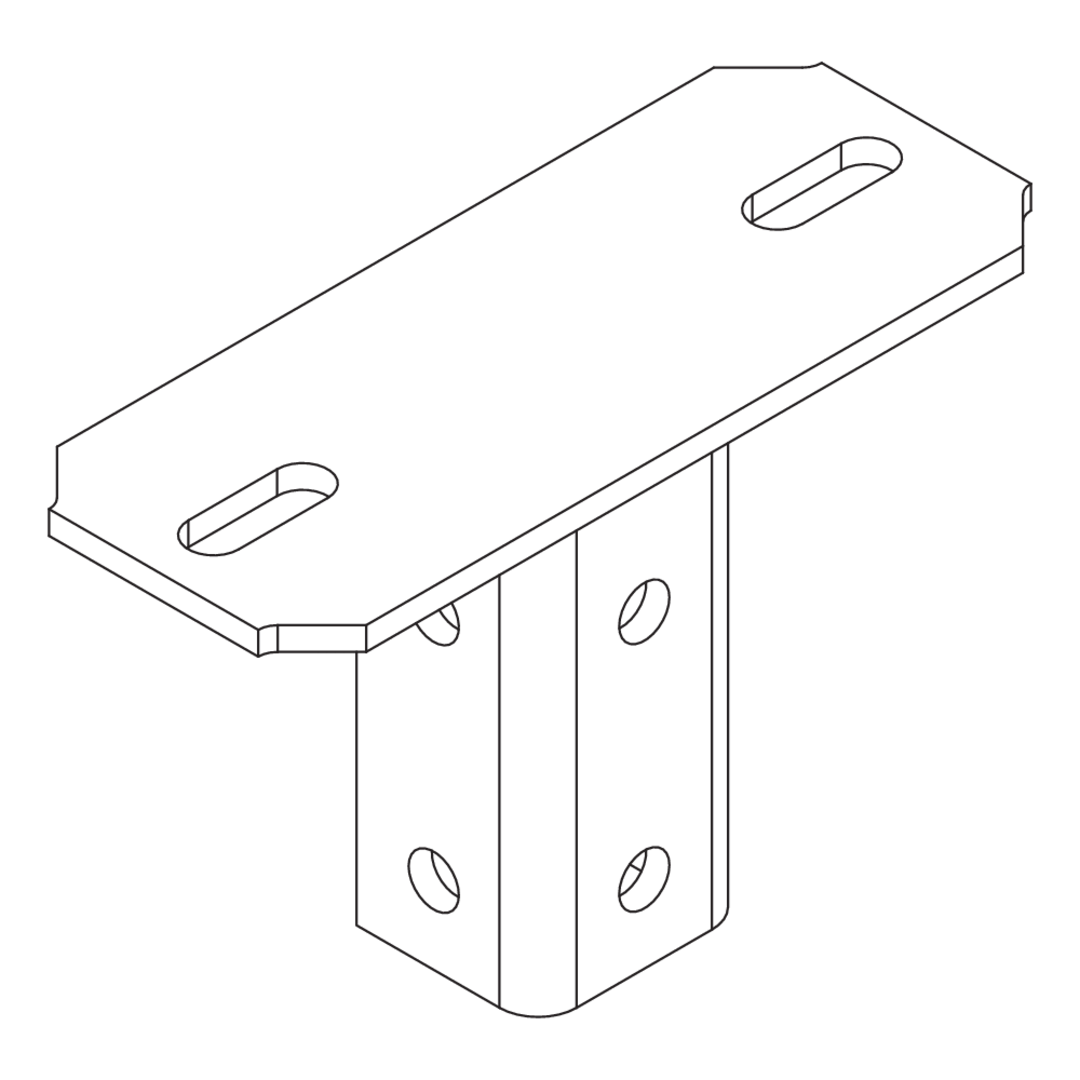

BGA 41

Screw-on head plate, KHA 41

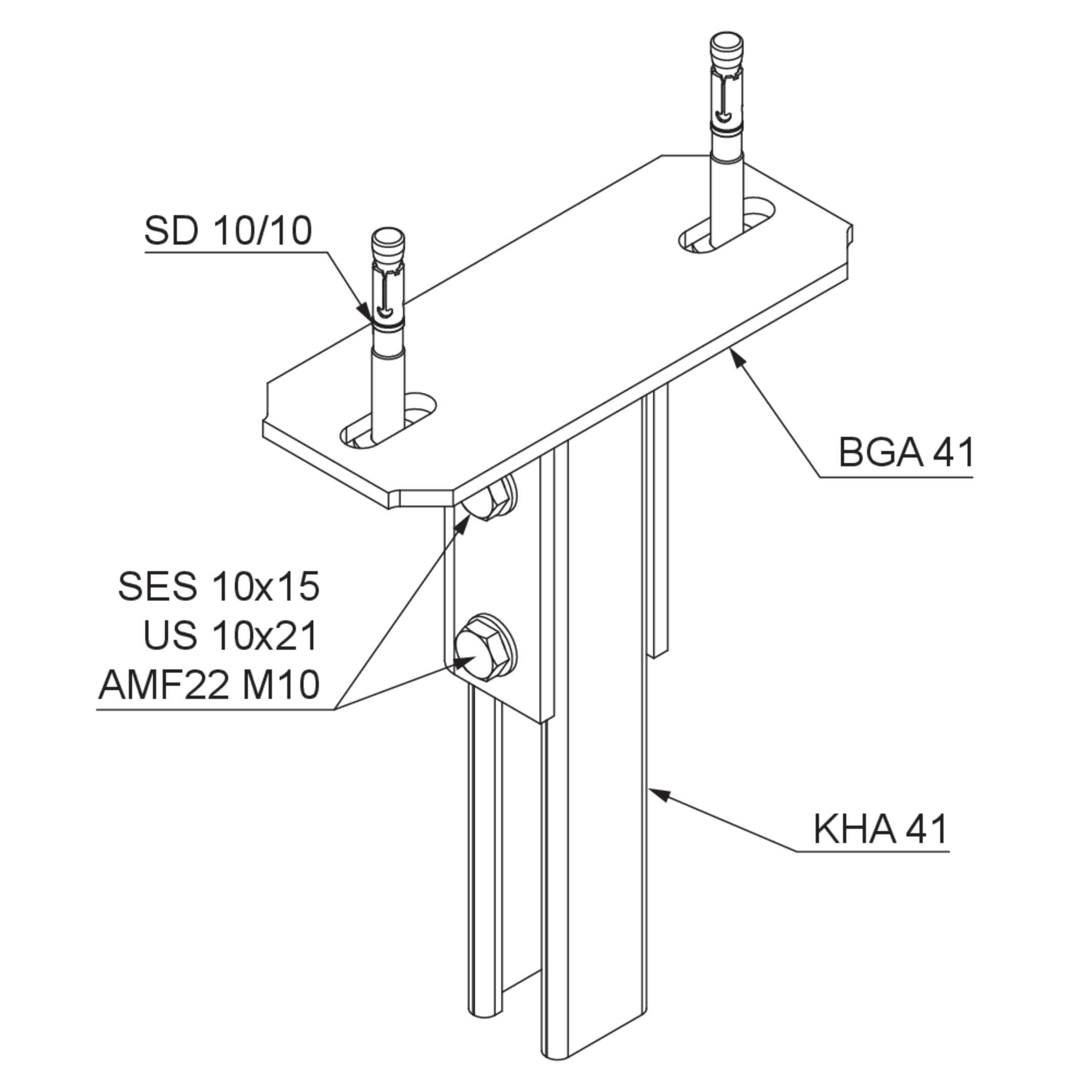

The head plate BGA 41 is used for mounting bracket holder KHA 41 or KHAL 41 on ceilings. It is bolted to the bracket holder and dowelled to the ceiling. It is made of hot-dip galvanised steel.

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

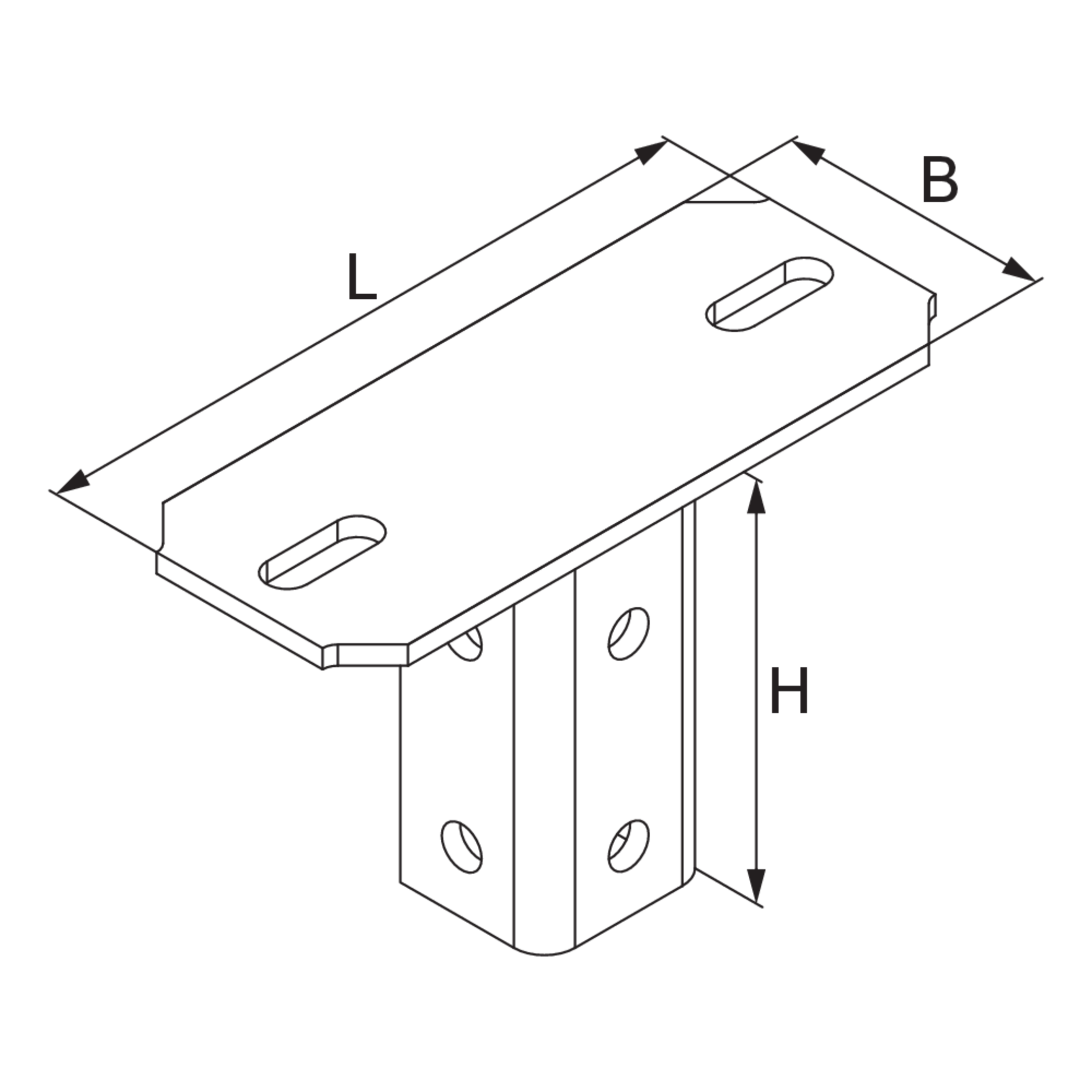

H

Höhe

B

Breite

L

Länge

t

Materialstärke

G

Gewicht je Lagermengeneinheit

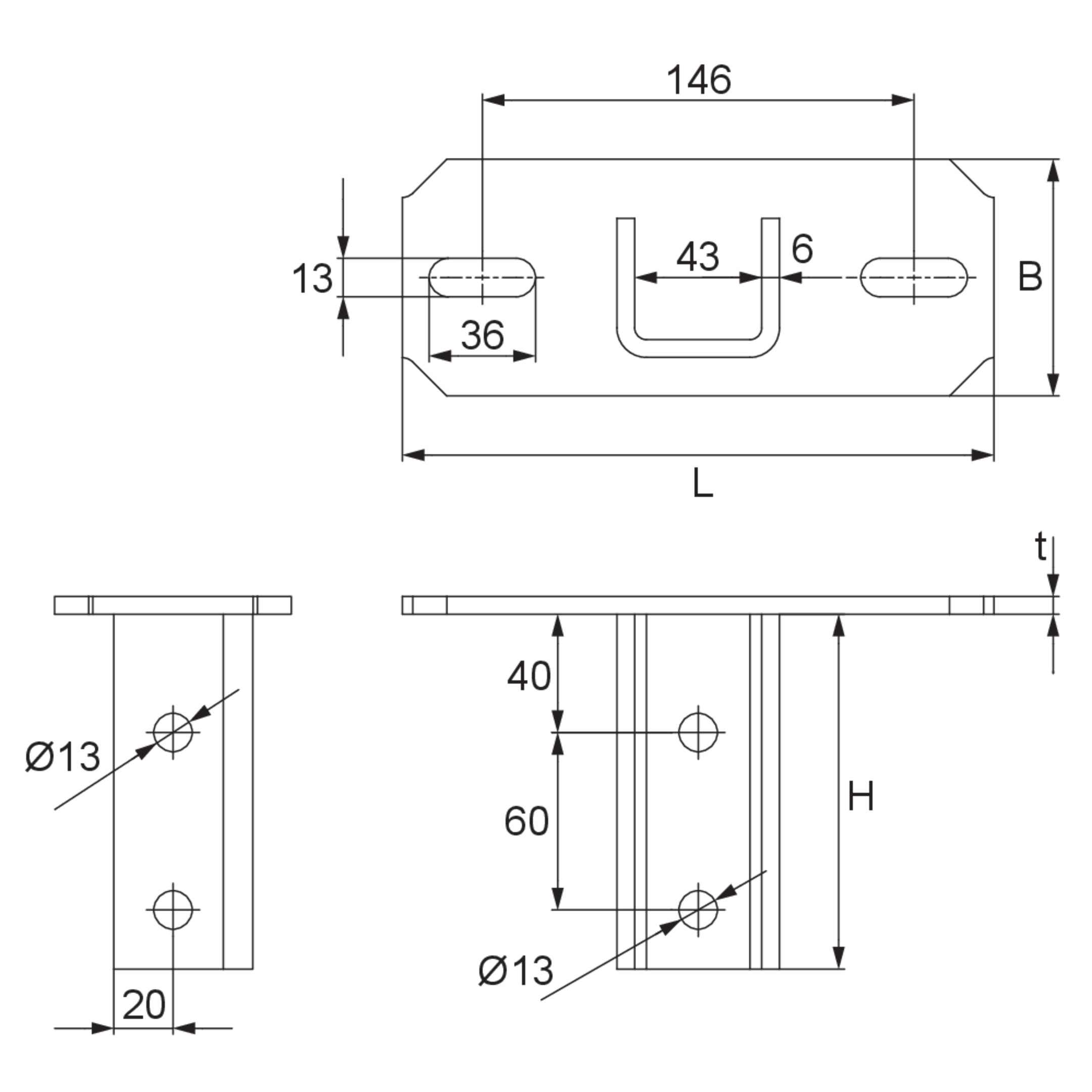

  • BGA 41F
    Kopfplatte
    Höhe
    120 mm
    Breite
    80 mm
    Länge
    200 mm
    Materialstärke
    6 mm
    Gewicht je Lagermengeneinheit
    1.470 kg

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link


Downloads

    Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    • de

    • en

    Support systems Assembling instruction

    • de

    • en

    Support systems - Technical information

    Technical information

    • de

    • en
