SD

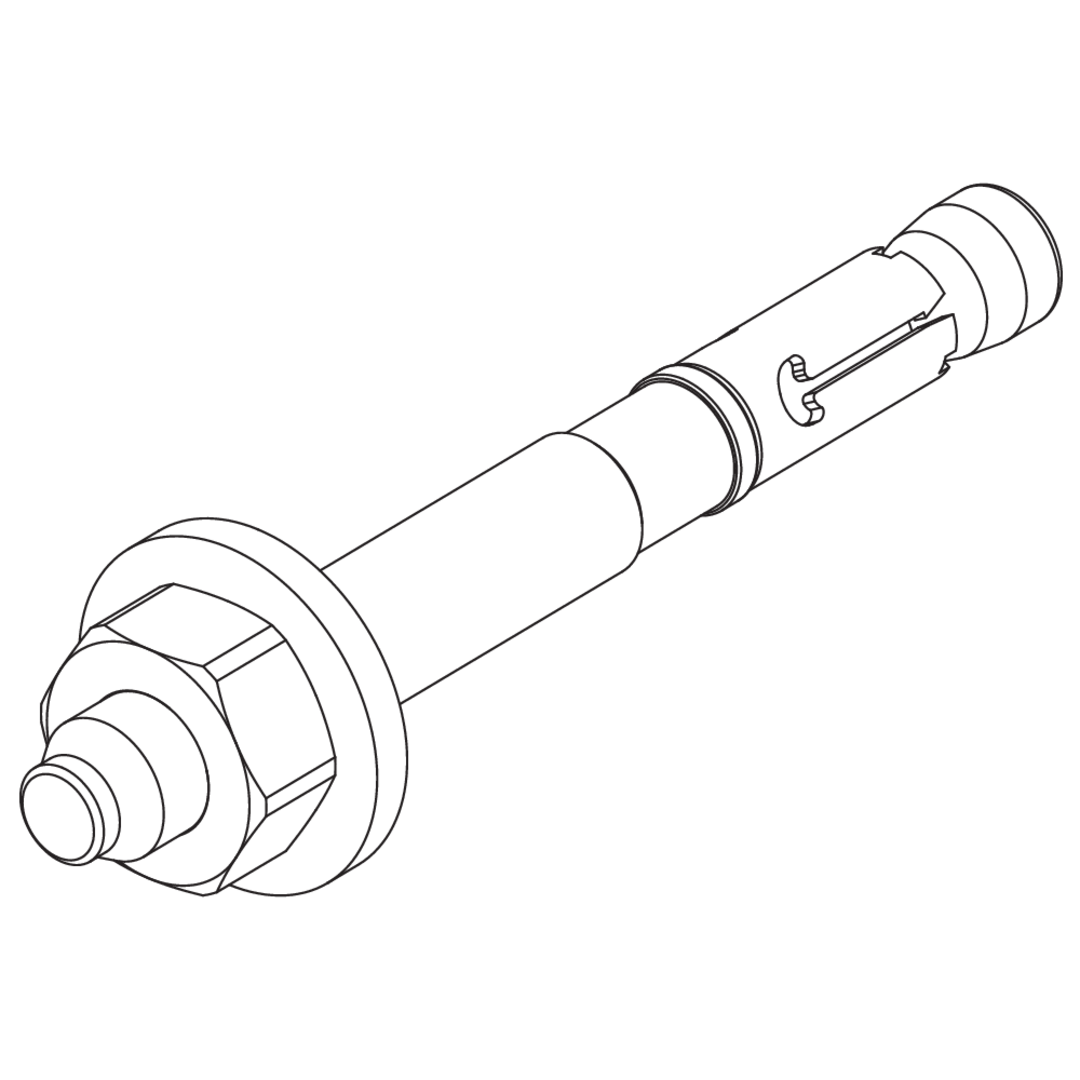

Expansion anchor

The approved expansion anchor SD is used to fasten supporting structures such as bracket holders or wall brackets to walls and/or ceilings. It is permitted to be used as a single attachment in cracked and non-cracked standard concrete with strength ≥ C20/25. The manufacturer's specifications must be observed. The pre-assembled washer makes the expansion anchor suitable for fastening steel attachments with slots. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touch Download datasheet

Variants

steel, galvanic zinc plated

Article

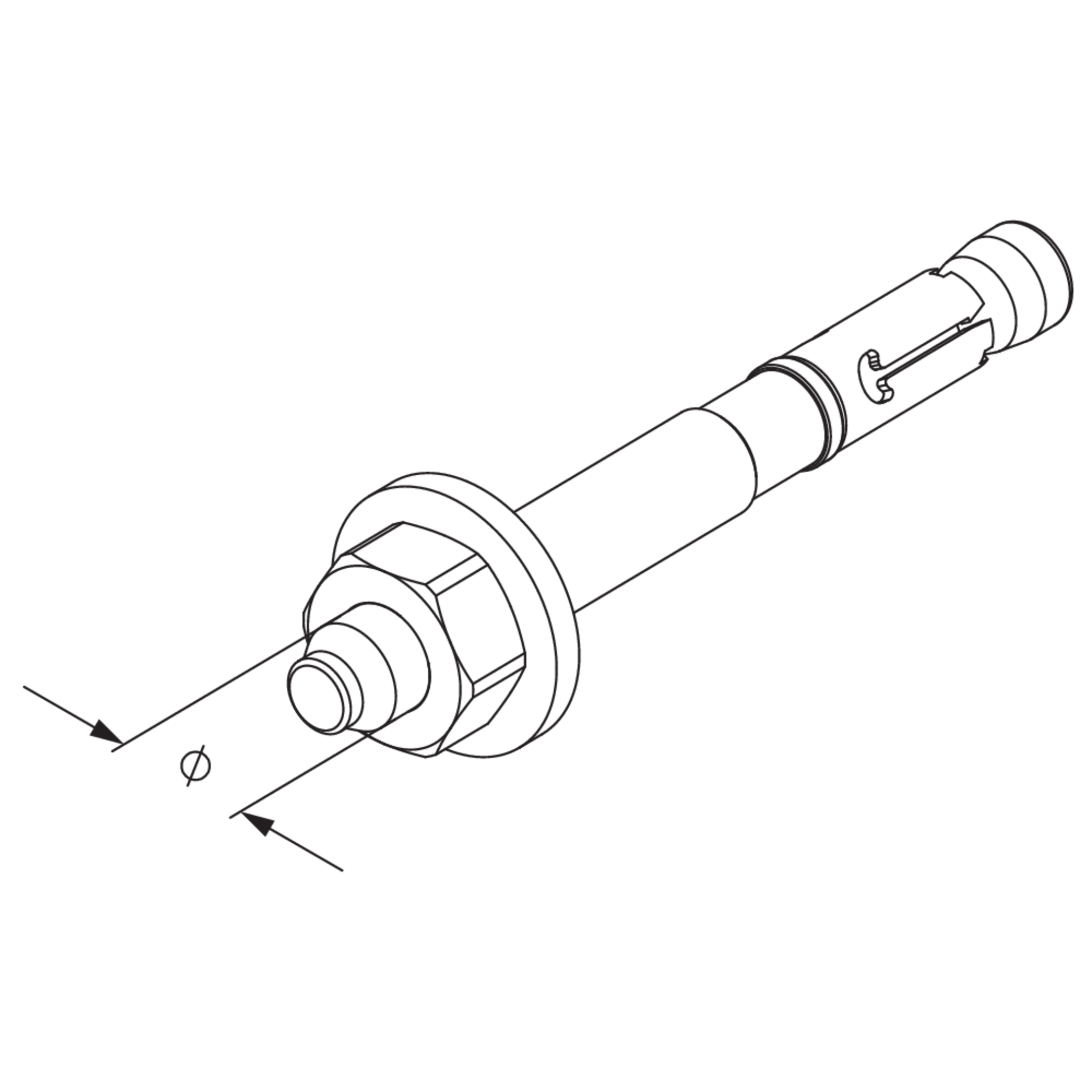

Ø

thread diameter

Lmin

min. borehole depth

PZug

max. permissible tensile force

Plat

max. permissible shear force

G

Weight per storage unit

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

Ø

thread diameter

Lmin

min. borehole depth

PZug

max. permissible tensile force

Plat

max. permissible shear force

G

Weight per storage unit
  • SD 10/10E4
    Straddling dowel SD 10/10E4
    10 mm
    75 mm
    6.2 kN
    15.1 kN
    0.065 kg
    More information
  • SD 10/30E4
    Straddling dowel SD 10/30
    10 mm
    75 mm
    6.2 kN
    15.1 kN
    0.071 kg
    More information
  • SD 12/10E4
    Straddling dowel SD 12/10E4
    12 mm
    91 mm
    9.5 kN
    24.1 kN
    0.108 kg
    More information
  • SD 8/10E4
    Straddling dowel SD 8/10E4
    8 mm
    58 mm
    3.8 kN
    10.1 kN
    0.034 kg
    More information
