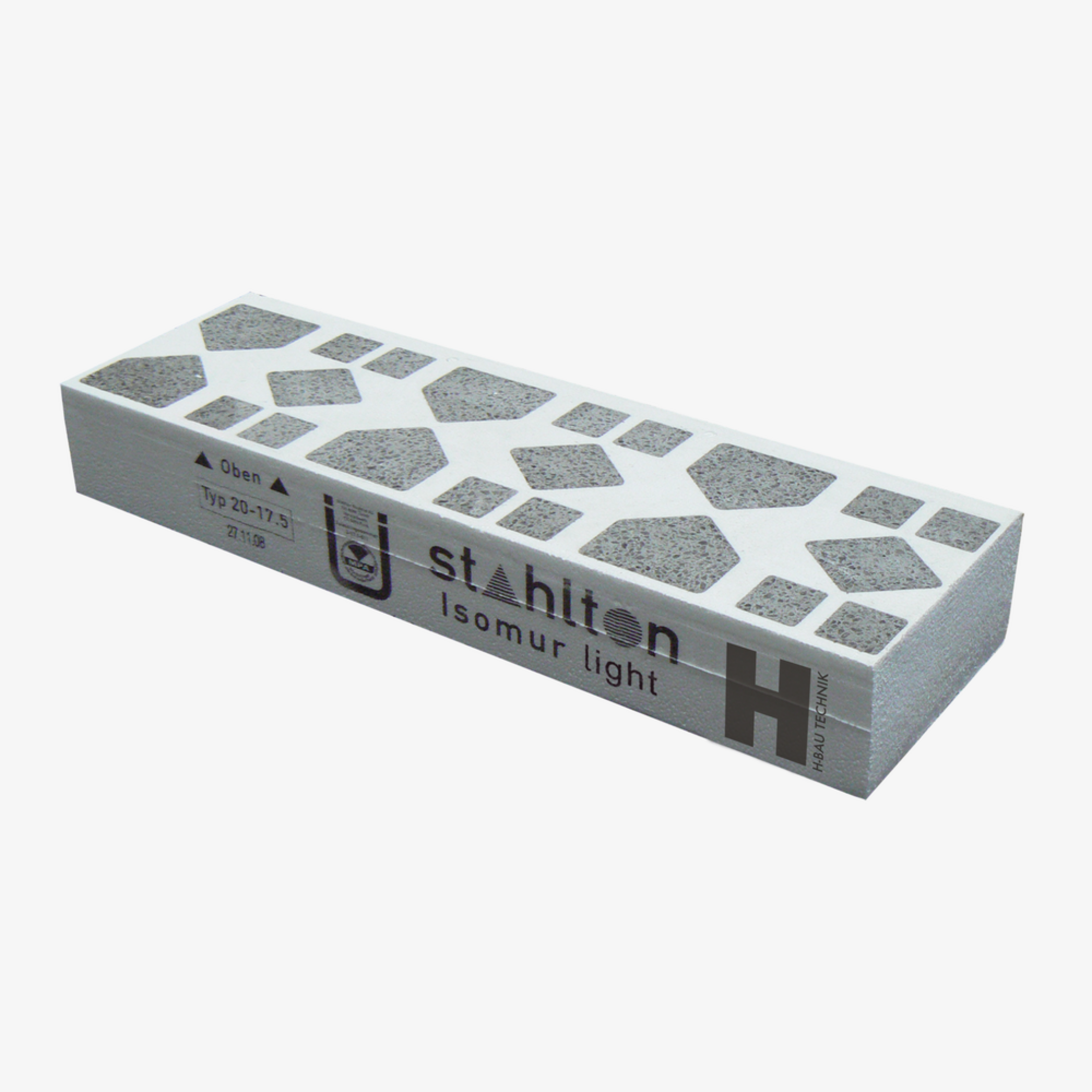

The load-bearing thermal insulation element ISOMUR® light is suitable for the lower and/or upper area of the masonry. It provides efficient thermal insulation and has a high load-bearing capacity in accordance with ETA-18/1063. The characteristic compressive strength is ≥ 12.5 N/mm². The element consists of foamed polystyrene with an integrated load-bearing structure made of high-strength lightweight concrete. It is 600 mm long and 115 to 240 mm wide.
G
Weight per storage unit
de
en
Technical Information
de
The general building authority type approval Z-17.5-1215 for masonry with ISOMUR® plus and ISOMUR® light thermal insulation elements. Valid until 19 May 2030.
PDF (207.36 KB)
DownloadDownload
de
Valid from February 1st, 2026
PDF (17.44 MB)
DownloadDownloadAnzahl:
We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.
