RAPIDOBAT® square Formwork tube for square reinforced concrete columns

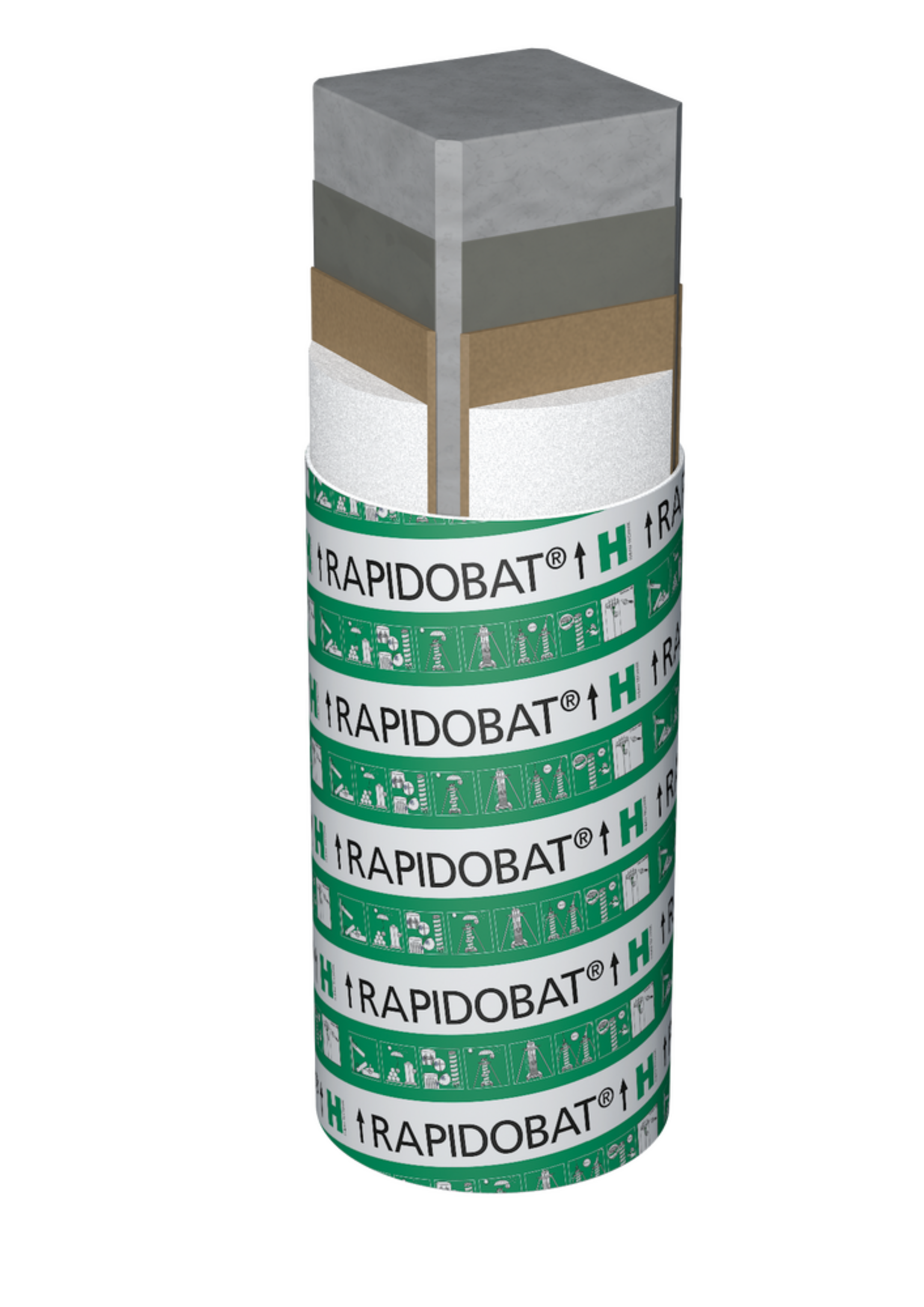

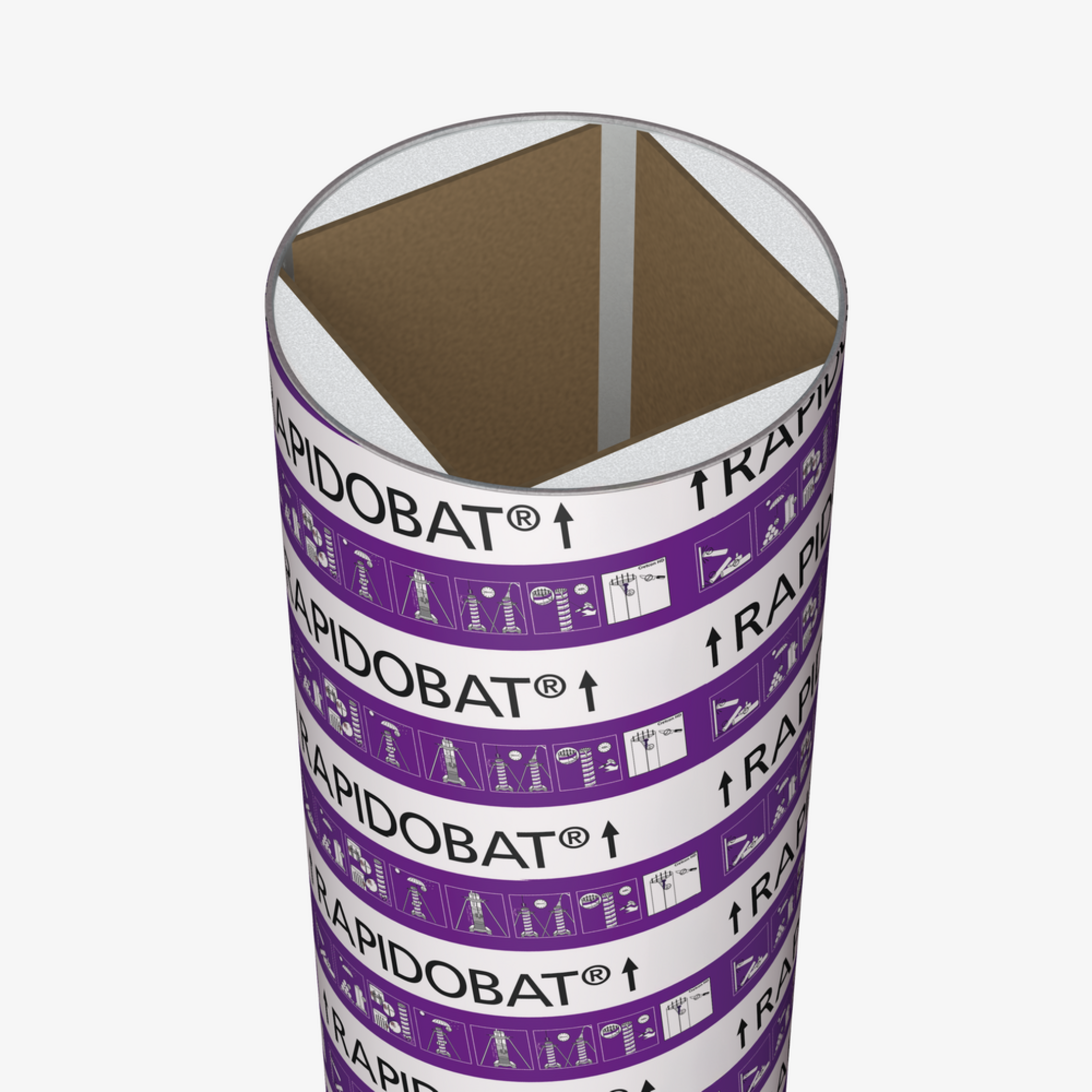

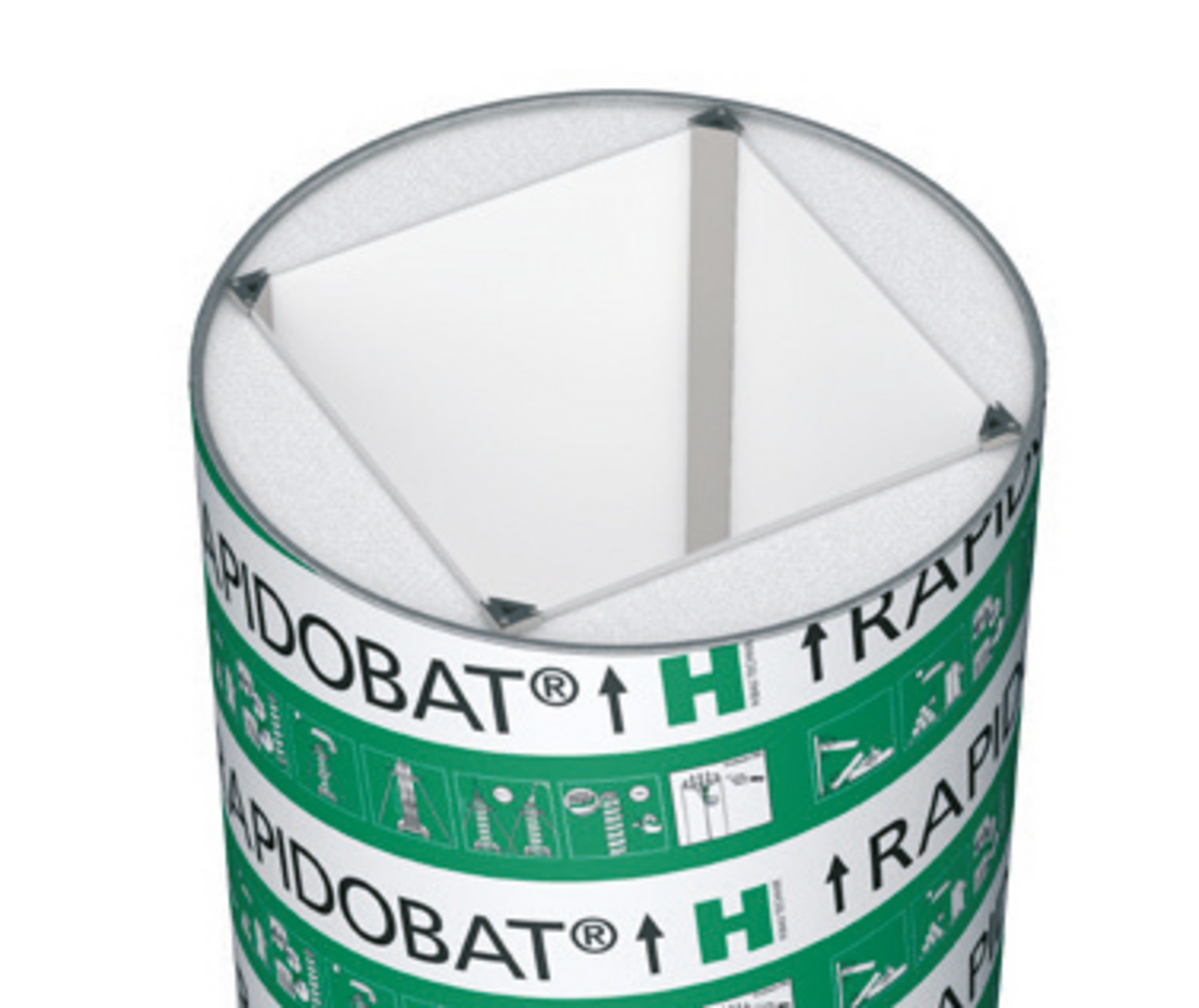

The RAPIDOBAT® square are formwork tubes made of multi-layered, dimensionally stable paper and cardboard sheets that are used to produce square reinforced concrete columns. Inner and outer membranes are impermeable to water. Concrete surfaces of particularly high quality can be produced using an insert made of specially coated MDF boards. The inserts have a standard size of 200 x 200 or 500 x 500 mm. The formwork tubes have an integrated ripcord for easy stripping of the concrete column and are available with chamfers or plastic corner strips. The stock length of the formwork tubes is max. 4000 mm. Other dimensions are also available on request.

data sheet

Tender text

You can find the appropriate tender text for this product on these portals:

Approvals and Certificates

Approvals and Certificates

  • German Sustainable Building Council (DGNB) product declaration (NBV09)
  • German Sustainable Building Council (DGNB) product declaration (NBV12)

Products

Products Type A Internal dimension A B Internal dimension B W Weight per storage unit bookmark
310400001781RA4 200 200-m200 mm200 mm272 mm6,900 kg
310400001789RA4 240 240-m240 mm240 mm324 mm7,300 kg
310400001798RA4 250 250-m250 mm250 mm340 mm7,500 kg
310400001804RA4 300 300-m300 mm300 mm409 mm9,500 kg
310400001810RA4 350 350-m350 mm350 mm513 mm14,100 kg
310400001814RA4 400 400-m400 mm400 mm573 mm17,200 kg
310400001817RA4 450 450-m450 mm450 mm665 mm21,500 kg
310400001818RA4 500 500-m500 mm500 mm715 mm26,800 kg
