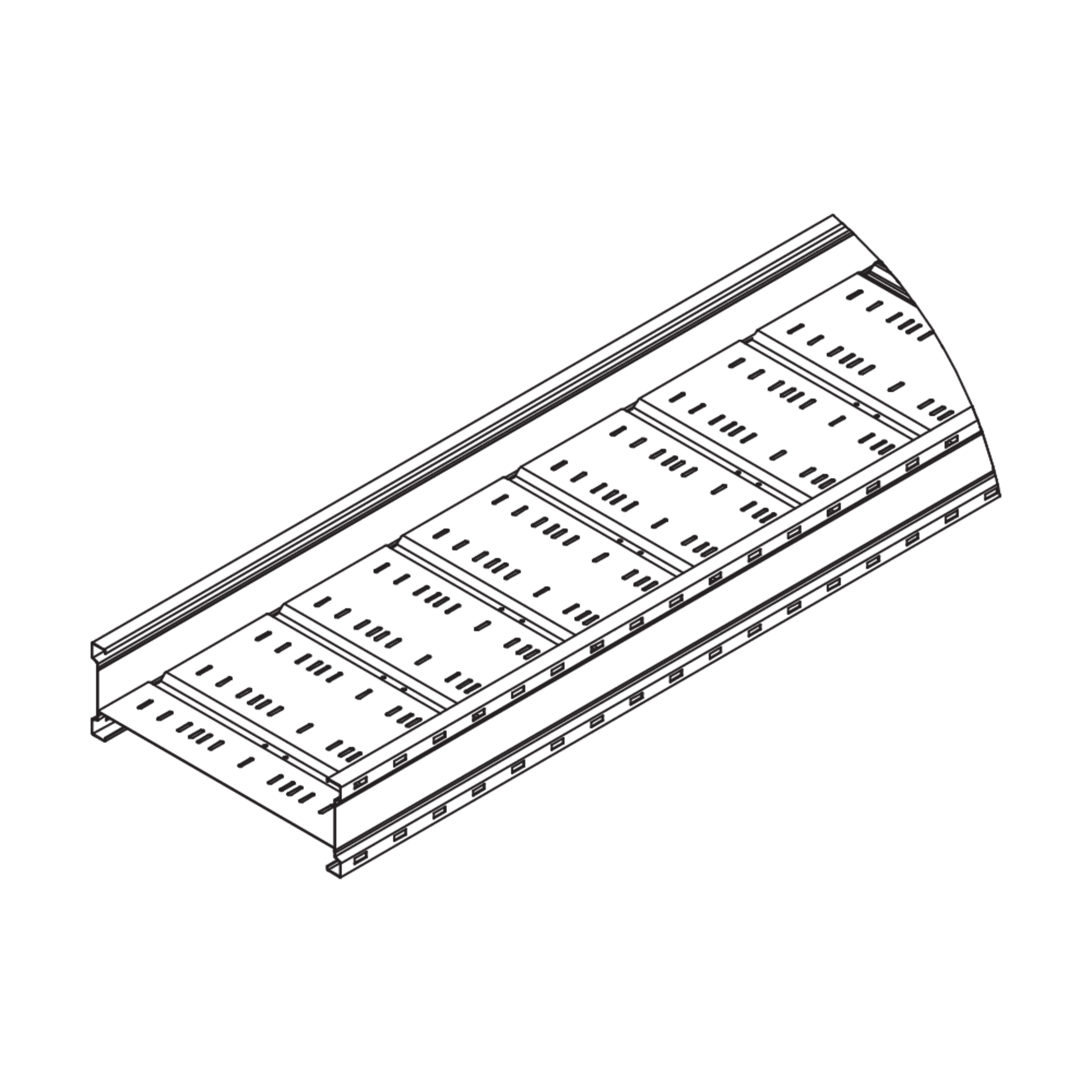

WLR 200

Wide-span cable tray, height = 200 mm

The wide-span cable tray WLR 200 have rails 202 mm high and are available in widths of 232 to 632 mm. They are available in a standard length of 6000 mm. The wide-span spar supports are to be used for fastening to the substructure. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Betreten verboten
Get in touch Download datasheet

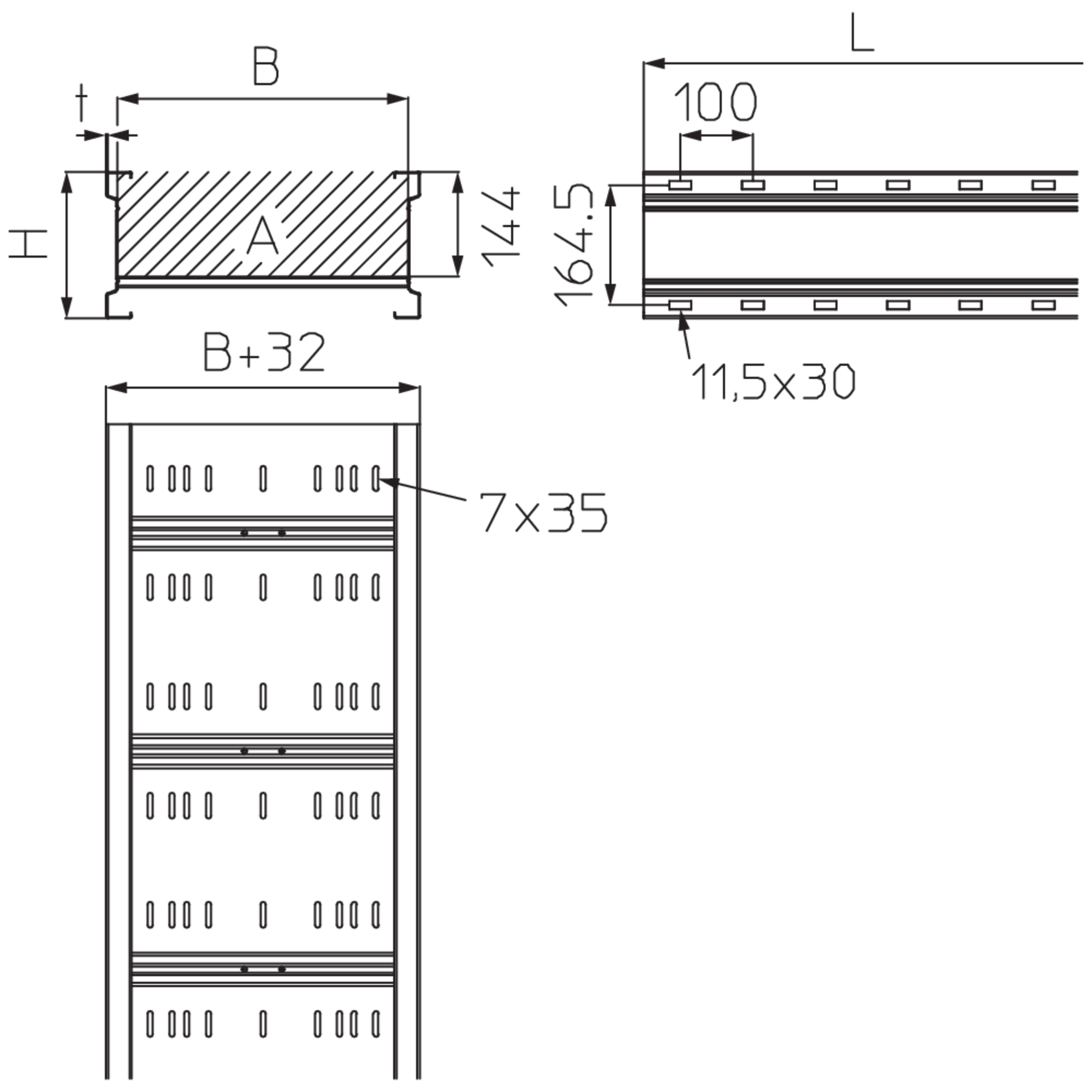

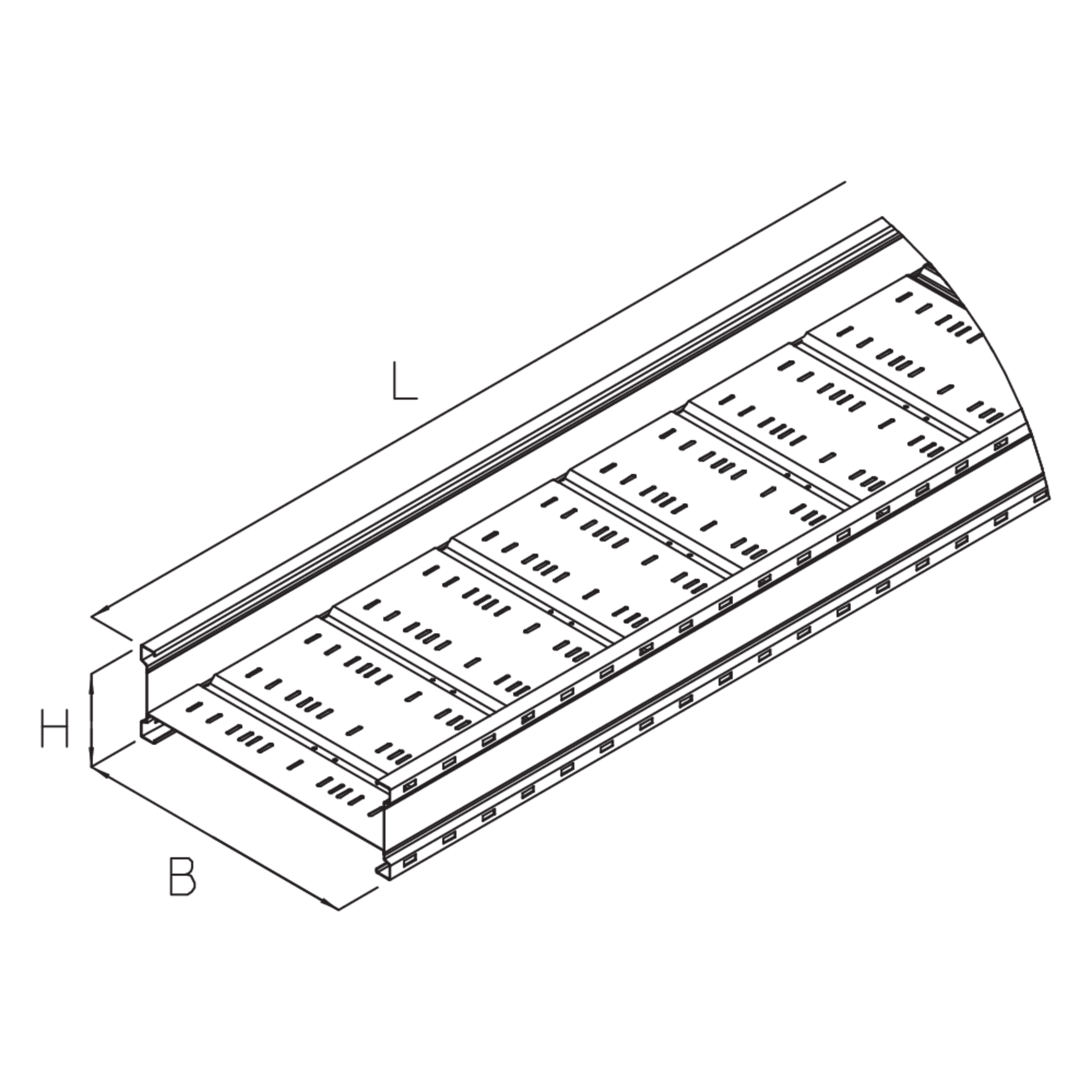

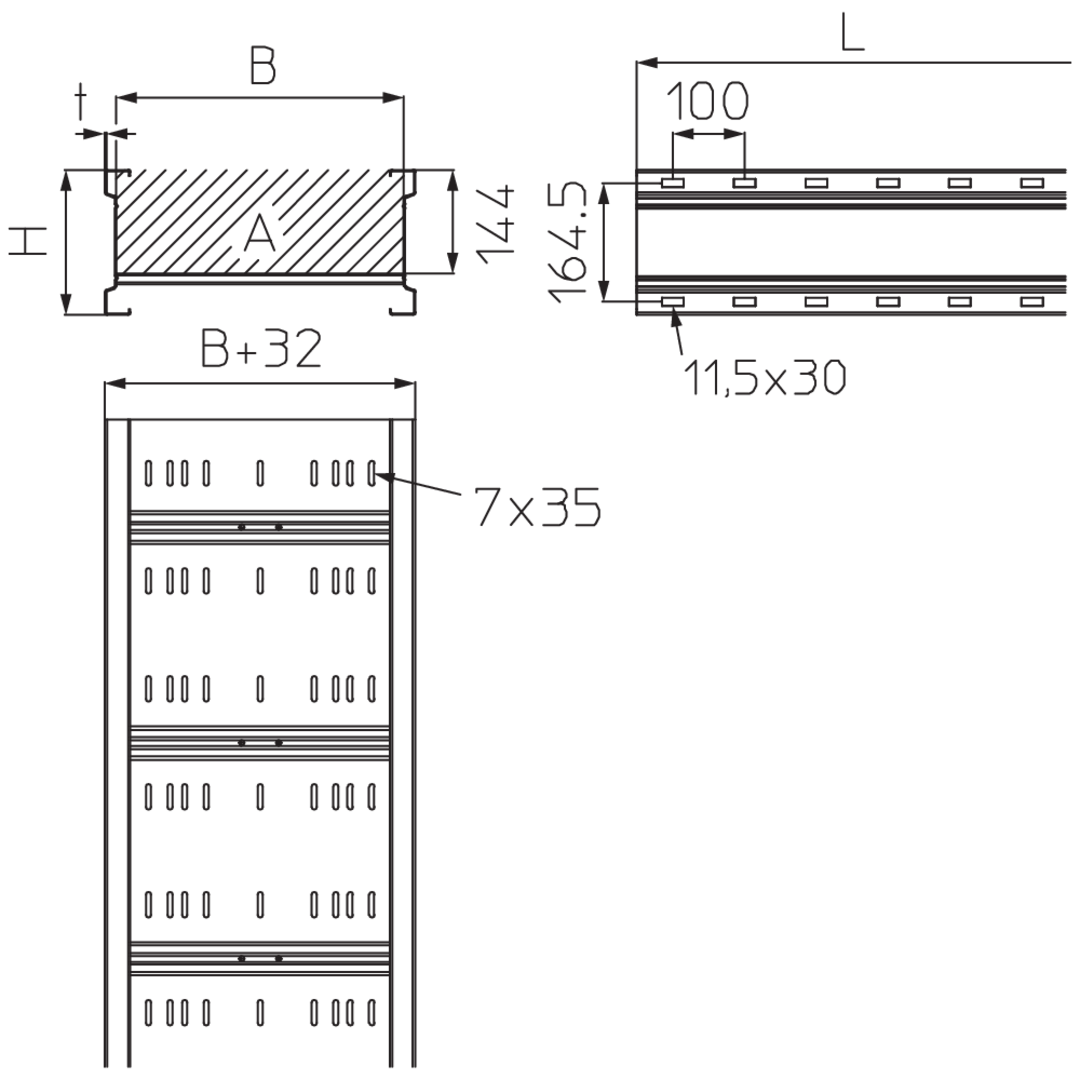

Variants

Stahl, band-/sendzimirverzinkt

Article

H

Höhe

B

Breite

L

Länge

t

Materialstärke

QSK

Streckenlast Steuerkabel

A

Querschnittsfläche

G

Gewicht je Lagermengeneinheit
  • WLR 200-20S
    Weitspannkabelrinne
    202 mm
    200 mm
    6000 mm
    2.00 mm
    0.43 kN/m
    284 cm2
    64.730 kg
    More information
  • WLR 200-30S
    Weitspannkabelrinne
    202 mm
    300 mm
    6000 mm
    2.00 mm
    0.64 kN/m
    428 cm2
    70.420 kg
    More information
  • WLR 200-40S
    Weitspannkabelrinne
    202 mm
    400 mm
    6000 mm
    2.00 mm
    0.86 kN/m
    572 cm2
    76.290 kg
    More information
  • WLR 200-50S
    Weitspannkabelrinne
    202 mm
    500 mm
    6000 mm
    2.00 mm
    1.07 kN/m
    716 cm2
    82.150 kg
    More information
  • WLR 200-60S
    Weitspannkabelrinne
    202 mm
    600 mm
    6000 mm
    2.00 mm
    1.29 kN/m
    860 cm2
    88.020 kg
    More information

Stahl, stück-/tauchfeuerverzinkt

Article

H

Höhe

B

Breite

L

Länge

t

Materialstärke

QSK

Streckenlast Steuerkabel

A

Querschnittsfläche

G

Gewicht je Lagermengeneinheit
  • WLR 200-20F
    Weitspannkabelrinne
    202 mm
    200 mm
    6000 mm
    2.00 mm
    0.43 kN/m
    284 cm2
    69.310 kg
    More information
  • WLR 200-30F
    Weitspannkabelrinne
    202 mm
    300 mm
    6000 mm
    2.00 mm
    0.64 kN/m
    428 cm2
    75.390 kg
    More information
  • WLR 200-40F
    Weitspannkabelrinne
    202 mm
    400 mm
    6000 mm
    2.00 mm
    0.86 kN/m
    572 cm2
    81.670 kg
    More information
  • WLR 200-50F
    Weitspannkabelrinne
    202 mm
    500 mm
    6000 mm
    2.00 mm
    1.07 kN/m
    716 cm2
    87.950 kg
    More information
  • WLR 200-60F
    Weitspannkabelrinne
    202 mm
    600 mm
    6000 mm
    2.00 mm
    1.29 kN/m
    860 cm2
    94.230 kg
    More information

Details

  • Betreten verboten

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Accessories

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Cable Trays - Catalogue

    Katalog

    PDF, 29 MB

    de
    Download

  • Wide-Span Systems, Technical Information

    Technische Information

    PDF, 4 MB

    de en

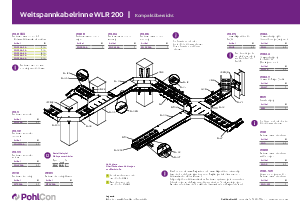

  • Wide-Span Cable Tray WLR 200

    Kompaktübersicht

    PDF, 670 KB

    de
    Download

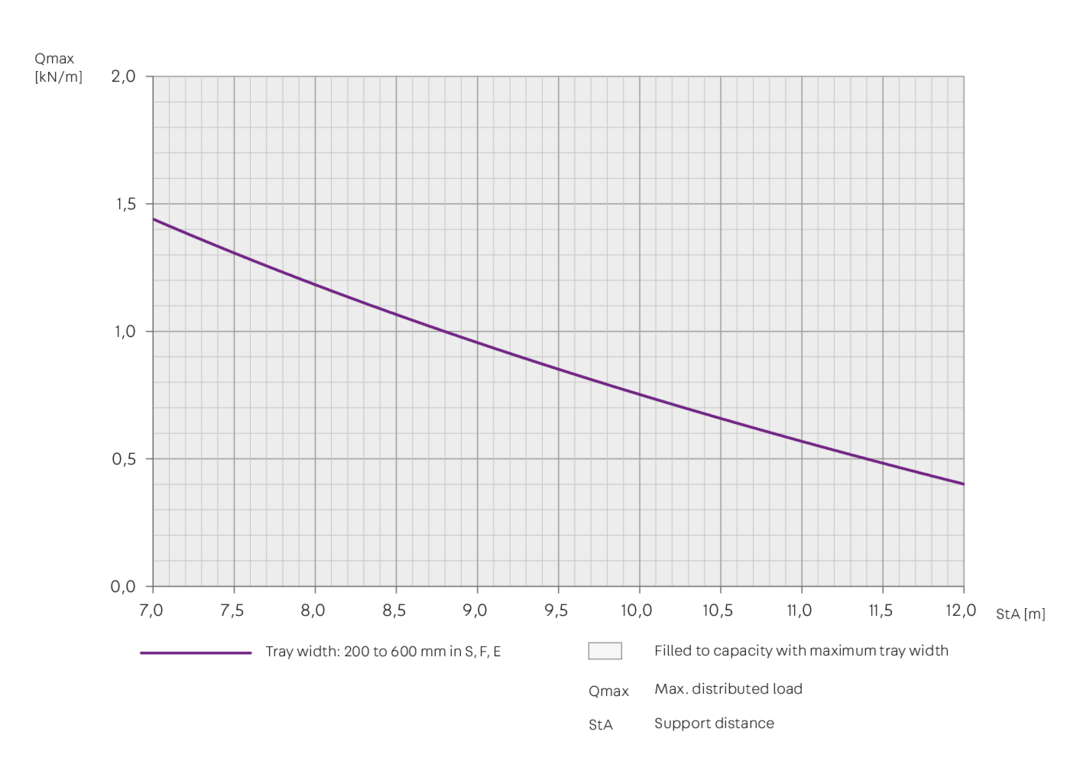

Load diagram
