WLHS

Wide-span cable ladder rail support

The wide-span side rail supports WLHS are used to attach WL and WLR 200 wide-span trays to brackets, profile rails or steel beams. Specific fixing accessories (WLKL, WLKLA or WLKLT) must be used depending on the application. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touch Download datasheet

Variants

Stahl, band-/sendzimirverzinkt

WLHS S
Holmstütze

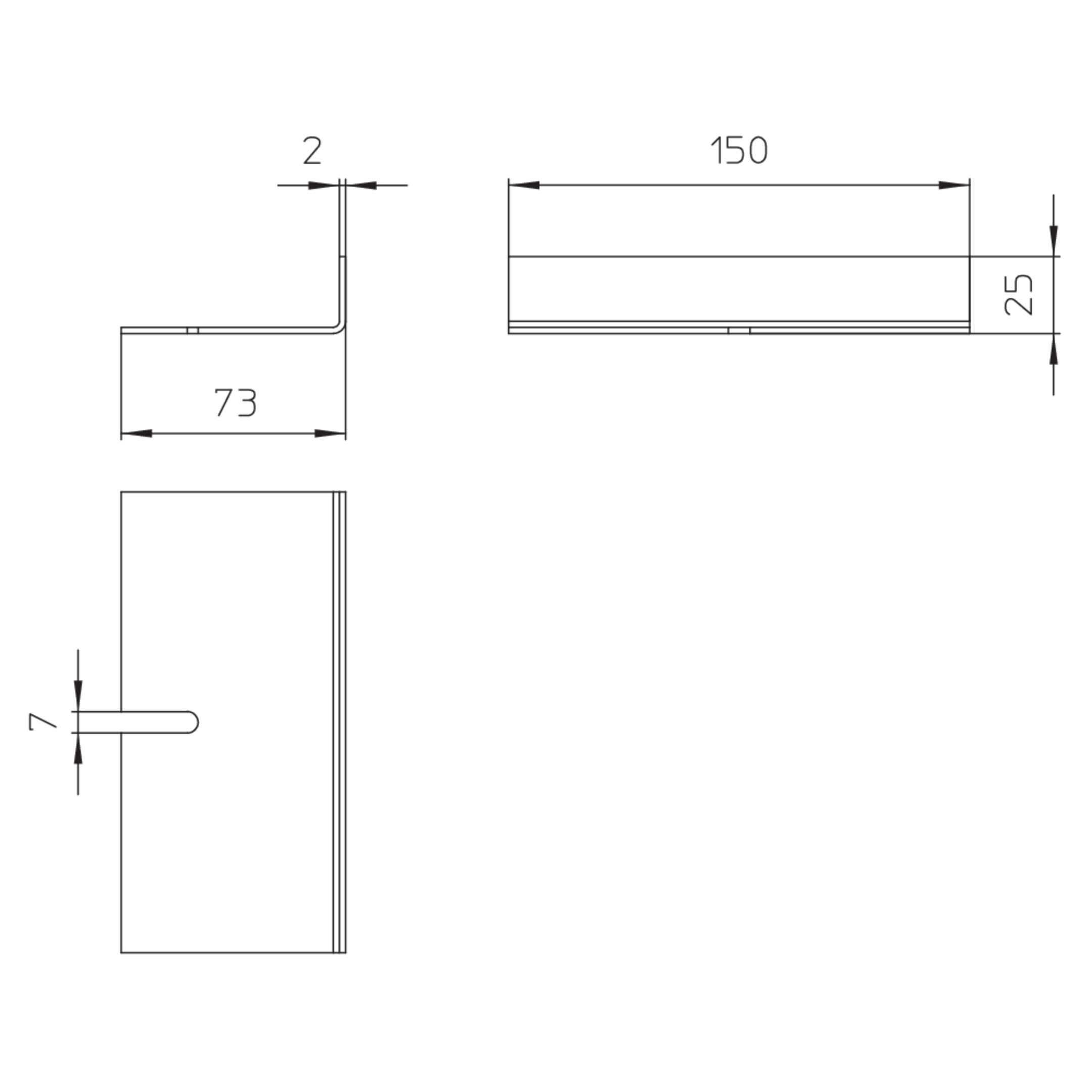

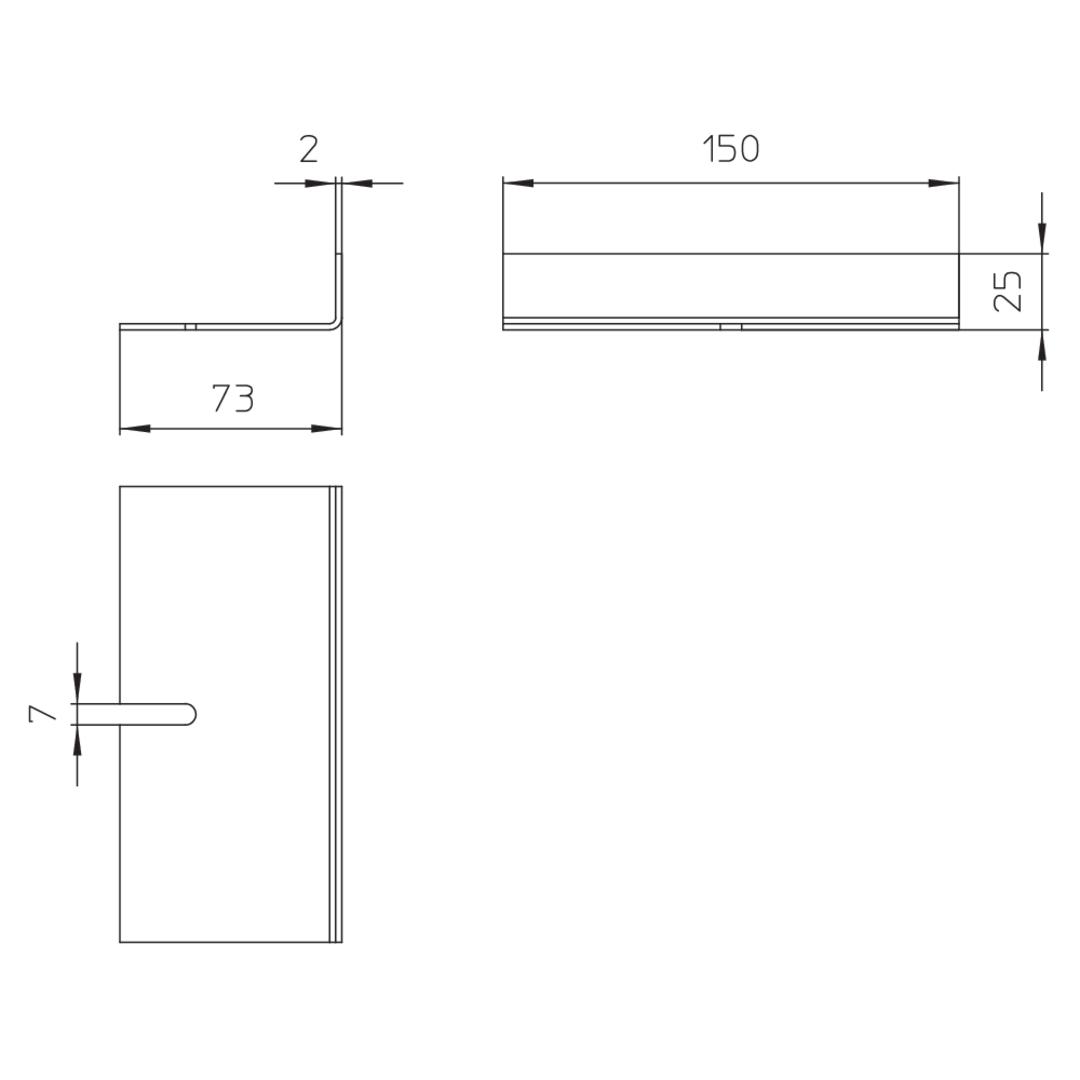

Höhe

25 mm

Breite

73 mm

Länge

150 mm

Materialstärke

2.00 mm

Gewicht je Lagermengeneinheit

0.442 kg

More information

Stahl, stück-/tauchfeuerverzinkt

WLHS F
Holmstütze

Höhe

25 mm

Breite

73 mm

Länge

150 mm

Materialstärke

2.00 mm

Gewicht je Lagermengeneinheit

0.448 kg

More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link

Heinze.de

Tender text for this product

Open Link
