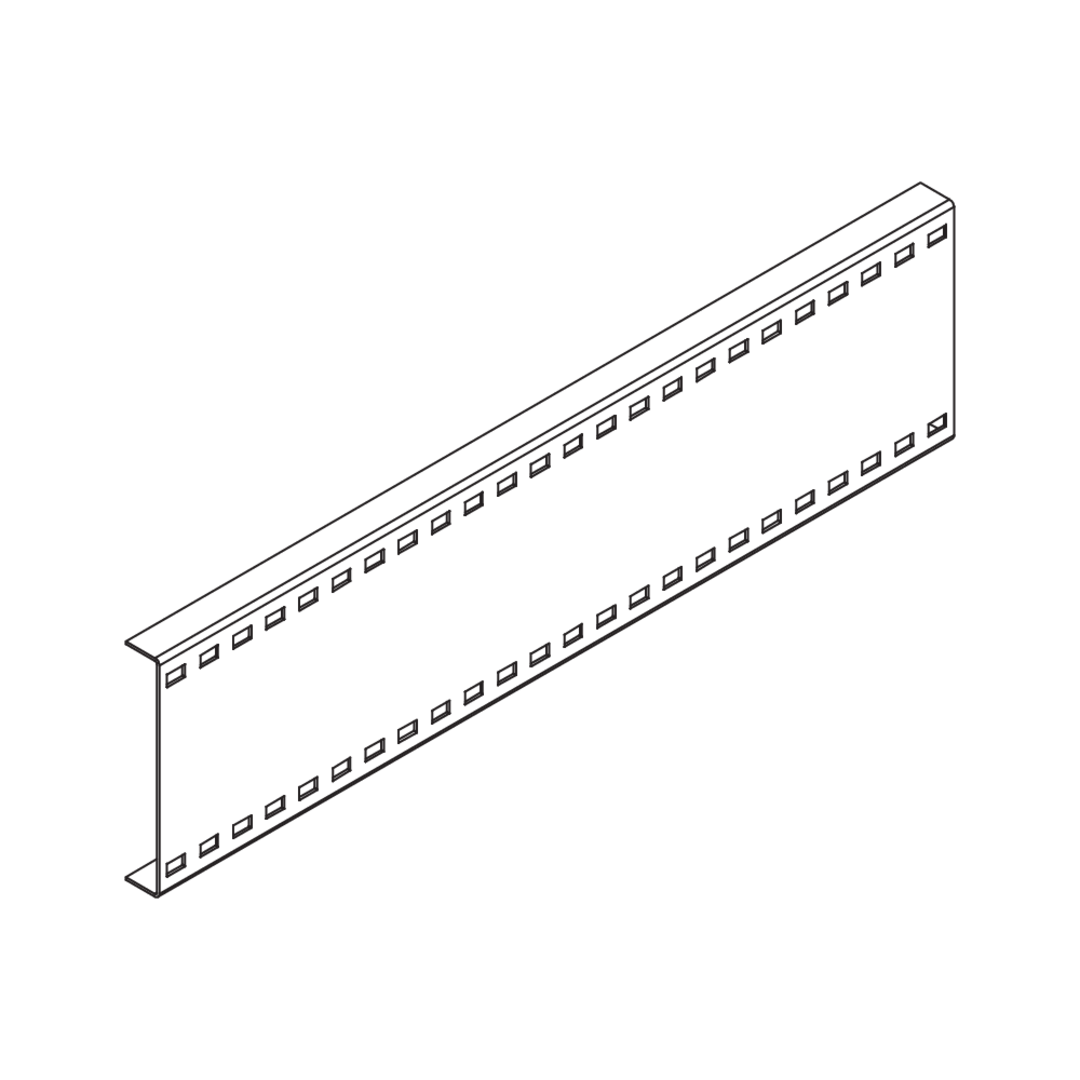

WLV 200

Wide-span cable ladder connector, height = 200 mm

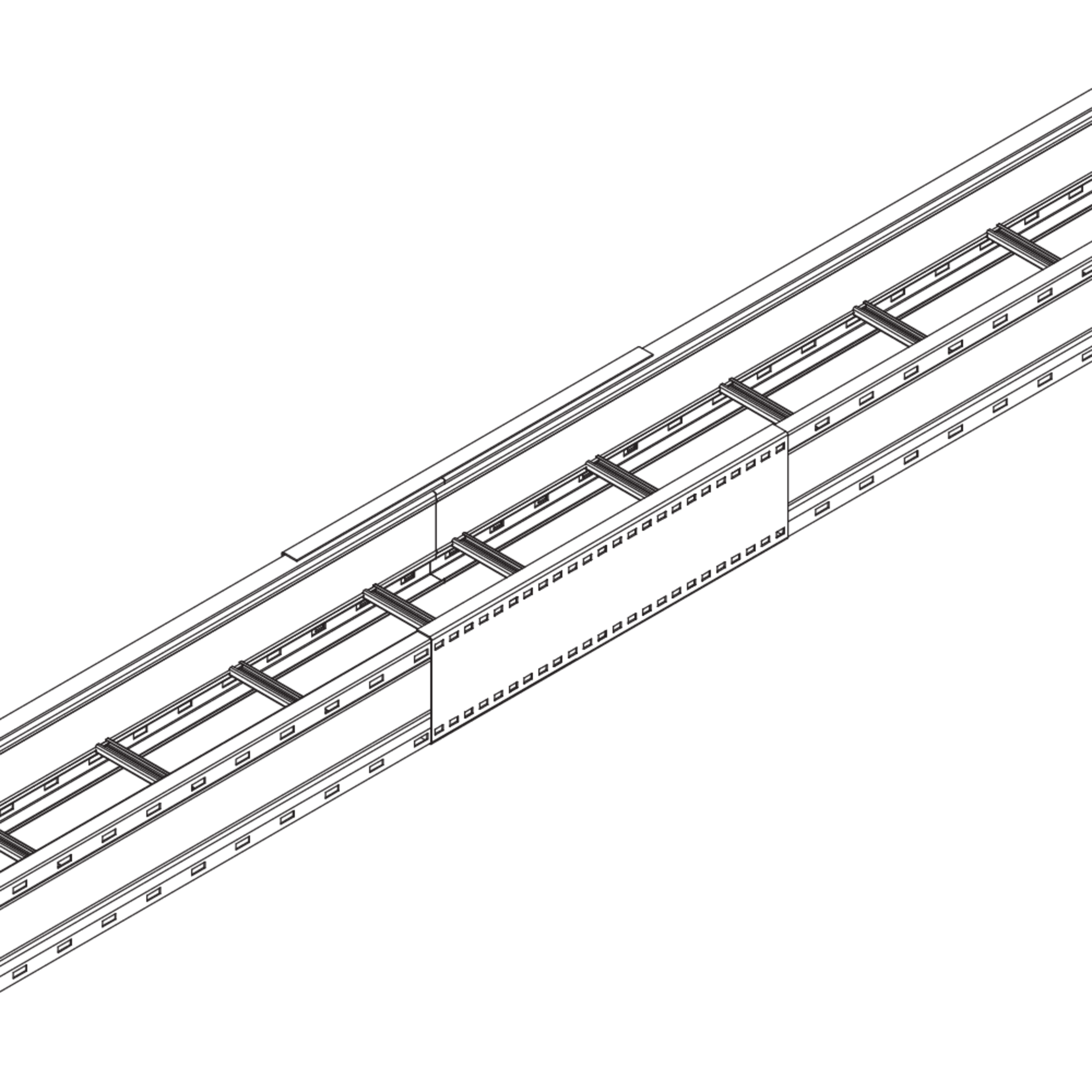

WLV 200 wide span connectors can be used to connect 200 mm wide-span cable trays together. One side of the connector is mounted as a floating bearing to allow for thermal expansion. The required screw fasteners (SEMSS/SEMB + US) must be ordered separately. The other side of the connector is formed as a fixed bearing. A minimum distance of 4 mm must be maintained between the cable trays. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

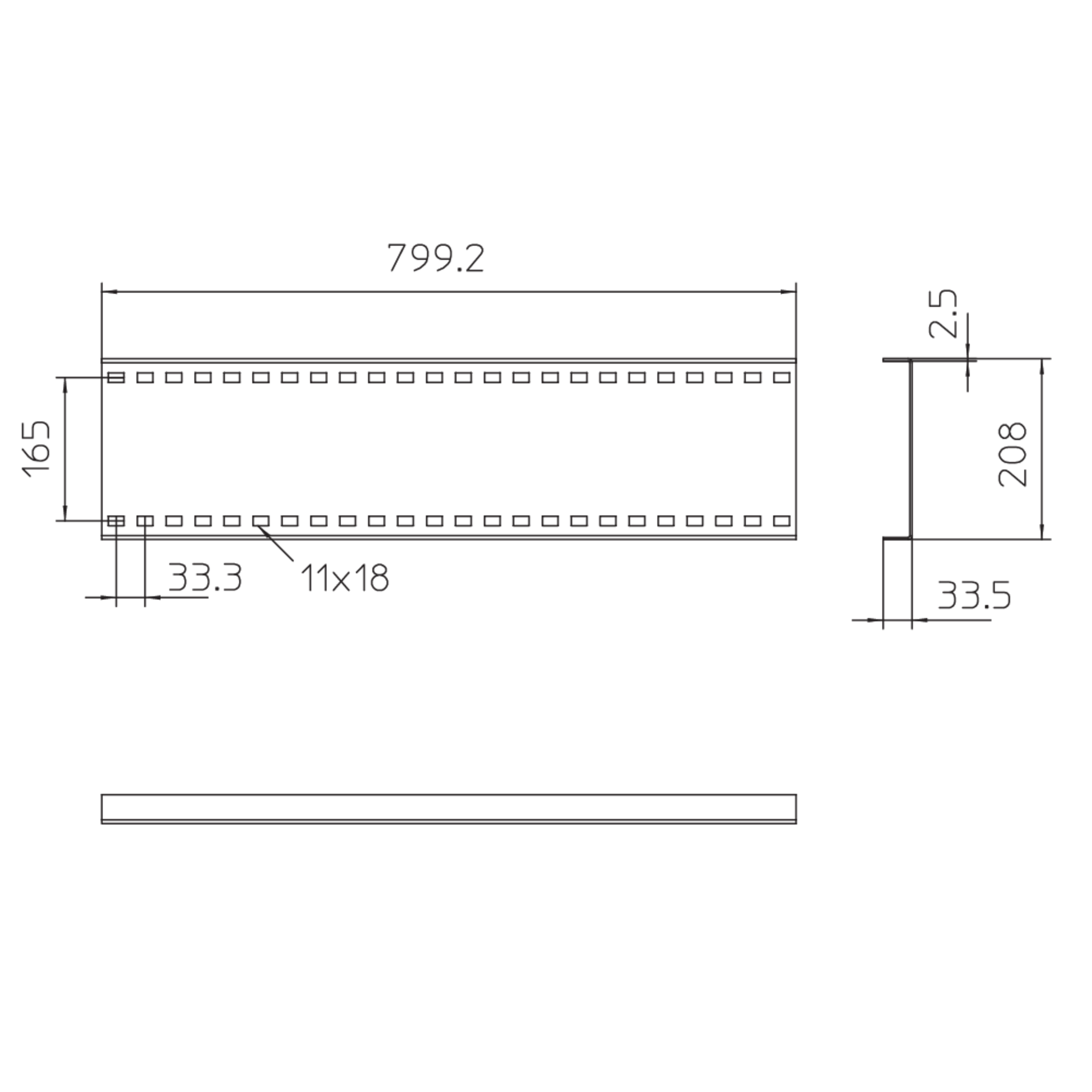

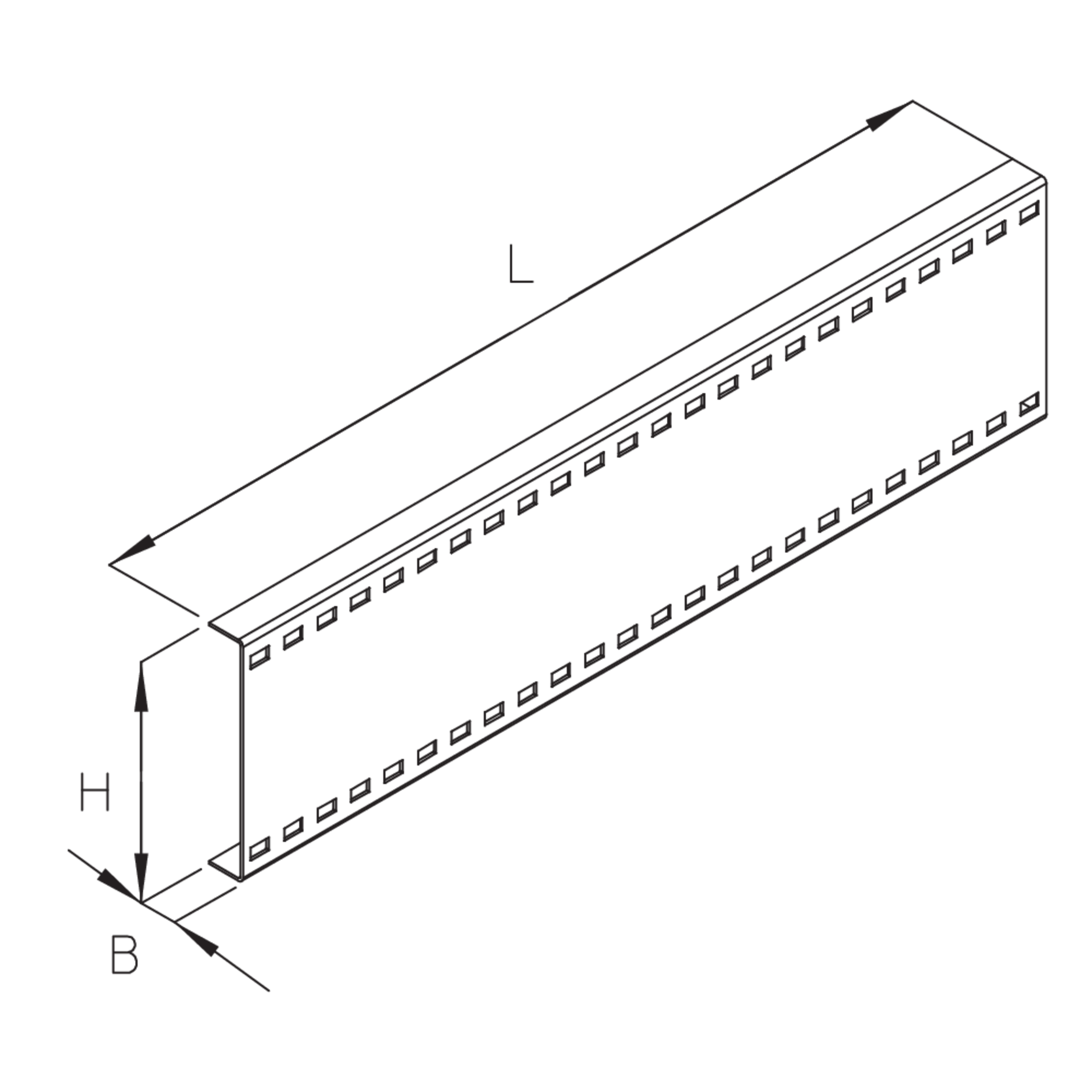

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

  • WLV 200S
    Coupler WLV 200S
    height
    208 mm
    width
    34 mm
    length
    800 mm
    material thickness
    2.50 mm
    Weight per storage unit
    4.131 kg
    Included accessories
    More information

Steel, hot-dip galvanised

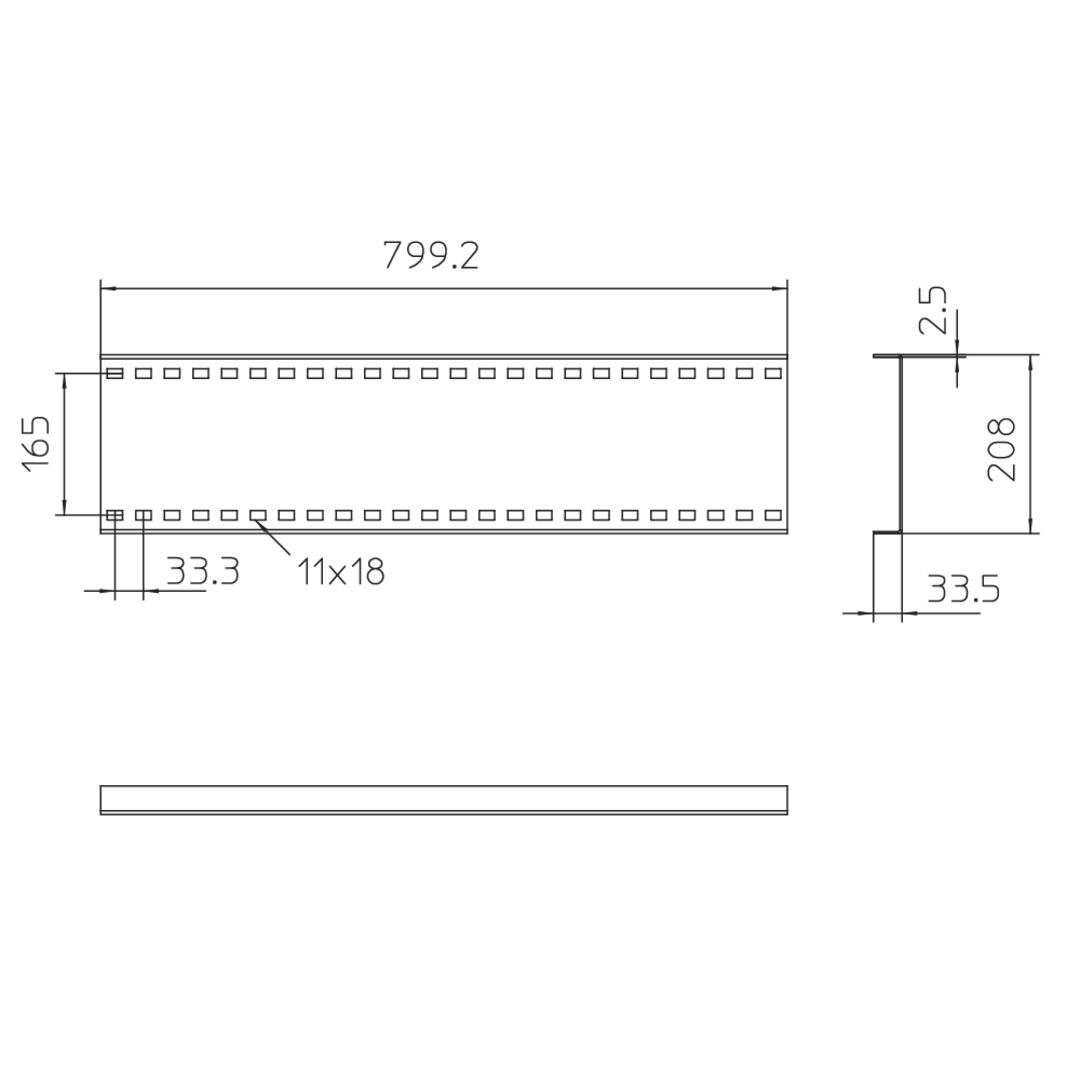

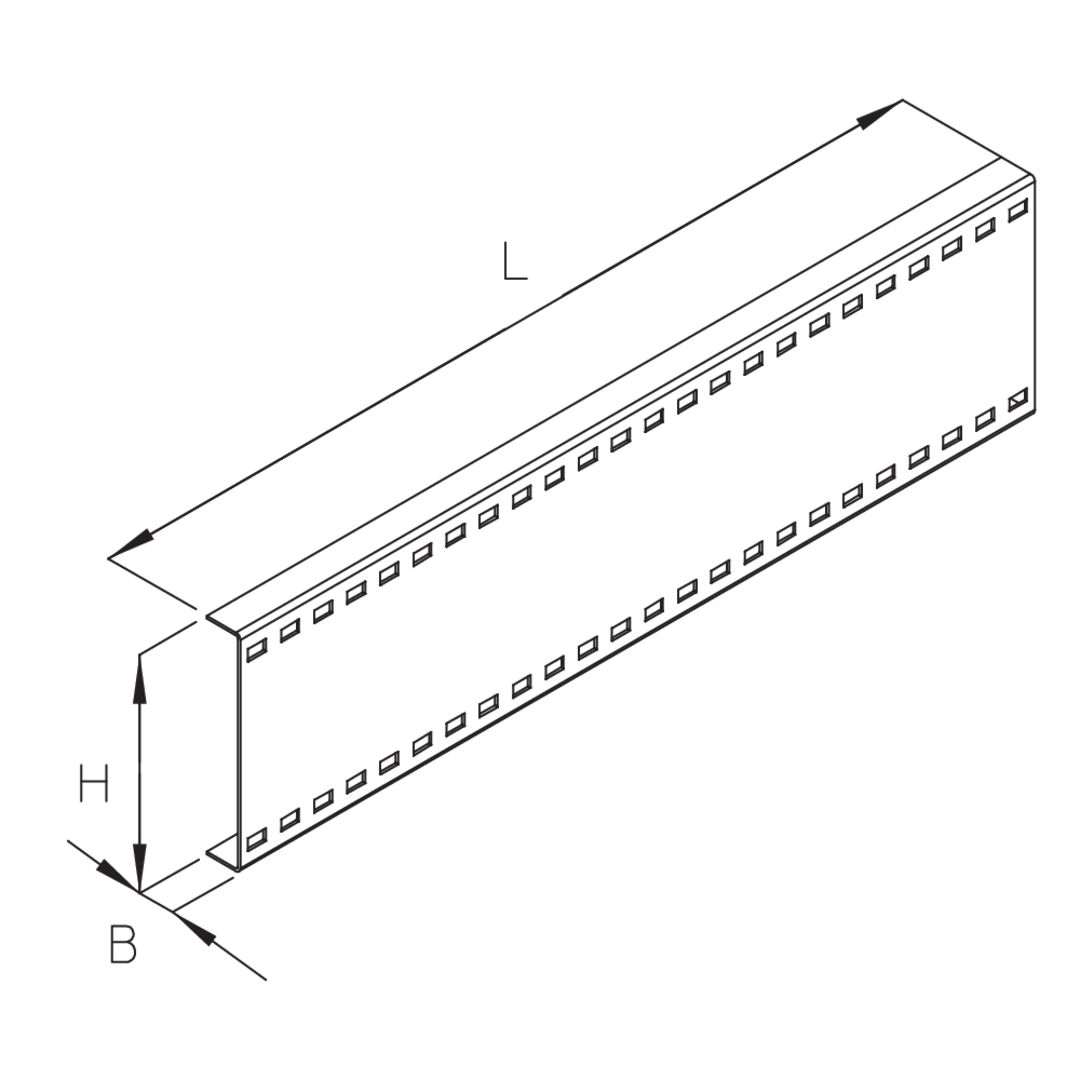

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

  • WLV 200F
    Coupler WLV 200F
    height
    208 mm
    width
    34 mm
    length
    800 mm
    material thickness
    2.50 mm
    Weight per storage unit
    4.345 kg
    Included accessories
    More information
