WLKL

Wide-span cable ladder hold-down clamp

The clamp fastening set WLKL, consisting of two brackets, round-head screws and hexagon nuts each, is an accessory part for the WLHS wide-span side rail support if it is used to secure the position of a WL or WLR 200 wide-span tray on brackets of type KWS. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

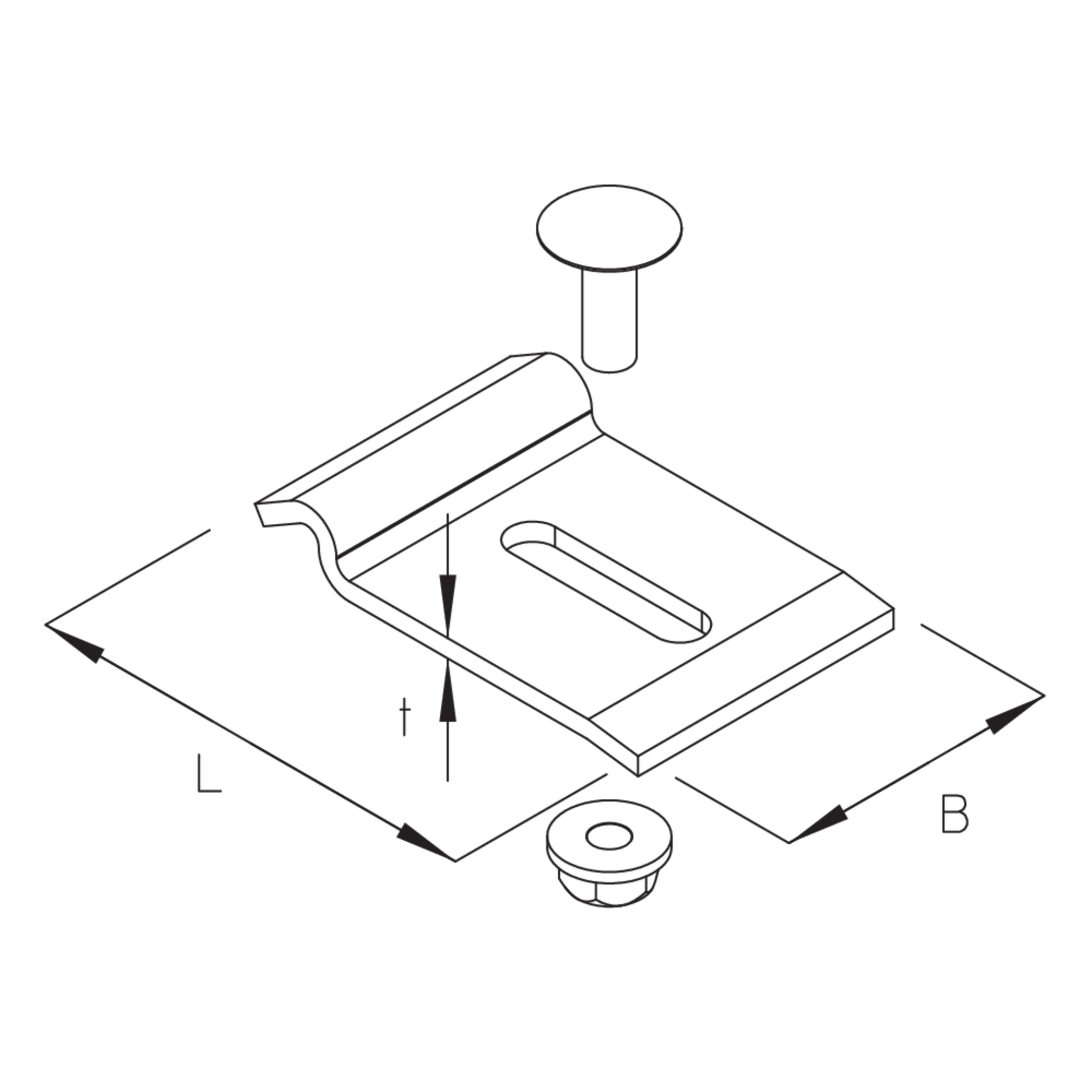

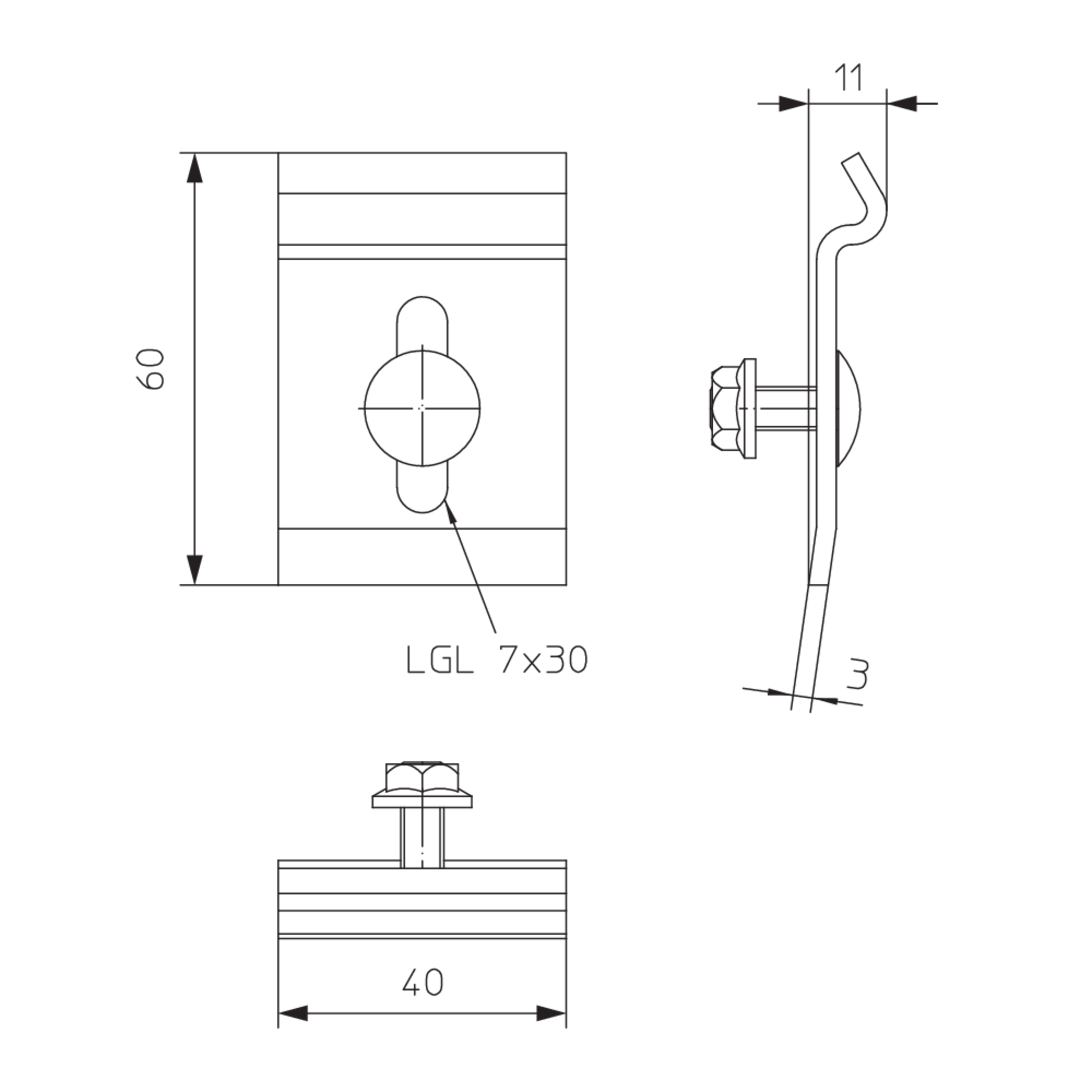

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit
  • WLKL S
    Clamp WLKL S
    height
    11 mm
    width
    40 mm
    length
    60 mm
    material thickness
    3.00 mm
    Weight per storage unit
    0.128 kg
    Included accessories
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit
  • WLKL F
    Clamp WLKL F
    height
    11 mm
    width
    40 mm
    length
    60 mm
    material thickness
    3.00 mm
    Weight per storage unit
    0.130 kg
    Included accessories
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Wide-Span Cable Ladder WPL, Installation Guide

    Montageanleitung

    PDF, 2 MB

    de
    Download

  • Wide-Span Cable Tray WPR, Installation Guide

    Montageanleitung

    PDF, 2 MB

    de
    Download

  • Wide-Span Systems, Technical Information

    Technische Information

    PDF, 4 MB

    de en

BIM- and CAD-Data

  • BIM for Wide-span Systems

    BIM for Wide-span Systems

    ZIP, 12 MB

    de
    Download
