WLRA 200

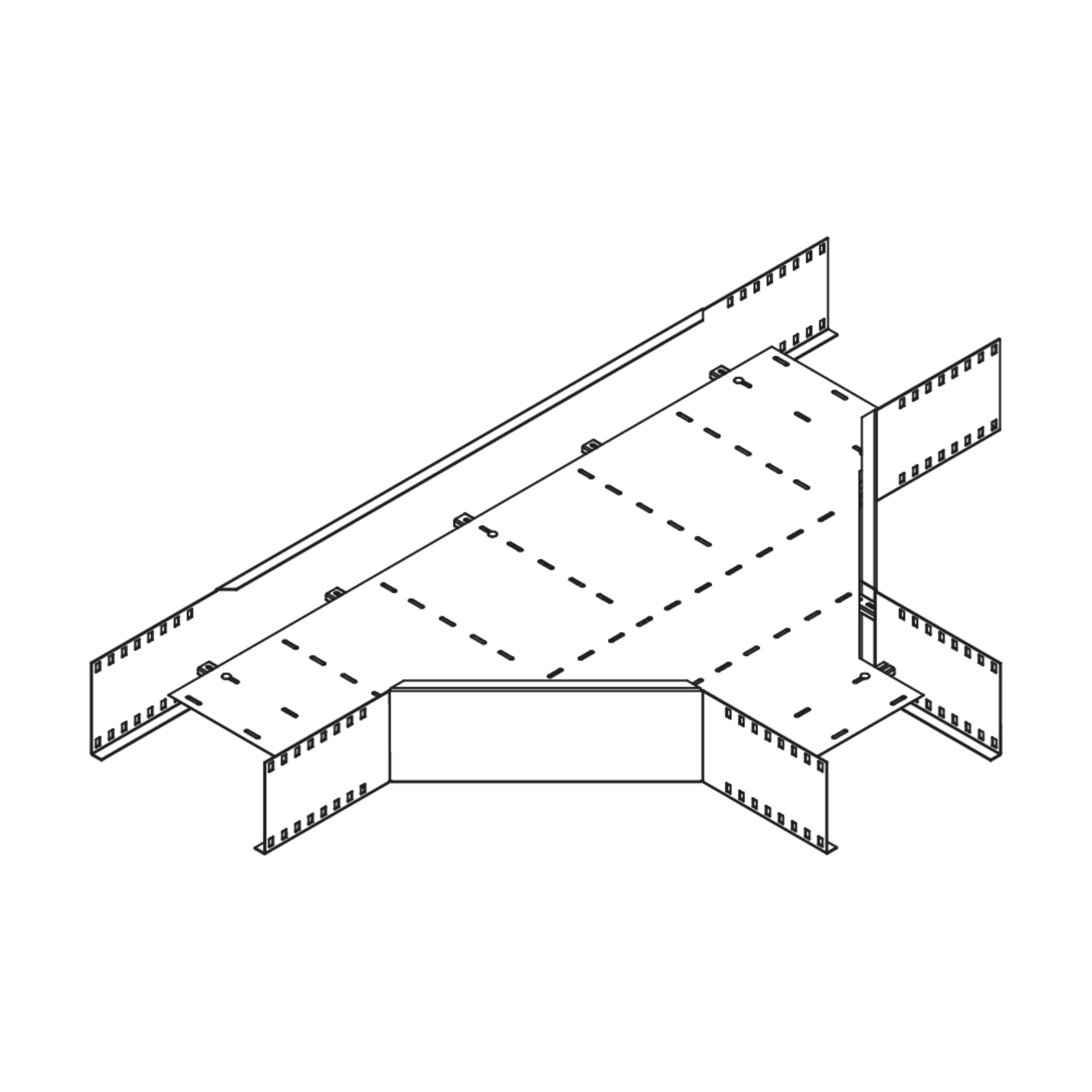

Wide-span cable tray tee, height = 200 mm

The T-shaped wide-span cable tray branch WLRA 200 with integrated side connectors allows the direction of cable routing to be changed in the form of a branch. They are suitable for WLR 200 wide-span cable trays and are from 200 to 600 mm wide. It is used between two wide-span cable trays. The connection tray can then be pushed in with a VB floor connector. It is made of hot-dip galvanised steel.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

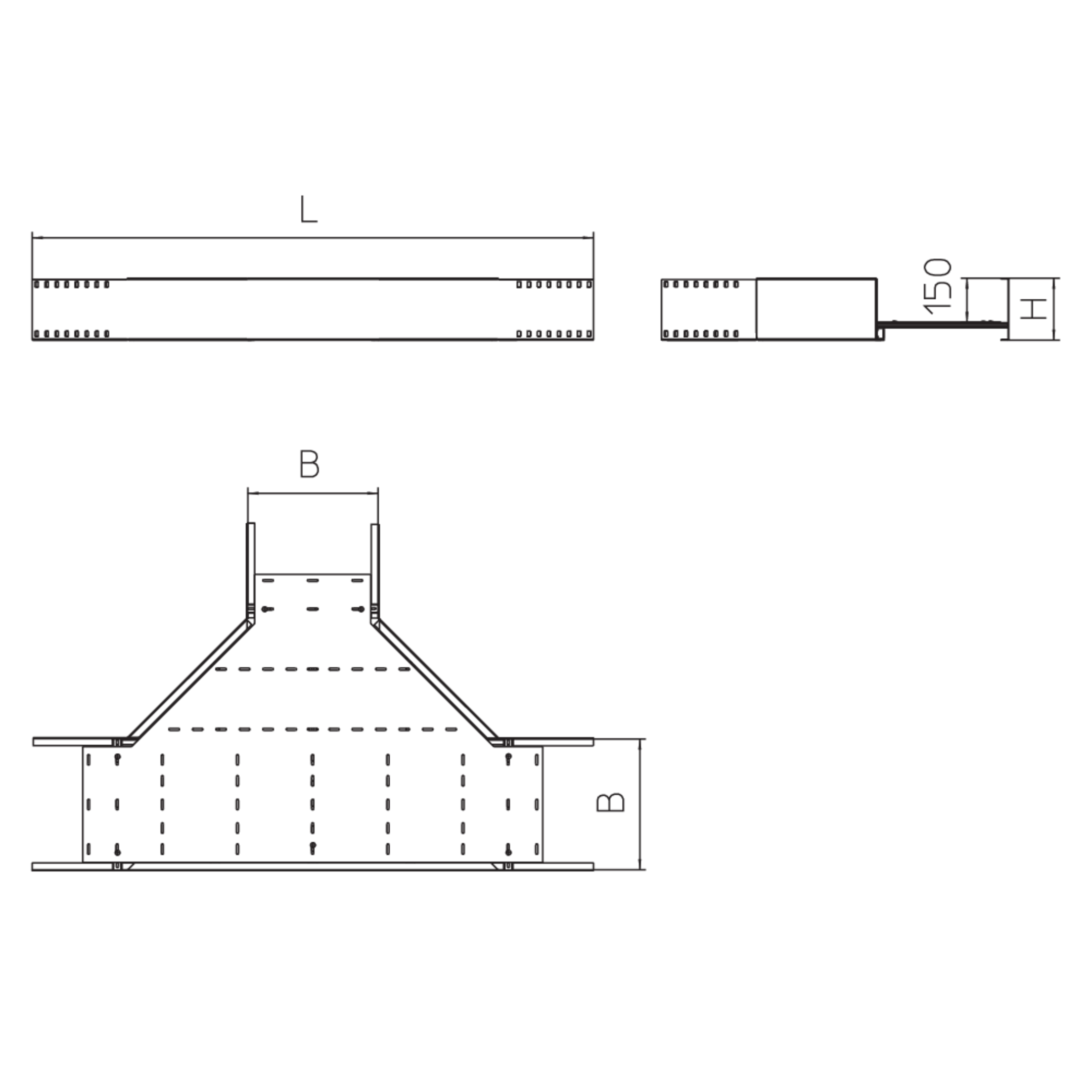

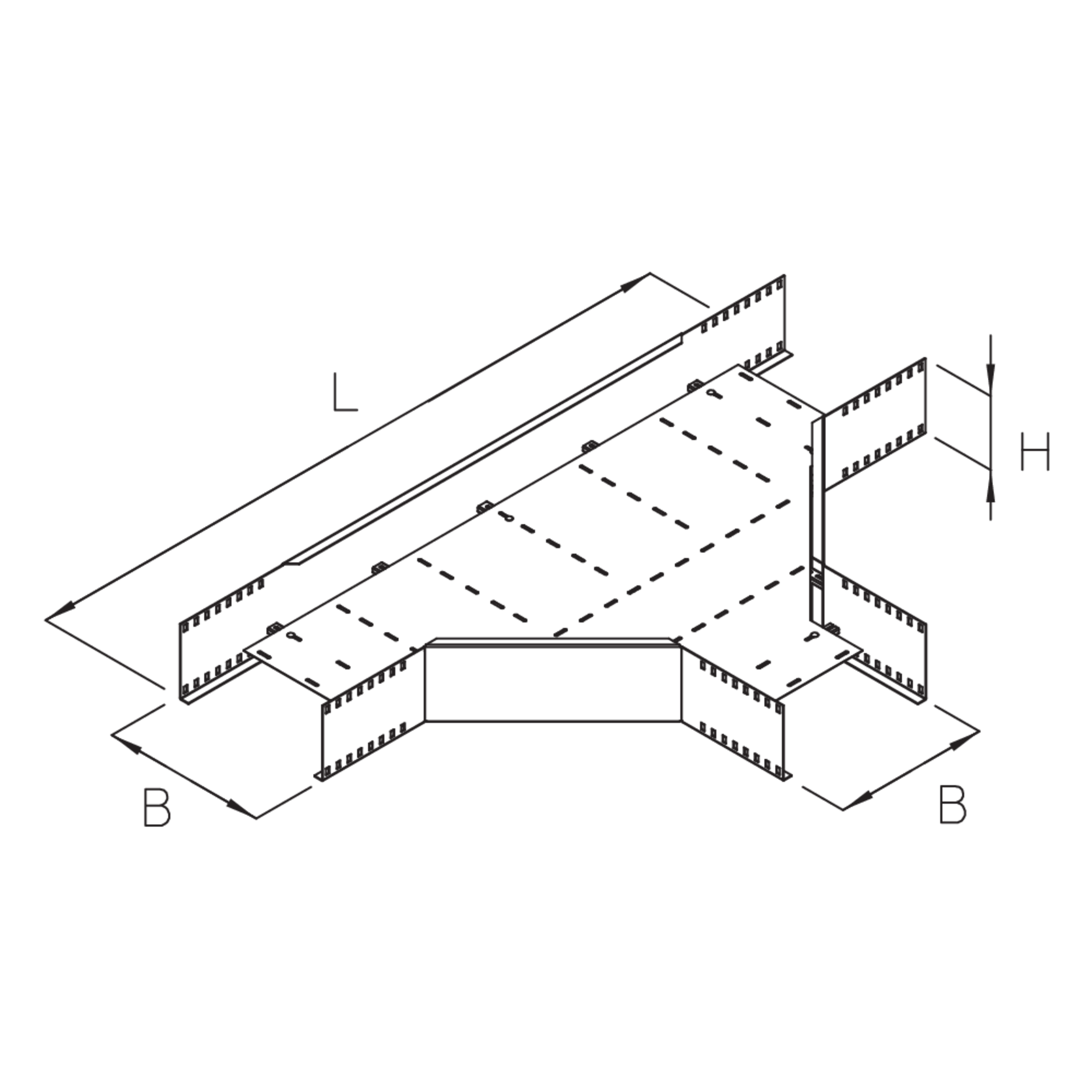

Article

H

height

B

width

L

length

G

Weight per storage unit

  • WLRA 200-20F
    Tee-branch WLA 200-20F
    height
    200 mm
    width
    200 mm
    length
    1667 mm
    Weight per storage unit
    26.666 kg
    Included accessories
    More information
  • WLRA 200-30F
    Tee-branch WLA 200-20F
    height
    200 mm
    width
    300 mm
    length
    1767 mm
    Weight per storage unit
    29.006 kg
    Included accessories
    More information
  • WLRA 200-40F
    Tee-branch WLA 200-20F
    height
    200 mm
    width
    400 mm
    length
    1867 mm
    Weight per storage unit
    31.536 kg
    Included accessories
    More information
  • WLRA 200-50F
    Tee-branch WLA 200-20F
    height
    200 mm
    width
    500 mm
    length
    1967 mm
    Weight per storage unit
    34.636 kg
    Included accessories
    More information
  • WLRA 200-60F
    Tee-branch WLA 200-20F
    height
    200 mm
    width
    600 mm
    length
    2067 mm
    Weight per storage unit
    37.416 kg
    Included accessories
    More information

Details

  • Creates horizontal changes of the cable routing direction in the form of a branch
  • Cable-friendly guide

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link
