WLKLT

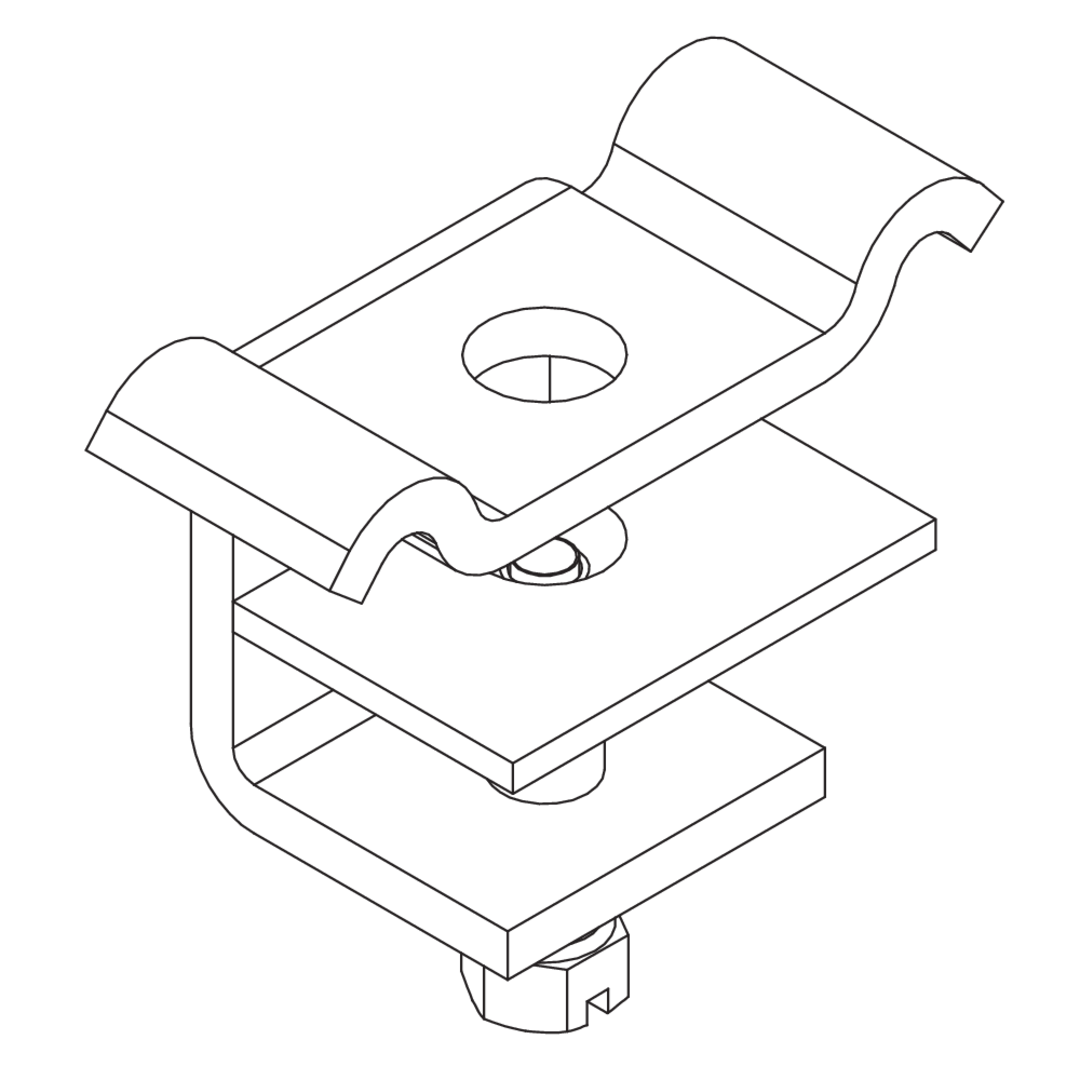

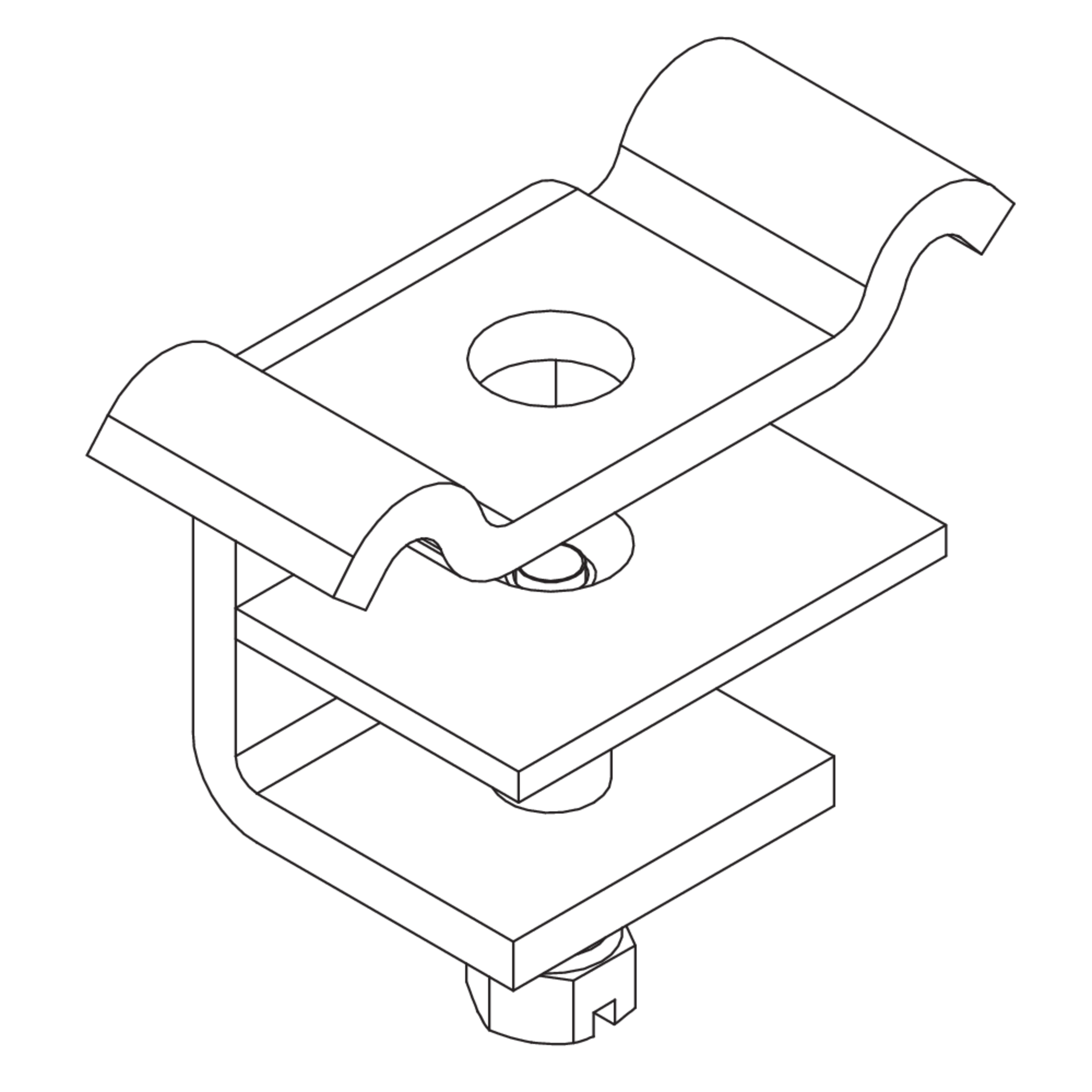

Wide-span cable ladder clamp

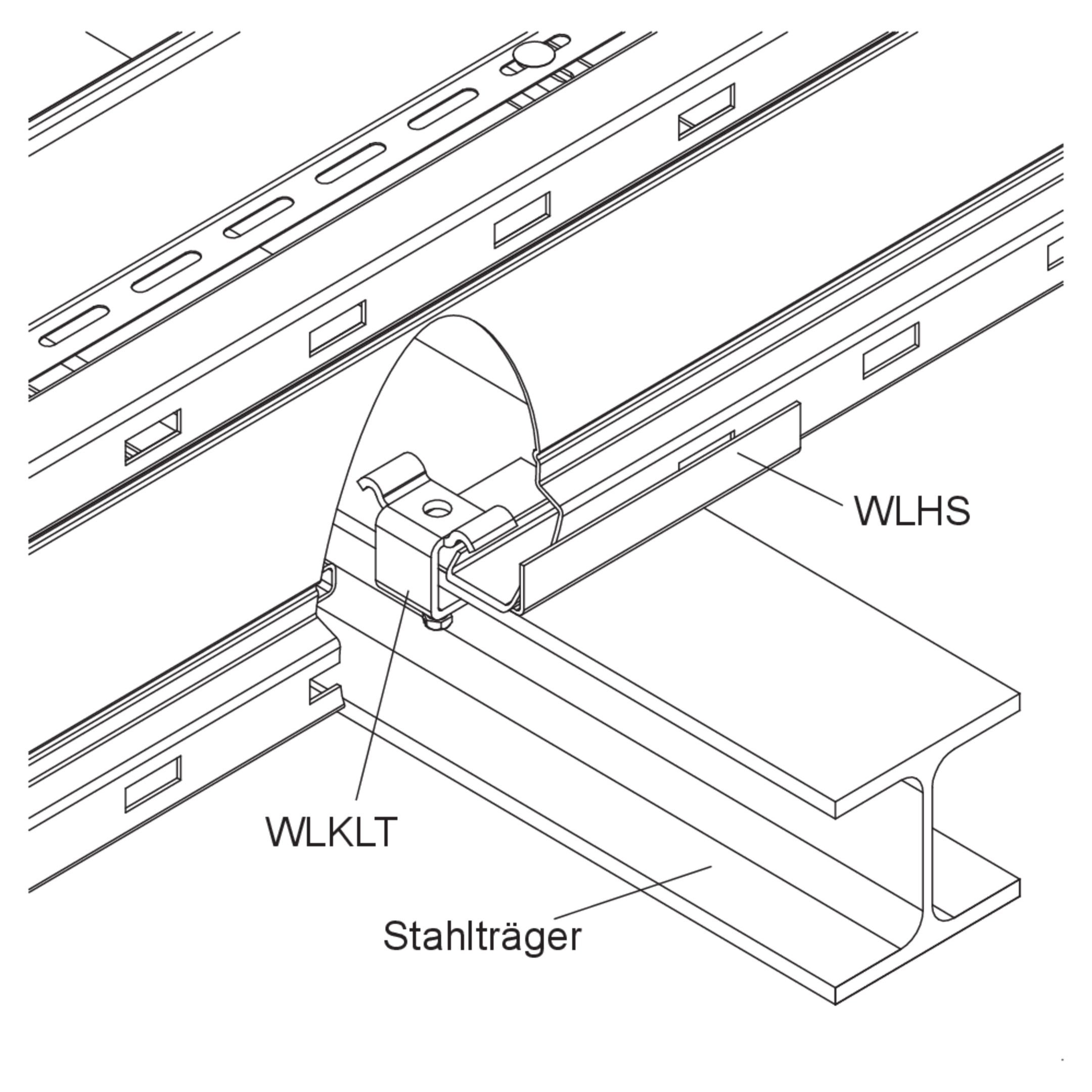

The clamping fastener WLKLT is an accessory part for the WLHS wide-span side rail support if it is used to secure the position of a WL or WLR 200 wide-span tray on steel beams. It is made of hot-dip galvanised steel.

Get in touchDownload datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

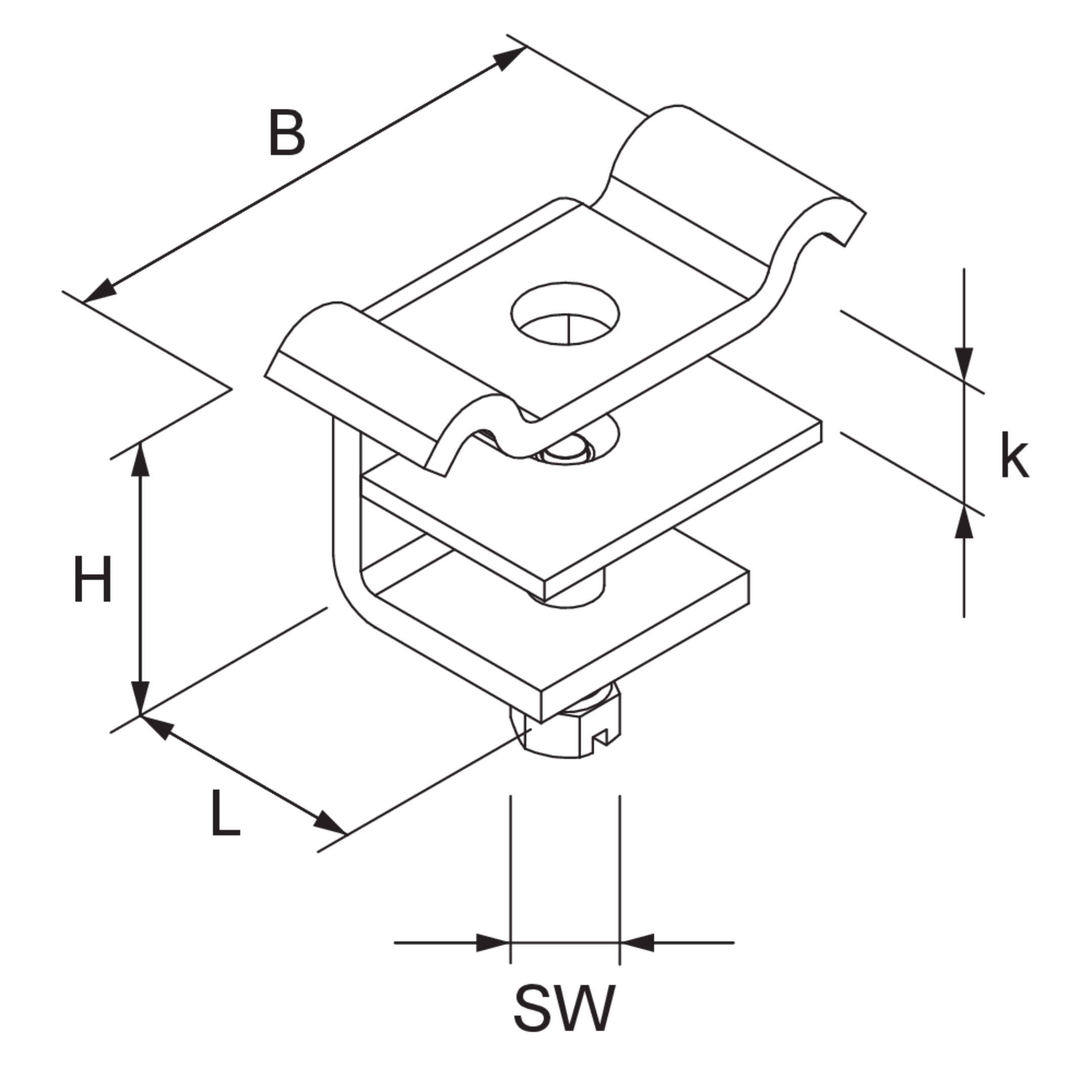

Article

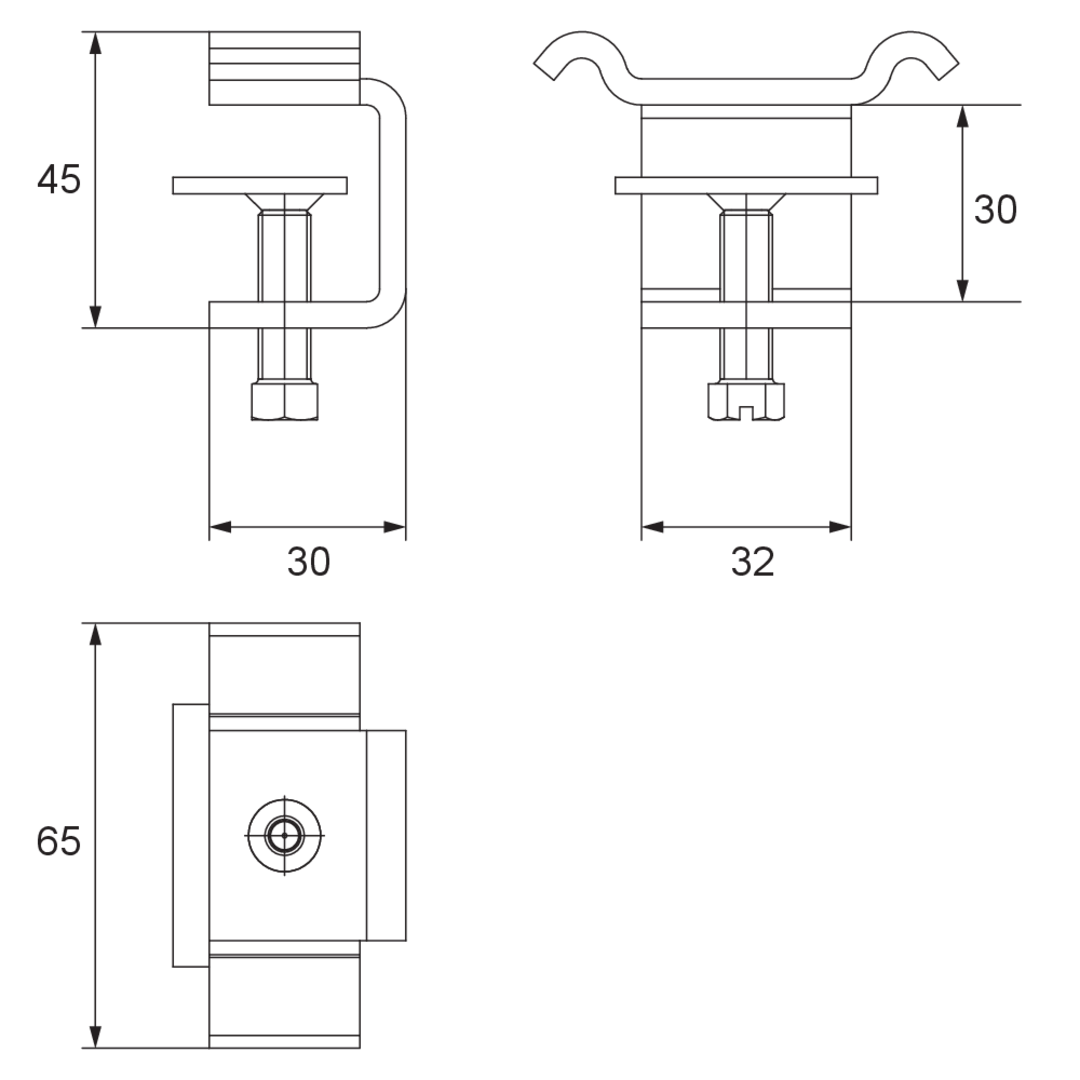

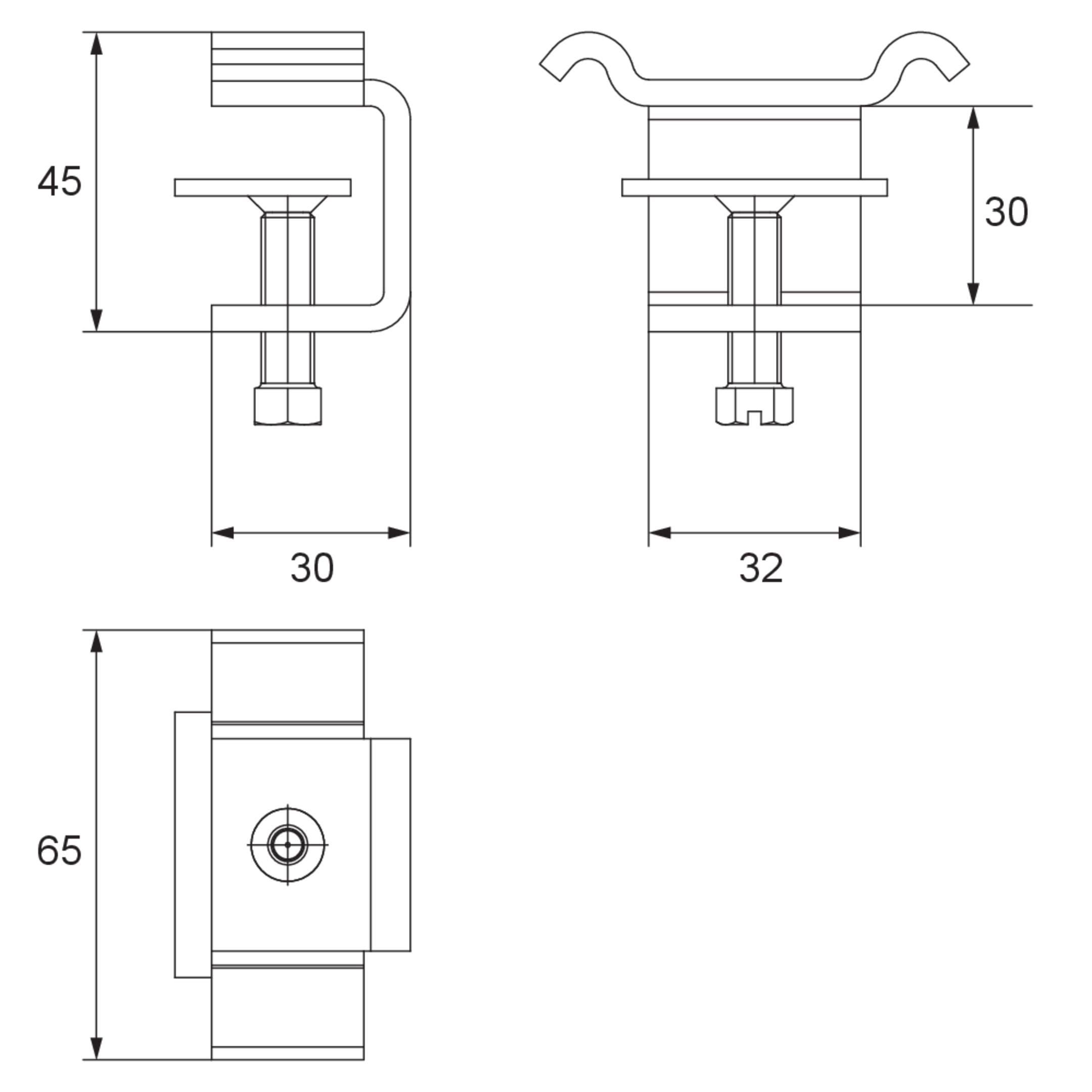

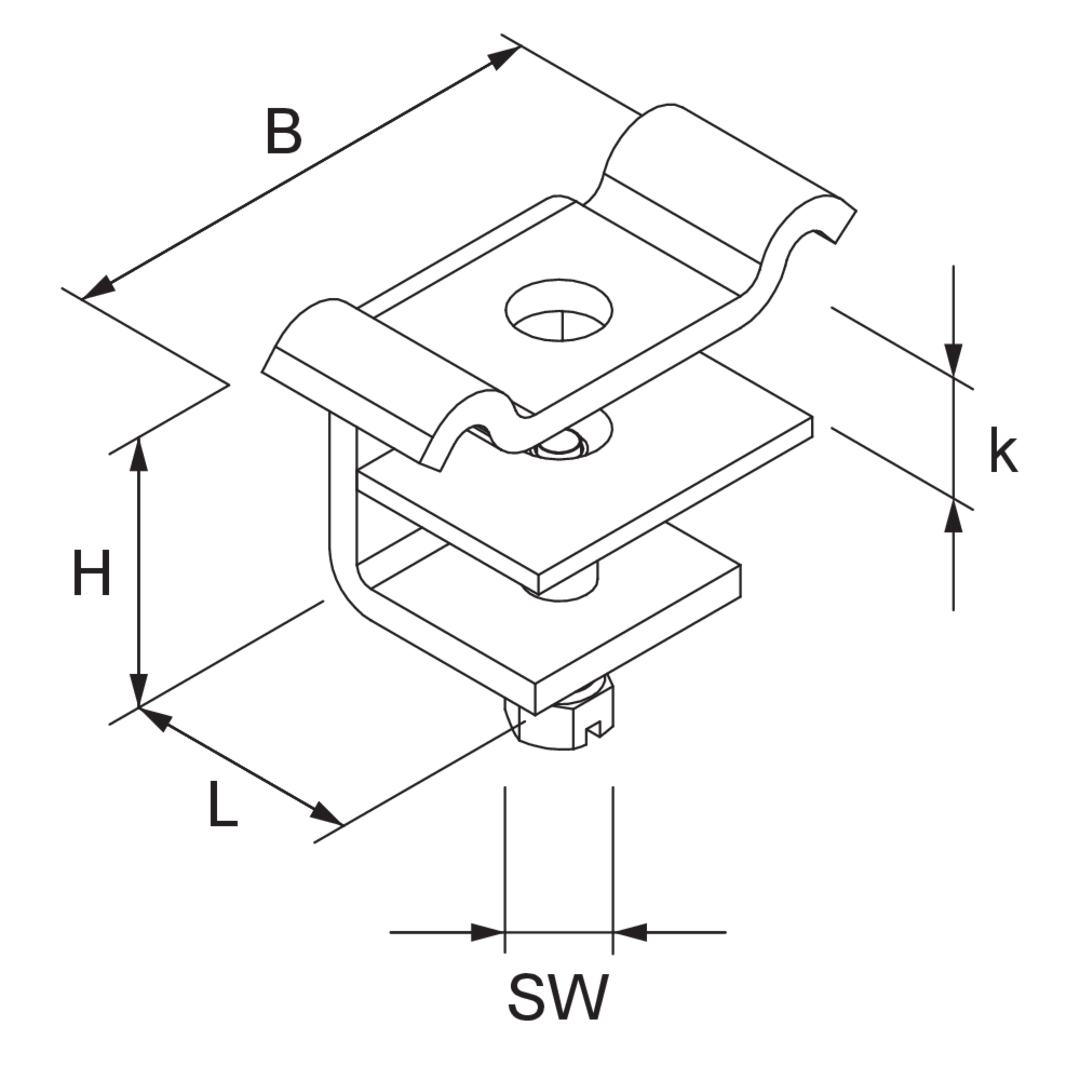

H

Höhe

B

Breite

L

Länge

M

Drehmoment

k

Klemmbereich

SW

Schlüsselweite

G

Gewicht je Lagermengeneinheit

  • WLKLT F
    Weitspannkabelbahnen-Klemme
    Höhe
    45 mm
    Breite
    64 mm
    Länge
    30 mm
    Drehmoment
    4.0 Nm
    Klemmbereich
    3 - 25 mm
    Schlüsselweite
    10 mm
    Gewicht je Lagermengeneinheit
    0.141 kg
