WLVH 200

Wide-span cable ladder connector, horizontal, height = 200 mm

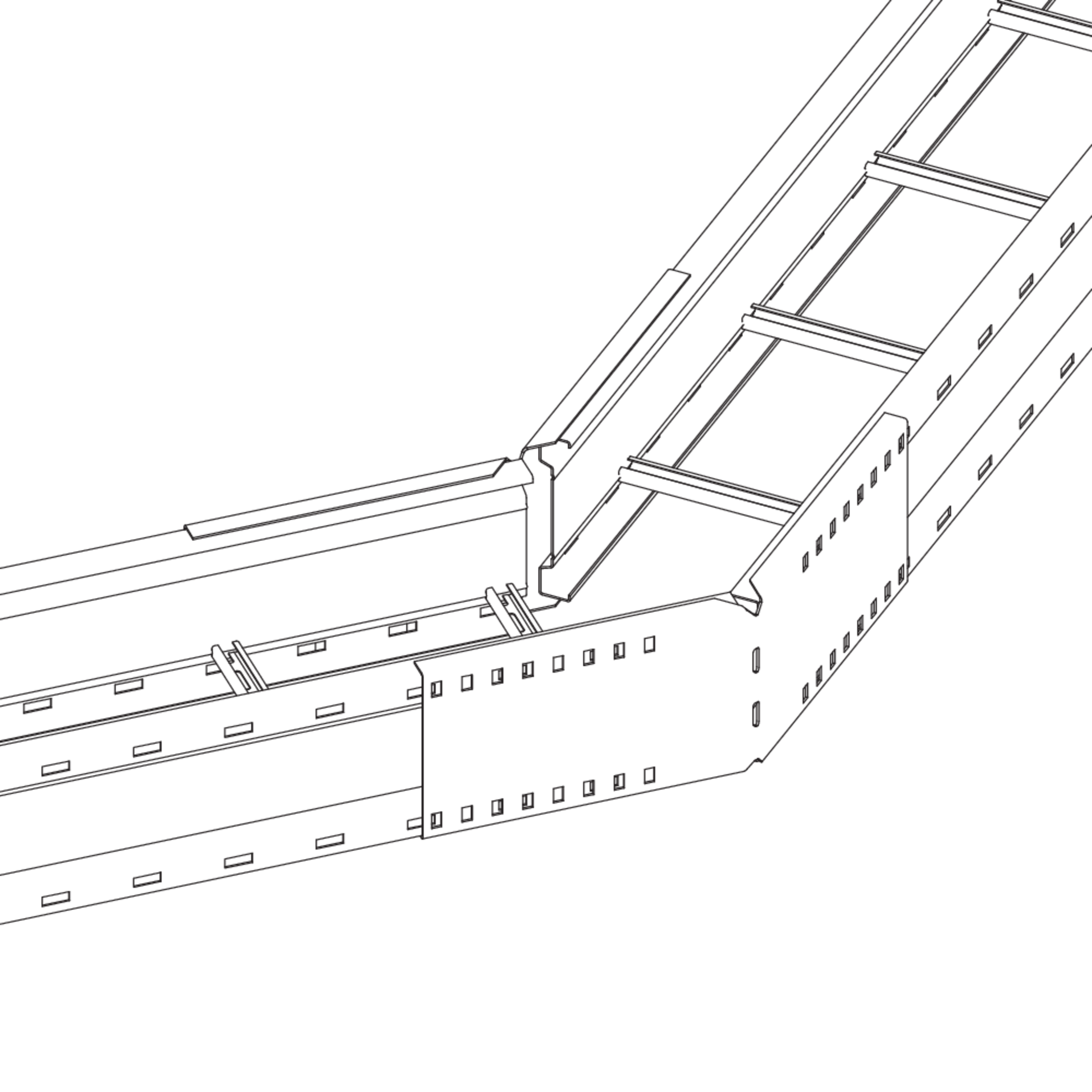

WLVH 200 wide span connectors can be used to connect 200 mm wide-span cable trays together and to create horizontal changes in direction. If the direction changes by > 30°, the cable trays must first be cut to size according to the installation instructions. In either case, the side connectors are bent to the required angle as desired. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

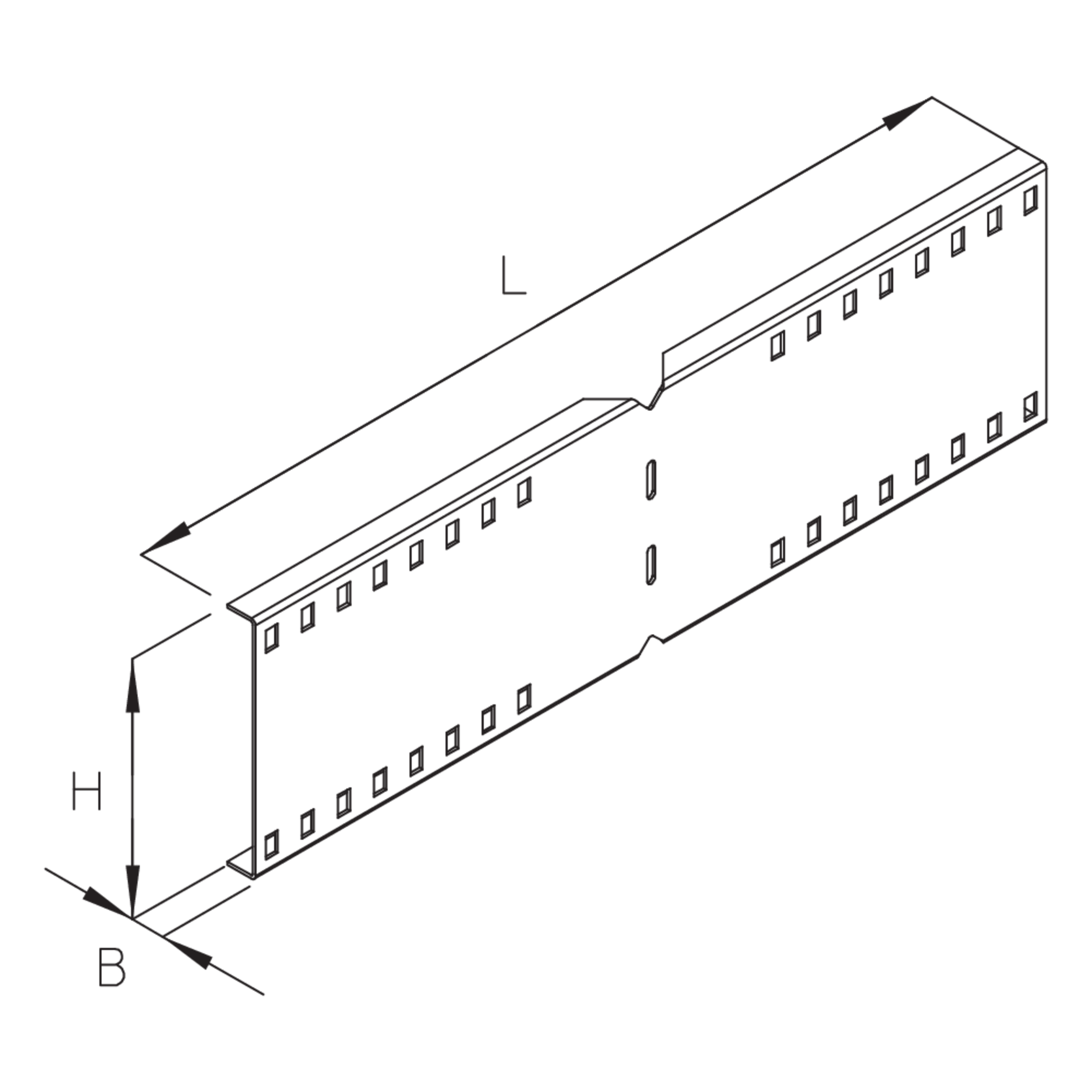

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

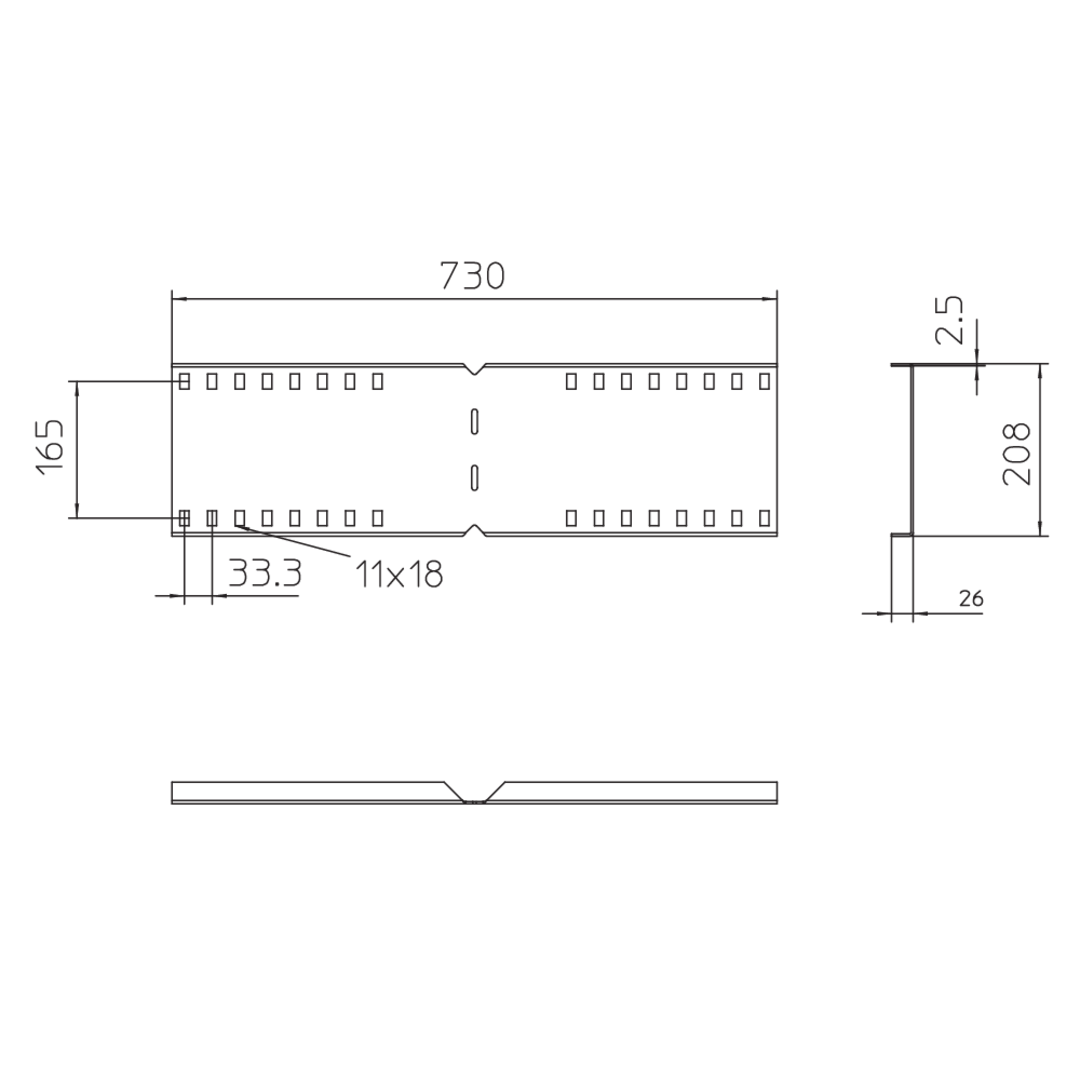

  • WLVH 200S

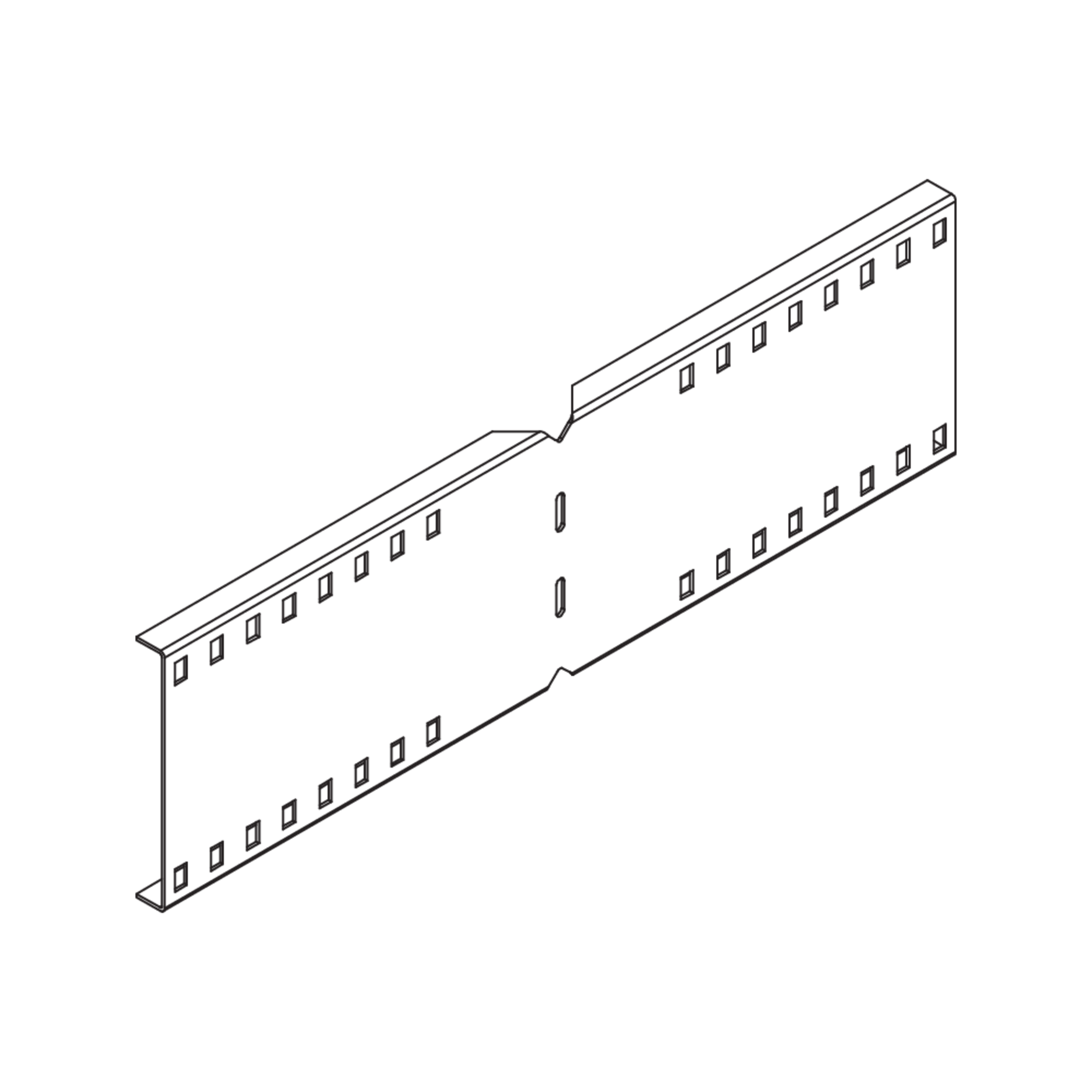

    Coupler WLVH 200S
    height
    208 mm
    width
    26 mm
    length
    730 mm
    material thickness
    2.50 mm
    Weight per storage unit
    3.837 kg
    Included accessories
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

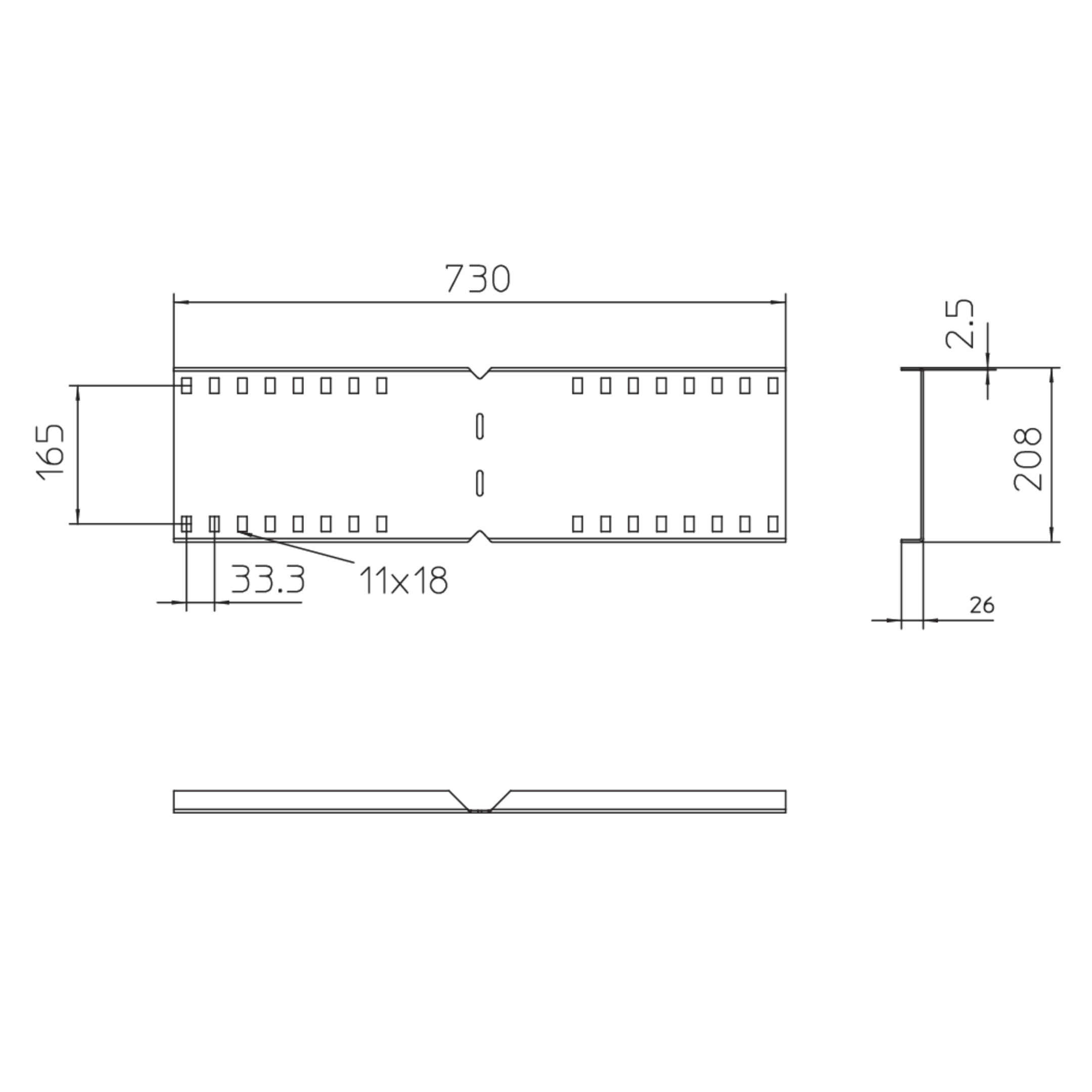

  • WLVH 200F
    Coupler WLVH 200F
    height
    208 mm
    width
    26 mm
    length
    730 mm
    material thickness
    2.50 mm
    Weight per storage unit
    3.900 kg
    Included accessories
    More information
