WLRK 200

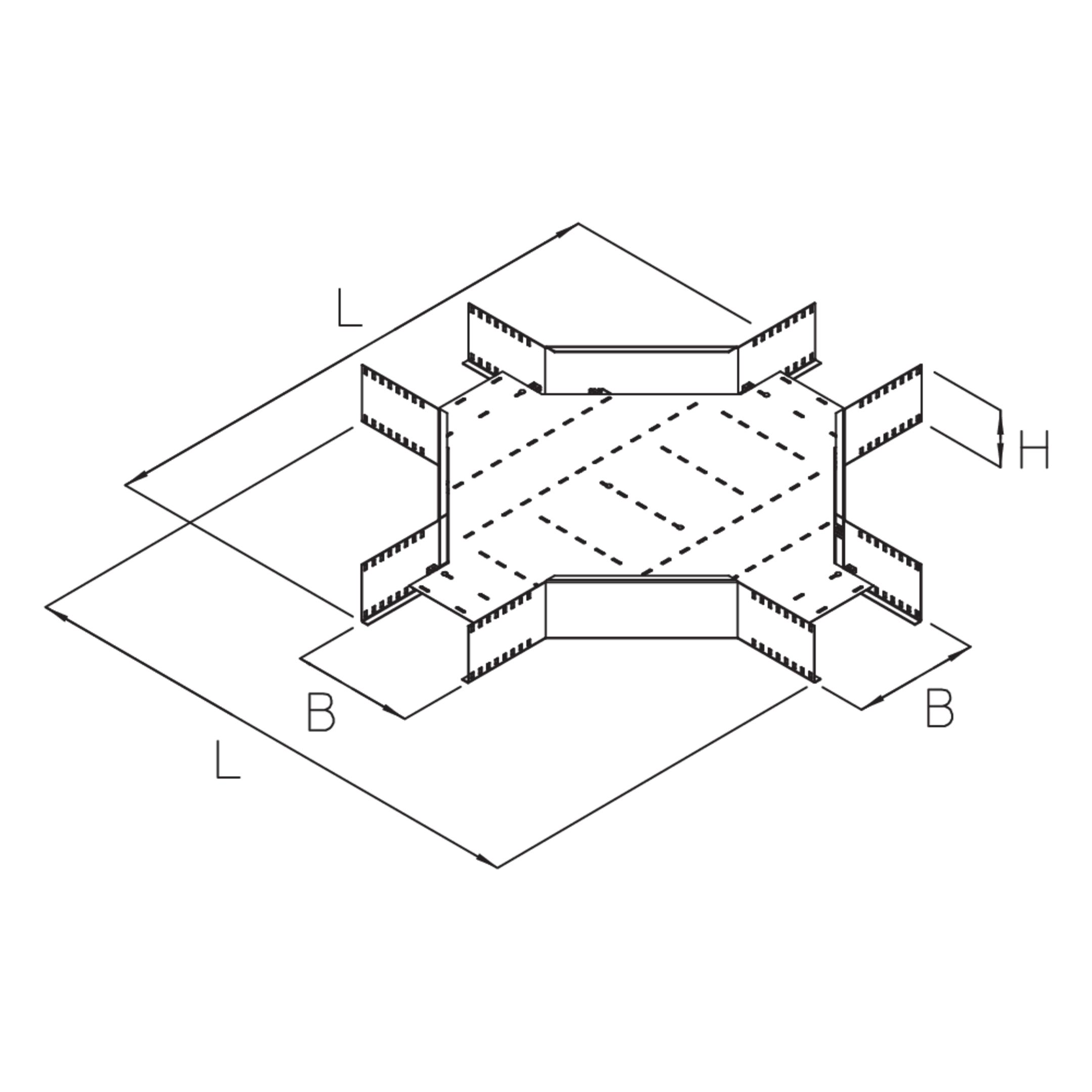

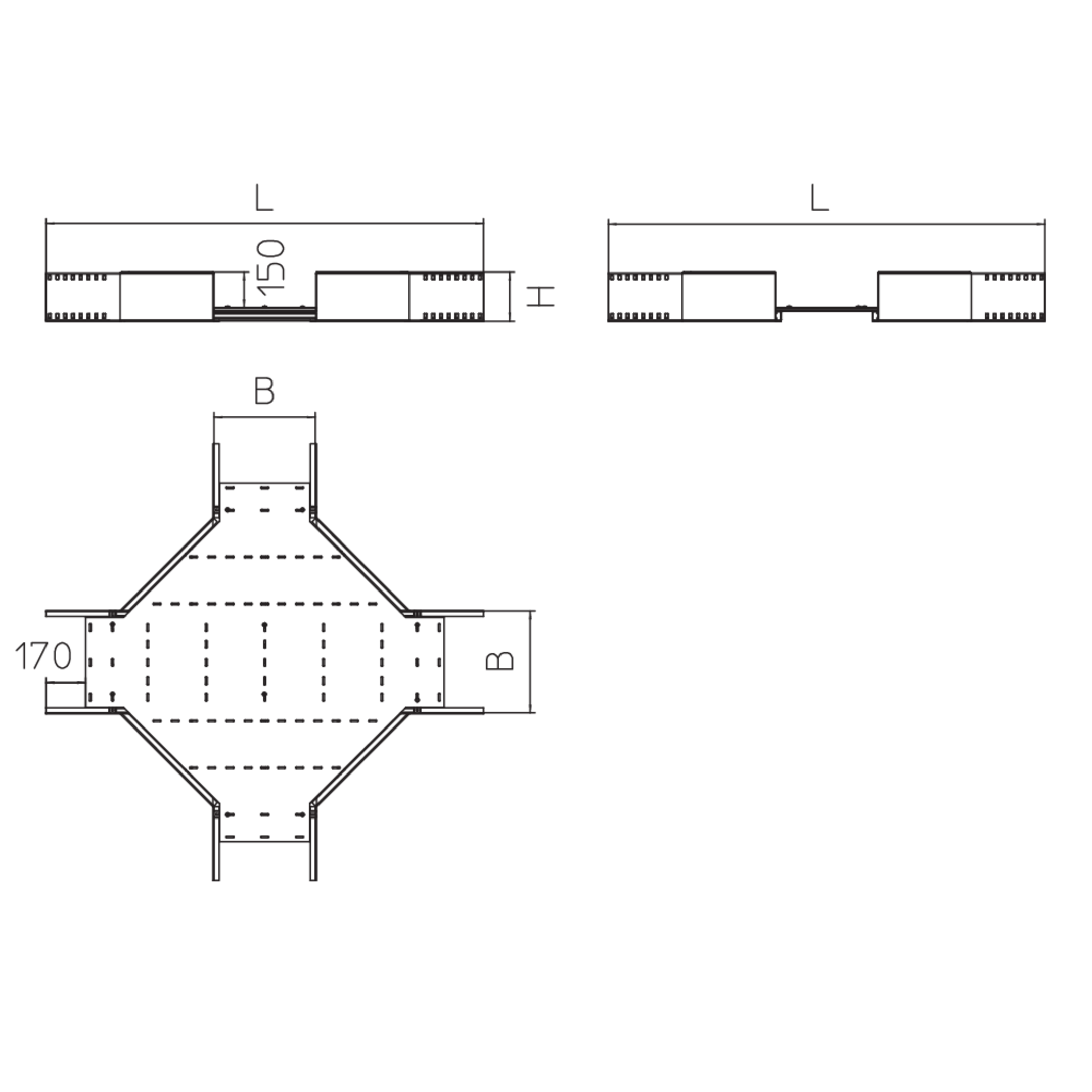

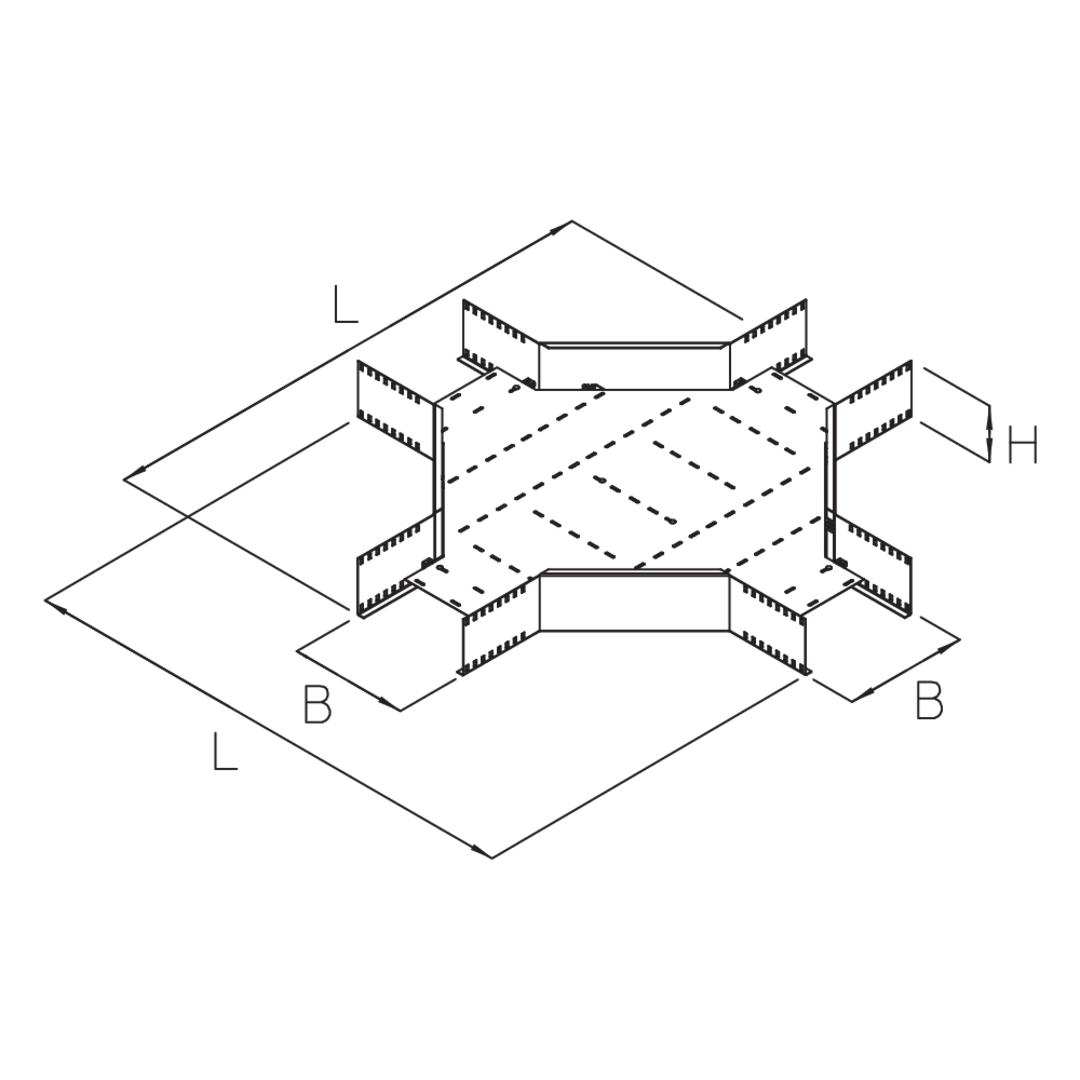

Wide-span cable tray crossing, height = 208 mm

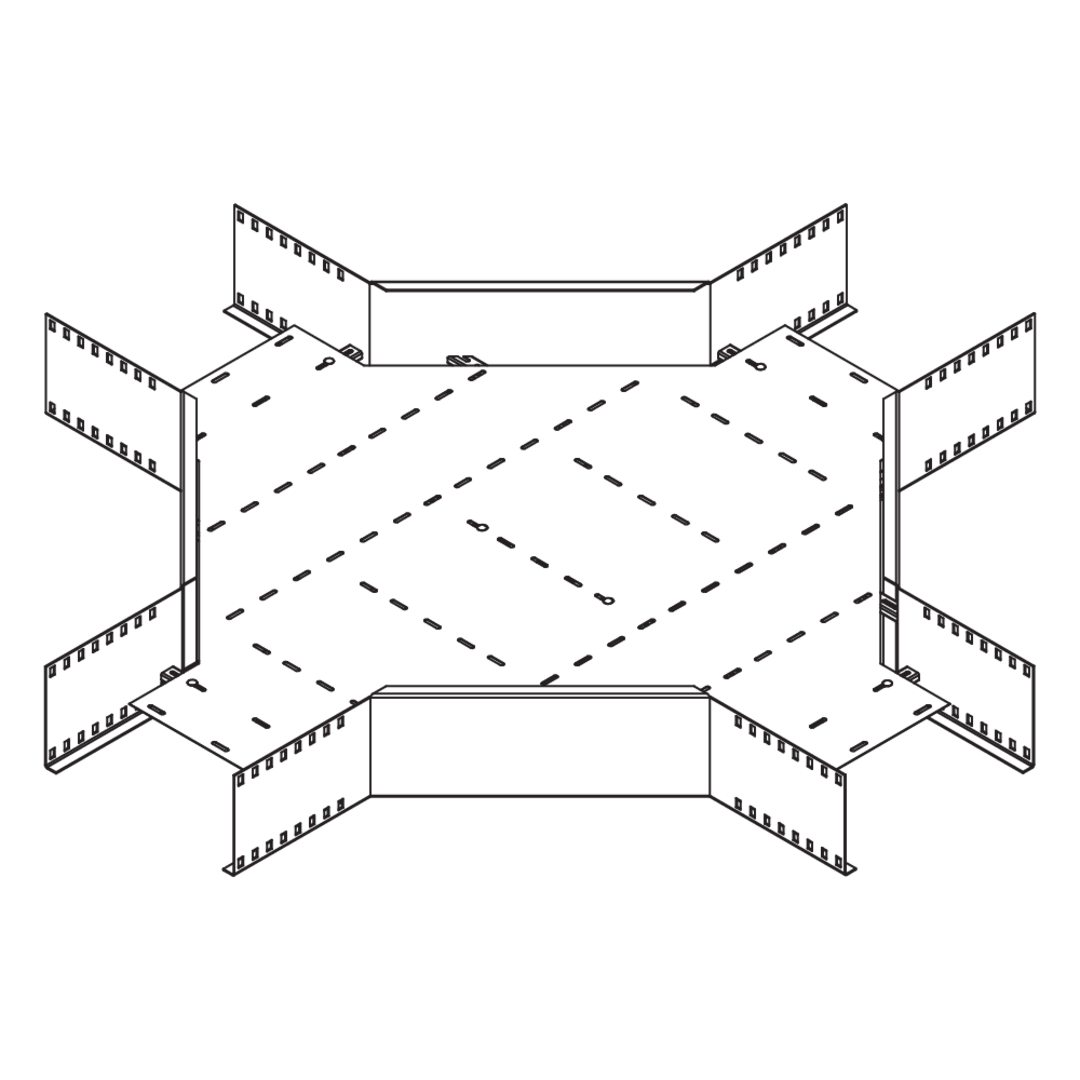

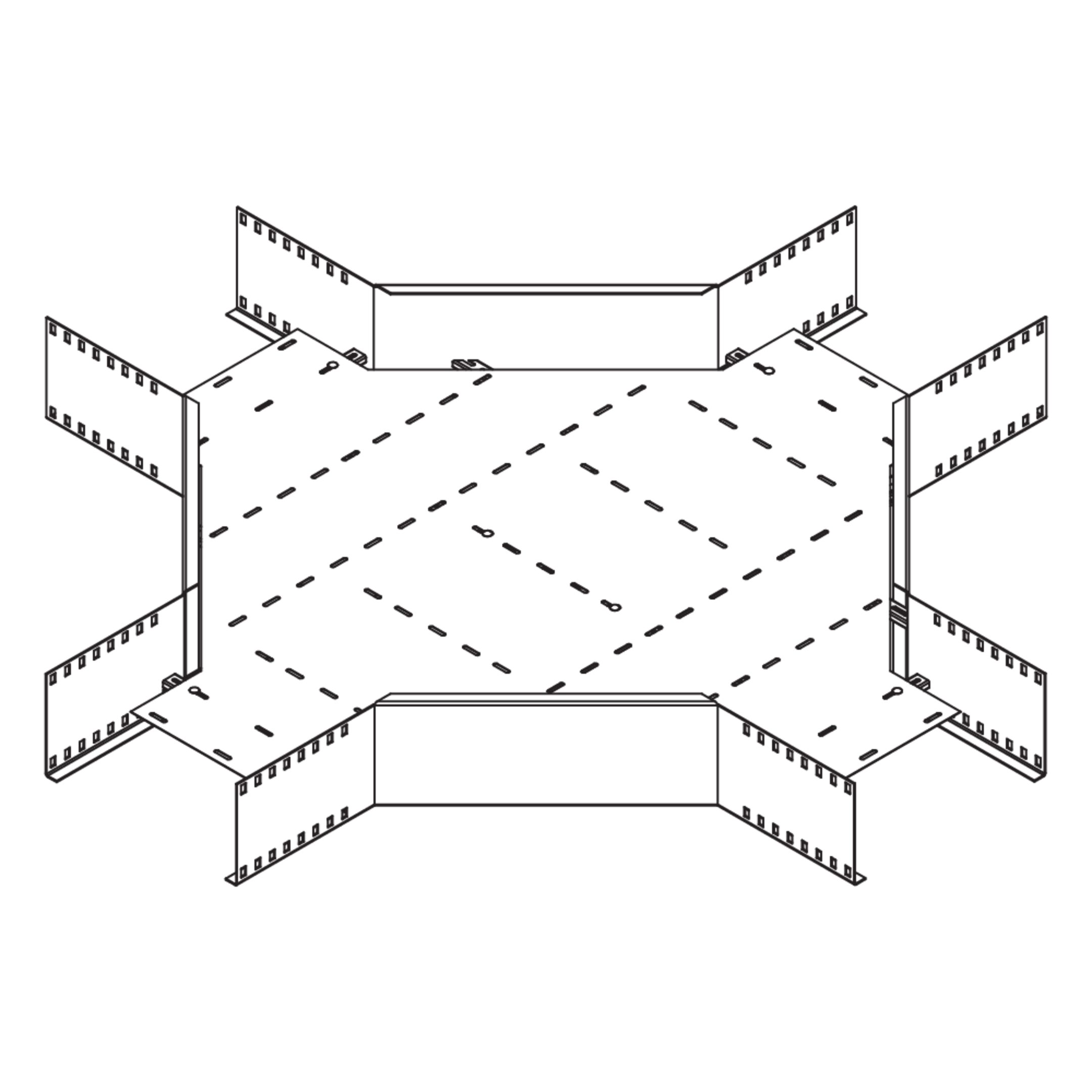

The wide-span cable tray crossing WLRK 200 with integrated connectors serves as a formed part for horizontally intersecting wide-span cable trays. They are suitable for WLR 200 wide-span cable trays and are from 200 to 600 mm wide. The connection trays can be pushed in with a VB floor connector. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touch Download datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit
  • WLRK 200-20F
    Weitspannrinnenkreuzung
    208 mm
    237 mm
    1667 mm
    39.120 kg
    Included accessories
    More information
  • WLRK 200-30F
    Weitspannrinnenkreuzung
    208 mm
    337 mm
    1767 mm
    41.610 kg
    Included accessories
    More information
  • WLRK 200-40F
    Weitspannrinnenkreuzung
    208 mm
    437 mm
    1867 mm
    44.180 kg
    Included accessories
    More information
  • WLRK 200-50F
    Weitspannrinnenkreuzung
    208 mm
    537 mm
    1967 mm
    48.644 kg
    Included accessories
    More information
  • WLRK 200-60F
    Weitspannrinnenkreuzung
    208 mm
    637 mm
    2067 mm
    51.644 kg
    Included accessories
    More information

Details

  • Creates horizontal change of cable routing in four directions
  • Cable-friendly guide

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Wide-Span Cable Tray WPR, Installation Guide

    Montageanleitung

    PDF, 2 MB

    de
    Download

  • Wide-Span Systems, Technical Information

    Technische Information

    PDF, 4 MB

    de en

BIM- and CAD-Data

  • BIM for Wide-span Systems

    BIM for Wide-span Systems

    ZIP, 12 MB

    de
    Download
