WLRB 200

Wide-span cable tray bend, height = 200 mm

The wide-span cable tray bends WLRB 200 with integrated side connectors allow the direction of cable routing to be changed horizontally by 90°. They are suitable for WL 200 wide-span cable trays and are from 200 to 600 mm wide. The bend is inserted into the wide-span cable tray with a VB floor connector and bolted in place. The connecting tray is then mounted on the bend. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

The magnetic shielding attenuation is 27 dB without the cover and 34 dB with the cover.

Get in touchDownload datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

H

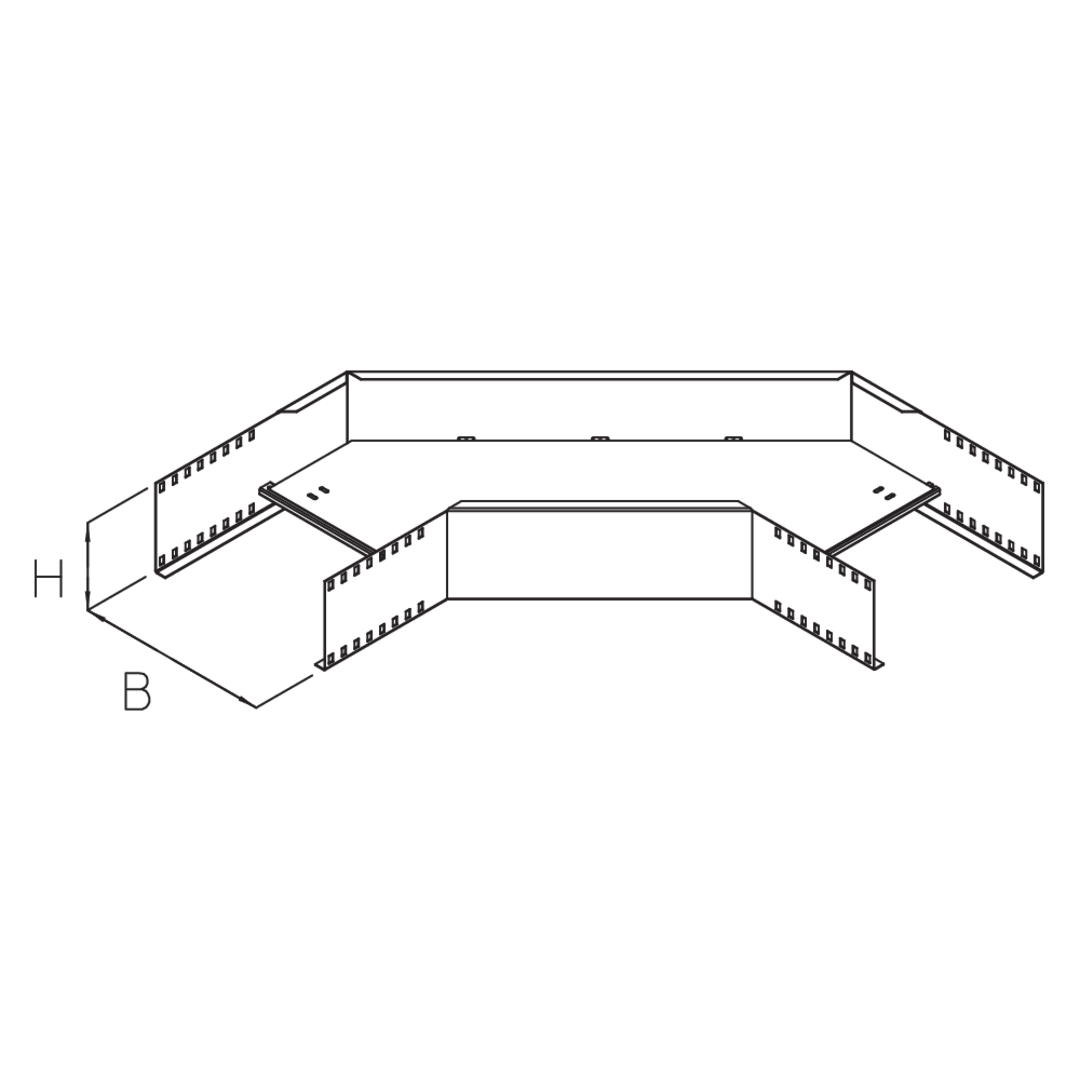

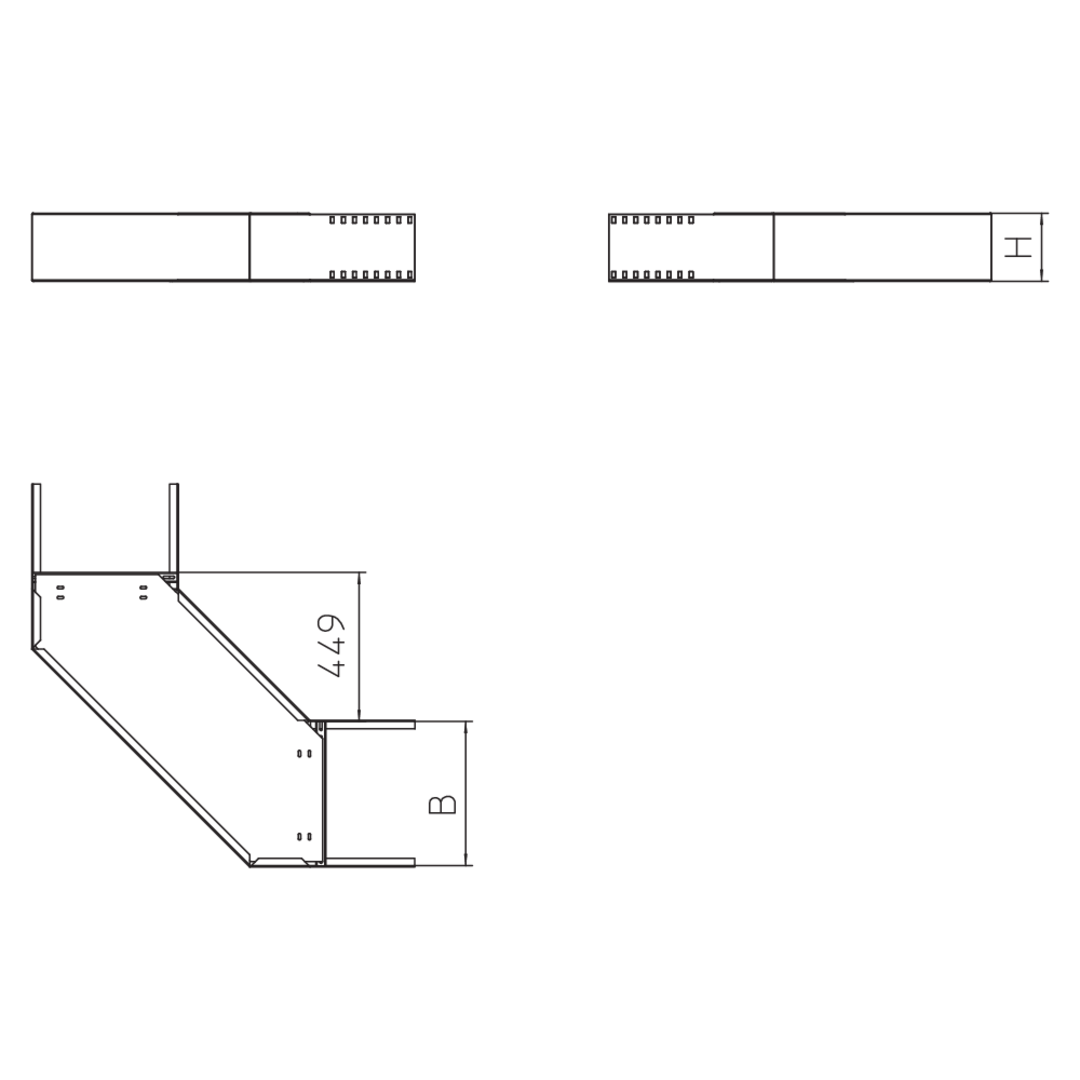

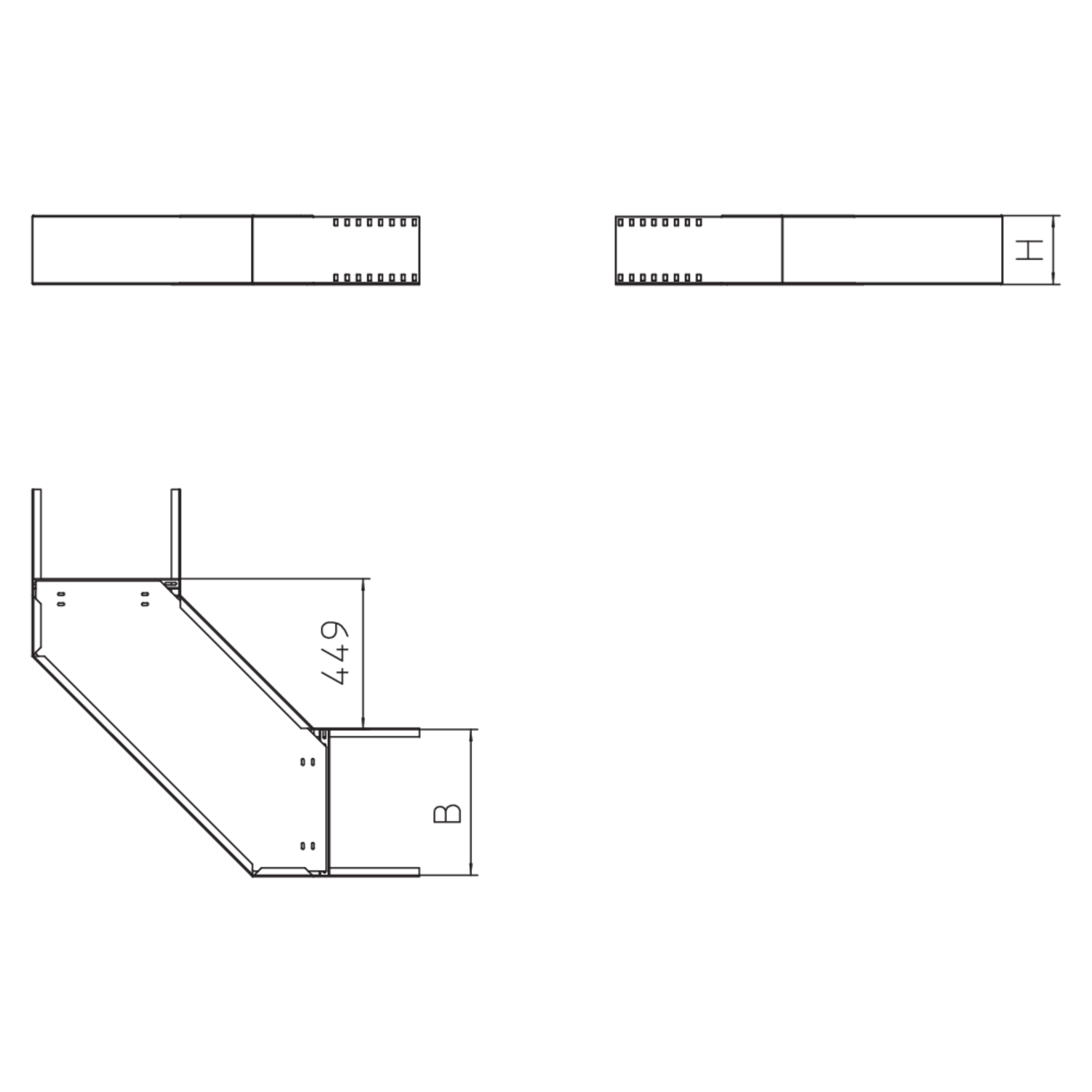

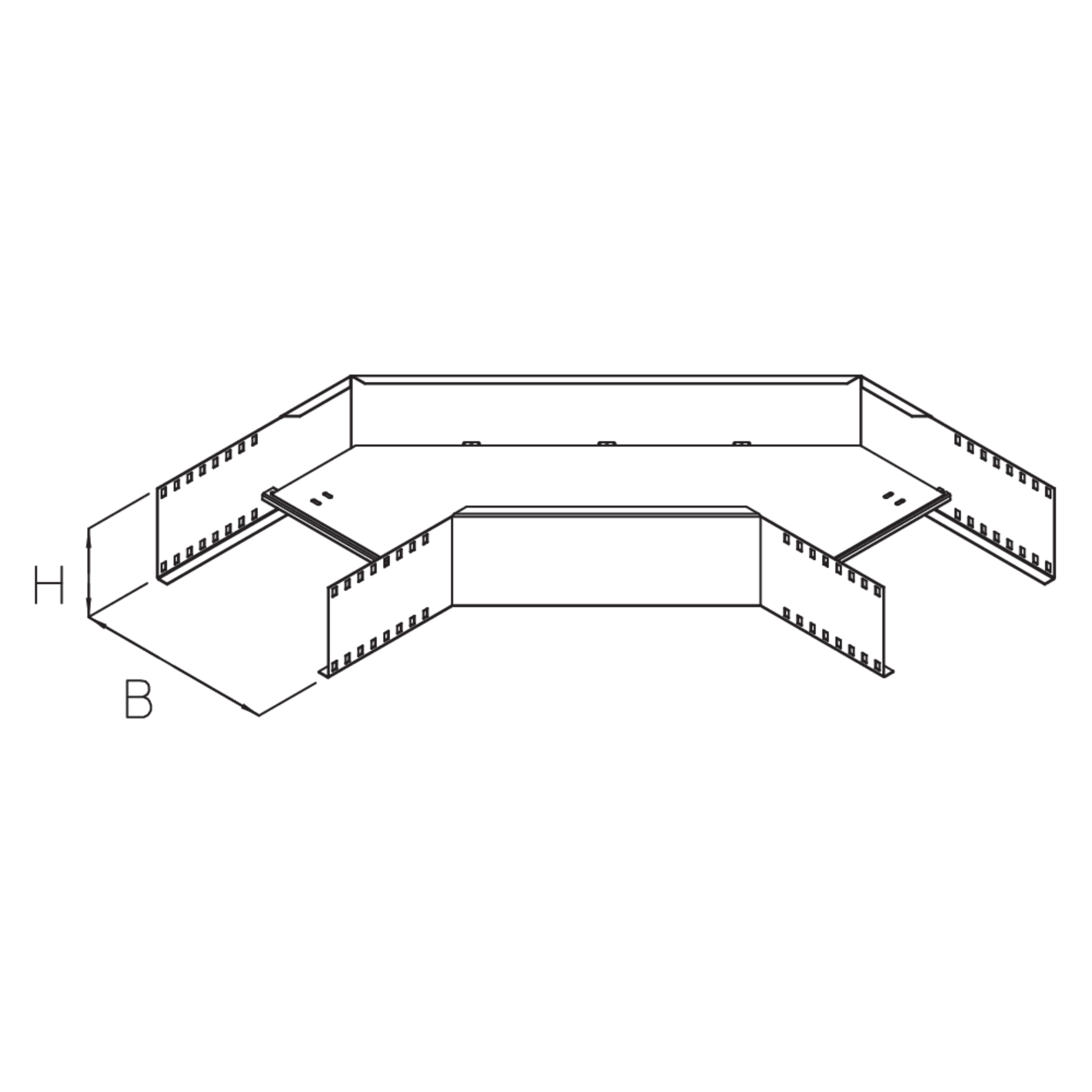

Höhe

B

Breite

L

Länge

Richtung

Richtungsänderung

W

Winkel

G

Gewicht je Lagermengeneinheit

  • WLRB 200-20F
    Weitspannkabelleiter-Bogen
    Höhe
    200 mm
    Breite
    200 mm
    Länge
    952 mm
    Richtungsänderung
    Horizontal
    Winkel
    90°
    Gewicht je Lagermengeneinheit
    16.290 kg
