Mesh cable tray, C-shaped, height = 75 mm

The C-shaped mesh cable tray GI has sides 75 mm high and is available in different widths. The standard length is 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Betreten verboten
Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

Article

H

B

L

t

QSK

A

W

  • GI 06S
    Wire-mesh cable tray GI 06S
    75 mm
    76 mm
    3000 mm
    4.50 mm
    0.05 kN/m
    33 cm2
    4.100 kg
    More information
  • GI 12S
    Wire-mesh cable tray GI 12S
    75 mm
    136 mm
    3000 mm
    4.50 mm
    0.1 kN/m
    67 cm2
    5.160 kg
    More information
  • GI 20S
    Wire-mesh cable tray GI 20S
    75 mm
    216 mm
    3000 mm
    4.50 mm
    0.17 kN/m
    113 cm2
    5.570 kg
    More information
  • GI 30S
    Wire-mesh cable tray GI 30S
    75 mm
    316 mm
    3000 mm
    4.50 mm
    0.25 kN/m
    165 cm2
    6.840 kg
    More information

steel, batch/hot-dip galvanized

Article

H

B

L

t

QSK

A

W

  • GI 06F
    Wire-mesh cable tray GI 06F
    75 mm
    76 mm
    3000 mm
    4.50 mm
    0.05 kN/m
    33 cm2
    4.390 kg
    More information
  • GI 12F
    Wire-mesh cable tray GI 12F
    75 mm
    136 mm
    3000 mm
    4.50 mm
    0.1 kN/m
    67 cm2
    5.520 kg
    More information
  • GI 20F
    Wire-mesh cable tray GI 20F
    75 mm
    216 mm
    3000 mm
    4.50 mm
    0.17 kN/m
    113 cm2
    5.960 kg
    More information
  • GI 30F
    Wire-mesh cable tray GI 30F
    75 mm
    316 mm
    3000 mm
    4.50 mm
    0.25 kN/m
    165 cm2
    7.310 kg
    More information

steel, galvanic zinc plated

Article

H

B

L

t

QSK

A

W

  • GI 06GV
    Wire-mesh cable tray GI 06S
    75 mm
    76 mm
    3000 mm
    4.50 mm
    0.05 kN/m
    33 cm2
    4.100 kg
    More information
  • GI 12GV
    Wire-mesh cable tray GI 12S
    75 mm
    136 mm
    3000 mm
    4.50 mm
    0.1 kN/m
    67 cm2
    5.160 kg
    More information
  • GI 20GV
    Wire-mesh cable tray GI 20S
    75 mm
    216 mm
    3000 mm
    4.50 mm
    0.17 kN/m
    113 cm2
    5.570 kg
    More information
  • GI 30GV
    Wire-mesh cable tray GI 30S
    75 mm
    316 mm
    3000 mm
    4.50 mm
    0.25 kN/m
    165 cm2
    6.840 kg
    More information

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

B

L

t

QSK

A

W

  • GI 06E
    Wire-mesh cable tray GI 06E
    75 mm
    76 mm
    3000 mm
    4.50 mm
    0.05 kN/m
    33 cm2
    4.140 kg
    More information
  • GI 12E
    Wire-mesh cable tray GI 12E
    75 mm
    136 mm
    3000 mm
    4.50 mm
    0.1 kN/m
    67 cm2
    5.200 kg
    More information
  • GI 20E
    Wire-mesh cable tray GI 20E
    75 mm
    216 mm
    3000 mm
    4.50 mm
    0.17 kN/m
    113 cm2
    5.620 kg
    More information
  • GI 30E
    Wire-mesh cable tray GI 30E
    75 mm
    316 mm
    3000 mm
    4.50 mm
    0.25 kN/m
    165 cm2
    6.890 kg
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

H

B

L

t

QSK

A

W

  • GI 06E4
    Wire-mesh cable tray
    75 mm
    76 mm
    3000 mm
    4.50 mm
    0.05 kN/m
    33 cm2
    4.170 kg
    More information
  • GI 12E4
    Wire-mesh cable tray GI 12E
    75 mm
    136 mm
    3000 mm
    4.50 mm
    0.1 kN/m
    67 cm2
    5.250 kg
    More information
  • GI 20E4
    Wire-mesh cable tray GI 20E
    75 mm
    216 mm
    3000 mm
    4.50 mm
    0.17 kN/m
    113 cm2
    5.660 kg
    More information
  • GI 30E4
    Wire-mesh cable tray GI 30E
    75 mm
    316 mm
    3000 mm
    4.50 mm
    0.25 kN/m
    165 cm2
    6.950 kg
    More information

Details

  • Betreten verboten

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Accessories

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Kabelleitern - Technische Information

    Montageanleitung

    PDF, 4 MB

    de
    Download

  • Mesh cable trays - Technical information

    Technische Information

    PDF, 2 MB

    de en

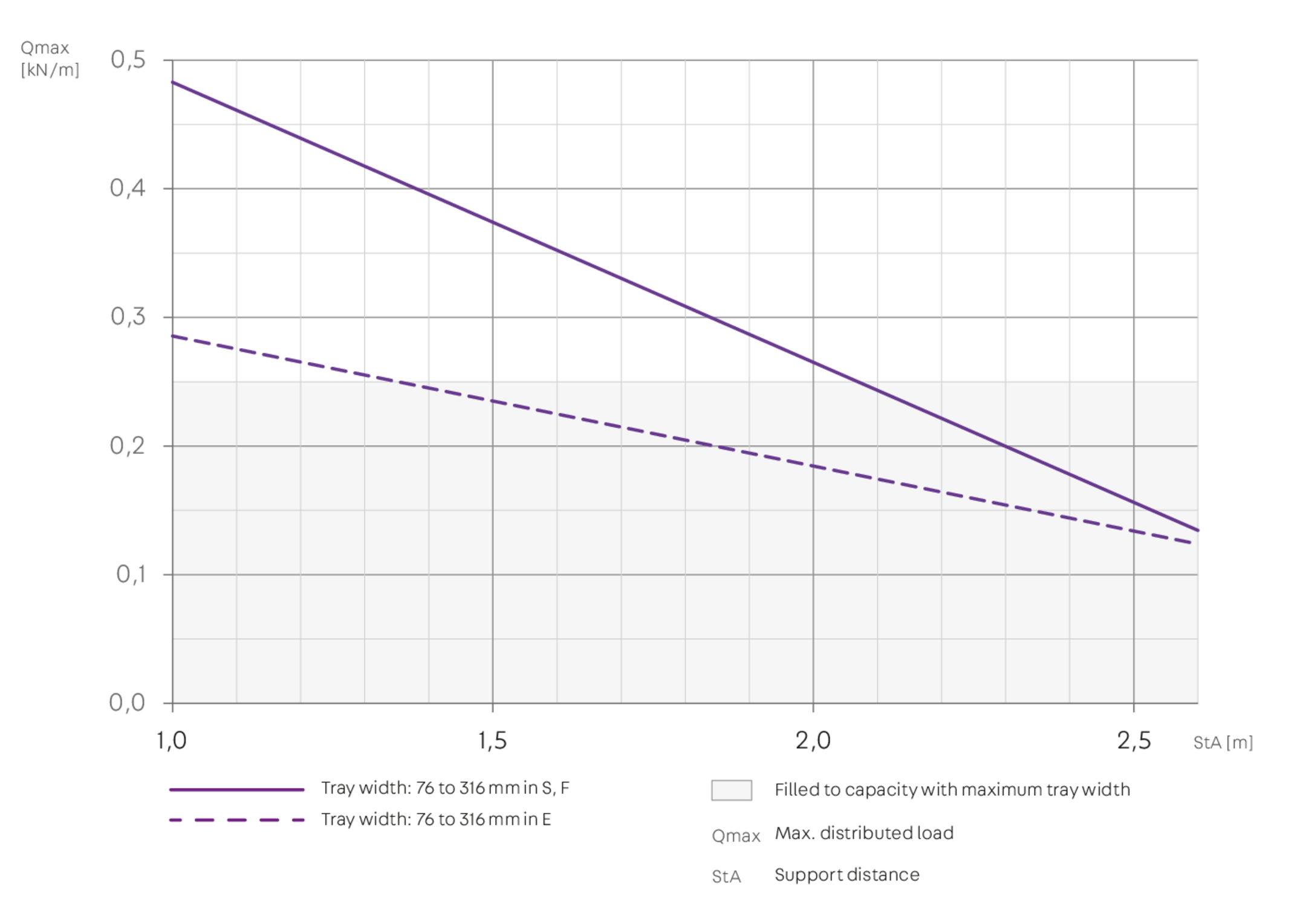

Load diagram
