GV 30

Mesh cable tray universal connector

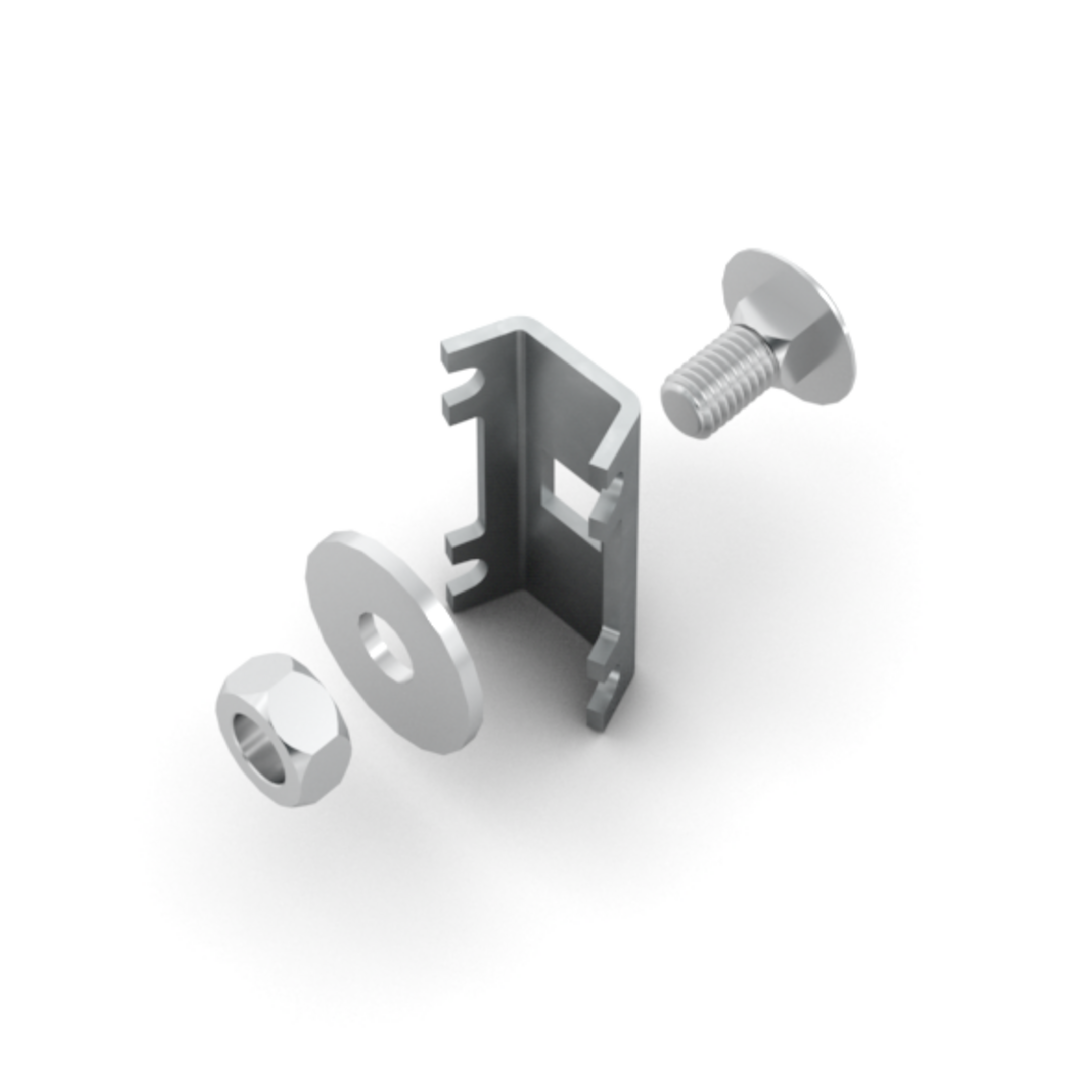

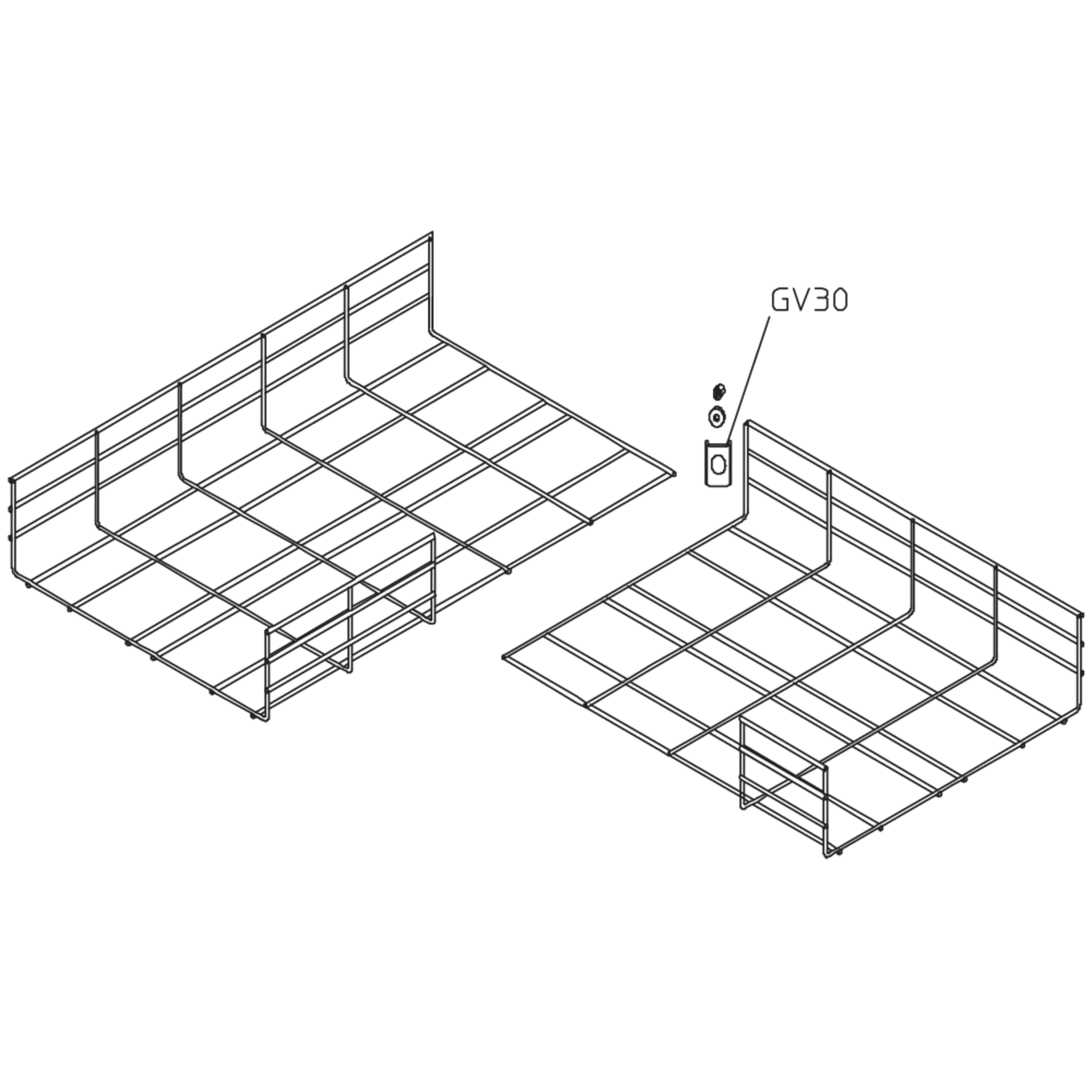

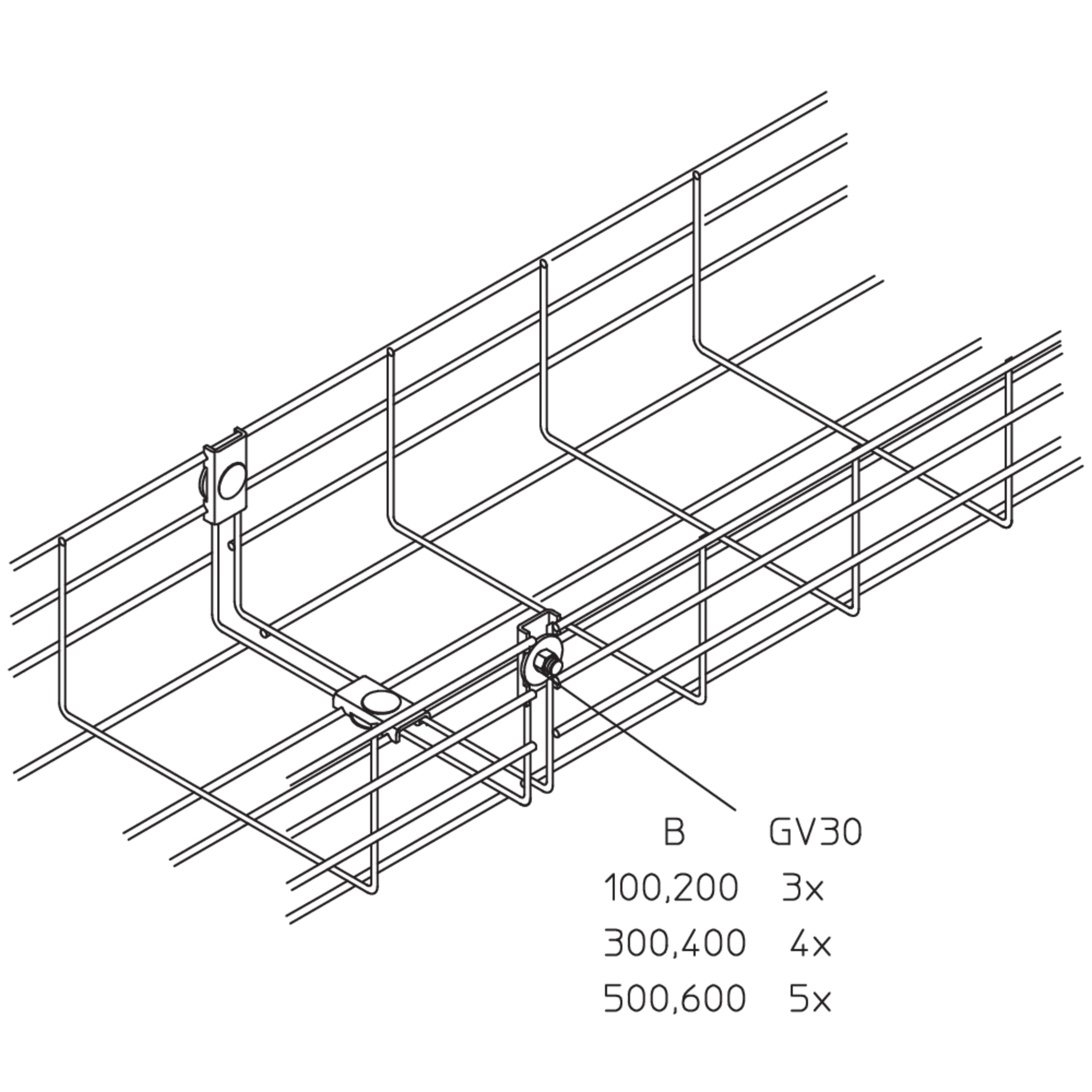

Mesh cable trays of the types G, GI and GTDW can be mounted quickly and easily in a straight orientation using GV 30 mesh cable tray connectors. However, GV 30 mesh cable tray connectors are also used for horizontal changes in direction of the aforementioned mesh cable tray. Assembly plates are also installed on mesh cable trays using a GV 30. This makes it very versatile. The GV 30 is a set of two GV-L 30 mesh cable tray connectors and a round-head bolt, hexagonal nut and washer. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Variants

Stahl, band-/sendzimirverzinkt

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit

  • GV 30S
    Gitterbahnverbinder
    Höhe
    41 mm
    Breite
    22 mm
    Länge
    8 mm
    Gewicht je Lagermengeneinheit
    0.040 kg
    Included accessories

Stahl, stück-/tauchfeuerverzinkt

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit

  • GV 30F
    Gitterbahnverbinder
    Höhe
    41 mm
    Breite
    22 mm
    Länge
    8 mm
    Gewicht je Lagermengeneinheit
    0.040 kg
    Included accessories

Stahl, galvanisch verzinkt

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit

  • GV 30GV
    Gitterbahnverbinder
    Höhe
    41 mm
    Breite
    22 mm
    Länge
    8 mm
    Gewicht je Lagermengeneinheit
    0.040 kg
    Included accessories

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit

  • GV 30E
    Gitterbahnverbinder
    Höhe
    41 mm
    Breite
    22 mm
    Länge
    8 mm
    Gewicht je Lagermengeneinheit
    0.039 kg
    Included accessories

Edelstahl, Werkstoff Nr. 1.4571/1.4404 (V4A)

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit

  • GV 30E4
    Gitterbahnverbinder
    Höhe
    41 mm
    Breite
    22 mm
    Länge
    8 mm
    Gewicht je Lagermengeneinheit
    0.040 kg
    Included accessories
