GVD 30

Mesh cable tray universal connector

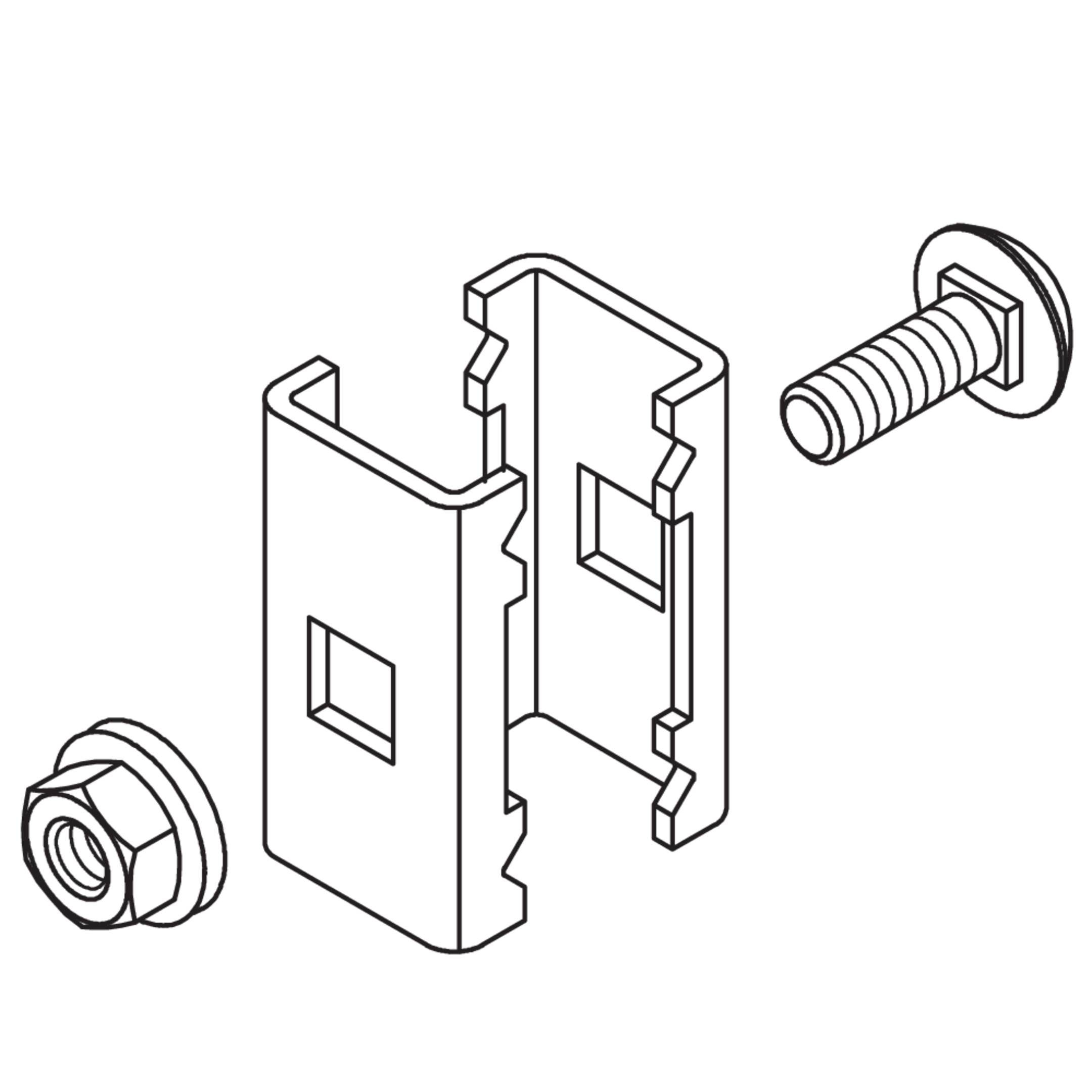

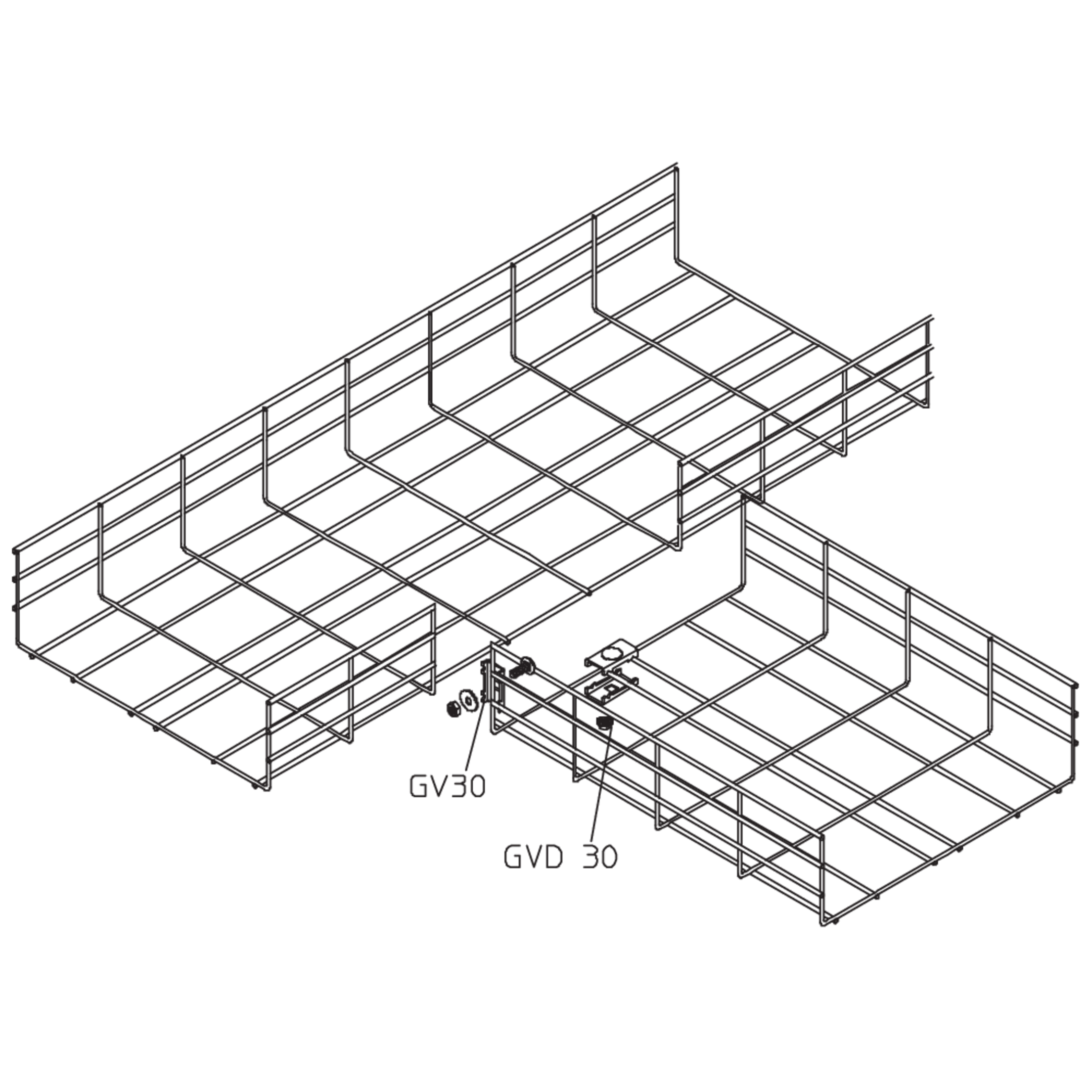

Mesh cable trays of the type GTDW can be mounted quickly and easily in a straight orientation using GVD 30 mesh cable tray connectors. However, the mesh cable tray connector can also be used for horizontal changes in direction (branches) of mesh cable trays G, GI and GTD. The GVD 30 is a set of two GV-L 30 mesh cable tray connectors and a round-head bolt and nut. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

L

length

G

Weight per storage unit
  • GVD 30S
    Wire-mesh cable tray coupler GVD 30S
    41 mm
    22 mm
    16 mm
    0.055 kg
    Included accessories
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

G

Weight per storage unit
  • GVD 30F
    Wire-mesh cable tray coupler GVD 30F
    41 mm
    22 mm
    16 mm
    0.054 kg
    Included accessories
    More information

steel, galvanic zinc plated

Article

H

height

B

width

L

length

G

Weight per storage unit
  • GVD 30GV
    Wire-mesh cable tray coupler GVD 30S
    41 mm
    22 mm
    16 mm
    0.055 kg
    Included accessories
    More information

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

height

B

width

L

length

G

Weight per storage unit
  • GVD 30E
    Wire-mesh cable tray coupler GVD 30E
    41 mm
    22 mm
    16 mm
    0.052 kg
    Included accessories
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

H

height

B

width

L

length

G

Weight per storage unit
  • GVD 30E4
    Wire-mesh cable tray coupler GVD 30E
    41 mm
    22 mm
    16 mm
    0.052 kg
    Included accessories
    More information
