GVK

Mesh cable tray connector clamping piece

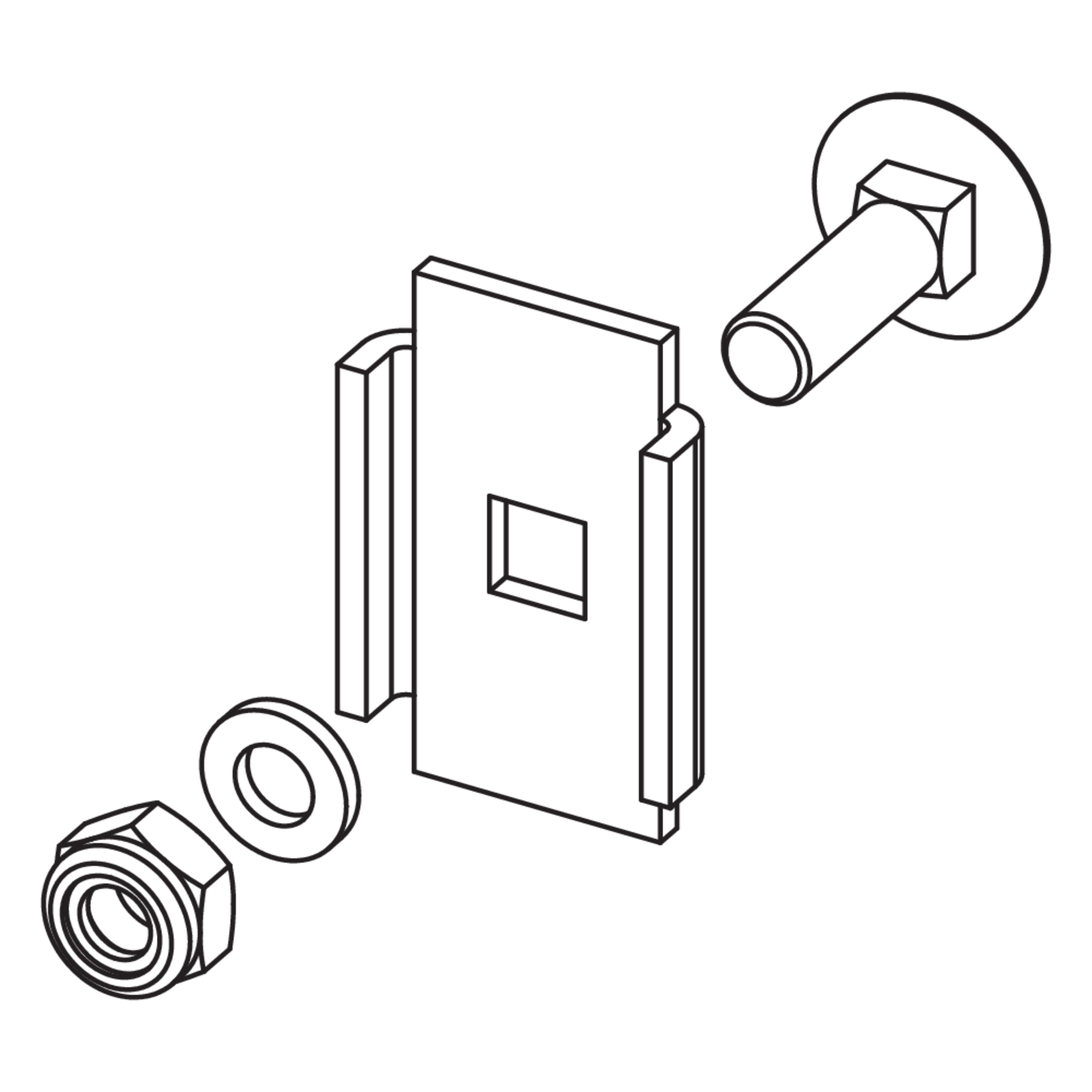

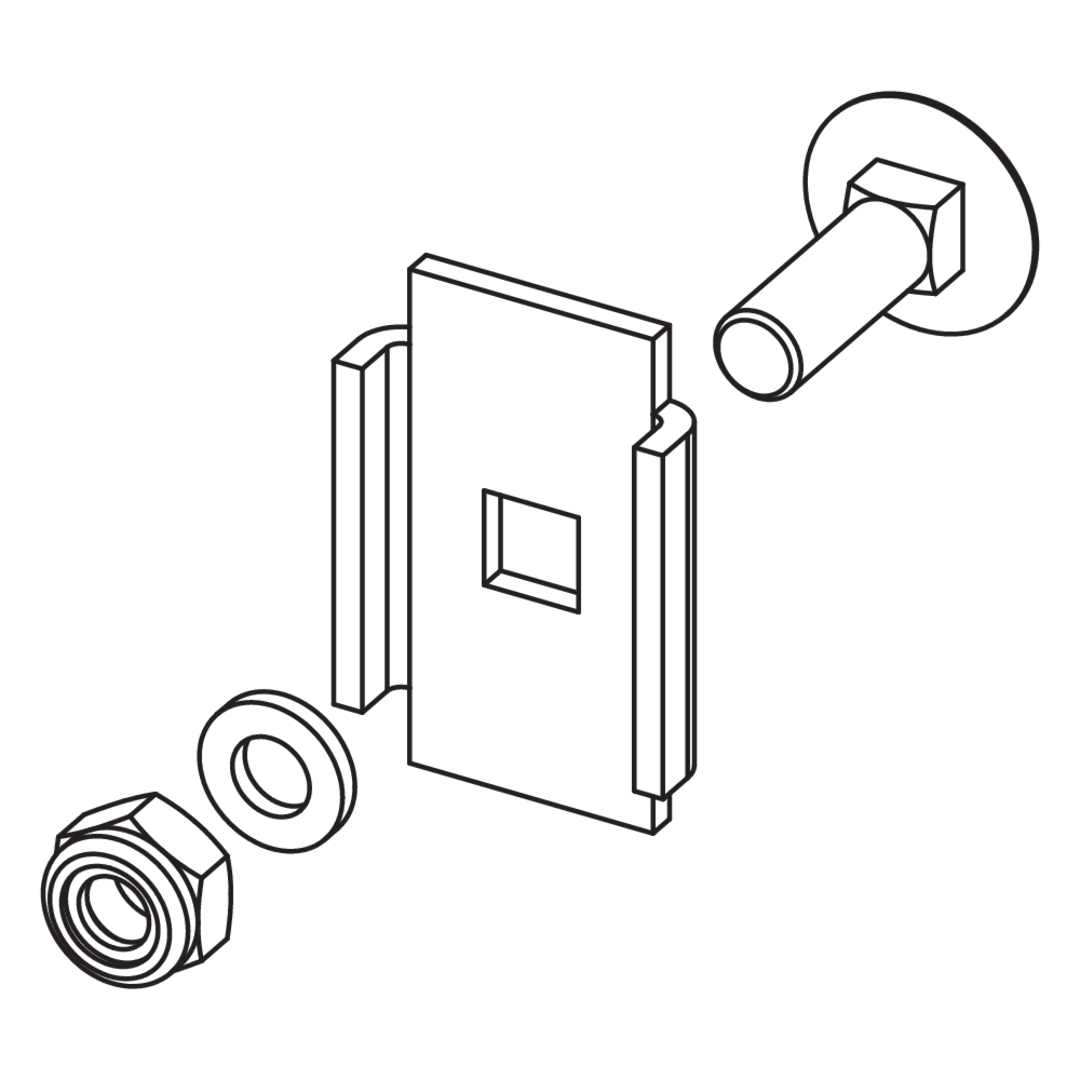

Two mesh cable tray connector clamps GVK are used with each GVU mesh cable tray connector. The mesh cable tray connector clamping piece GVK includes a self-locking hexagon nut and a round-head bolt. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

Article

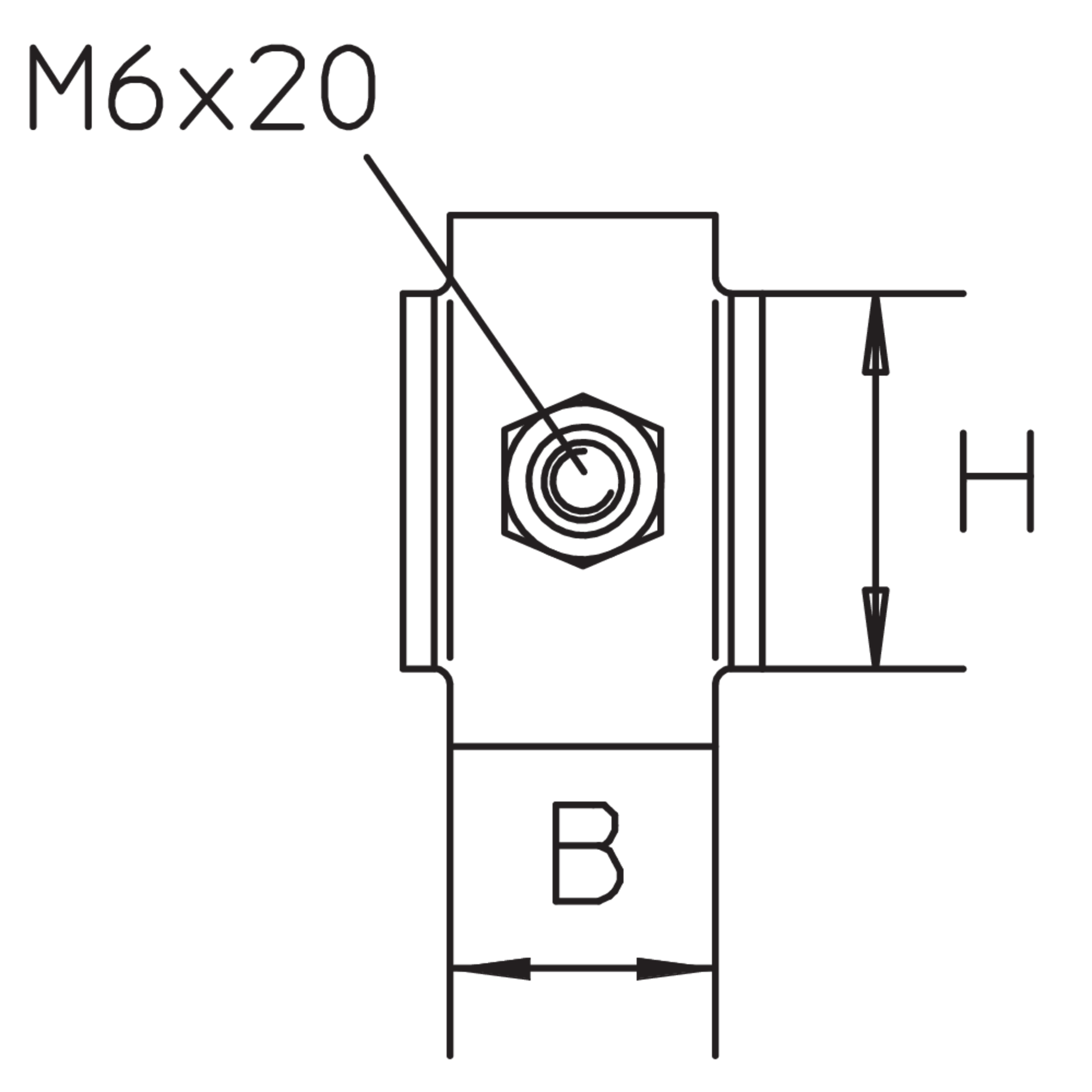

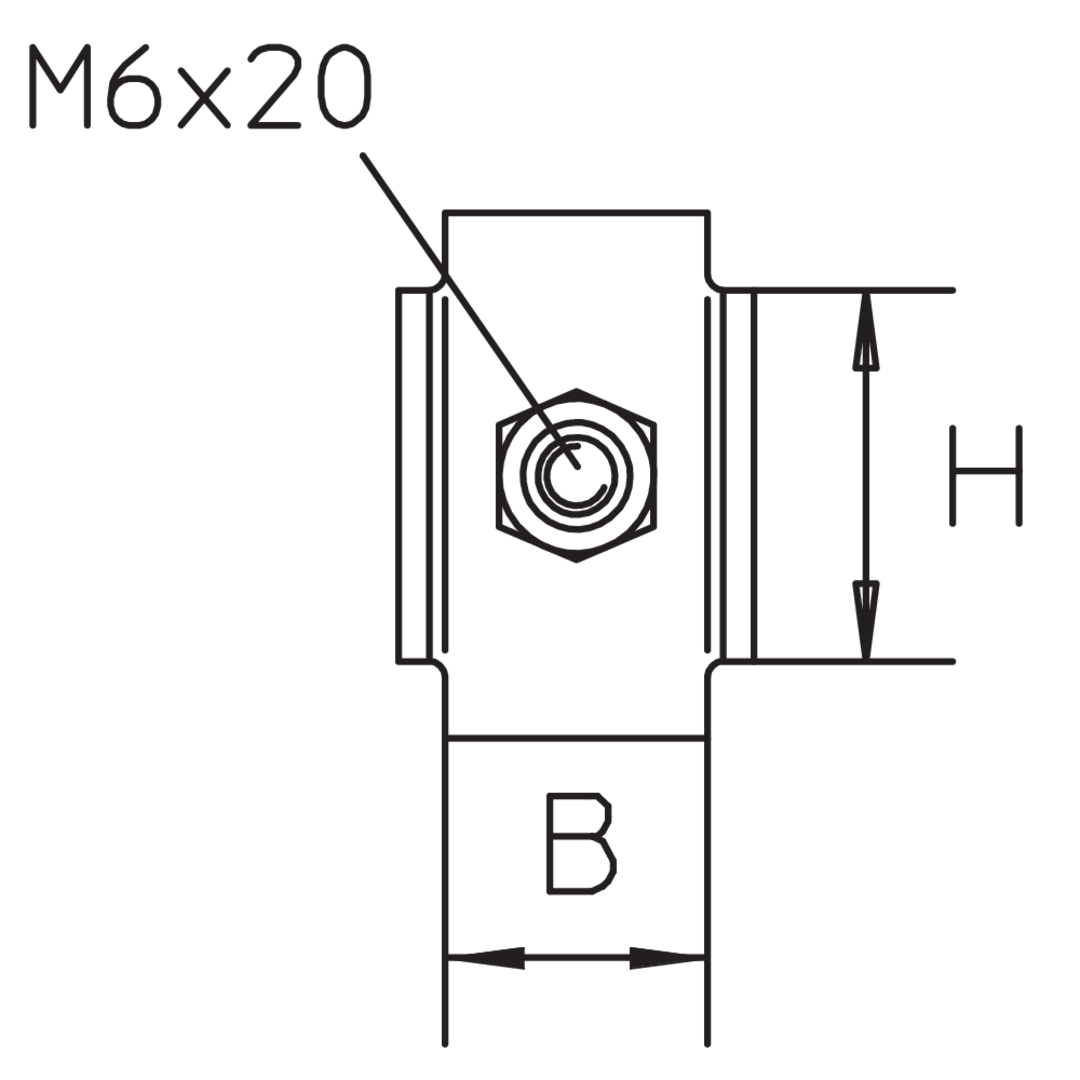

H

height

B

width

L

length

G

Weight per storage unit
  • GVK F
    Wire-mesh cable tray coupler
    height
    35 mm
    width
    23 mm
    length
    6 mm
    Weight per storage unit
    0.020 kg
    Included accessories
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

G

Weight per storage unit
  • GVK E
    Wire-mesh cable tray coupler
    height
    35 mm
    width
    23 mm
    length
    6 mm
    Weight per storage unit
    0.019 kg
    Included accessories
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

G

Weight per storage unit
  • GVK E4
    Wire-mesh cable tray coupler
    height
    35 mm
    width
    23 mm
    length
    6 mm
    Weight per storage unit
    0.021 kg
    Included accessories
    More information
