GV-L 30

Mesh cable tray universal connector

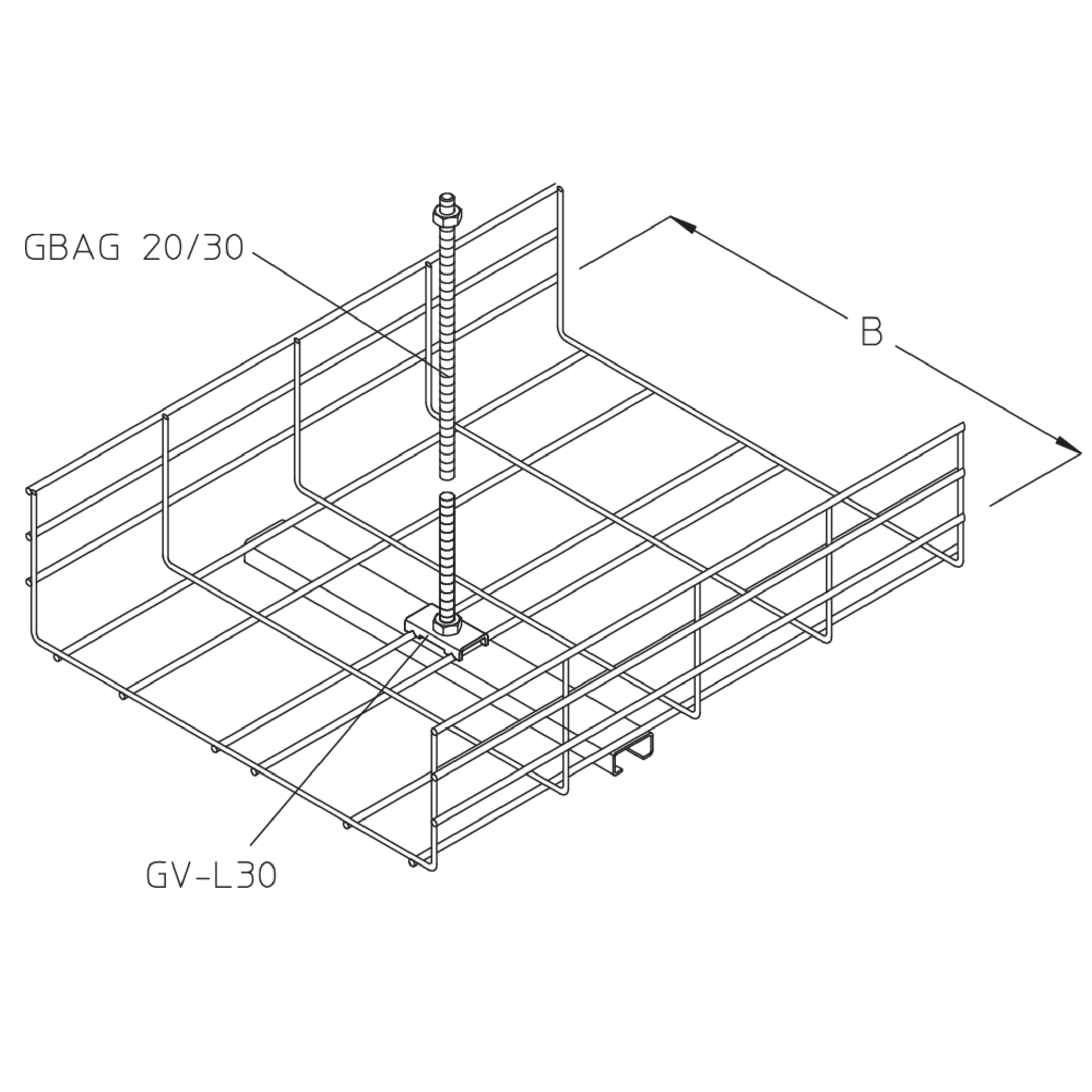

The mesh cable tray connector GV-L 30 is used to install mesh cable trays on walls and ceilings in accordance with the installation instructions. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Variants

Stahl, stück-/tauchfeuerverzinkt

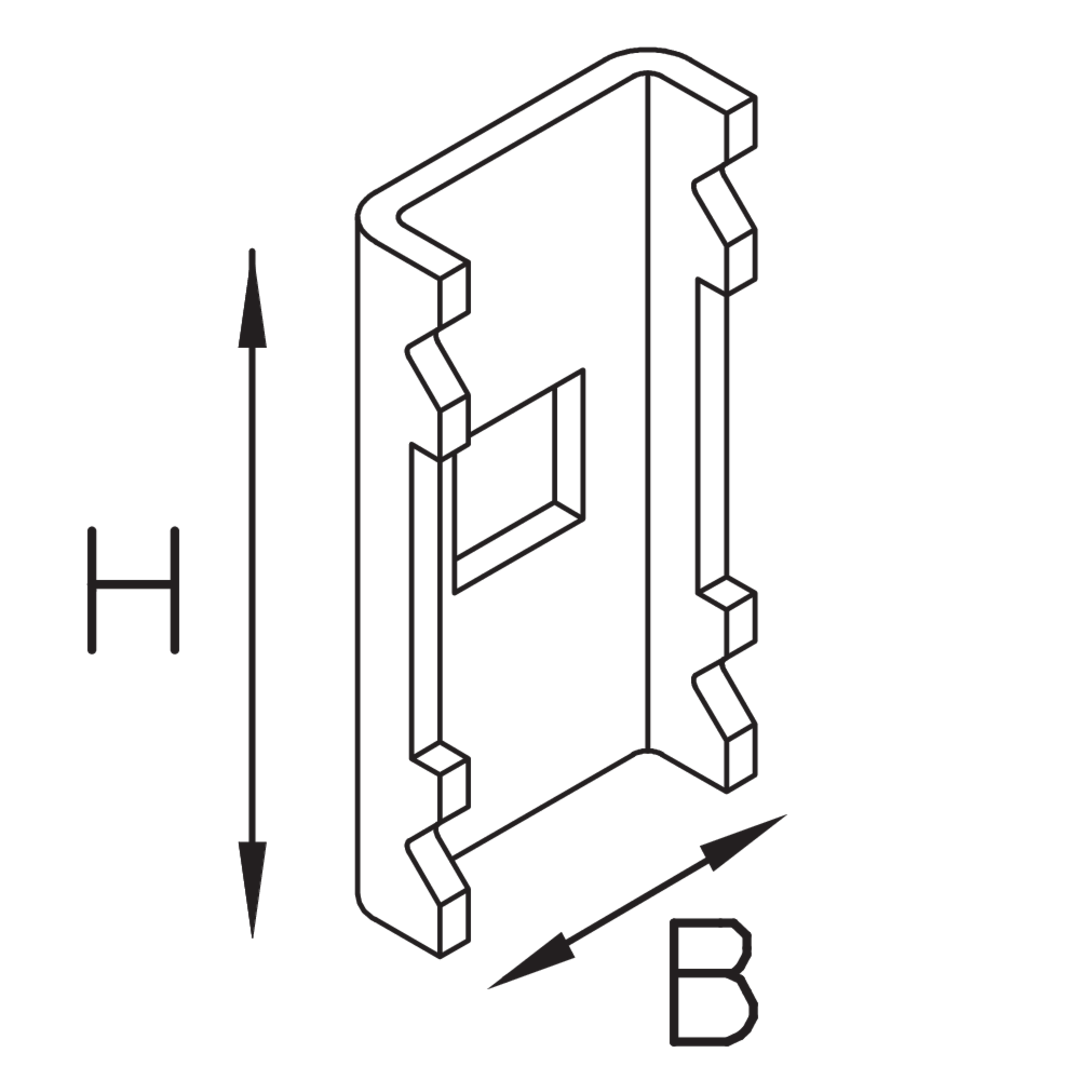

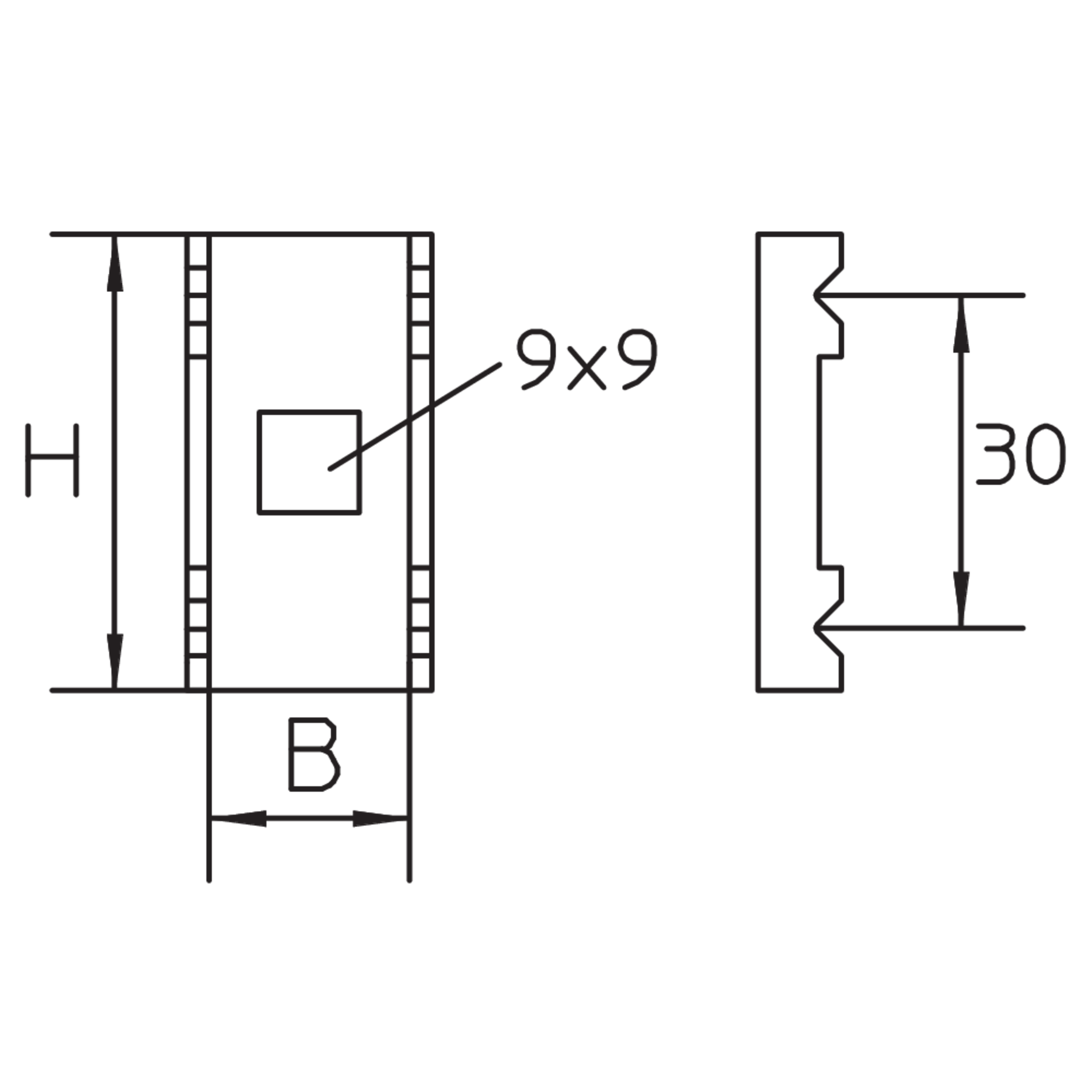

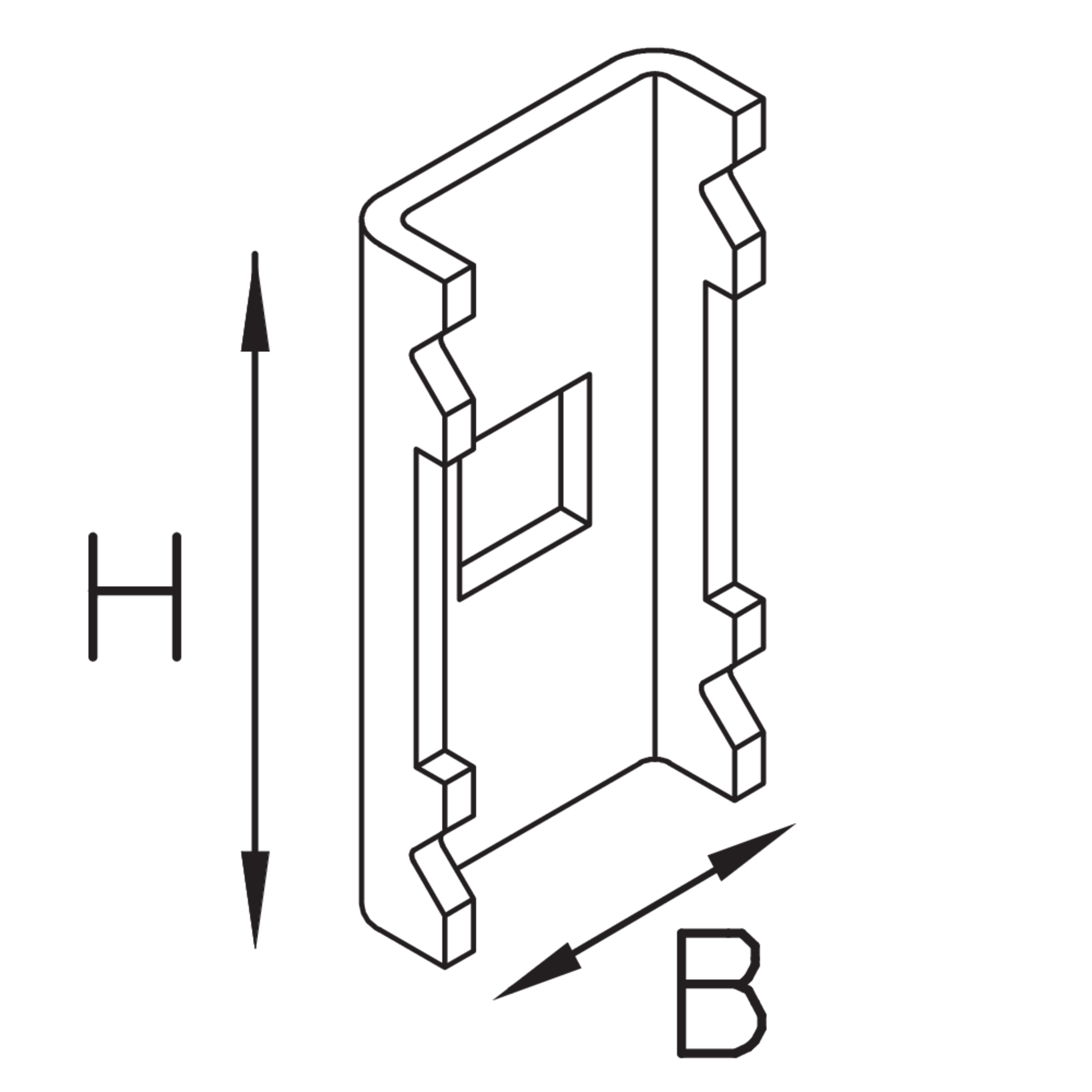

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit

  • GV-L 30F
    Verbinder-Lasche
    Höhe
    41 mm
    Breite
    22 mm
    Länge
    8 mm
    Gewicht je Lagermengeneinheit
    0.017 kg

Stahl, galvanisch verzinkt

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit

  • GV-L 30GV
    Verbinder-Lasche
    Höhe
    41 mm
    Breite
    22 mm
    Länge
    8 mm
    Gewicht je Lagermengeneinheit
    0.017 kg

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit

  • GV-L 30E
    Verbinder-Lasche
    Höhe
    41 mm
    Breite
    22 mm
    Länge
    8 mm
    Gewicht je Lagermengeneinheit
    0.016 kg

Edelstahl, Werkstoff Nr. 1.4571/1.4404 (V4A)

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit

  • GV-L 30E4
    Verbinder-Lasche
    Höhe
    41 mm
    Breite
    22 mm
    Länge
    8 mm
    Gewicht je Lagermengeneinheit
    0.016 kg
