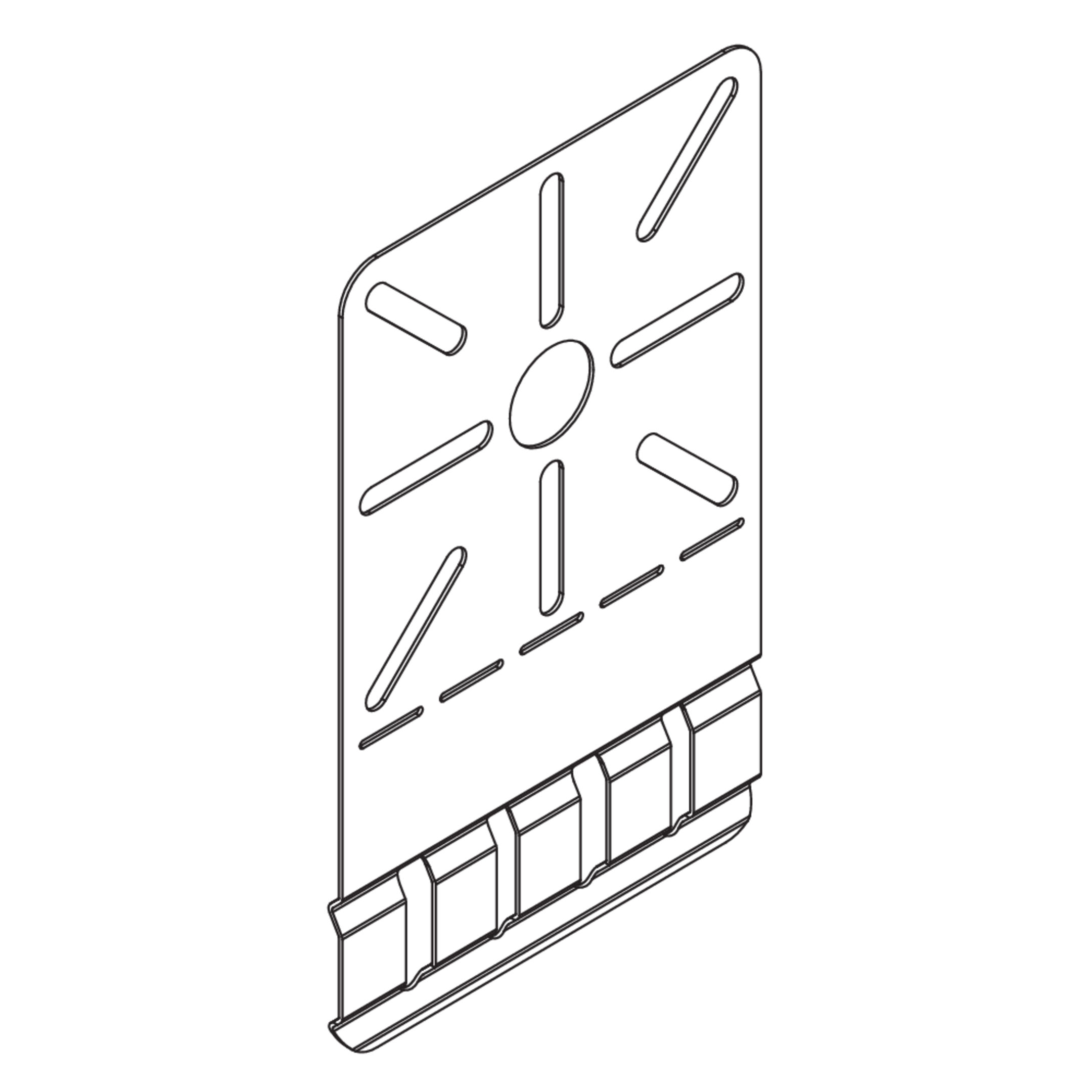

MP-G

Mounting plate

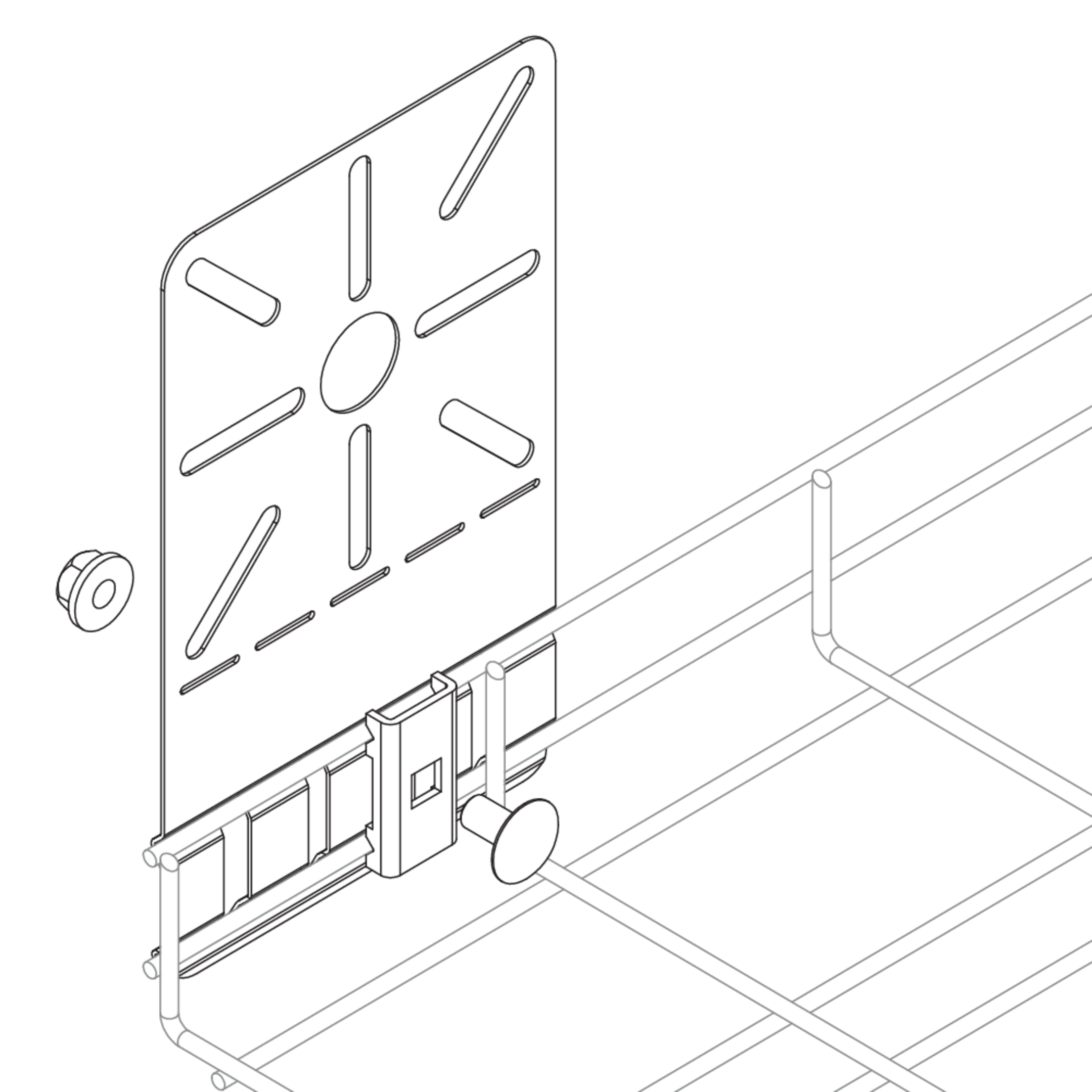

The mounting plate MP-G can be used e.g. to attach junction boxes to mesh cable trays. The plate itself is mounted on the mesh cable tray with the mesh cable tray connector GV 30. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Variants

Stahl, band-/sendzimirverzinkt

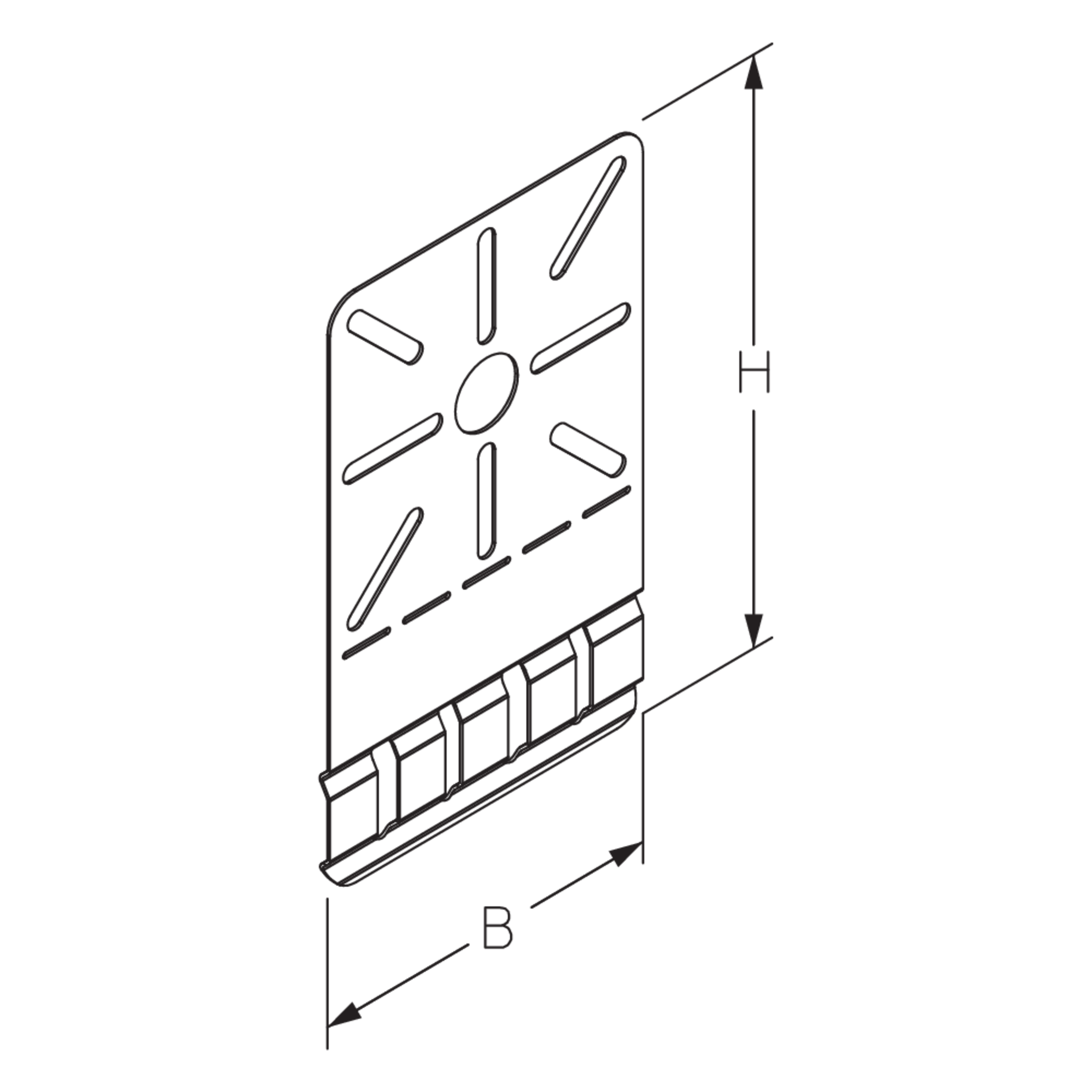

Article

H

Höhe

B

Breite

t

Materialstärke

G

Gewicht je Lagermengeneinheit

  • MP-G 50S
    Montageplatte
    Höhe
    198 mm
    Breite
    120 mm
    Materialstärke
    1.00 mm
    Gewicht je Lagermengeneinheit
    0.165 kg
    Included accessories

Stahl, stück-/tauchfeuerverzinkt

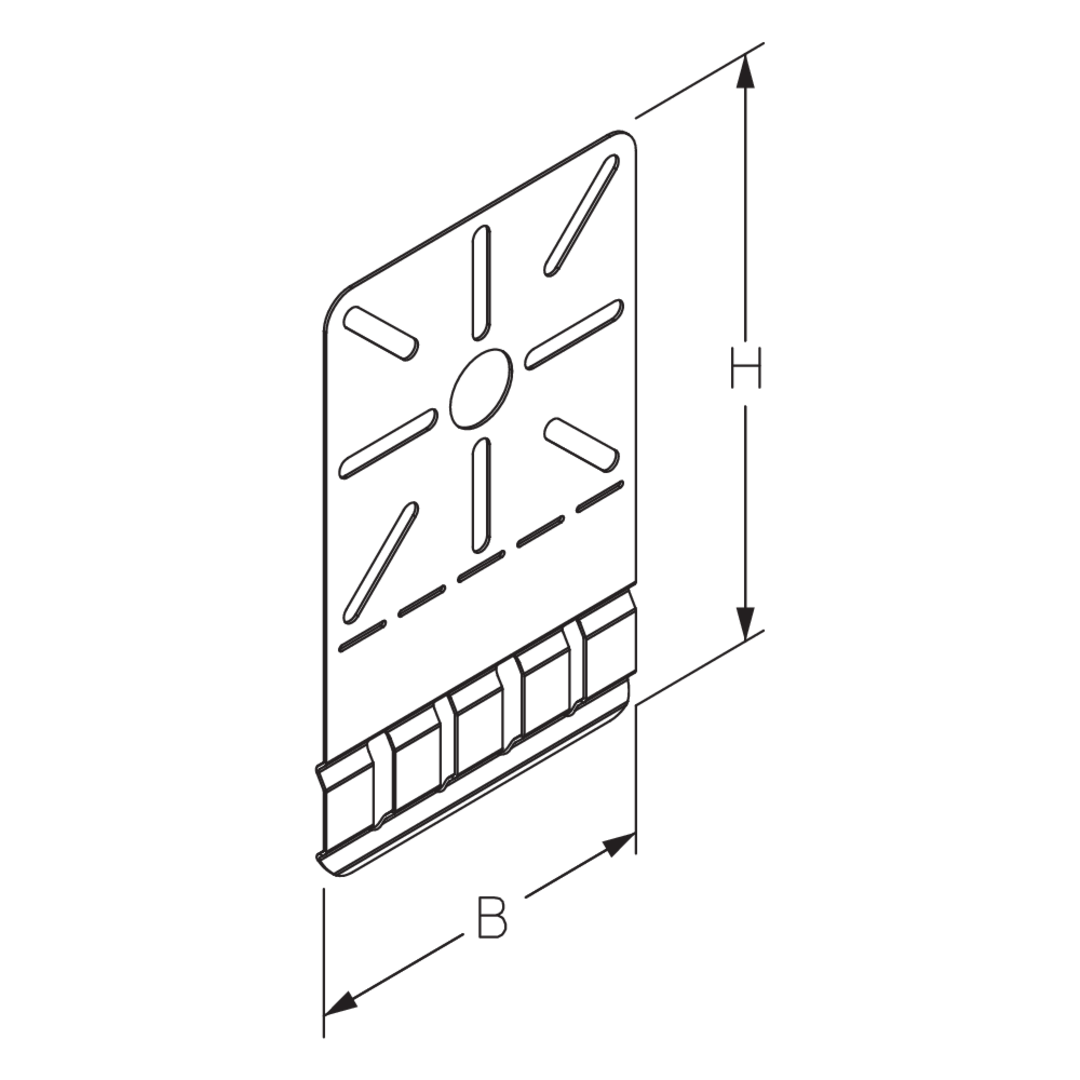

Article

H

Höhe

B

Breite

t

Materialstärke

G

Gewicht je Lagermengeneinheit

  • MP-G 50F
    Montageplatte
    Höhe
    198 mm
    Breite
    120 mm
    Materialstärke
    1.00 mm
    Gewicht je Lagermengeneinheit
    0.175 kg
    Included accessories

Edelstahl, Werkstoff Nr. 1.4571/1.4404 (V4A)

Article

H

Höhe

B

Breite

t

Materialstärke

G

Gewicht je Lagermengeneinheit

  • MP-G 50E4
    Montageplatte
    Höhe
    198 mm
    Breite
    120 mm
    Materialstärke
    1.00 mm
    Gewicht je Lagermengeneinheit
    0.164 kg
    Included accessories
