MP-G90

Mounting plate 90°

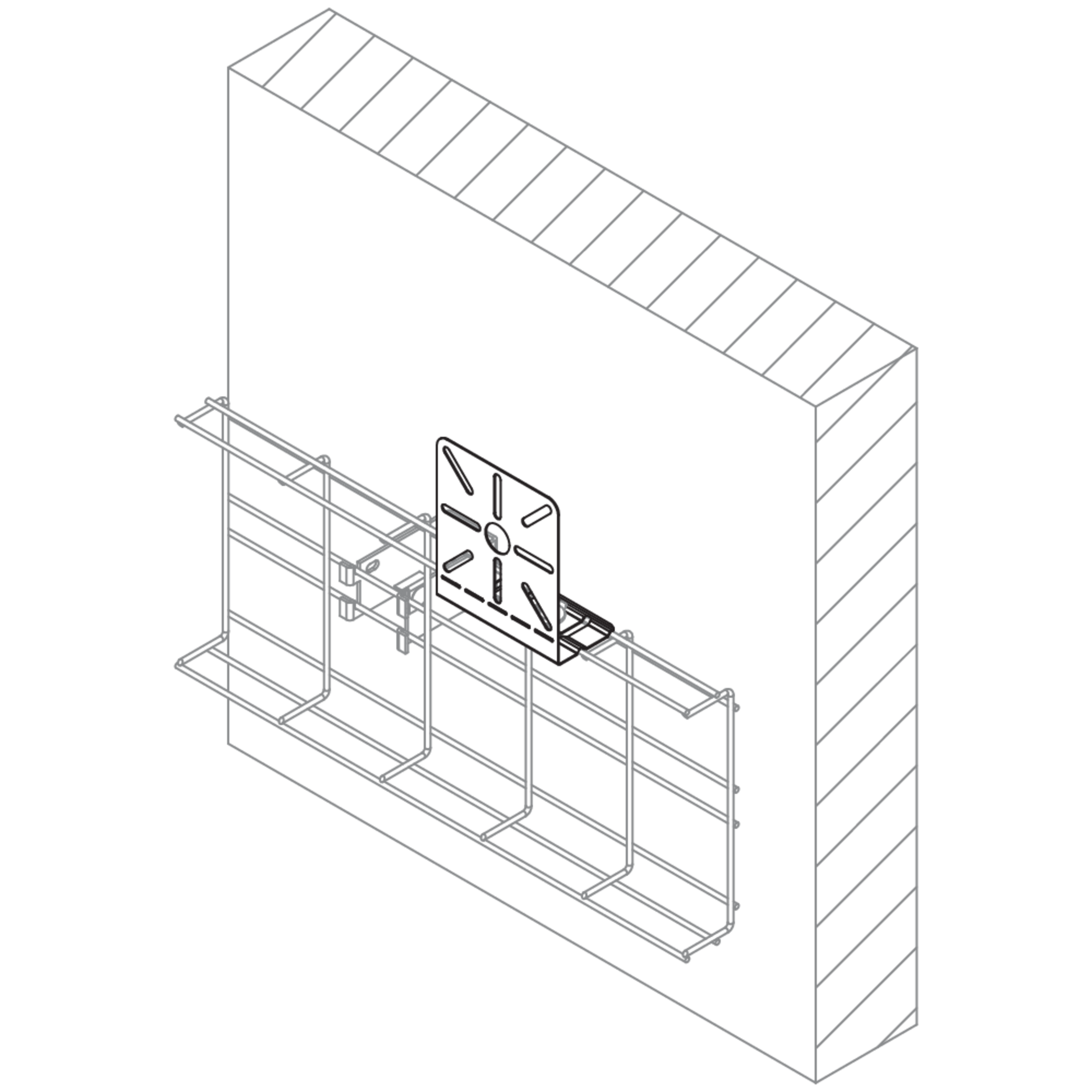

The mounting plate MP-G90 can be used e.g. to attach junction boxes to mesh cable trays. The panel itself is mounted on the mesh cable tray with the mesh cable tray connector GV 30. Additional mounting solutions are possible thank to the 90° angled fastener. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touch Download datasheet

Variants

Stahl, band-/sendzimirverzinkt

MP-G90 50S
Montageplatte

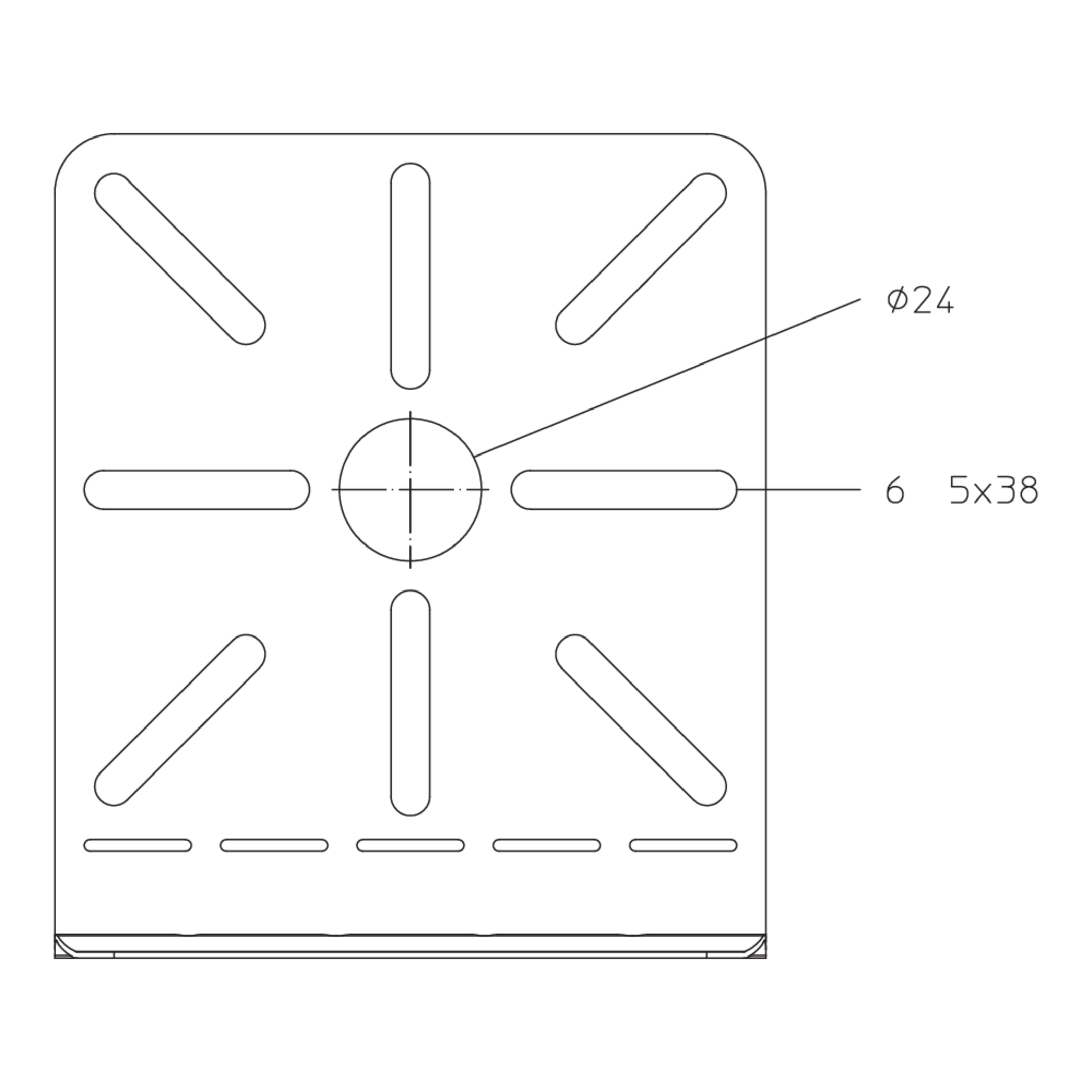

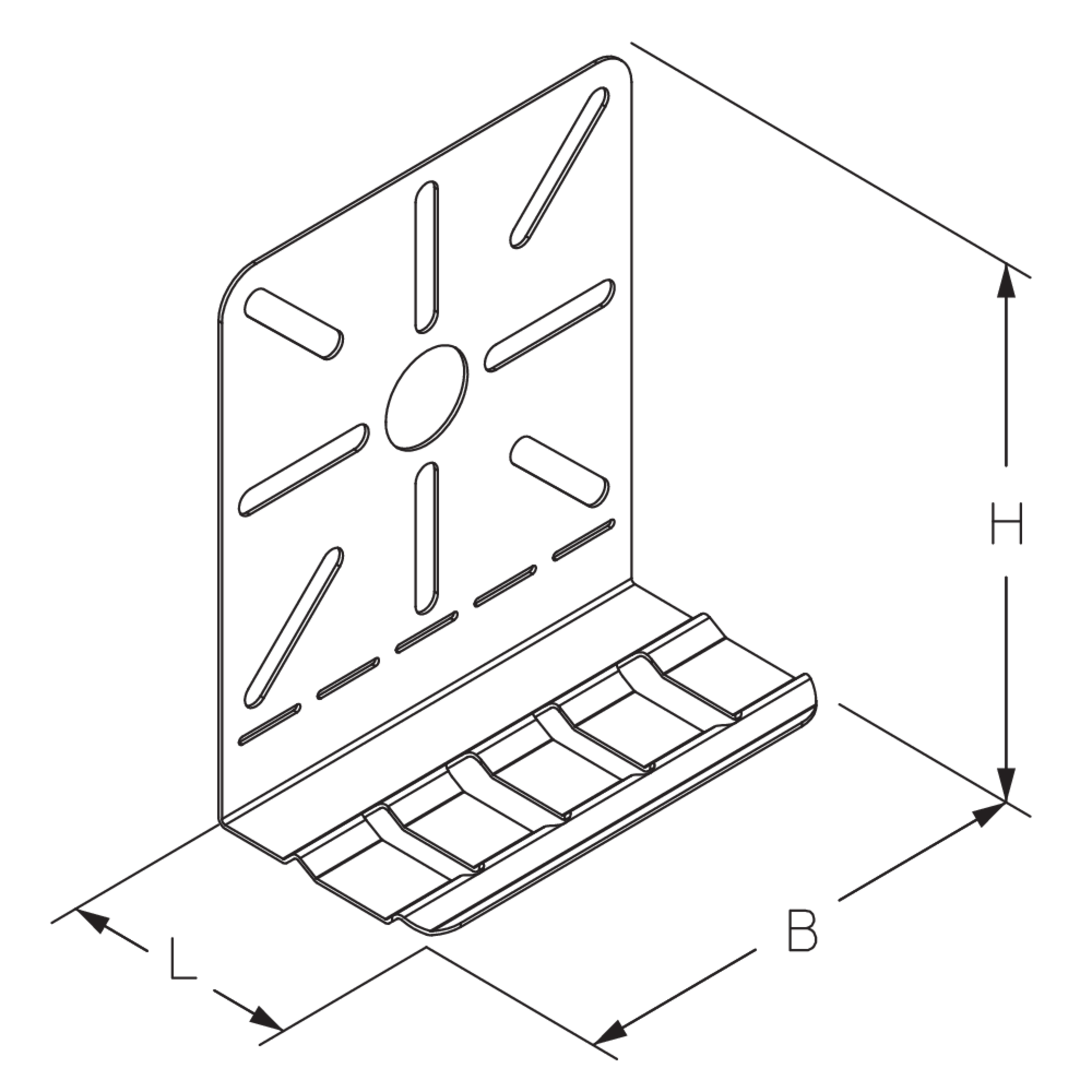

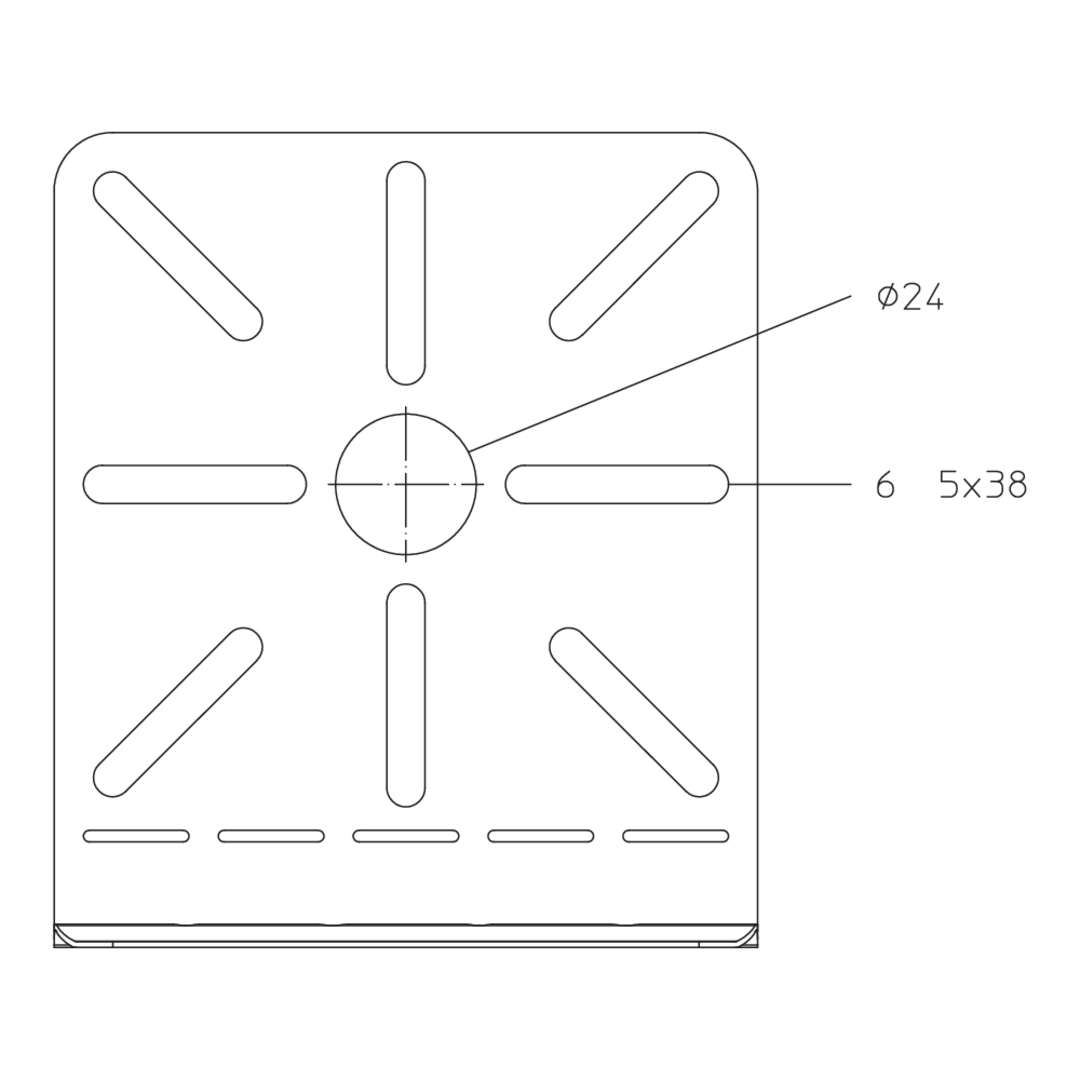

Höhe
139 mm
Breite
120 mm
Länge
61 mm
Materialstärke
1.00 mm
Gewicht je Lagermengeneinheit
0.195 kg
Included accessories
More information

Stahl, stück-/tauchfeuerverzinkt

MP-G90 50F
Montageplatte
Höhe
139 mm
Breite
120 mm
Länge
61 mm
Materialstärke
1.00 mm
Gewicht je Lagermengeneinheit
0.206 kg
Included accessories
More information

Edelstahl, Werkstoff Nr. 1.4571/1.4404 (V4A)

MP-G90 50E4
Montageplatte
Höhe
139 mm
Breite
120 mm
Länge
61 mm
Materialstärke
1.00 mm
Gewicht je Lagermengeneinheit
0.195 kg
Included accessories
More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link

Heinze.de

Tender text for this product

Open Link
