GVU

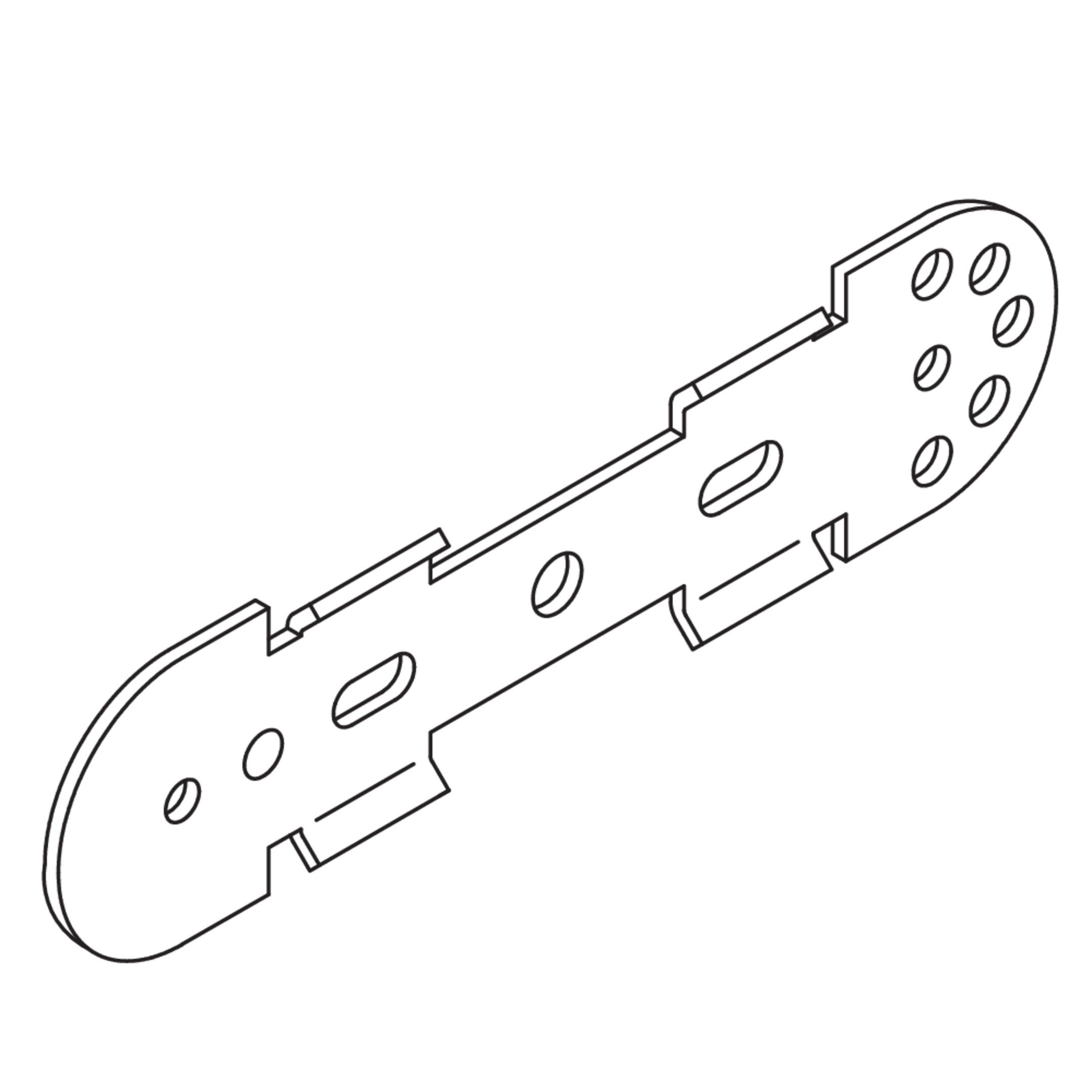

Mesh cable tray universal connector

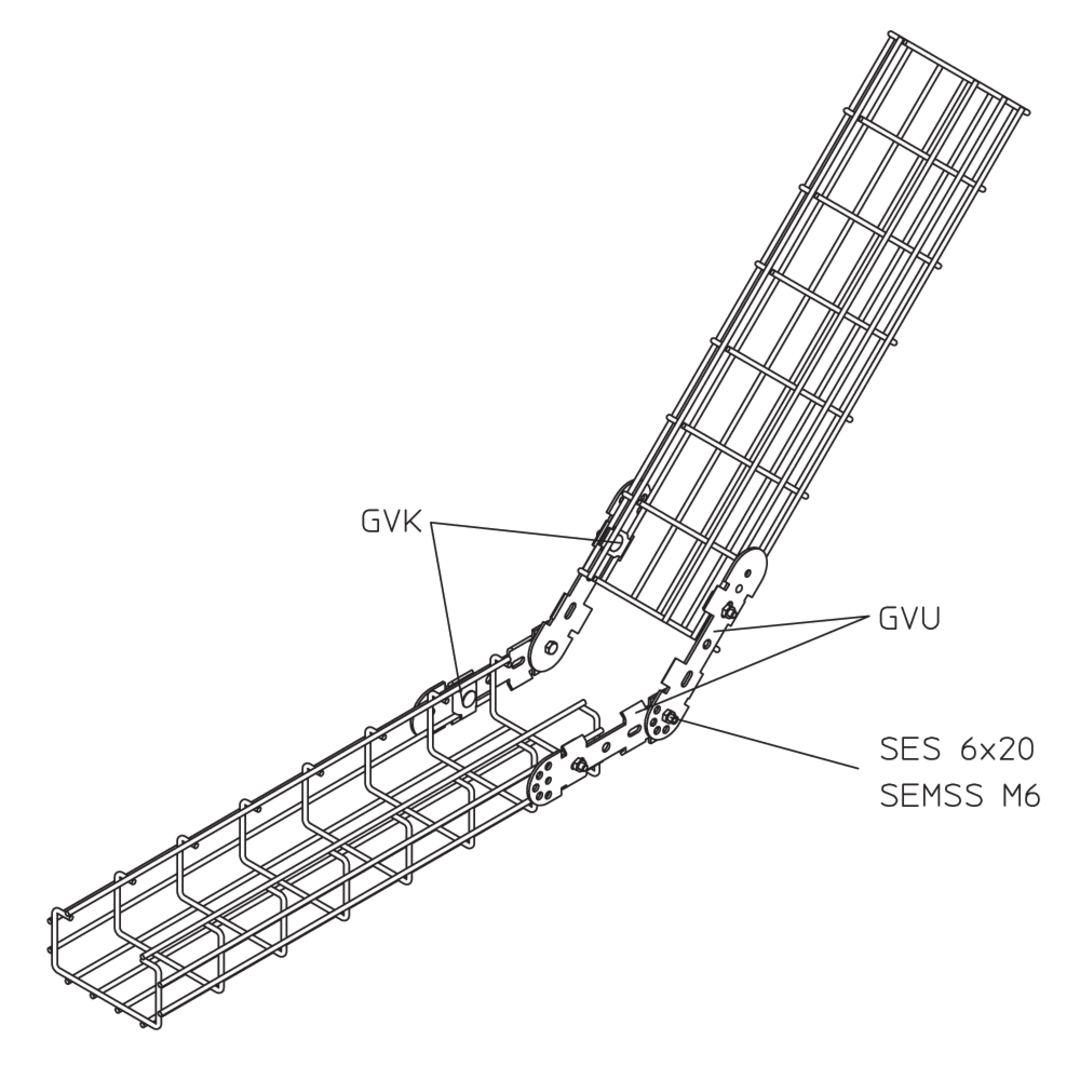

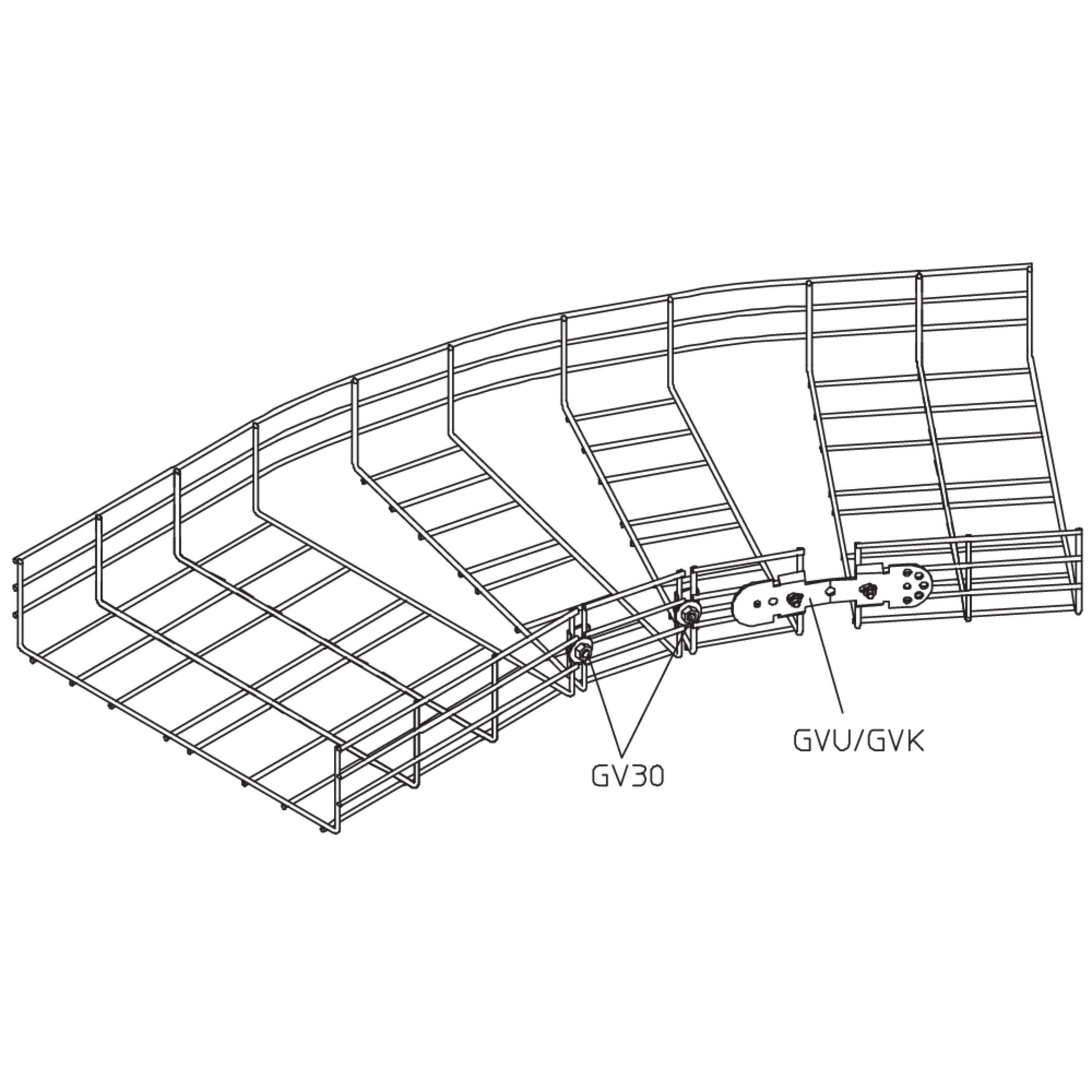

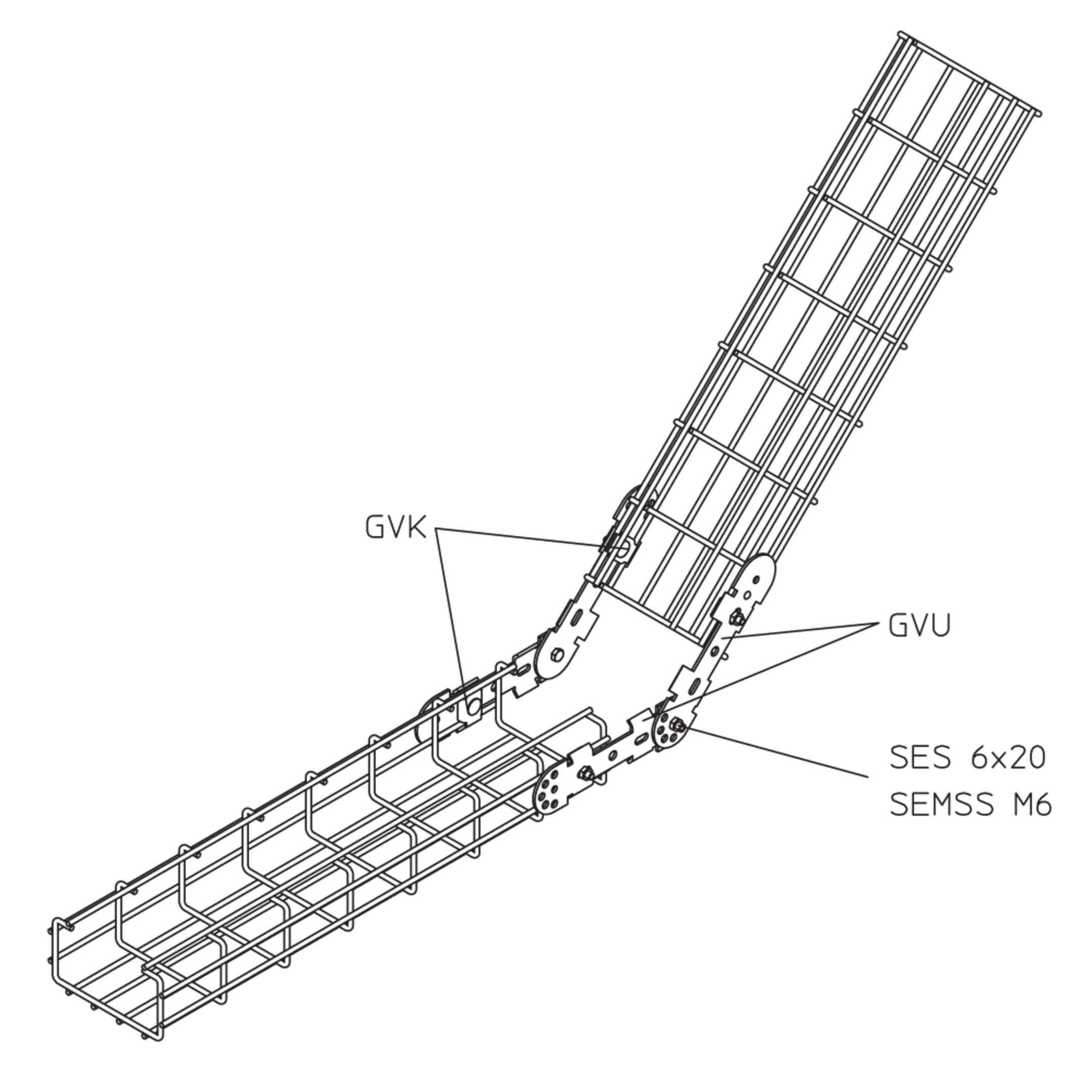

Mesh cable trays can be mounted quickly and easily in a straight orientation using GVU mesh cable tray universal connectors. For horizontal changes of direction (mesh cable tray bends and branches) and vertical changes of direction, the mesh cable tray connector GVU is used along with two GVK mesh cable tray connector clamping pieces. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

H

Höhe

L

Länge

t

Materialstärke

G

Gewicht je Lagermengeneinheit

  • GVU F
    Gitterbahn-Universalverbinder

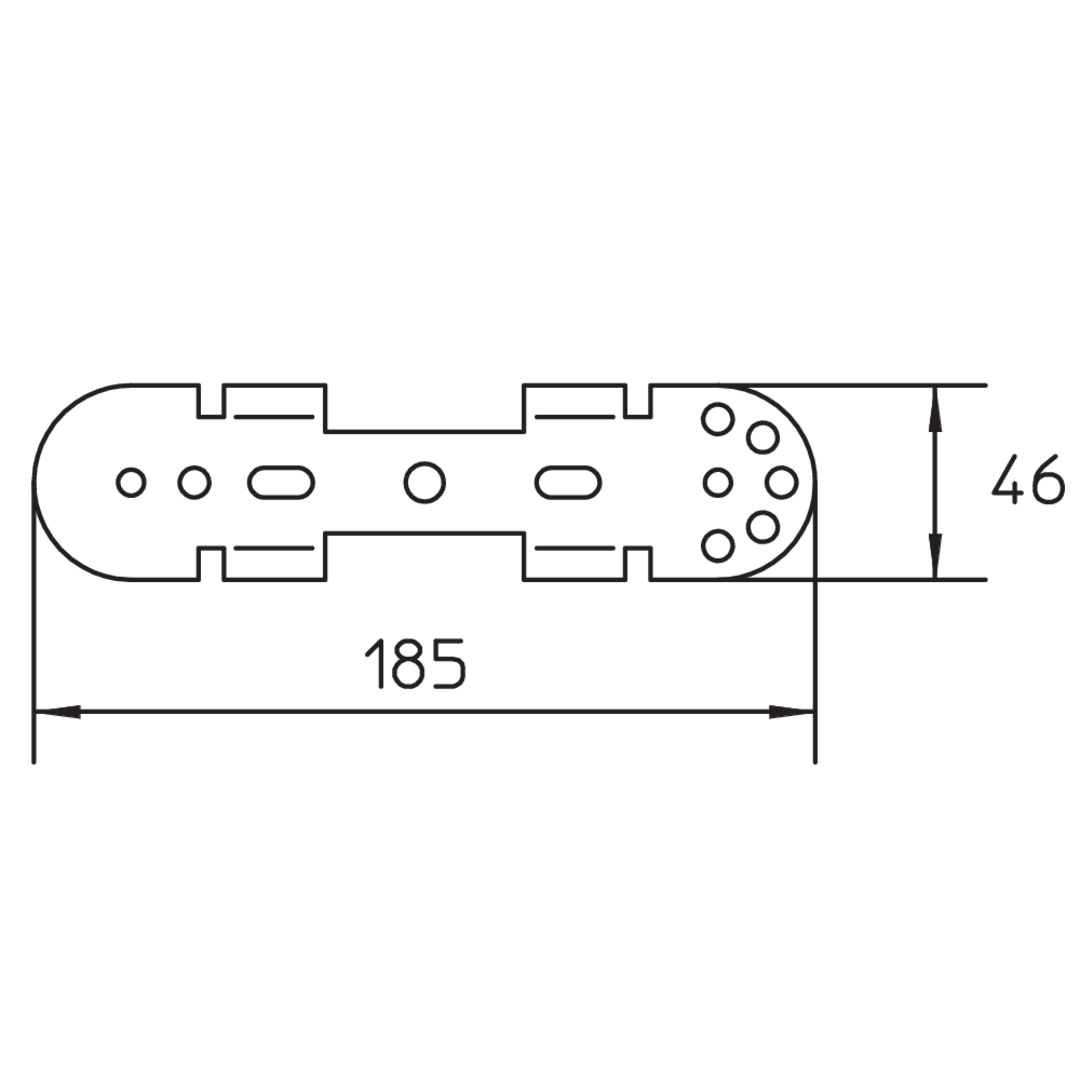

    Höhe
    46 mm
    Länge
    185 mm
    Materialstärke
    2 mm
    Gewicht je Lagermengeneinheit
    0.133 kg

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

Article

H

Höhe

L

Länge

t

Materialstärke

G

Gewicht je Lagermengeneinheit

  • GVU E
    Gitterbahn-Universalverbinder
    Höhe
    46 mm
    Länge
    185 mm
    Materialstärke
    2 mm
    Gewicht je Lagermengeneinheit
    0.098 kg

Edelstahl, Werkstoff Nr. 1.4571/1.4404 (V4A)

Article

H

Höhe

L

Länge

t

Materialstärke

G

Gewicht je Lagermengeneinheit

  • GVU E4
    Gitterbahn-Universalverbinder
    Höhe
    46 mm
    Länge
    185 mm
    Materialstärke
    2 mm
    Gewicht je Lagermengeneinheit
    0.098 kg

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link
