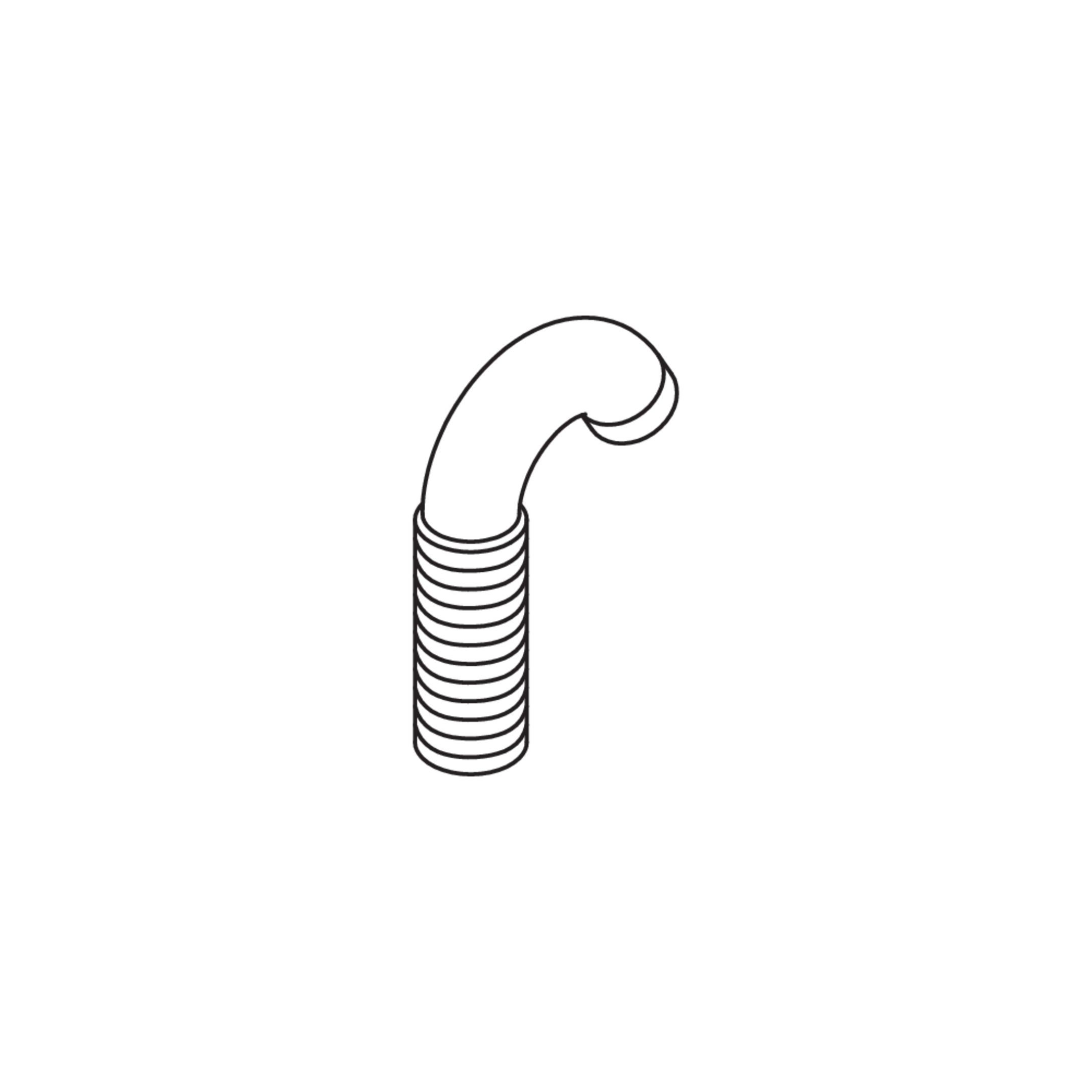

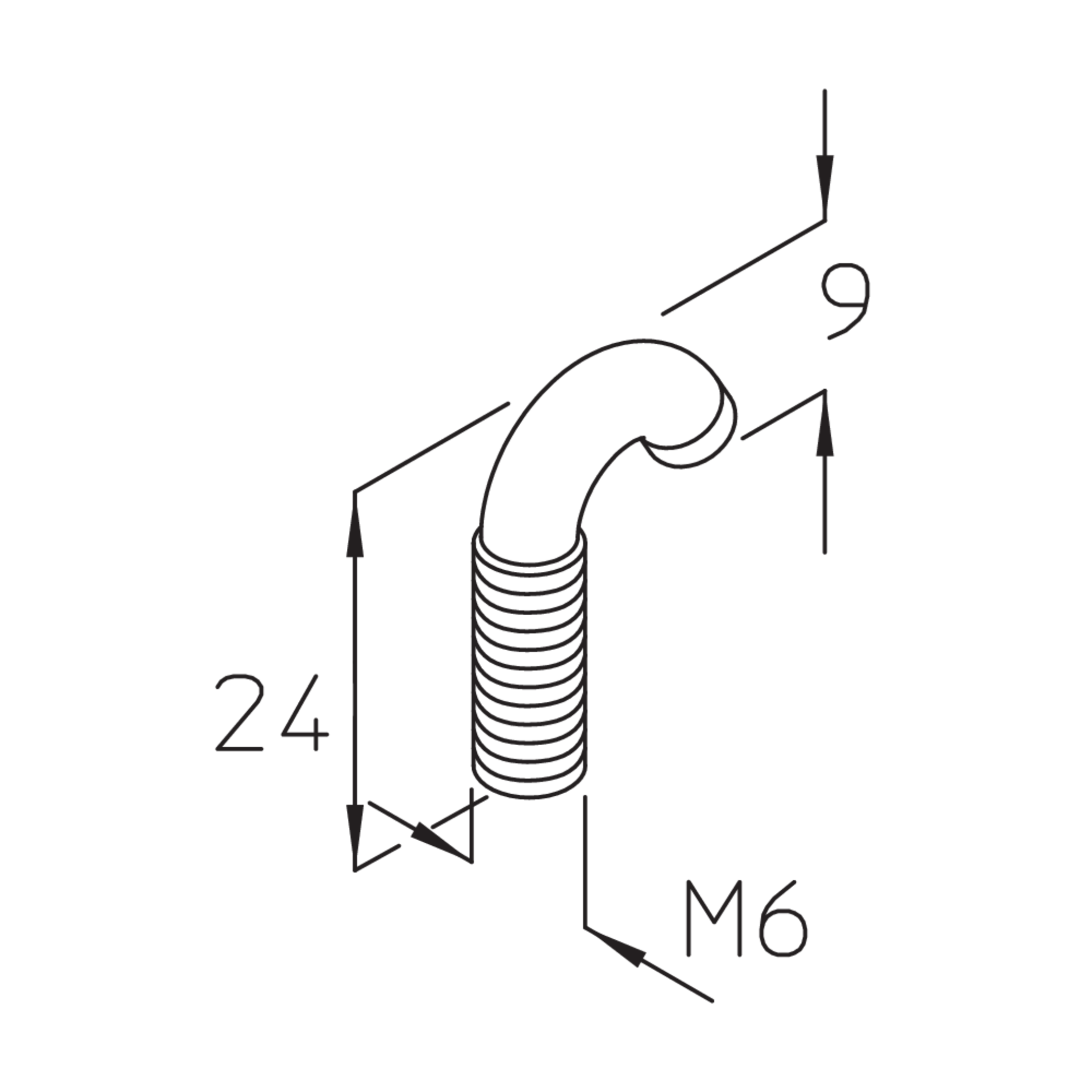

GH 6x24

Mounting hooks

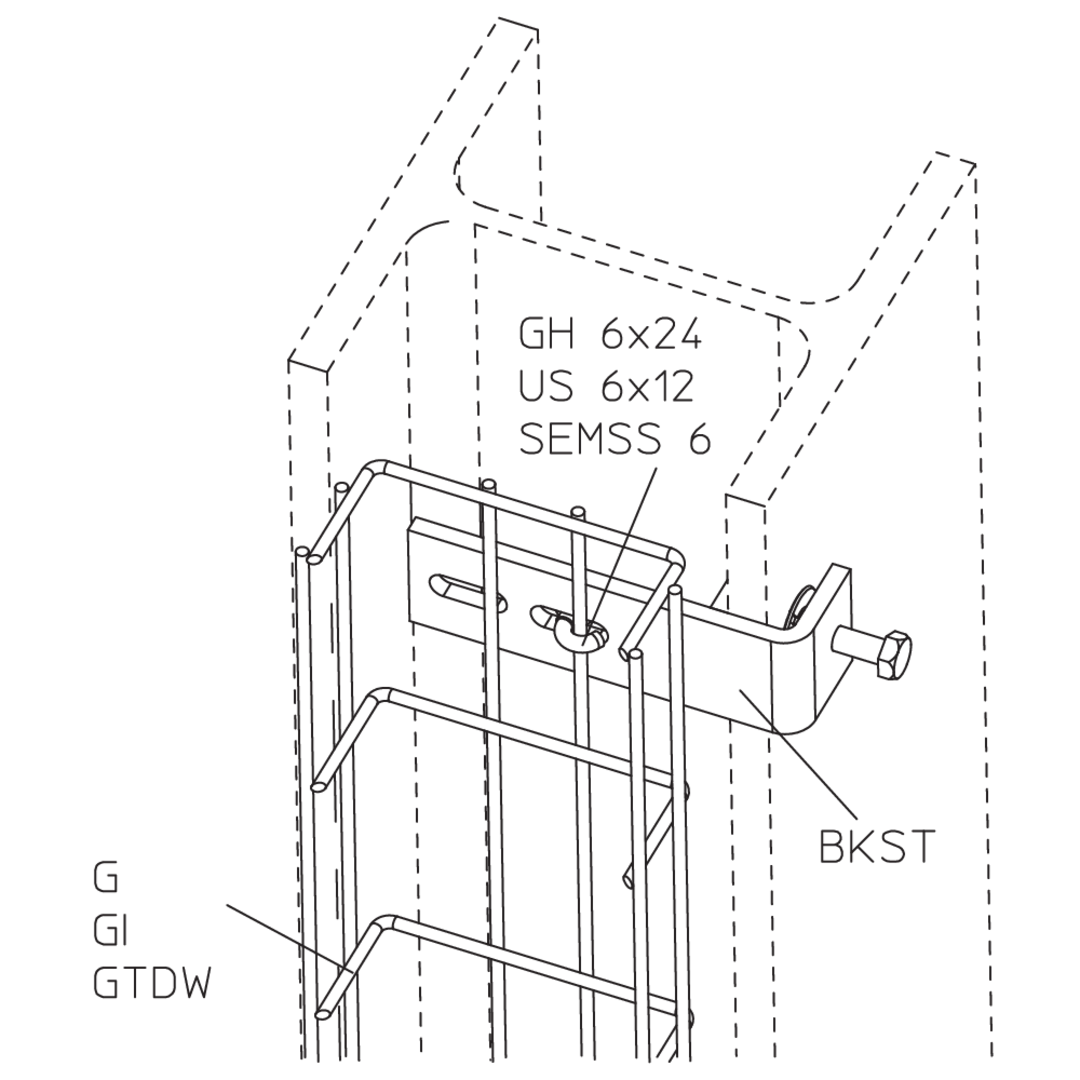

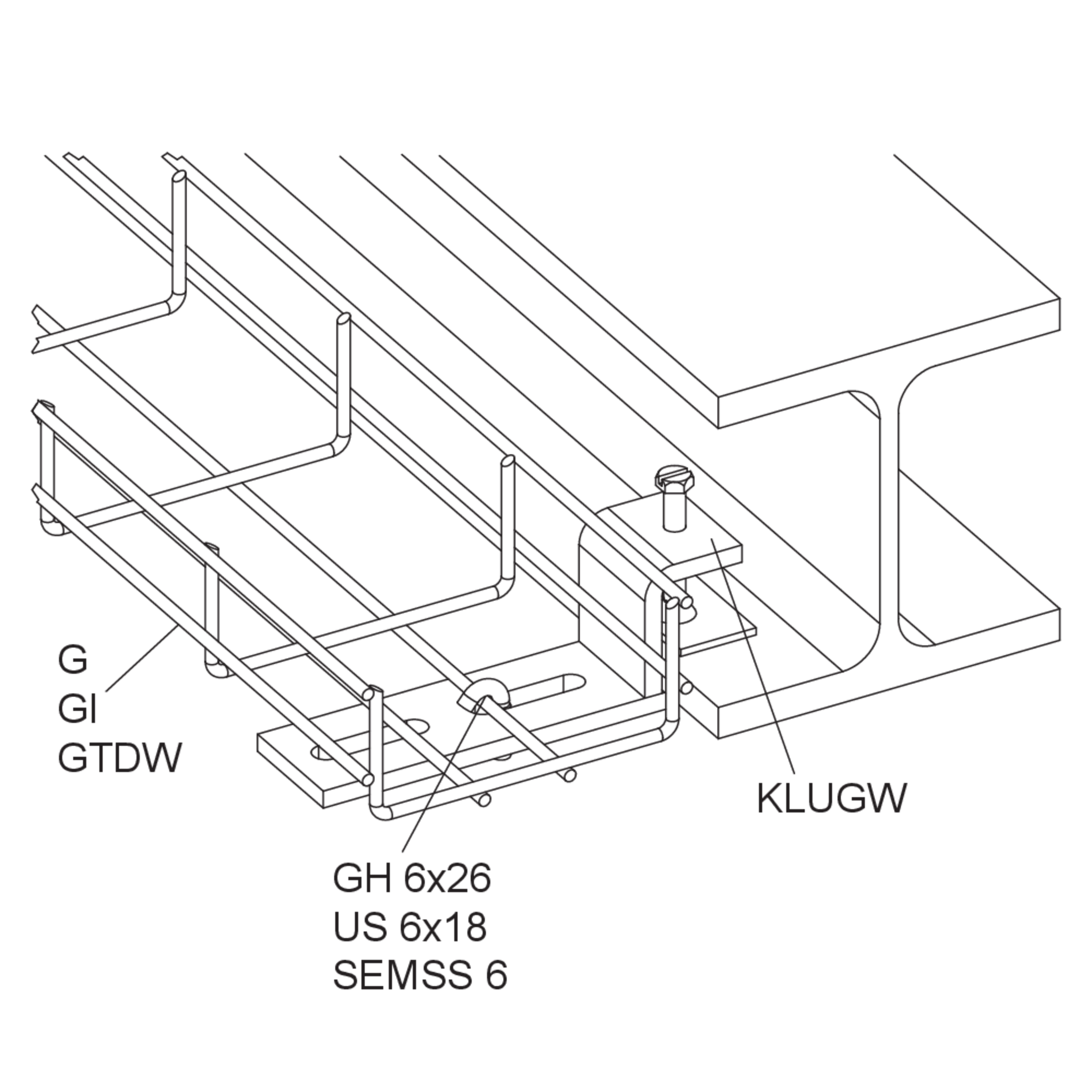

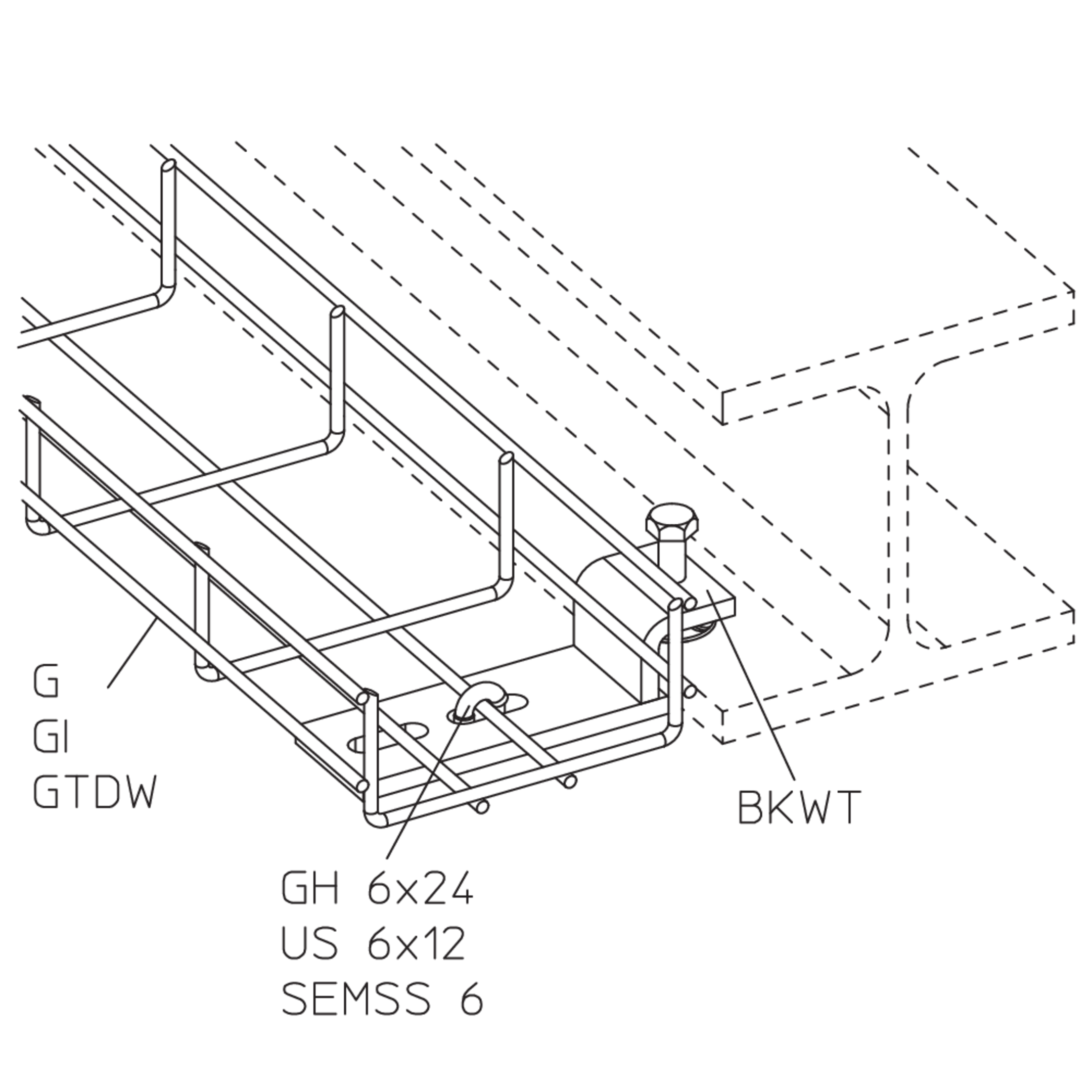

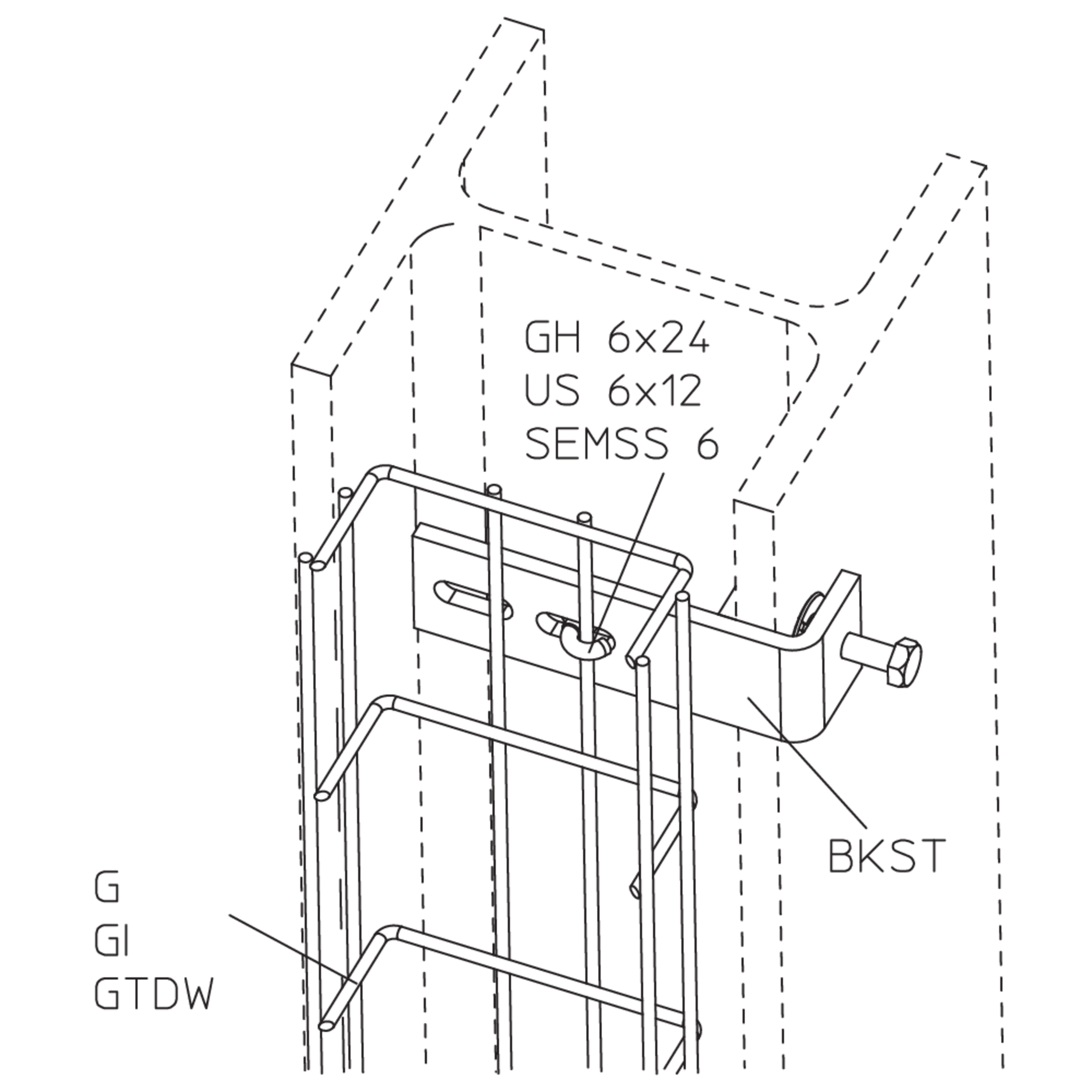

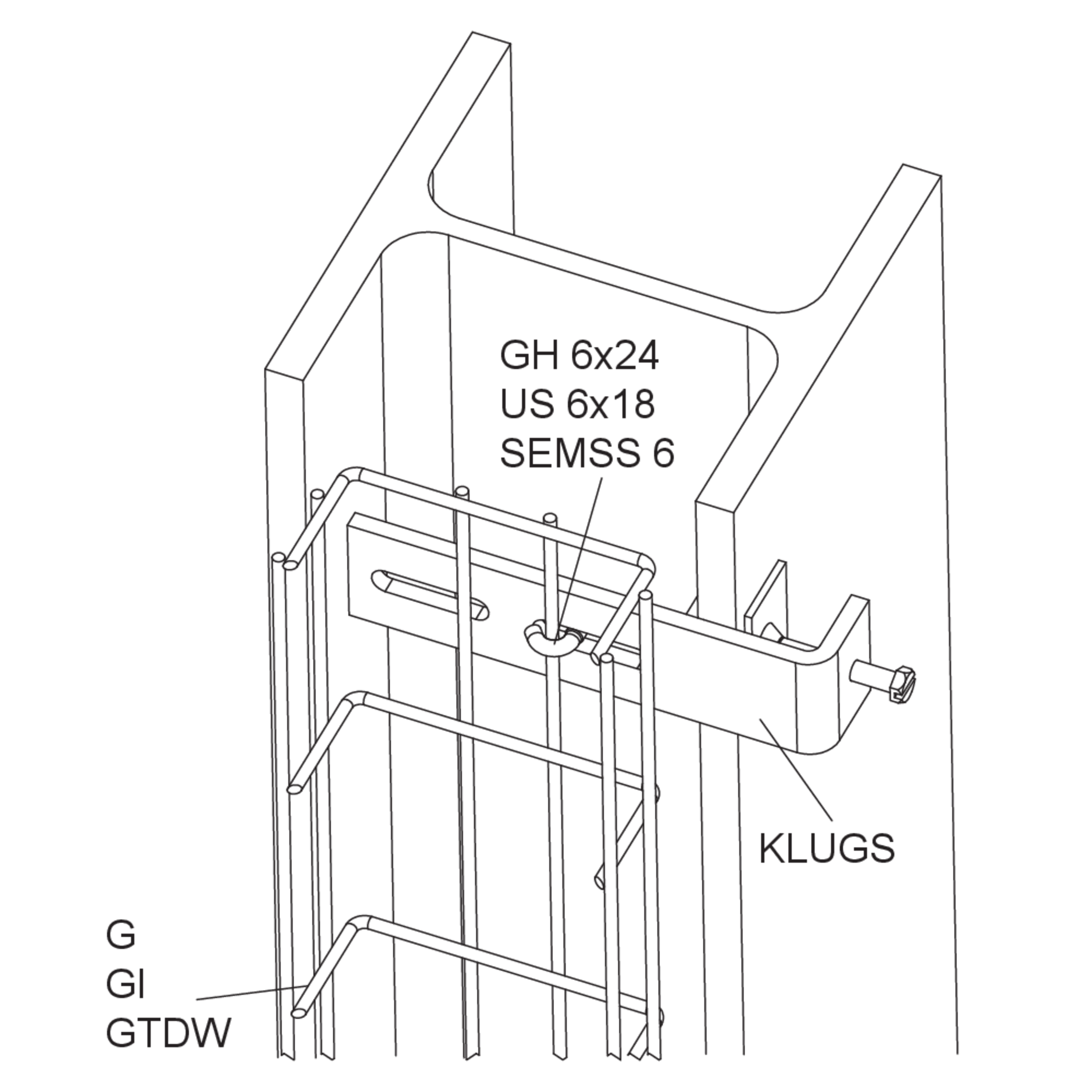

The fastening hook GH 6x24 can be used to fasten mesh cable trays or to mount parts on mesh cable trays. It is part of the storm protection bracket GD-SW or GID-SW. In addition, it can be used along with the KLUGS and KLUGW fixing clamps and the MKD L connecting link when installing mesh cable trays on steel beams. It is made of stainless steel.

Variants

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

Article

G

Gewicht je Lagermengeneinheit

  • GH 6X24E
    Befestigungshaken für Gitterbahn
    Gewicht je Lagermengeneinheit
    0.006 kg

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

    Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    • de

    • en

    Cable trays - Assembly instructions

    • de

    • en

    Mesh cable trays - Technical information

    • de

    • en

    PDF, 532.66 KB

    • de

    Download
