Art.-Nr. GI 20E4

Wire-mesh cable tray GI 20E

Mesh cable tray, C-shaped, height = 75 mm

The C-shaped mesh cable tray GI has sides 75 mm high and is available in different widths. The standard length is 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Art.-Nr.
GI 20E4
height
75 mm
width
216 mm
length
3000 mm
material thickness
4.50 mm
distributed load control cable
0.17 kN/m
cross section area
113 cm2
Weight per storage unit
5.660 kg
No stepping
Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit
  • GI 06S
    Wire-mesh cable tray GI 06S
    height
    75 mm
    width
    76 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.05 kN/m
    cross section area
    33 cm2
    Weight per storage unit
    4.100 kg
    More information
  • GI 12S
    Wire-mesh cable tray GI 12S
    height
    75 mm
    width
    136 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.1 kN/m
    cross section area
    67 cm2
    Weight per storage unit
    5.160 kg
    More information
  • GI 20S
    Wire-mesh cable tray GI 20S
    height
    75 mm
    width
    216 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.17 kN/m
    cross section area
    113 cm2
    Weight per storage unit
    5.570 kg
    More information
  • GI 30S
    Wire-mesh cable tray GI 30S
    height
    75 mm
    width
    316 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.25 kN/m
    cross section area
    165 cm2
    Weight per storage unit
    6.840 kg
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit
  • GI 06F
    Wire-mesh cable tray GI 06F
    height
    75 mm
    width
    76 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.05 kN/m
    cross section area
    33 cm2
    Weight per storage unit
    4.390 kg
    More information
  • GI 12F
    Wire-mesh cable tray GI 12F
    height
    75 mm
    width
    136 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.1 kN/m
    cross section area
    67 cm2
    Weight per storage unit
    5.520 kg
    More information
  • GI 20F
    Wire-mesh cable tray GI 20F
    height
    75 mm
    width
    216 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.17 kN/m
    cross section area
    113 cm2
    Weight per storage unit
    5.960 kg
    More information
  • GI 30F
    Wire-mesh cable tray GI 30F
    height
    75 mm
    width
    316 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.25 kN/m
    cross section area
    165 cm2
    Weight per storage unit
    7.310 kg
    More information

steel, galvanic zinc plated

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit
  • GI 06GV
    Wire-mesh cable tray GI 06S
    height
    75 mm
    width
    76 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.05 kN/m
    cross section area
    33 cm2
    Weight per storage unit
    4.100 kg
    More information
  • GI 12GV
    Wire-mesh cable tray GI 12S
    height
    75 mm
    width
    136 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.1 kN/m
    cross section area
    67 cm2
    Weight per storage unit
    5.160 kg
    More information
  • GI 20GV
    Wire-mesh cable tray GI 20S
    height
    75 mm
    width
    216 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.17 kN/m
    cross section area
    113 cm2
    Weight per storage unit
    5.570 kg
    More information
  • GI 30GV
    Wire-mesh cable tray GI 30S
    height
    75 mm
    width
    316 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.25 kN/m
    cross section area
    165 cm2
    Weight per storage unit
    6.840 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit
  • GI 06E
    Wire-mesh cable tray GI 06E
    height
    75 mm
    width
    76 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.05 kN/m
    cross section area
    33 cm2
    Weight per storage unit
    4.140 kg
    More information
  • GI 12E
    Wire-mesh cable tray GI 12E
    height
    75 mm
    width
    136 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.1 kN/m
    cross section area
    67 cm2
    Weight per storage unit
    5.200 kg
    More information
  • GI 20E
    Wire-mesh cable tray GI 20E
    height
    75 mm
    width
    216 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.17 kN/m
    cross section area
    113 cm2
    Weight per storage unit
    5.620 kg
    More information
  • GI 30E
    Wire-mesh cable tray GI 30E
    height
    75 mm
    width
    316 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.25 kN/m
    cross section area
    165 cm2
    Weight per storage unit
    6.890 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit
  • GI 06E4
    Wire-mesh cable tray
    height
    75 mm
    width
    76 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.05 kN/m
    cross section area
    33 cm2
    Weight per storage unit
    4.170 kg
    More information
  • GI 12E4
    Wire-mesh cable tray GI 12E
    height
    75 mm
    width
    136 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.1 kN/m
    cross section area
    67 cm2
    Weight per storage unit
    5.250 kg
    More information
  • GI 20E4
    Wire-mesh cable tray GI 20E
    height
    75 mm
    width
    216 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.17 kN/m
    cross section area
    113 cm2
    Weight per storage unit
    5.660 kg
    More information
  • GI 30E4
    Wire-mesh cable tray GI 30E
    height
    75 mm
    width
    316 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.25 kN/m
    cross section area
    165 cm2
    Weight per storage unit
    6.950 kg
    More information

Details

  • No stepping

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

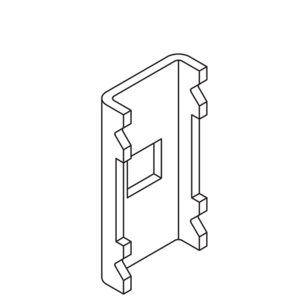

Accessories

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Cable trays - Assembly instructions

    Montageanleitung

    PDF, 4 MB

    de en

  • Mesh cable trays - Technical information

    Technische Information

    PDF, 2 MB

    de en

Load diagram
