WPR 150

Wide-span cable tray, height = 150 mm

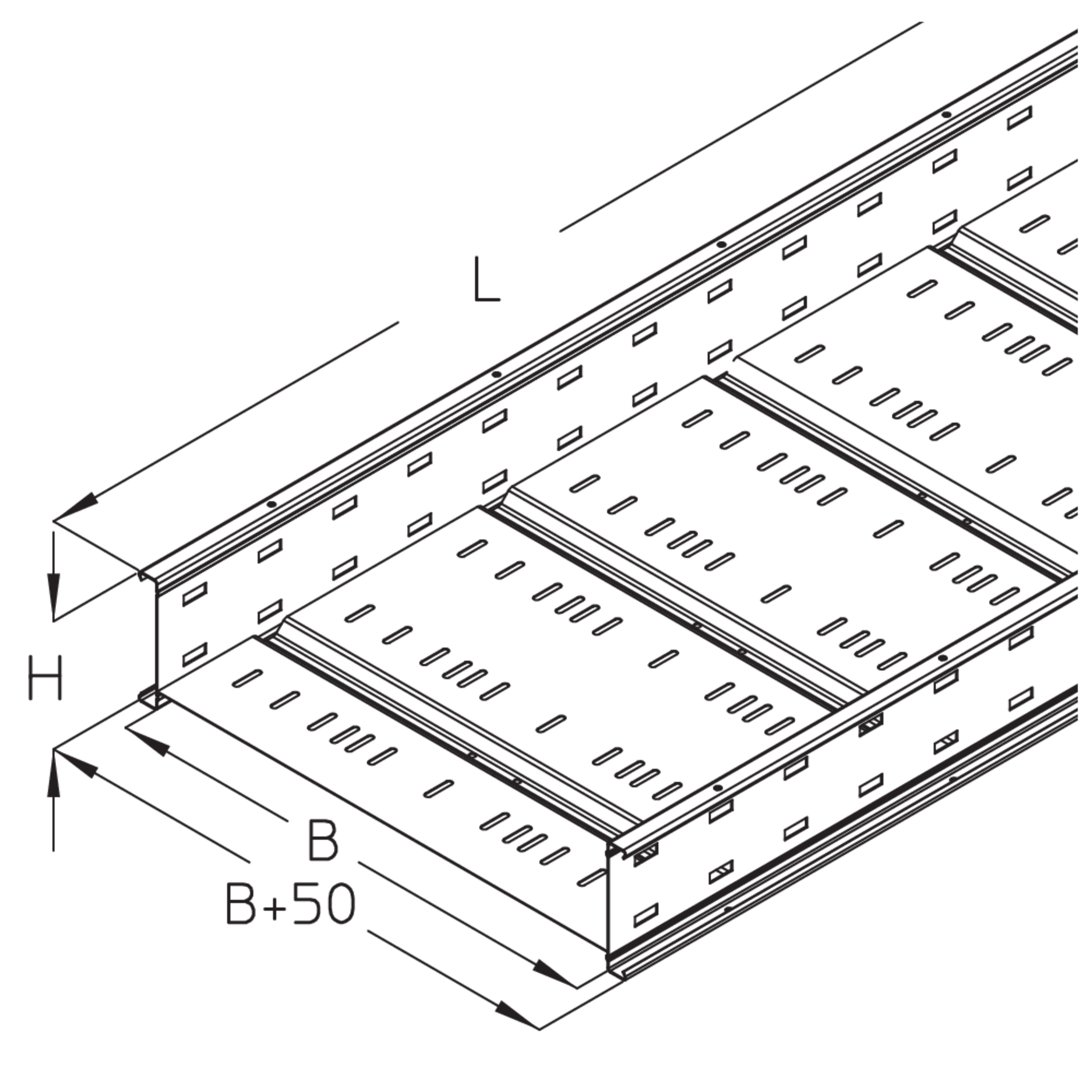

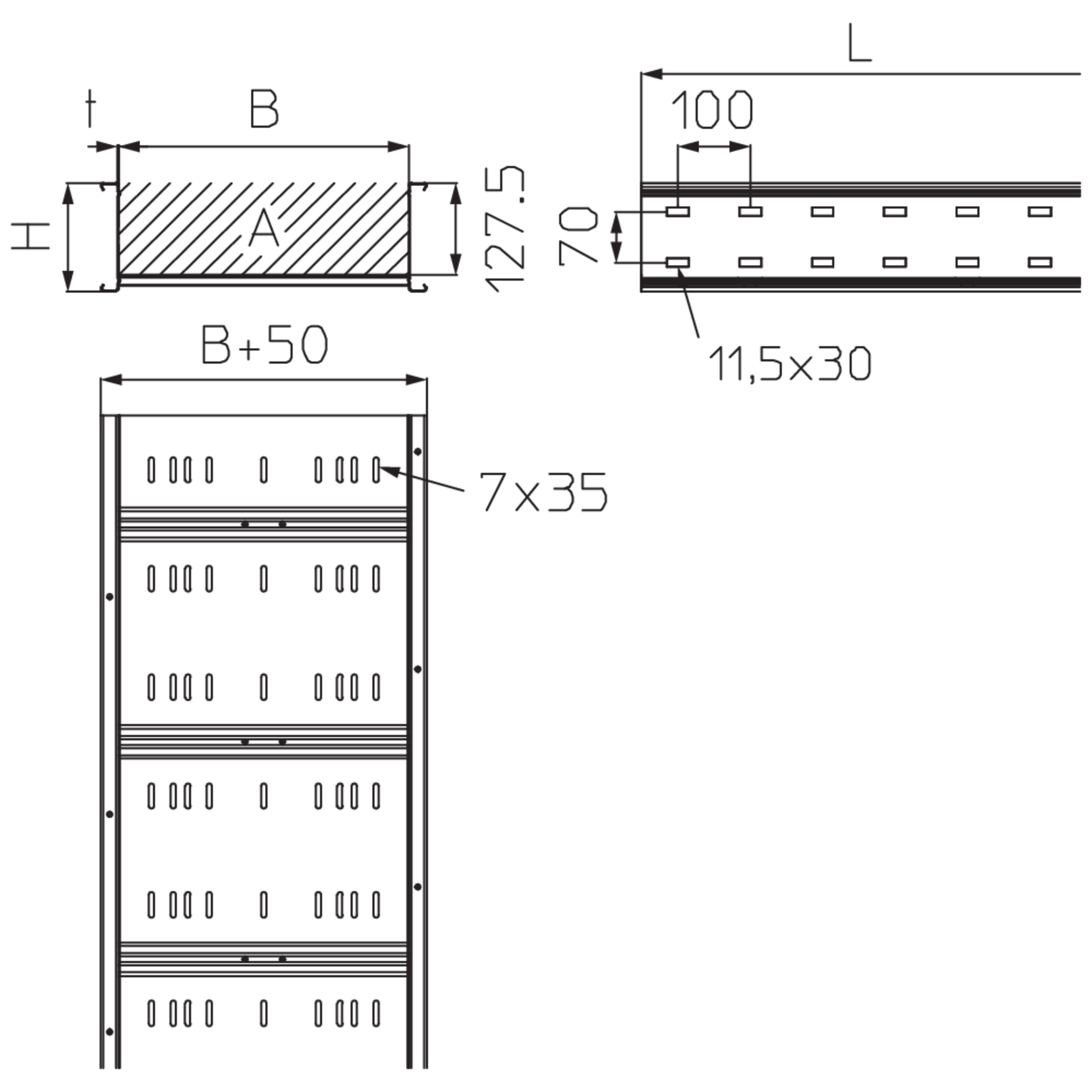

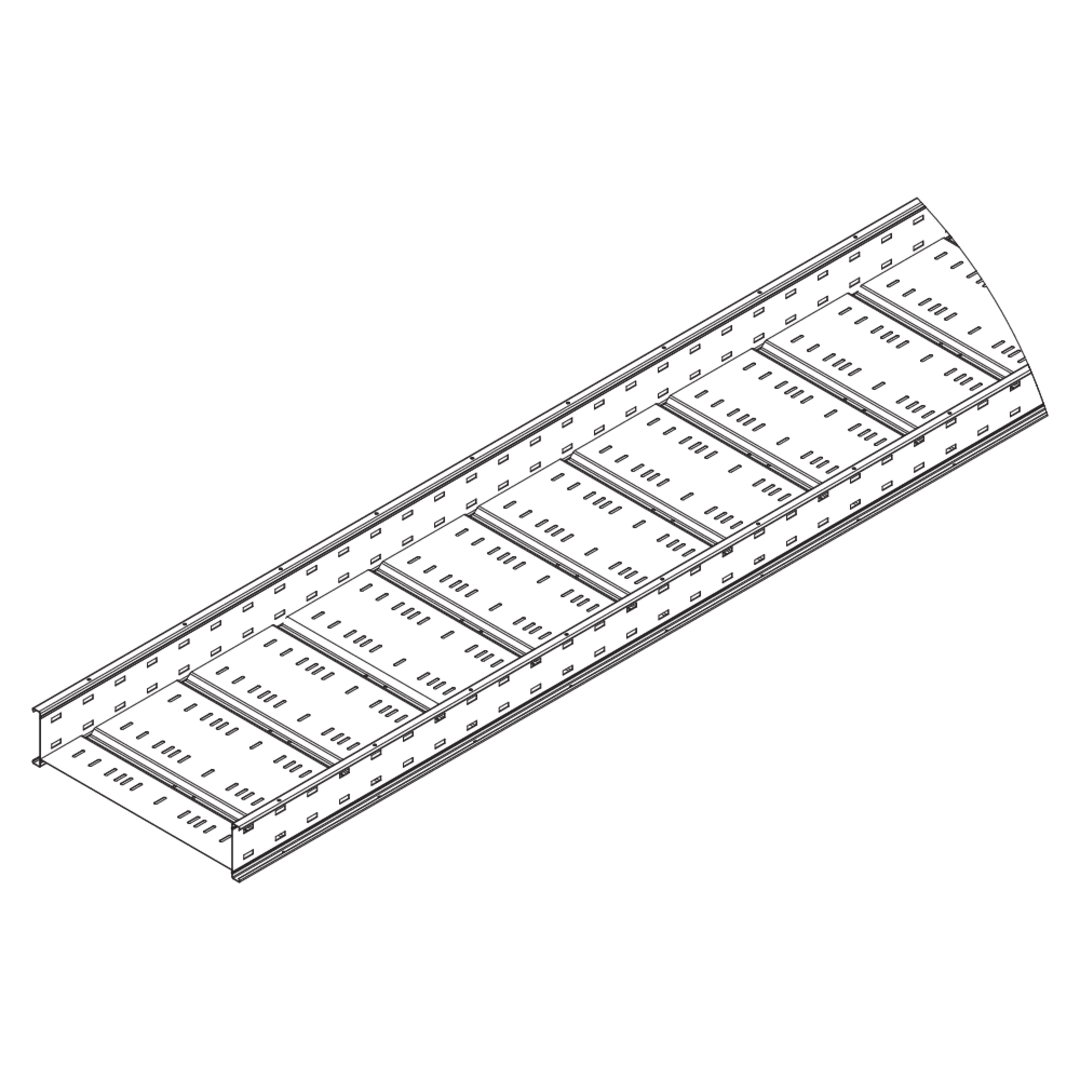

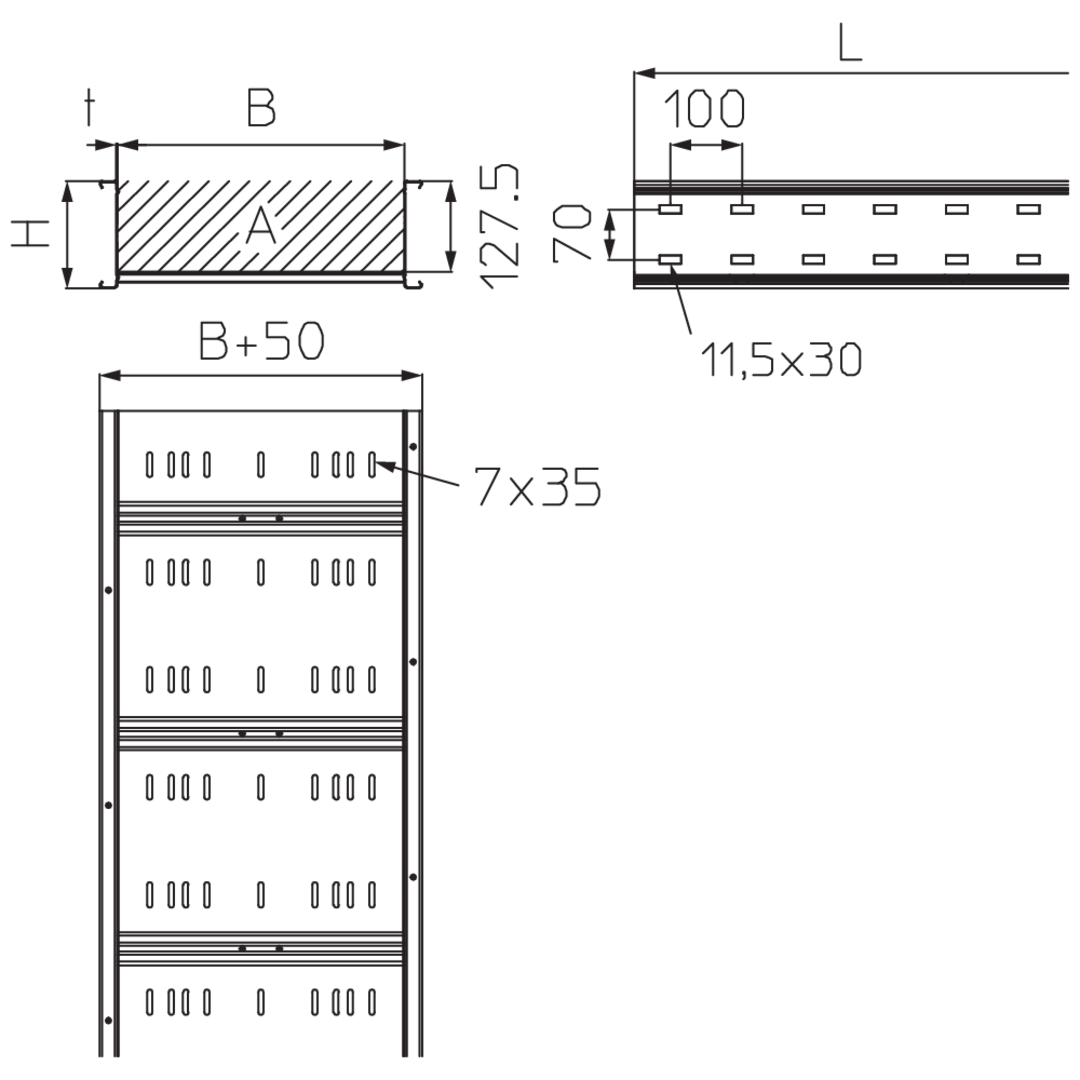

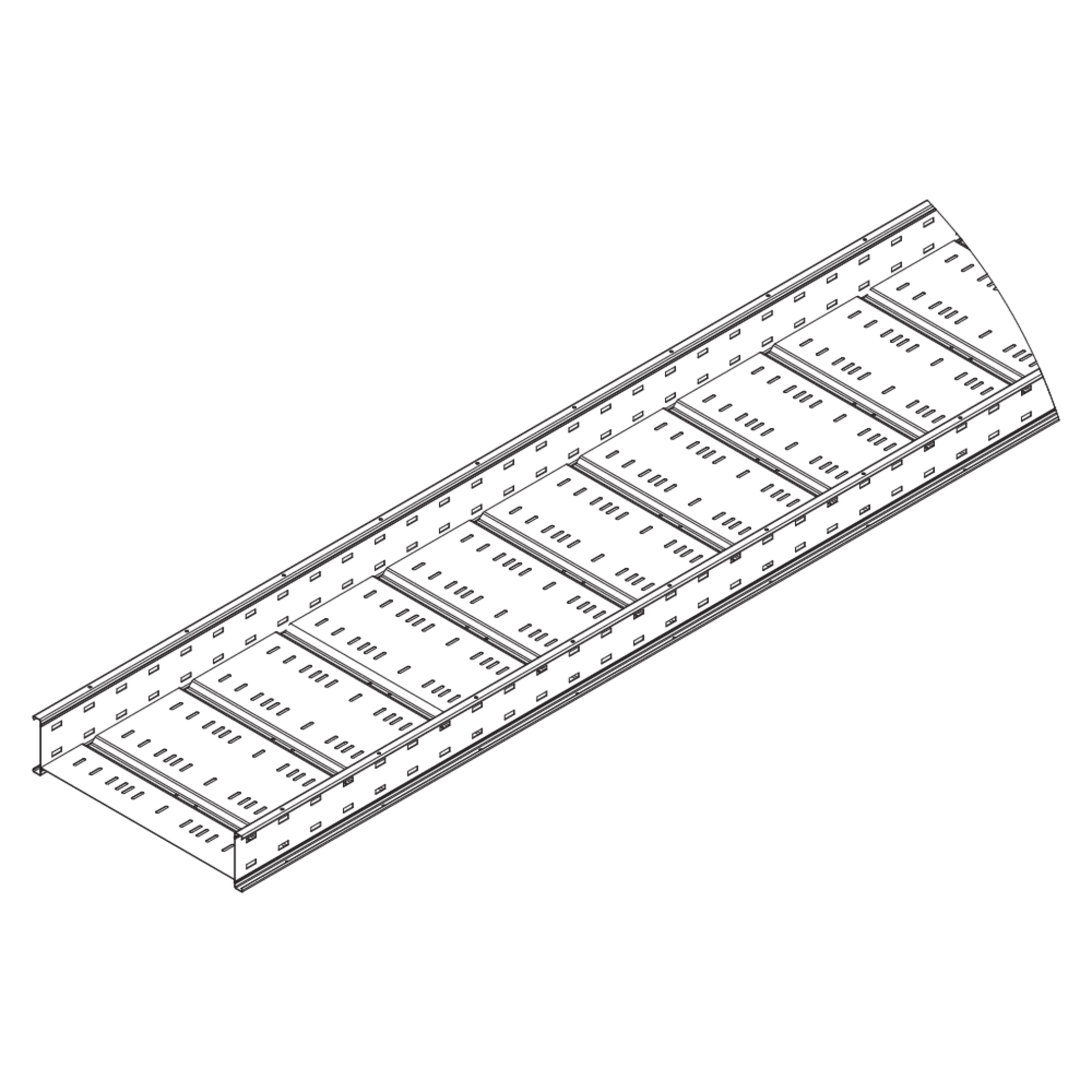

The wide-span cable trays WPR 150 have rails 150 mm high and are available in widths of 200 to 600 mm. The standard length is 6000 mm. The maximum load capacities can only be achieved by using the rail supports. The wide-span spar supports are to be used for fastening to the substructure. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Betreten verboten
Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

Article

H

HH

B

L

t

QSK

A

W

  • WPR 150-20S
    Wide-span cable tray WPR 150-20S
    150 mm
    150 mm
    200 mm
    6000 mm
    1.75 mm
    0.38 kN/m
    256 cm2
    45.130 kg
    More information
  • WPR 150-30S
    Wide-span cable tray WPR 150-30S
    150 mm
    150 mm
    300 mm
    6000 mm
    1.75 mm
    0.58 kN/m
    384 cm2
    50.810 kg
    More information
  • WPR 150-40S
    Wide-span cable tray WPR 150-40S
    150 mm
    150 mm
    400 mm
    6000 mm
    1.75 mm
    0.77 kN/m
    512 cm2
    56.680 kg
    More information
  • WPR 150-50S
    Wide-span cable tray WPR 150-50S
    150 mm
    150 mm
    500 mm
    6000 mm
    1.75 mm
    0.96 kN/m
    640 cm2
    62.550 kg
    More information
  • WPR 150-60S
    Wide-span cable tray WPR 150-60S
    150 mm
    150 mm
    600 mm
    6000 mm
    1.75 mm
    1.15 kN/m
    768 cm2
    68.410 kg
    More information

steel, batch/hot-dip galvanized

Article

H

HH

B

L

t

QSK

A

W

  • WPR 150-20F
    Wide-span cable tray WPR 150-20F
    150 mm
    150 mm
    200 mm
    6000 mm
    1.75 mm
    0.38 kN/m
    256 cm2
    48.280 kg
    More information
  • WPR 150-30F
    Wide-span cable tray WPR 150-30F
    150 mm
    150 mm
    300 mm
    6000 mm
    1.75 mm
    0.58 kN/m
    384 cm2
    54.360 kg
    More information
  • WPR 150-40F
    Wide-span cable tray WPR 150-40F
    150 mm
    150 mm
    400 mm
    6000 mm
    1.75 mm
    0.77 kN/m
    512 cm2
    60.640 kg
    More information
  • WPR 150-50F
    Wide-span cable tray WPR 150-50F
    150 mm
    150 mm
    500 mm
    6000 mm
    1.75 mm
    0.96 kN/m
    640 cm2
    66.920 kg
    More information
  • WPR 150-60F
    Wide-span cable tray WPR 150-60F
    150 mm
    150 mm
    600 mm
    6000 mm
    1.75 mm
    1.15 kN/m
    768 cm2
    73.200 kg
    More information

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

HH

B

L

t

QSK

A

W

  • WPR 150-20E
    Wide-span cable ladder WPL 150-20E
    150 mm
    150 mm
    200 mm
    6000 mm
    1.8 mm
    0.38 kN/m
    256 cm2
    48.800 kg
    More information
  • WPR 150-30E
    Wide-span cable ladder WPL 150-20E
    150 mm
    150 mm
    300 mm
    6000 mm
    1.8 mm
    0.58 kN/m
    384 cm2
    55.680 kg
    More information
  • WPR 150-40E
    Wide-span cable ladder WPL 150-20E
    150 mm
    150 mm
    400 mm
    6000 mm
    1.8 mm
    0.77 kN/m
    512 cm2
    62.800 kg
    More information
  • WPR 150-50E
    Wide-span cable ladder WPL 150-20E
    150 mm
    150 mm
    500 mm
    6000 mm
    1.8 mm
    0.96 kN/m
    640 cm2
    69.920 kg
    More information
  • WPR 150-60E
    Wide-span cable ladder WPL 150-20E
    150 mm
    150 mm
    600 mm
    6000 mm
    1.8 mm
    1.15 kN/m
    768 cm2
    77.020 kg
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

H

HH

B

L

t

QSK

A

W

  • WPR 150-20E4
    Wide span cable tray
    150 mm
    150 mm
    200 mm
    6000 mm
    1.8 mm
    0.38 kN/m
    256 cm2
    49.420 kg
    More information
  • WPR 150-30E4
    Wide span cable tray
    150 mm
    150 mm
    300 mm
    6000 mm
    1.8 mm
    0.58 kN/m
    384 cm2
    56.400 kg
    More information
  • WPR 150-40E4
    Wide span cable tray
    150 mm
    150 mm
    400 mm
    6000 mm
    1.8 mm
    0.77 kN/m
    512 cm2
    63.600 kg
    More information
  • WPR 150-50E4
    Wide span cable tray
    150 mm
    150 mm
    500 mm
    6000 mm
    1.8 mm
    0.96 kN/m
    640 cm2
    70.800 kg
    More information
  • WPR 150-60E4
    Wide span cable tray
    150 mm
    150 mm
    600 mm
    6000 mm
    1.8 mm
    1.15 kN/m
    768 cm2
    78.000 kg
    More information

Details

  • Betreten verboten

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Accessories

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Rote Mappe - Funktionserhalt Tragkonstruktion DIN 4102-12

    Gesamtkatalog

    PDF, 29 MB

    de
    Download

  • Technische Information Estrichbündige Kanalsysteme

    Montageanleitung

    PDF, 2 MB

    de
    Download

  • Test Report RAPIDOBAT® Cretcon HD

    Technische Information

    PDF, 4 MB

    de en

  • Montageanleitung Einzelauslass eckig Hohlraumbodendosen

    Kompaktübersicht

    PDF, 1 MB

    de
    Download

  • Electrical conductivity (WP/WPL 100)

    Certificate, tested according to DIN EN 61537 Pt. 11.1

    PDF, 263 KB

    de en

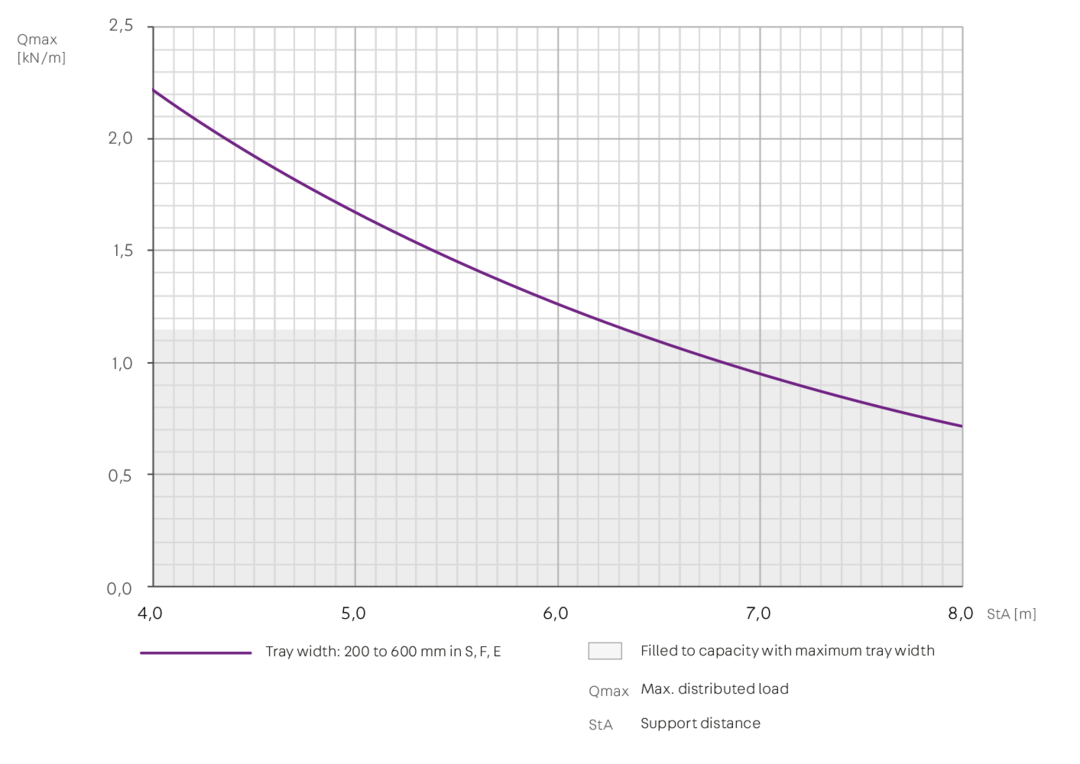

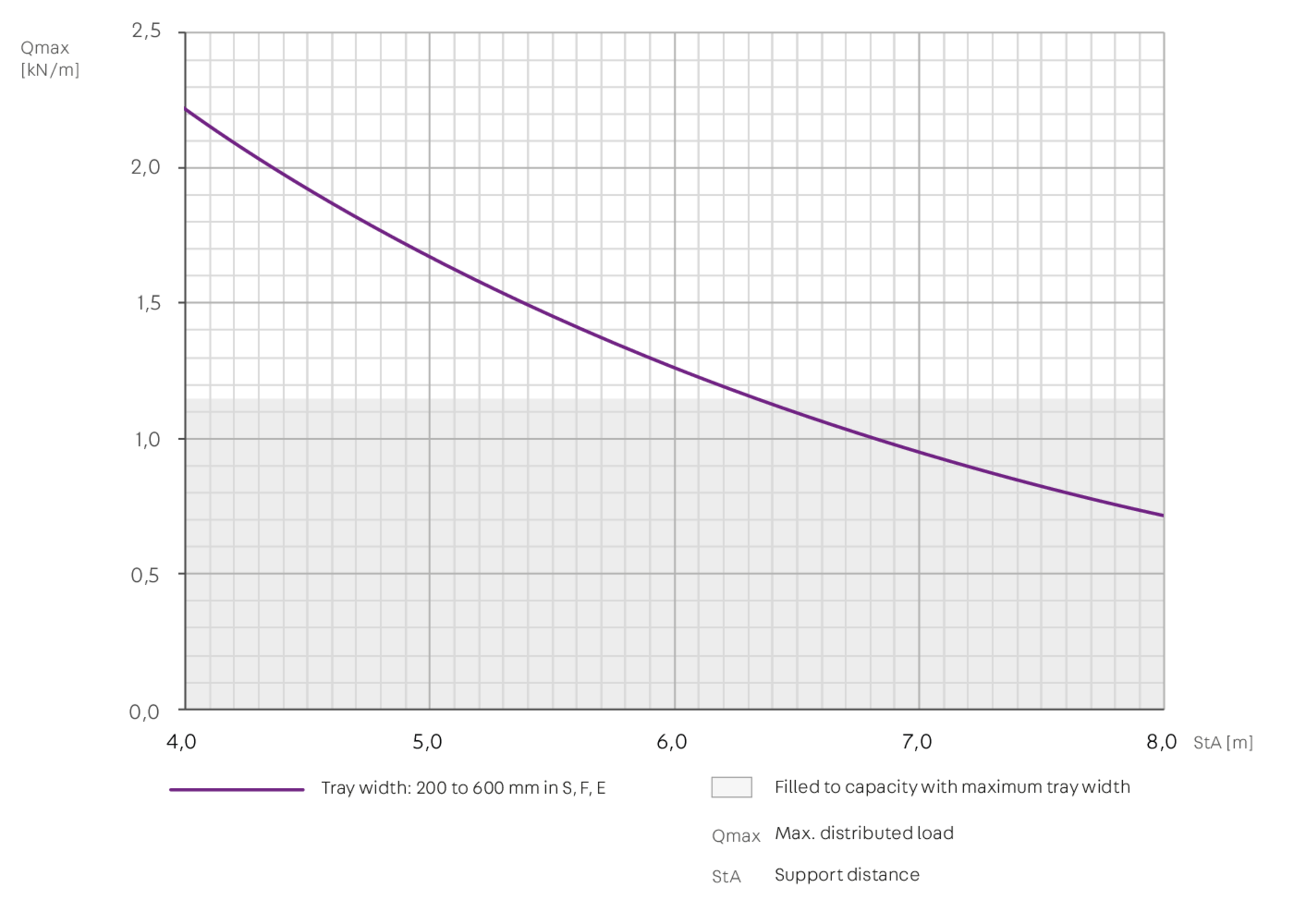

Load diagram

Included accessories
